5t hydraulic diesel forklift/price of forklift

Payment Terms: TT or LC

Ref Price : 8000-12000 USD/SET

Supply Capability : 5000 SET

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Type:
    diesel forklift
  • Power Souce:
    Diesel Engine
  • Max. Lifting Height:
    3000mm
  • Min. Lifting Height:
    150mm
  • Fork Length:
    1070mm
  • Fork Width:
    125mm
  • Overall Dimensions:
    9.872CBM
  • Certification:
    CE, BV, SGS
  • Warranty:
    1 Year
  • After-sales Service:
    Field installation, commissioning and training, Engineers
  • Color:
    Red
  • Supply Ability:
    5000 Set/Sets per Year
  • Packaging Details:
    standard shipping packaging for price of forklift

Product Detail

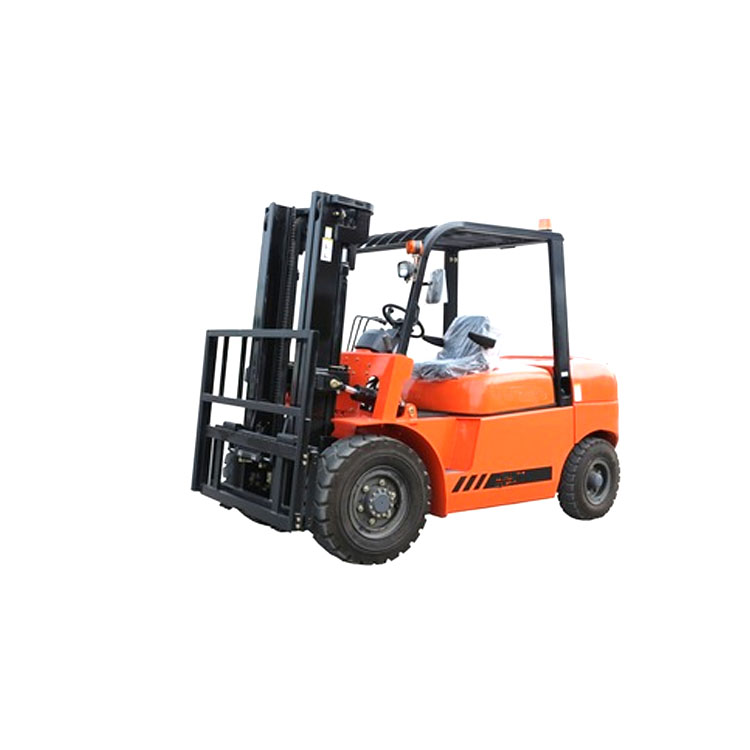

      4.5T COUNTER BALANCE DIESEL FORKLIFT/ price of forklift
SPECIFICATION
Model Unit CPC45/CPCD45
Power type
Diesel
Rated capacity kg 4500
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 150
Fork size(L*W*T) mm 1070×150×50
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 545
Exterior Size Length without fork mm 2900
Overall width mm 1480
Mast drop mm 2230
Max.lift mm 4200
Front-wheel Overhead mm 2300
Min Turning Radius mm 2740
Min.intersecting aisle mm 3365
Speeds Max Driving speeds km/h 19/21
Lifting speeds mm/s 500/530
Lowering speeds mm/s ≤600
Max.grade ability % 27/20
Total weight kg 6400
Tires Front
300-15-18PR
Rear
7.00-12-12PR
Wheelbase mm 2000
Tread Front mm 1180
Rear mm 1190
Min.ground clearance mm 155
Engine Model
4108
Rated output kw/rpm 59/2400
Rated torque N.m/rpm 288/1600
No.of cylinder
4
Displacement L 4.33
Fuel tank capacity L 95

Product Show












   Tianjin Haishan Steel Plate Co., Ltd. is a manufacturing enterprise specialized in manufacturing hot-dip galvanized sheets and strips. The company is located in Shuangtang High-grade Hardware Industrial Park, Jinghai County, Tianjin.  Also this is situated 30km away from Tianjin City, 107km away from Tianjin Port and 66km away from Tianjin Binhai International Airport. The total investment of the company is RMB 800 million and has a registered capital of RMB 410 million.

Haigang has advanced continuous production lines of pickling, cold rolling and hot galvanizing, with annual capacity of 1 million tons.The main products are galvanized strip steel, pickling strip steel and cold rolled strip steel with width of 860mm or less, zinc content of 40g-600g and thickness of 0.3mm-5.0mm.Widely used in the construction industry, machinery manufacturing industry, automobile industry, household appliances and other fields.Our products have been sold to Europe, America, central Asia, southeast Asia, etc.

Haigang always adheres to technological innovation, strengthens internal management, optimizes product structure, and improves product quality. It is the first company in the industry to pass the certification of GB/ t19001-2008 quality management system, GB/ t24001-2004 environmental management system, and GB/ t28001-2011 occupational health and safety management system."Hai gang" brand galvanized steel strip has also been awarded the honorary title of "tianjin famous brand product".

Haigang has been building its enterprise brand with integrity, taking technological innovation as the driving force, taking product quality as the basis, taking customer value as the goal, and taking common development with customers as the enterprise purpose.Is a win-win cooperation partner with you.
