Black Omega Profile Steel factory from China

  • Ref Price :
  • Supply Capability :
  • Port : TianJin
  • Payment Terms : TT or LC

600-800 USD/TON

150 TON

15000 TON

TT , LC , Others

TT , LC , Others

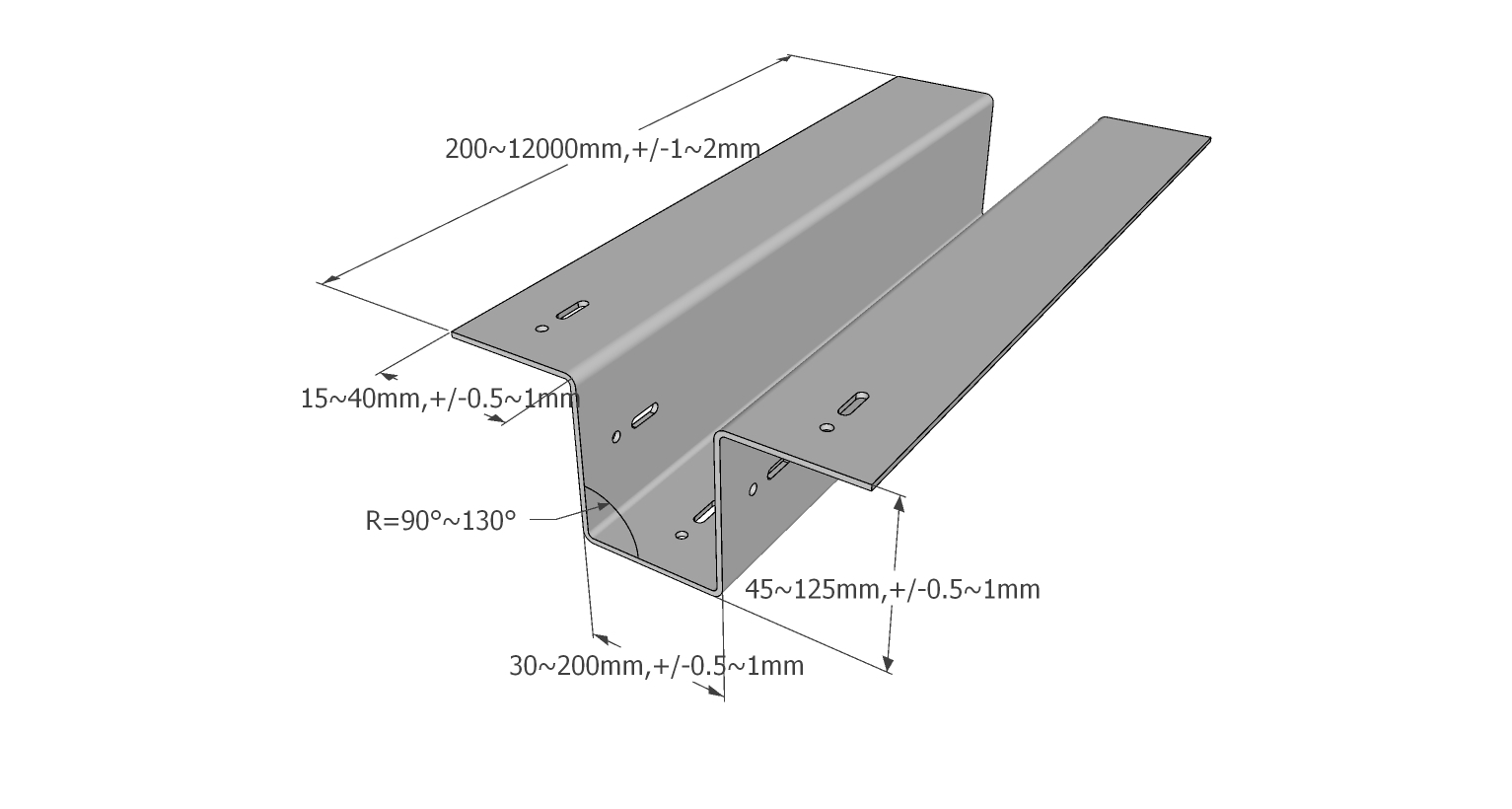

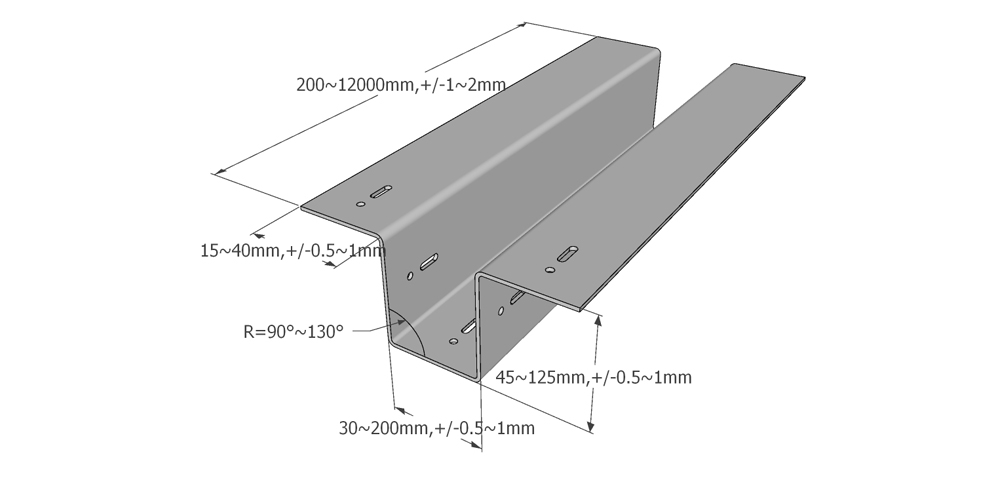

Omega profile steel specification:


Size Tolerance Remark
Model/Width 30-200 mm ±0.5-1mm




All of the spec. could be adjusted in accordance with buyer's direction

Height 45-125 mm ±0.5-1mm
Wing 15-40 mm ±0.5-1mm
Thickness 1.7-2.7 mm ±0.1mm
Length 200-12000 mm ±1-2mm
Hole Diameter At buyer's option ±0.5mm
R Angle 90°-130° At buyer's option


ZM310 Omega Profile (galvanized aluminum-magnesium coating) advantages:


●Steel Omega section matches to excellent plasticity and flexibility, high structural stability and more sensitive construction.



●We offer an extensive range of standard steel Omega-sections, which can be customized during the process e.g. fitted with a pre-punched hole pattern. We are also experts in developing custom made Omega-sections. All products are cut from large steel coils and thus your Omega-sections can be fully customized to your specifications: no matter the size, thickness, complexity, material specifications or finish.



●The raw materials of galvanized aluminum-magnesium use POSMAC, Nippon Steel,  domestic materials normally use Rizhao Steel, HBIS, and JISCO Steel, the original material brands are selected according to the requirements of different countries and customers. Its service life is up to 50 years.


ZM310 Omega Profile Detailed Information:


Product Name:

Solar Panels Omega Profile Steel,Support For PV Project
Specification: b=20mm-170mm; a=6mm-50mm; h=25mm-500mm; t=0.8mm-10mm.or as request.
Length: 1-15m or as request
Weight: 1.7-45kg/m
Standard: AISI ASTM BS DIN GB JIS ETC
Surface treatment: Punch Hole, Black or Galvanized or Polished
Productivity: 6500MT/MONTH
Band Name: Sino East


Sino East uses a modern production line to produce omega profile steel,which is produced quickly according to the best quality requirements. If you want to use pre-punched holes for your part, you can use our modern equipment to do it quickly and efficiently.Guarantee the highest quality and on-time delivery of our cold rolled steel sheets, ensuring that you can move forward without delay.


Our omega profile features:


●Advanced equipment can make sure exactly size and high quality products.

●Raw material of galvanized omega steel profiles is high quality hot dipped galvanized steel strip, absolute damp proof ,high rust resistance, heat insulation and high durability.

● The specification can follow up customer requirments.


If you want to use pre-punched holes for your steel omega profile, you can use our modern equipment to do it quickly and efficiently. Guarantee the highest quality and on-time delivery of our galvanized omega profile products, ensuring that you can move forward without delay.
