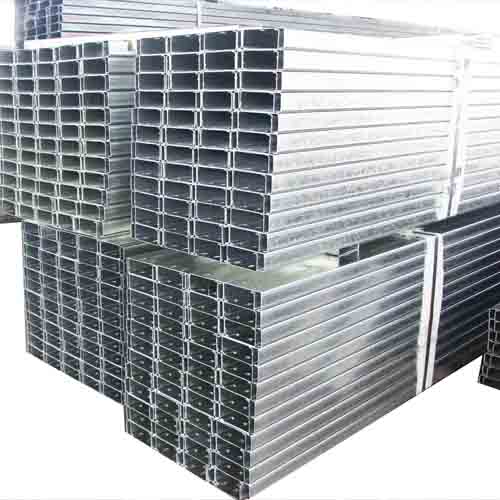

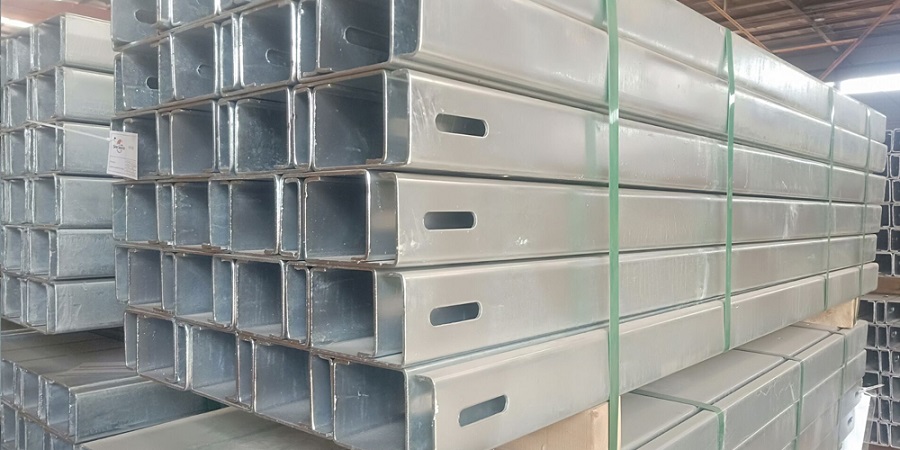

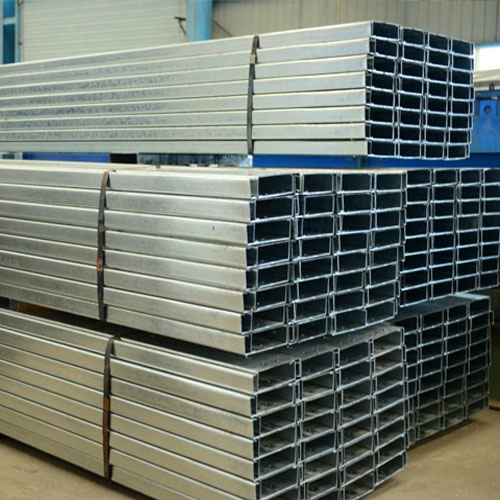

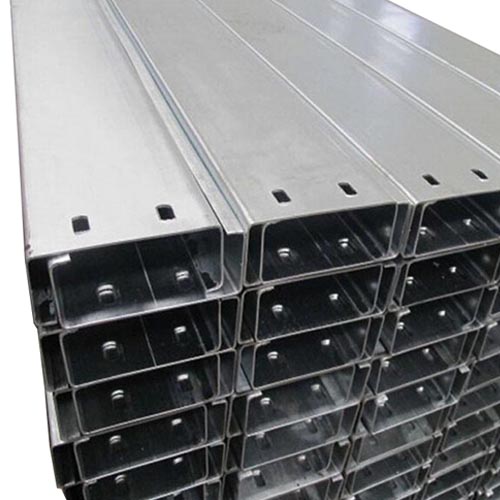

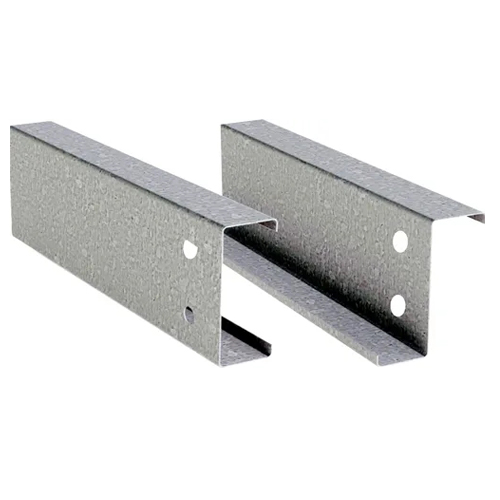

Solar Panels C Profile Steel,Support For PV Project

  • Ref Price :1-2 USD/TON
  • Supply Capability :15000 TON
  • Port : TianJin
  • Payment Terms : TT or LC


Tianjin, China (Mainland)

ASTM-A36, ASTM-A572, ST-37, ST-52, S235JR, S355JR, SS400, SS550, etc

C Channel

Sino East

Is Perforated

Solar Structure

Galvanized Coated CE1461

Colour Painting TITANPOL400

As Customer's Drawing


C profile steel is automatically processed by C profile steel forming machine. The forming machine can high efficiently finish the forming process of Steel C Profile and Fabricate the C section steel according to the sizes customized by buyers. For recent years we have involved into new business as solar panel mounting structure as well, for short period we have won so many loyal buyers of solar mounting supports sourcing. Till now we have owned many advanced equipment and senior technicians for fabrication of solar panel mounting structure such as C steel profile, Z solar mounting brackets, H beams and so on. C steel profile products with so many outstanding features are really popular for sorts of industries. In industry of solar panel mounting frame, C profile also widely is applied. Below is concrete detail about it.

Advantage of C Profile:

●Stee C profile matches to excellent plasticity and flexibility, high structural stability and more sensitive construction.

●The steel structure by C profile is enough light comparing with the concrete structure, moreover self-weight C profile itself is more lighter, so the self-weight of whole steel structure is reduced indeed.

●Steel structure by C profile could realize simple construction, lower the cost and less demand for construction requirement.

●C steel profile is easy to fabricate, construct and connect, meanwhile it is also convenient to knock-down and reuse.

●Free sample could be available for the oversea buyers, and for length and surface treatment, we may finish and process C profile by customers' demand.

Company Services:

If the buyers want pre-punched holes for the C section steel or related machining before buying in bulk, we may help to process it by the quick and efficient modern equipment. Guarantee the highest quality and on-time delivery of any sorts of steel products such as C steel profile, hot-rolled steel coil, cold rolled steel sheets, etc. In meantime ensuring that you can move forward without delay.

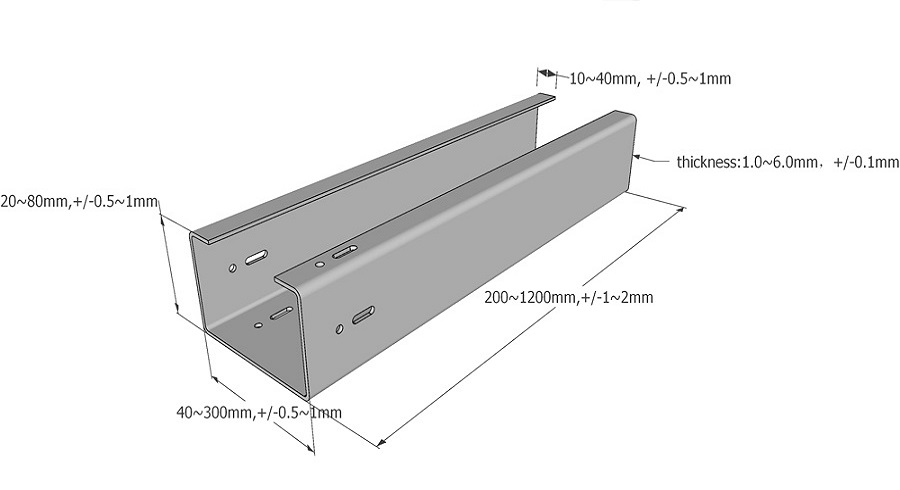

Part of c profile steel specification reference table:



Bottom edge    height Inner    roll width   thickness

Cross-sectional area


     Theoretical weight


C80          80          40            15          2.0 3.64
C100         100           50            15          2.5 5.5 4.32
C120         120          50            20          2.5 6.25 4.91
C140         140          60            20          3.0 8.64
C160         160          70            20          3.0 9.84 7.72
C180         180          70            20          3.0 10.44
C200         200          70            20          3.0 10.44 8.67

The above list is only parts of regular model specifications of c profile steel. The buyers who expect to know more details can leave a message to Sino East Steel,and all questions raised by you will be patiently answered by our senior representatives.
