Tianjin Haigang Steel Sheet CO Ltd

China engineering&construction machinery/earth-moving machinery wheel loader/mini 1-2 t wheel loader

Payment Terms: TT or LC

Ref Price : 9500-12500 USD/SET

Supply Capability : 100 SET

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Type:
    Mini Loader
  • Moving Type:
    Wheel Loader
  • Dimension:
    4200*1520*2450mm
  • Rated Load:
    1000kg
  • Certification:
    CE Certificate
  • Model Number:
    SK910
  • Color:
    Customer's Requiement
  • After-sales Service:
    rovided: No overseas service provided
  • Warranty:
    1 Year

Mini wheel loader with CE paper, hot selling in European Market:

Item

Specification

Item

Specification

weight

3300kg

Max. Speed

40km/h

bucket capacity

0.45m³

Max. tractive force

22kN

Rated load

1000kg

transmission type

Planet differential, first stage deceleration

Max. breakout force

32kN

Tyre specification

400/60-15.5

Max. Grade ability

40%

Min. turning radius

3240mm

Steering angle

32°each side

steering system Type

Articulated load-sensing hydraulic

ENGINE Model (29.4kW)

Xinchai B490BT

HYDRAULIC SYSTEM (working pressure)

18MPa

Lifting time

5s

Parking brake

Manual internal expanding shoe-type

Total time

10s

BRAKE SYSTEM

TRANSMISSION SYSTEM

Type of gear box

Axis-fixed, double reduction

Hydrostatic transmission

Hydraulic torque converter

Fuel tank

36L

Hydraulic oil tank

36L

Gear shift

(forward and reverse)

step less speed reduce

Overall dimension

4200*1520*2450mm

Main Configuration:

China Xinchai engine( Cummins optional),

Hydraulic torque converter system ,

Luxury FOPS/ROPS cabin with front/rear wiper, warm heater

Hydraulic quick hitch (Q/H),

Pilot control,

Automatic leveling lift structure,

Back camera,

LED light,

400/60-15.5 tyre,

Four way pilot control,

Electric joystick gear shift,

Engine pre-heater,

Floating function.

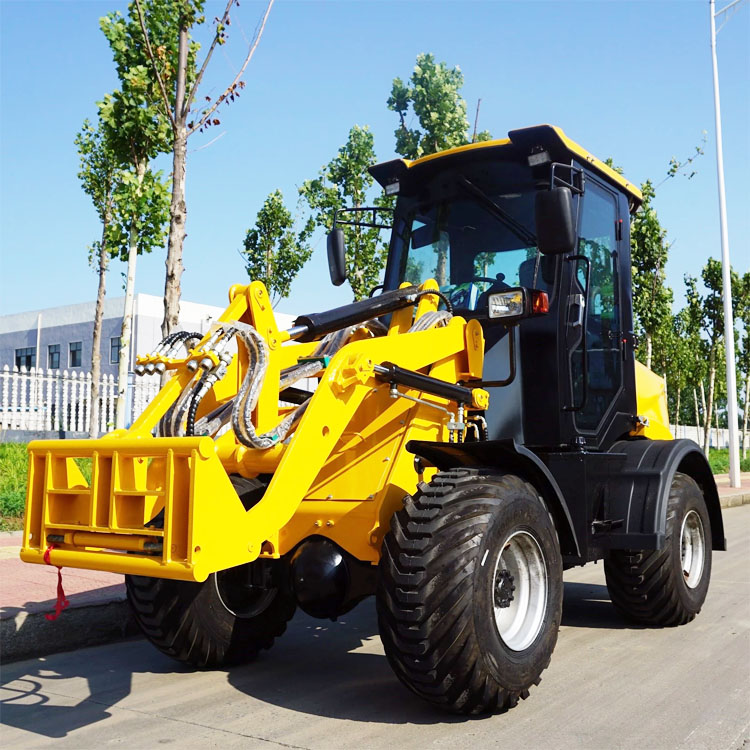

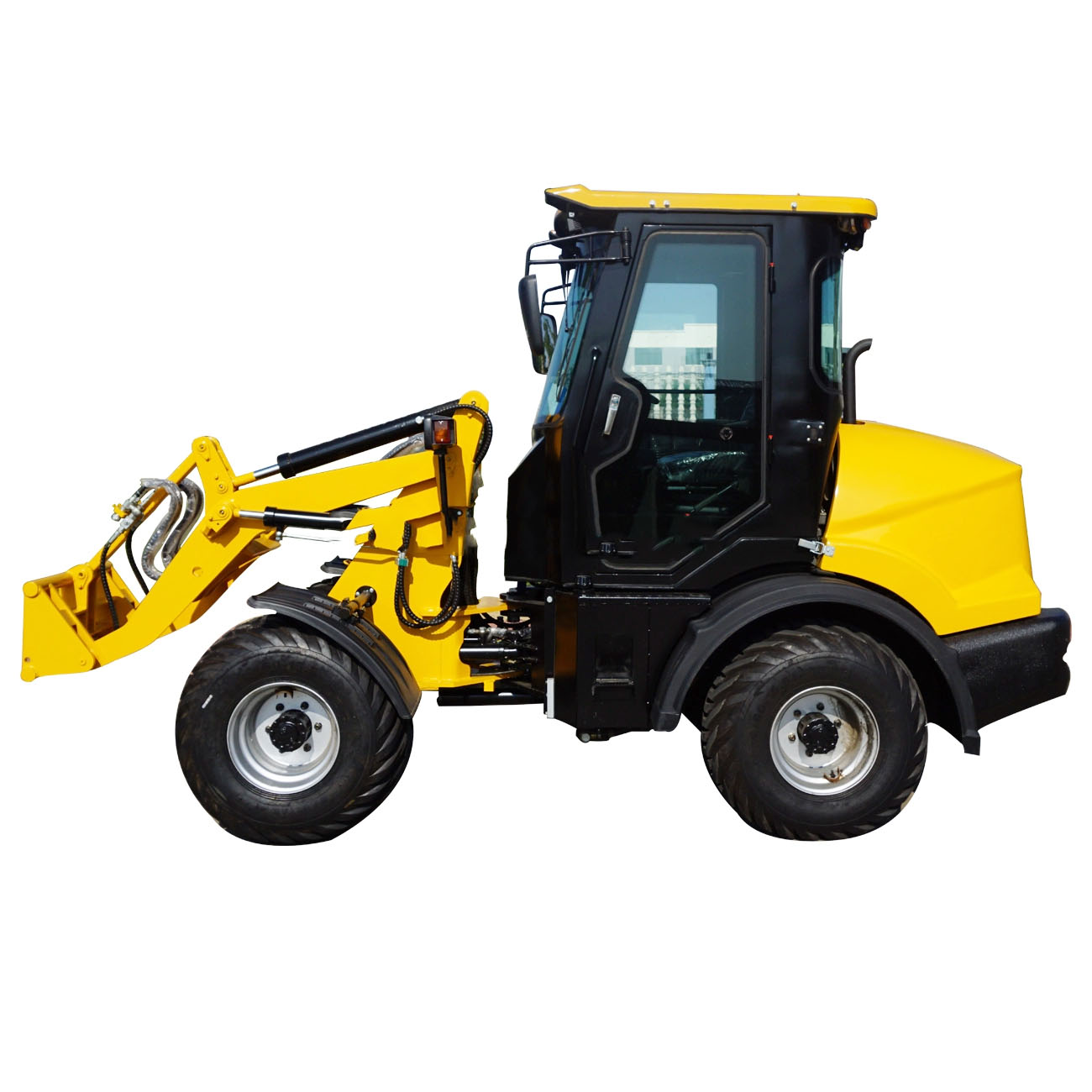

Pictures
