colorful metal steel glazed tile roofing used panel tile making machine

Payment Terms:TT or LC

Ref Price: 30000-15000 USD/TON

Supply Capability : 10 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Condition:
  • Tile:
    Forming Machine
  • Use :
    House Structure
  • Place of Origin:
    Tianjin, China
  • Model Number :
  • power:
  • voltage:
    380v 50hz 3phases
  • Weight :

Product Detail:

Echnical parameters

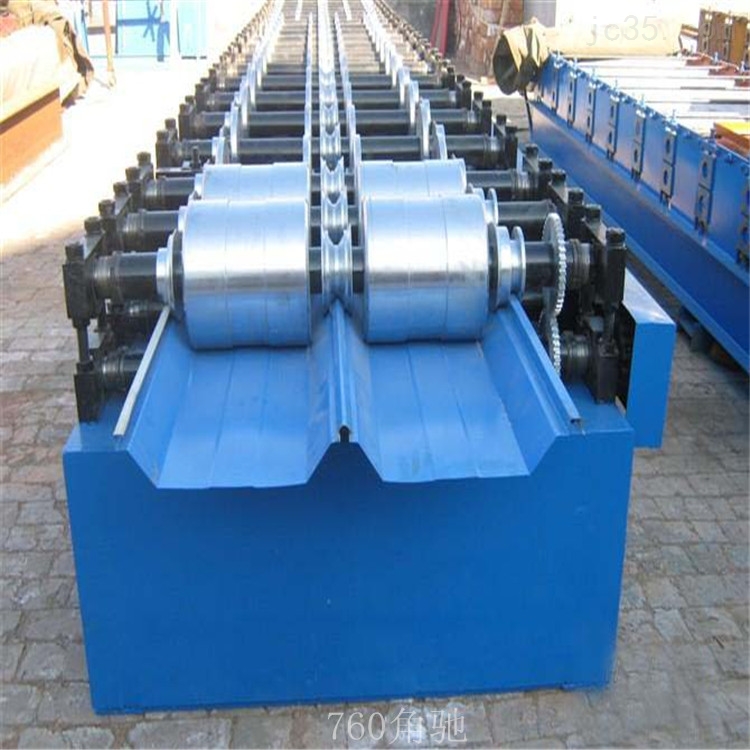

Botou   price colorful metal steel glazed tile roofing used panel tile making machine

Suitable to process

Color steel plate, galvanized sheet,   aluminum coils and etc

Width of the feeding  material


Roller station

11 rows

Thickness of feeding material


Power Supply

380V, 3-Phase,50Hz



Rollers' material

45# steel

Diameter of shaft


Roller Diameter


Wall thickness of main forming   machine

14mm steel plate

Main forming machine body

300 mm H steel

Motor power


Cutter Standard





About 3.5T


According to customer's requirements



Process Detail:

1 computer Control Cabinet

Programmable setting of profile   length and quality, computed mode has two modes automatic and manual one

2 Hydraulic Systerm

1 power:4kw

2 Hydraulic oil:46# hydrulic oil

3 Working pressure:12-16mpa ajustable

4 Solenoid valve:1 group

5 Color”Blue(or as customer” request

3 Manual uncoiler

1 loading capacity:5t

2 inner diameter:500-508mm

3 steel coil width:1300mm

4 maximal out diameter:1250mm

5 Coil placement in the coil holder   hydrulic hoist

6 working speed:0-15m/min adjustable

4 Receiving Table

Main framework adopts welded steel   and support roller, used for transmit and collect the finished products

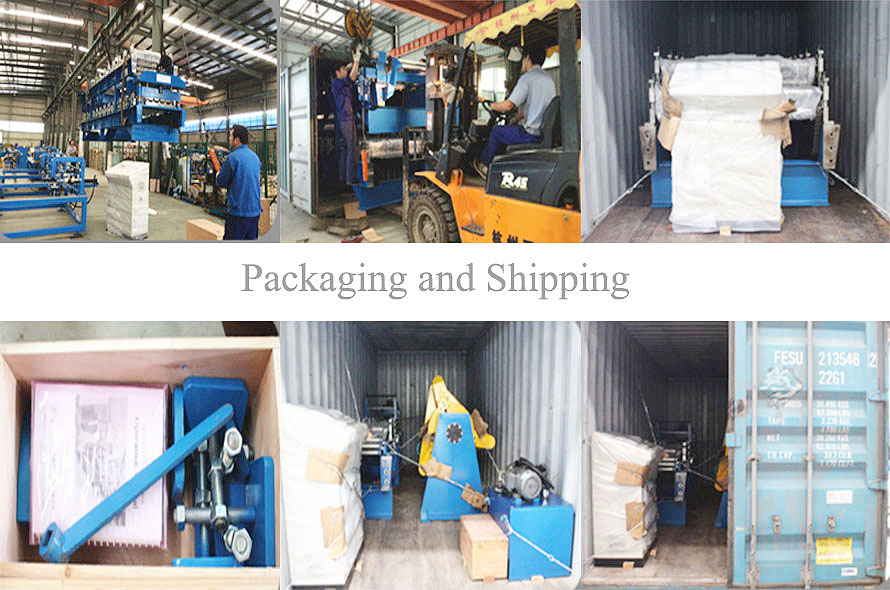

Packing & Delivery:


1We have our own factory to produce our products.


2We have a number of excellent line service team.


3We offer a full range of quality assurance services.



Q: May I have some samples before bulk order?

A: Yes, you can. We can arrange the shipment according to your requirements.


Q: Do you have quality control?

A: Sure. We have the most advanced testing equipment for very strict quality control.


Q:How about the delivery?

A: By containers on ship or railway wagon ,and bulk ship . Safe and cost effective way of delivery .


QWhat about the lead time for mass production?

AHonestly, it depends on the order quantity and the season you place the order.


Zhong Ding Shi Ji introduce the newest development technology service system. Such as overall planing ,design ,project management, internal and external decoration, materials purchasing and supplying, cost control ,technical guidance and management .With new format mode integrating design ,manufacturing, integration, construction and marketing planing of the light steel house,we set up a great cooperation platform to developers, property owners and us.It will be more conductive to build construction products which can meet the demanding of customers compare with traditional model.In this way Zhong Ding Shi Ji ensure best quality in each link , and provide High-end building house.
