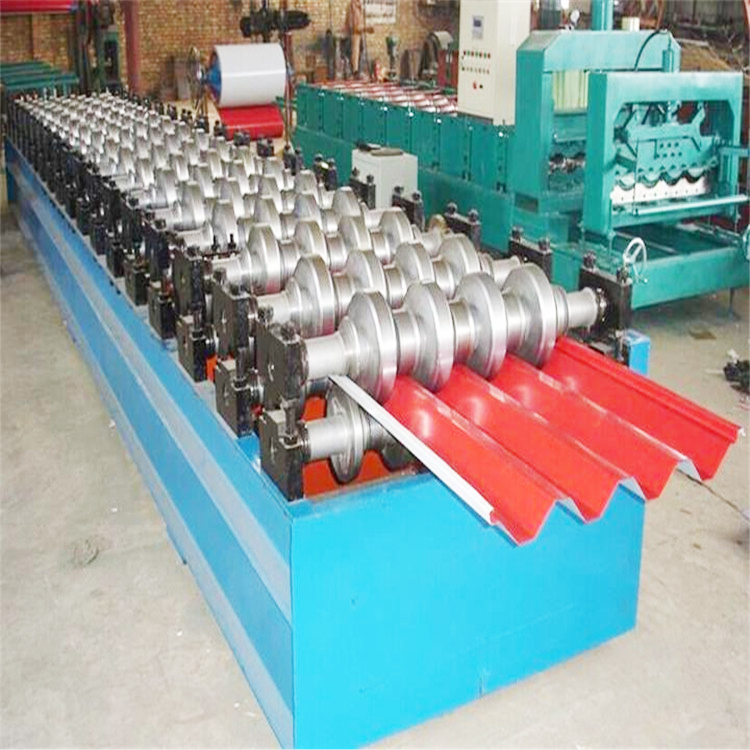

light steel keel Metal furring channel house structure roll forming machine with punching hole

Payment Terms: TT or LC

Ref Price : 3000-150000 USD/TON

Supply Capability : 10 TON

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Type:
    The Forming Machine
  • Use :
    House Structure
  • Place of Origin:
    Tianjin, China
  • Power :
    7.5kw
  • warranty:
    12month
  • Raw Material :
    Color Steel Sheet
  • Color :
    Clients's request



Product Detail:

Echnical parameters


Name

building material metal   galvanized plate corrugated arch roofing sheet roll forming machine

Width of the feeding material

1000mm



Roller station

9 rows

Thickness of feeding material

0.3-0.8mm

Power Supply

380V, 3-Phase,50Hz

Productivity

8-12m/min

Rollers' material

45# steel

Diameter of shaft

75mm

Roller Diameter

80mm

Wall thickness of main forming machine

14mm steel plate

Main forming machine body

300 mm H steel

Motor power

4+3kw

Cutter Standard

GCr12

Size

7500*1500*1600mm

Weight

About 3.5T

Custom

According to customer's requirements

Product:



Process Detail:

1 Suitable to process

Programmable setting of profile length and quality, computed   mode has two modes automatic and manual one

2 Hydraulic Systerm

1 power:4kw

2 Hydraulic oil:46# hydrulic oil

3 Working pressure:12-16mpa ajustable

4 Solenoid valve:1 group

5 Color”Blue(or as customer” request

3 Manual uncoiler

1 loading capacity:5t

2 inner diameter:500-508mm

3 steel coil width:1300mm

4 maximal out diameter:1250mm

5 Coil placement in the coil holder hydrulic hoist

6 working speed:0-15m/min adjustable

4 Receiving Table

Main framework adopts welded steel and support roller, used   for transmit and collect the finished products



Packing & Delivery:

Advantages:



1We have our own factory to produce our products.



2We have a number of excellent line service team.



3We offer a full range of quality assurance services.

FAQ:





Q: May I have some samples before bulk order?

A: Yes, you can. We can arrange the shipment according to your requirements.





Q: Do you have quality control?

A: Sure. We have the most advanced testing equipment for very strict quality control.



Q:How about the delivery?

A: By containers on ship or railway wagon ,and bulk ship . Safe and cost effective way of delivery .



QWhat about the lead time for mass production?

AHonestly, it depends on the order quantity and the season you place the order.











   Tianjin Haishan Steel Plate Co., Ltd. is a manufacturing enterprise specialized in manufacturing hot-dip galvanized sheets and strips. The company is located in Shuangtang High-grade Hardware Industrial Park, Jinghai County, Tianjin.  Also this is situated 30km away from Tianjin City, 107km away from Tianjin Port and 66km away from Tianjin Binhai International Airport. The total investment of the company is RMB 800 million and has a registered capital of RMB 410 million.

Haigang has advanced continuous production lines of pickling, cold rolling and hot galvanizing, with annual capacity of 1 million tons.The main products are galvanized strip steel, pickling strip steel and cold rolled strip steel with width of 860mm or less, zinc content of 40g-600g and thickness of 0.3mm-5.0mm.Widely used in the construction industry, machinery manufacturing industry, automobile industry, household appliances and other fields.Our products have been sold to Europe, America, central Asia, southeast Asia, etc.

Haigang always adheres to technological innovation, strengthens internal management, optimizes product structure, and improves product quality. It is the first company in the industry to pass the certification of GB/ t19001-2008 quality management system, GB/ t24001-2004 environmental management system, and GB/ t28001-2011 occupational health and safety management system."Hai gang" brand galvanized steel strip has also been awarded the honorary title of "tianjin famous brand product".

Haigang has been building its enterprise brand with integrity, taking technological innovation as the driving force, taking product quality as the basis, taking customer value as the goal, and taking common development with customers as the enterprise purpose.Is a win-win cooperation partner with you.
