AISI, ASTM, BS, DIN, GB, JIS
AISI, ASTM, BS, DIN, GB, JIS
Tianjin, China (Mainland)
Sino East
Ω Profile
Application
Is Perforated
Galvanized Coated EN1461
Colour Painting TITANPOL400
As Customer's Drawing
Yes
600-800 USD/TON
100 TON
5000 TON
TT , LC , Others

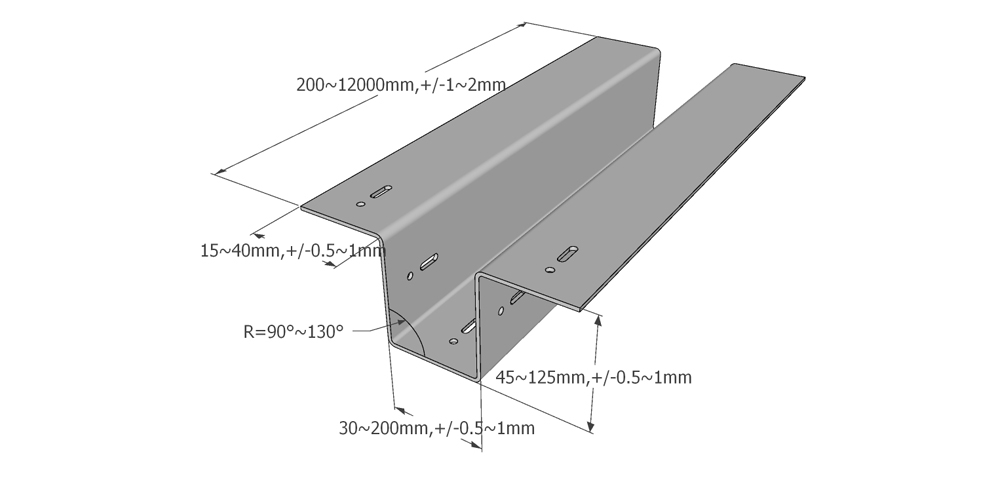

Omega profile steel specification:
| Size | Tolerance | Remark | |
| Model/Width | 30-200 mm | ±0.5-1mm |
All of the spec. could be adjusted in accordance with buyer's direction |
| Height | 45-125 mm | ±0.5-1mm | |
| Wing | 15-40 mm | ±0.5-1mm | |
| Thickness | 1.7-2.7 mm |
±0.1mm | |
| Length | 200-2000 mm | ±1-2mm | |
| Hole Diameter | At buyer's option | ±0.5mm | |
| R Angle | 90°-130° | At buyer's option |
Pre Galvanized Omega Profile Advantages:
●We supply different shape of cold bent steel profiles, which are made of high quality steel coils of grade SS275JR, SS355JR according to customer's requirement for strength and yield.These cold formed beam are widely used in construction solar energy project due to their features of light weight and high strength.
●Pre galvanizing can reach an average of 40μm~70μm (zinc layer thickness according to customer's drawing requirements).
●The raw materials use POSMAC, Nippon Steel, domestic materials normally use Rizhao Steel, HBIS, JISCO Steel and SHOUGANG Group, the original material brands are selected according to the requirements of different countries and customers.
Omega Profile Detailed Information:
| Product Name |
Pre-galvanized omega profile for solar structure |
| Specification | b=20mm-170mm; a=6mm-50mm; h=25mm-500mm; t=0.8mm-10mm.or as request. |
| Length | At customer's request |
| Weight | 1.7-45kg/m |
| Standard | AISI ASTM BS DIN GB JIS ETC |
| Surface treatment | Punch Hole, Black or Galvanized or Polished |
| Productivity | 5000MT/MONTH |
| Band Name | Sino East |
