Series 2T Diesel Engine used forklift for sale

Payment Terms: TT or LC

Ref Price : 10000-20000 USD/SET

Supply Capability : 10000 SET

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Type:
    Diesel Engine Powered
  • Power Souce:
    Diesel Engine
  • Max. Lifting Height:
    6000mm
  • Fork Length:
    1070mm
  • Fork Width:
    120mm
  • Overall Dimensions:
    2564x1150x2050mm
  • Certification:
    CE
  • Warranty:
    2 Years
  • HS CODE:
    8427109000
  • Material:
    Steel
  • Product Name:
    2.0T Diesel Engine Forklift Truck


Product Detail:



1) Features of 2.0T Diesel Engine Forklift Truck

- The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.



- Rear in-built dual lifting cylinder is used,wide visual view,safety operation and high efficiency.



- A hydraulic converter produced by introduction of japanese technology,high efficiency,no oil leakage,reliable work,compact structure of hydraulic transmission,shift gear valve,micromotion valve,characterized by smooth starting,stepless speed adjustmet,micromotion and acceleration performance.



 - Full hydraulic steering gear,transverse cylinder,steering axle integrated into one body,flexible steering,compact structure and convenient repair.



- Adjustable driver’s seat,reducingoperation fatigue to a maximum extent.Tilt lifting steering wheel and new type multifunc-tional panel fully represents harmony between the machine and human.



- Imported sealing parts are used in the cylinder,cone sealing used in fittings,good sealing performance,long service life;multiple reversing valve with automatic tilt locking device,advanced strudture to meet safety requirement.



- Big power and free-maintenarting battery with American technology,small volume,good performance,long storage period.





2) Specification of 2.0T Diesel Engine Forklift Truck

General Model
CPCD20G-D1
CPCD20G-W1
*****
*****
Power type
Diesel
Rated capacity kg 2000
Load center mm 500
Dimension Lift height                                                               H mm 3000
Free lift height                                                        H4 mm 140
Fork size                                                             L*W*T mm 1070*120*40
Mast tilt angle                                                        α/β deg 6/11
Front overhang                                                      X mm 484
Overall dimension Length to fork face           L1 mm 2564
Overall width                    B1 mm 1150
Mast lowered height     H1 mm 2050
Mast extended height       H3 mm 4040
Overhead guard height    H2 mm 2150
Performance Turning radius                                                        R mm 2220
Travel speed (full load/no load) km/h 17/19
Lift speed (full load/no load) mm/sec 470
Max. Gradeability % 20
Service weight kg 3510
Chassis Tyre Front
7.00-12-12PR
Rear
6.00-9-10PR
Tread Front                               B2 mm 970
Rear                               B3 mm 970
Wheelbase                                                          Y mm 1650
Ground clearance
(full load/no load)
Mast                                M
85/105
Frame                              F mm 140/145
Drive units & Control Engine Type
D1
Model
DACAI CA498
Rated output (kw/rpm)
45/2500
Rated torque (N.m/rpm)
190/1800
No.of cylinder
4
Bore*stroke(mm)
98*105
(L)Displacement
3.168
Drive units & Control Engine Type
W1
Model
ISUZU C240PKJ
Rated output (kw/rpm)
34.5/2500
Rated torque (N.m/rpm)
139/1800
No.of cylinder
4
Bore*stroke(mm)
86*102
(L)Displacement
2.369



Product Show

2015 SINOLIFT G Series 2.0T Diesel Engine used forklift for sale in shanghai

2015 SINOLIFT G Series 2.0T Diesel Engine used forklift for sale in shanghai

2015 SINOLIFT G Series 2.0T Diesel Engine used forklift for sale in shanghai

2015 SINOLIFT G Series 2.0T Diesel Engine used forklift for sale in shanghai

2015 SINOLIFT G Series 2.0T Diesel Engine used forklift for sale in shanghai




8) Terms and service of 2.0T Diesel Engine Forklift Truck



1.Lead time

3-4 weeks

2.Packing

Standard export fumigated wooden pallet, foam rubbers

3.Payment term

T/T payment in advance; L/C at sight.

4.Lead term

FOB Shanghai or CFR/CIF

5.Warranty period

12 months

6.Shipping method

by sea or air; by express.





9) Warranty Policy and Service Program  of 2.0T Diesel Engine Forklift Truck

 We give customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.




If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.





10) Why choose us?

1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.



2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.



3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.



4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.



5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.



6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models.



7- Most parts are available, no matter assembly or small components. You don’t need to replace any assembly when its components are damaged.



8- Fast. Fast delivery time, Fast service and communication.



9- We don’t ask more though we do much better! We offer reasonable price level!



10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!

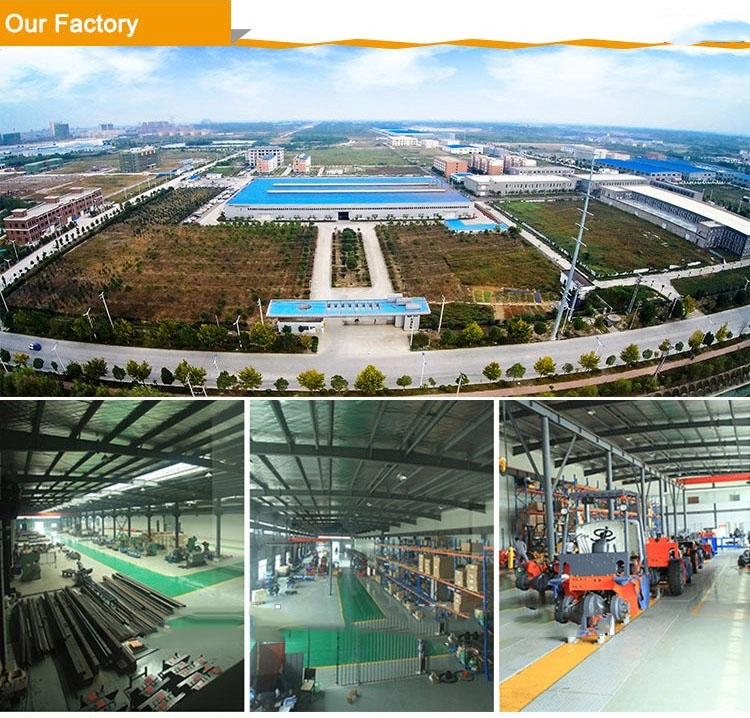

   Tianjin Haishan Steel Plate Co., Ltd. is a manufacturing enterprise specialized in manufacturing hot-dip galvanized sheets and strips. The company is located in Shuangtang High-grade Hardware Industrial Park, Jinghai County, Tianjin.  Also this is situated 30km away from Tianjin City, 107km away from Tianjin Port and 66km away from Tianjin Binhai International Airport. The total investment of the company is RMB 800 million and has a registered capital of RMB 410 million.

Haigang has advanced continuous production lines of pickling, cold rolling and hot galvanizing, with annual capacity of 1 million tons.The main products are galvanized strip steel, pickling strip steel and cold rolled strip steel with width of 860mm or less, zinc content of 40g-600g and thickness of 0.3mm-5.0mm.Widely used in the construction industry, machinery manufacturing industry, automobile industry, household appliances and other fields.Our products have been sold to Europe, America, central Asia, southeast Asia, etc.

Haigang always adheres to technological innovation, strengthens internal management, optimizes product structure, and improves product quality. It is the first company in the industry to pass the certification of GB/ t19001-2008 quality management system, GB/ t24001-2004 environmental management system, and GB/ t28001-2011 occupational health and safety management system."Hai gang" brand galvanized steel strip has also been awarded the honorary title of "tianjin famous brand product".

Haigang has been building its enterprise brand with integrity, taking technological innovation as the driving force, taking product quality as the basis, taking customer value as the goal, and taking common development with customers as the enterprise purpose.Is a win-win cooperation partner with you.
