Bucket Dredging Sand Excavating Ship

Payment Terms: TT or LC

Ref Price : US $200,000 - 1,000,000 / Set

Supply Capability : 100 Set/Sets per Year

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

Quick Details

Application: Dredging, draining flood etc. Model Number: weihua grab Bucket Dredger Vessel Main electric parts: Schineider, Simense or other brand
Type: Bucket Dredger Dimension(L*W*H): 5000*1800*3.600mm PLC system: Optional
Power Type: Electric Weight: 550 tons Radiolocation: Optional
Dredging Depth: 30 m Certification: CE, ISO, SGS Grab Bucket: Mechanical or Hydraulic
Draught: 225cm Warranty: 1 year Ex-factory inspection: Yes
Place of Origin: Henan, China (Mainland) After-sales Service Provided: Engineers available to service machinery overseas Painting color: According to your requirement
Brand Name: WEIHUA Work duty: A6-A8 Feature: Portal Crane

Packaging & Delivery

Packaging Details
Bucket Dredging Sand Excavating Ship
1. Main electric parts are packed by dampproof wooden case to protect from damage caused by humidity and corrosion.
2. Other parts are packed as standard or your requirement.
Delivery Time Bucket Dredging Sand Excavating Ship: 50-120 workdays
Bucket Dredging Sand Excavating Ship

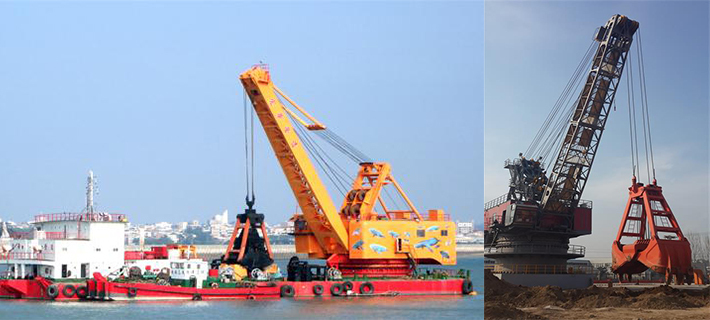

Bucket dredging sand excavating ship is used for dredging sluges in waterways, harbors, lakes etc.as dredge and drainage engineering ships.

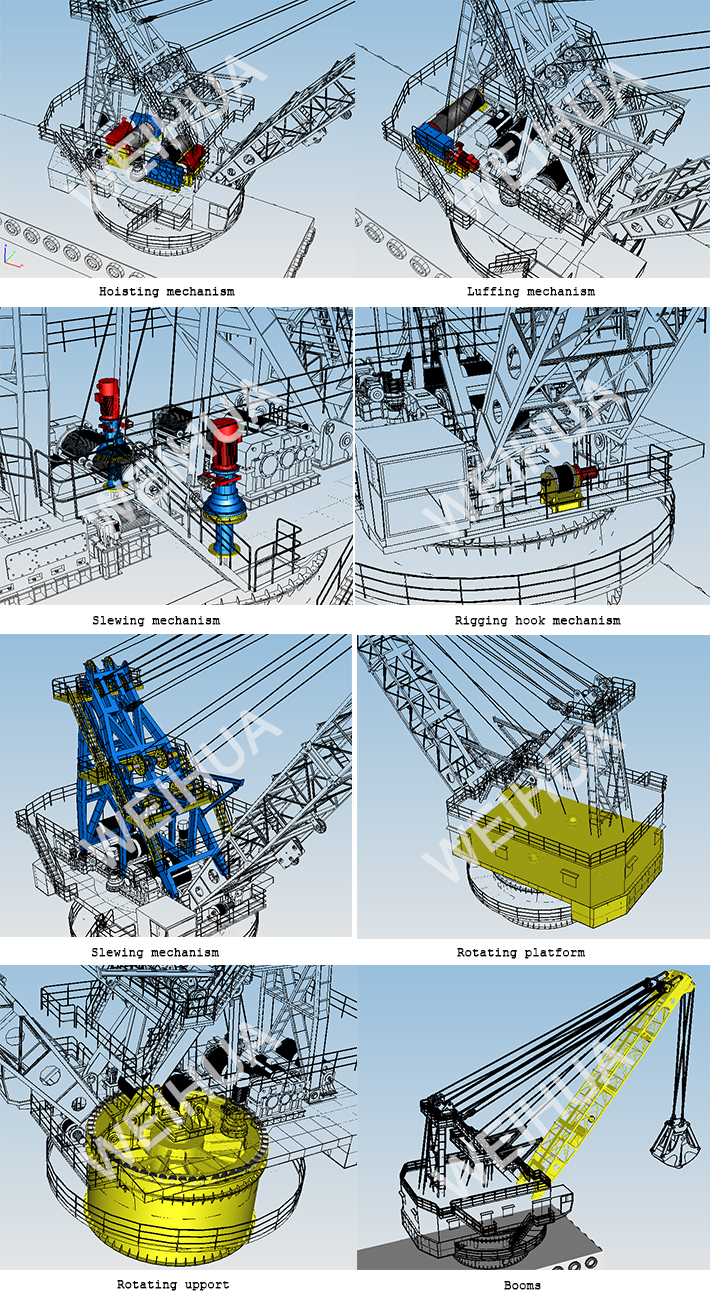

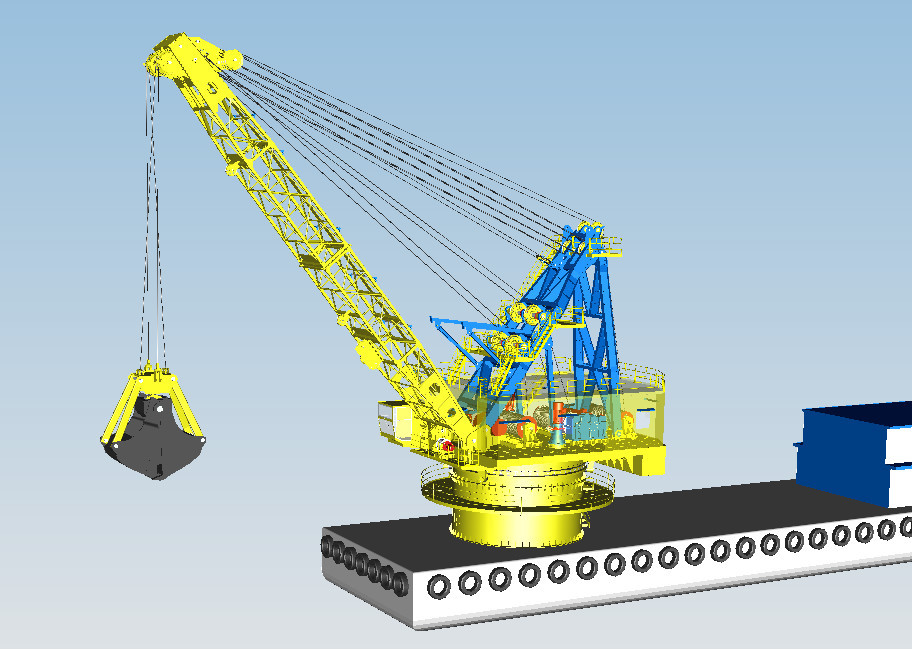

Bucket dredging sand excavating ship  mainly consists of hoisting mechanism, luffing mechanism, slewing mechanism, rigging hook device, A-frame, rotating platform, rotating support, booms and grab buckets.

There are several control systems provided to improve dredging efficiency and accuracy as following (including but not limited to):

1. PLC and visual simulation system

PlC system can greatly improve and facilitate operation of speed control and halt with load in the mid-air.Visual simulation system is able to achieve visualization and intellectualization in depthkeeping digging and horizontal digging.

2. Depthkeeping digging system
This crane is provided with depthometer, according to which the operater is able to set dredging depth to improve the dredging quality and avoid wast of overexcavating.

3. Satellite positioning dredging construction management system
This system is is used to indicate location of the hull and working track of the grab bucket anywhere and anytime to ensure high efficiency and accuracy of dredging construction quality.

4. Horizontal digging control system
This system is able to store several kinds of grab working processing program and provided with manual input type depth correction function. Thus smooth working faces are able to achieve.

5. Depth correction system
While working , the grab may be affected by dredger slewing, luffing hull tilting. The depth conrrecion system can revise the tolarance.

The grab buckt linked with wire rope goes down into the earth by its deadwight and closes to grab target materials. Then the grab bucket lift up to a rated height and slews to the target.after offloading cargoes, the grab buckt slews back to the above of dredging point for next circuit.

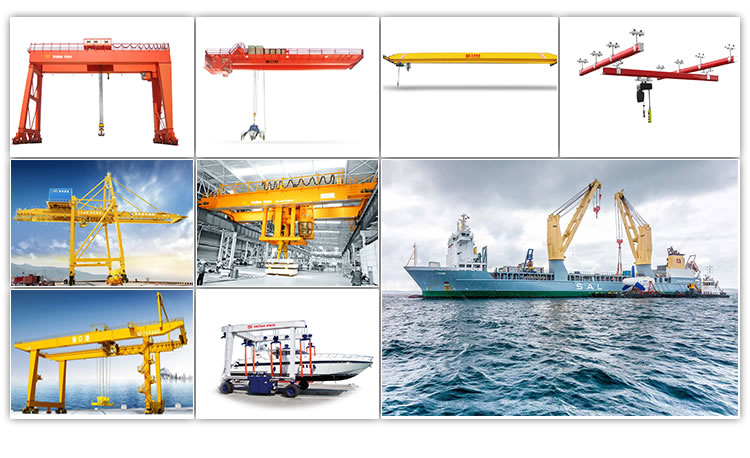

Main Products

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

Quality Control

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.

 Bucket Dredging Sand Excavating Ship     Bucket Dredging Sand Excavating Ship   Bucket Dredging Sand Excavating Ship

Bucket Dredging Sand Excavating Ship    Bucket Dredging Sand Excavating Ship     Bucket Dredging Sand Excavating Ship


Company Information

From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.


 Bucket Dredging Sand Excavating Ship       Bucket Dredging Sand Excavating Ship


1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
