160 Ton Travel Yacht Lift Boat gantry Crane machine

Overview

Quick Details

• Feature:

• Gantry Crane

• Condition:

• New

• Application:

• seaport vessel plant port shipyard boat factory

• Rated Loading Capacity:

• 50-600ton

• Rated Lifting Moment:

• different

• Max. Lifting Load:

• 600ton

• Max. Lifting Height:

• 40m

• Span:

• 18-35m(customize design is available)

• Place of Origin:

• Henan, China (Mainland)

• Brand Name:

• WEIHUA

• Model Number:

• Yacht Lift Boat Crane machine

• Certification:

• CE ISO SGS BV GOST

• Warranty:

• 12 months

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Crane feature:

• Yacht Lift Boat Crane machine Price

• Boat Crane Product name:

• 2017 Hot Selling 160 Ton Travel Lift Boat Crane With Best Price

• Crane After-sales service:

• Available

• Crane type:

• boat hoist crane

• Crane Working duty:

• A4

• Crane Color:

• customize design

• Crane Quick wear parts:

• Free

• Crane Lifting Capacity:

• 50-600ton

• Crane Product Testing:

• 100% testing before delivery

• Crane OEM service:

• Accept

Packaging & Delivery

• Packaging Details

• 160 Ton Travel Yacht Lift Boat gantry Crane machine Price Package:
  1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
  2. Main beams, end beams and electric trolley are packed by plastic woven cloth. It can reduce abrasion when transport.

• Delivery Time

• within 45 working days after receiving the deposit

160 Ton Travel Yacht Lift Boat gantry Crane machine Price

Product Description

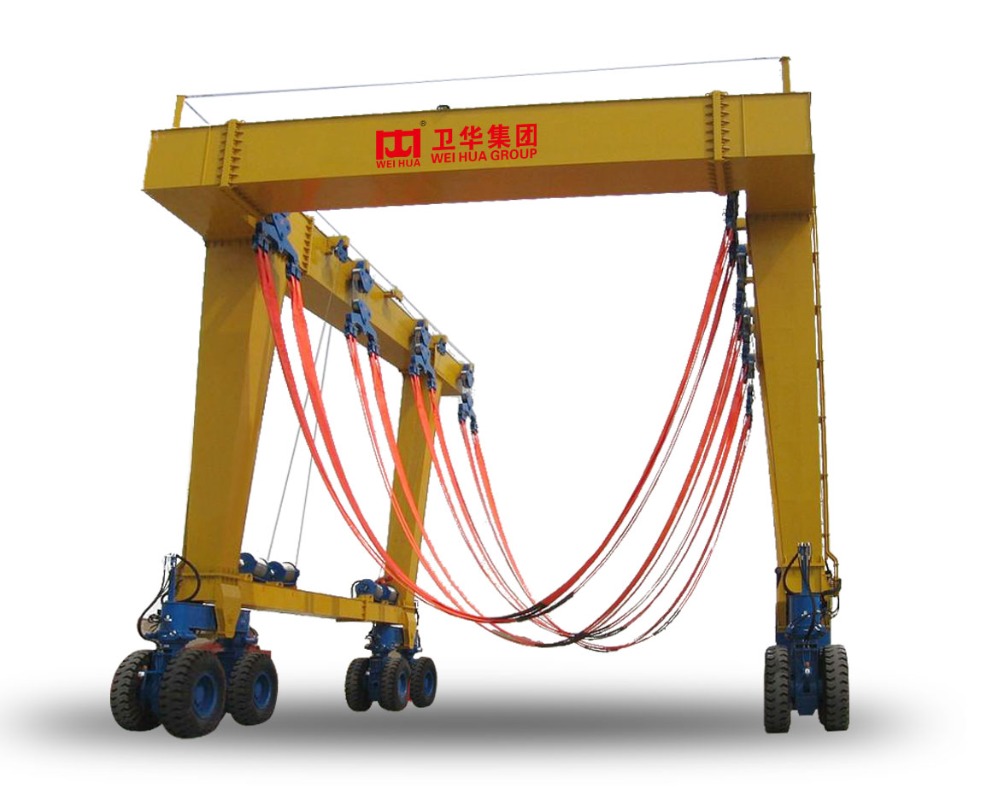

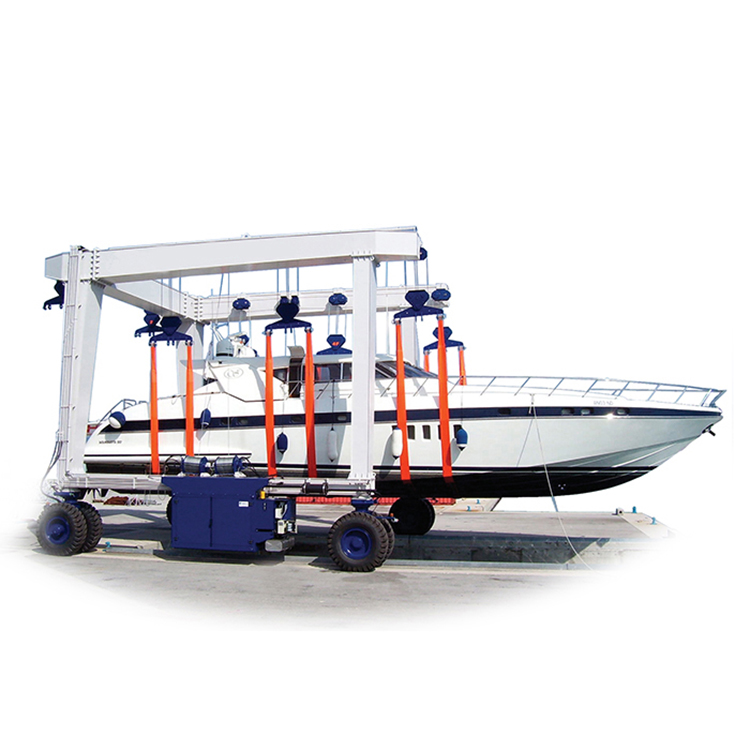

1. Brief Description-- 160 Ton Travel Yacht Lift Boat gantry Crane machine Price

• The Boat Hoist Crane includes the following items: main structure, traveling wheel block, hoisting mechanism,

• steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U” type ,

• it can transfer the boat which the height surpass its height.

• According to different requirements of our customers, the Boat Hoist Crane can handling different tons

• boat or yacht (10T-800T) from the shore side, it can be used for the maintenance on the shore side

• or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht;

• it will never hurt the surface. It also can put the boat in sequence quickly with small gap between each two boat.

2. Product Techmeter - 160 Ton Travel Yacht Lift Boat gantry Crane machine Price



Lifting   Capacity (t)				25/5	50/12.5	80
Span (m)				22	22	34
Lifting Height   (m)	Main			9	8	15
	Aux.			9.5	9
Working duty	A5(intermediate)
Speed (m/min)	Hoisting		Main	0.7-7.2	5.9	2.5
			Aux.	19.4	10.5	18
	Cross traveling			27	18.8	18
	Long traveling			25.5	18.4	20
Motor (type/kw)	Hoisting	Main		YAR250M2-8/42	YZR280M-10/55	YZR280S-8/52
		Aux.		YZR180L-6/17	YZR200L-6/26
	Across traveling			YZR160M1-6/6.3	YZR160M2-6/8.5	YDR125-4/2*4.6
	Long traveling			YZR160L-6/2*13	YZRE132M2-4/2	YZRE132M2-4/4*5.5
Total weight(t)	Crab			8.55	16.168	14.83
	Total weight			52.83	66.981	105.08
Max. wheel   load (KN)				293	196	188
Steel track   recommended	P43
Power source	3-phase AC   50HZ 380V
Main dimensions(m)	S			7000	6000	8000
	S1			8820	8494	99850
	S2			2500	3000	2000
	H			9000	8000	1500
	H1			9500	9500
	H0			12700	12040	21050
	L			22000	22000	34000
	L1			2400	3580	1800

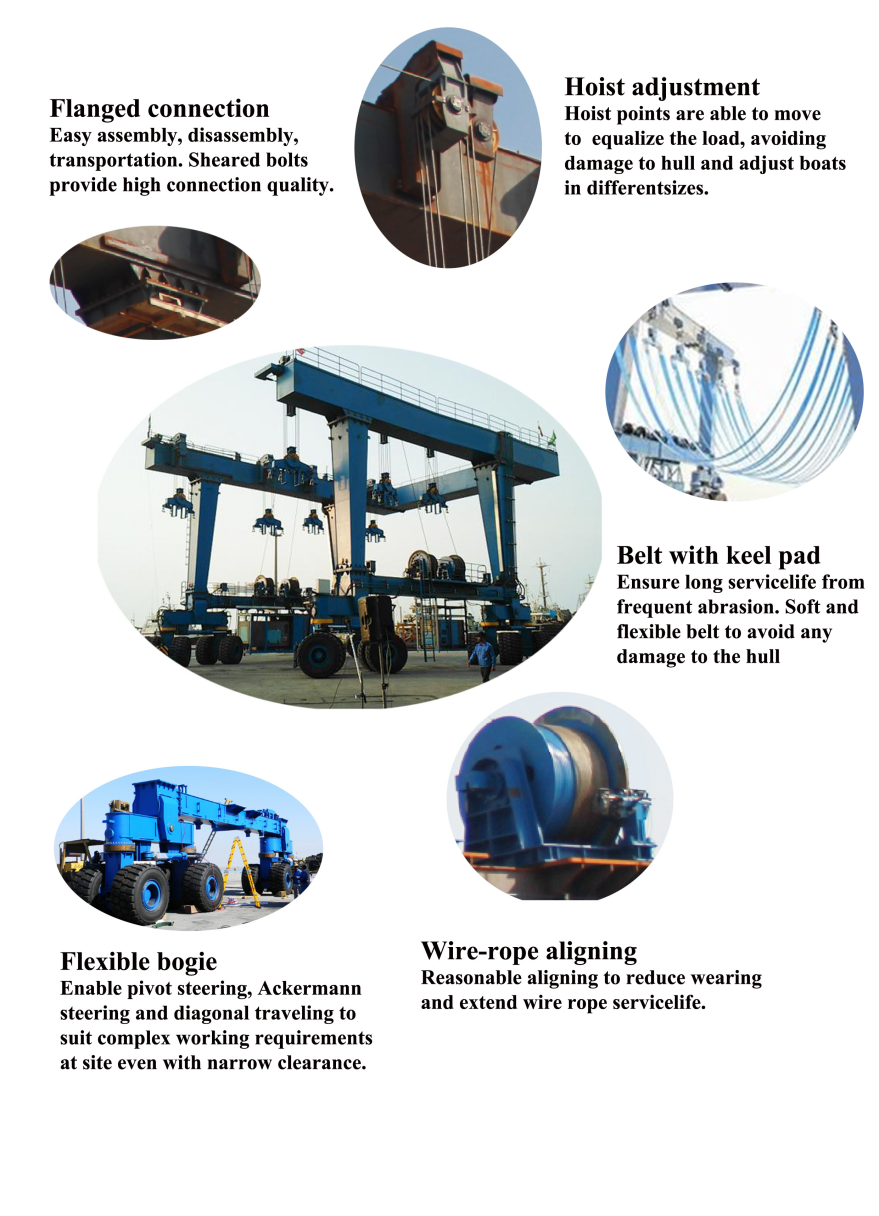

3.Details picture



4. Product Features- 160 Ton Travel Yacht Lift Boat gantry Crane machine Price

Main characteristic of the product:

l For the crane traveling, it can move in diagonal direction, it also can steering in 90 degree, it also can

       put the boat in any designated position according to requirements.

l It can adjust the width of the main girder according to the boat in case to handling different side boat.

l This hoist own the performance of low expense, high performance, easy to operate and maintenance

       and so on,.

l Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat

       when hoisting.

l  It can make the boat in order quickly,, it also can adjust the gap between each boat according to

        different condition.

5. Safety Features- 160 Ton Travel Yacht Lift Boat gantry Crane machine Price

l Safety is the most important issue for crane. To ensure the safety, the following safety devices are

       equipped in WEIHUA cranes.

l Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is

       possible

l Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-

       collision device

l Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental

       falling

l All movements can be switched off by actuating the emergency-off switch at the control station via a

       main contact

l High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and

       crane travelling to prevent over traveling

l Safety hook latch used for avoiding the lifted material out off from the hook

l Audible and visual alarm device to inform the person stay near by the travelling crane.

l Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism

l Protective earth conductor is fitted as standard

l Voltage lower protection system

l Current overload protection system

6. Advantages – 160 Ton Travel Yacht Lift Boat gantry Crane machine Price

•  Because Boat Hoist Cranesride on the ground rather than on overhead runways, they don't require a runway structure.

• Nor do they usually require concrete foundations.

• Their installation is fast and simple.

• Depending on the environment and application, gantry cranes can sometimes provide the same material

• handling capabilities as a comparable bridge crane system, but with a significant cost savings.

• Simple and compact structure

• Light weight

• Steady performance

• Easy maintenance

• Less wasta

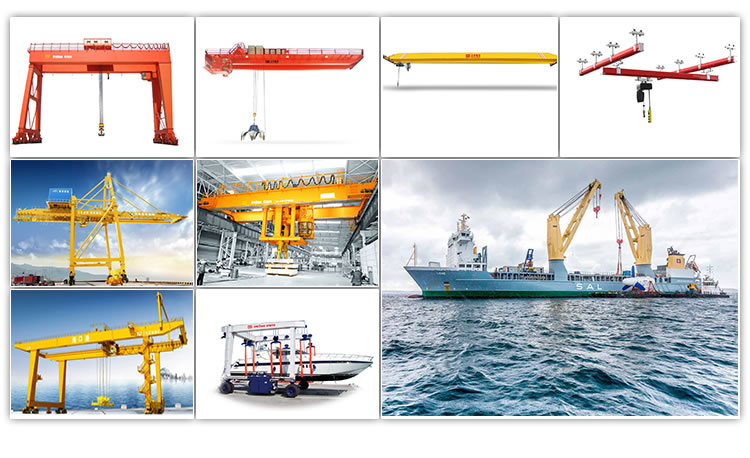

Main Products

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

Quality Control



WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.





Company Information



From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than 6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

Packaging&Delivery







FAQ





1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
