160HP standard type bulldozer

Payment Terms: TT or LC

Ref Price : USD74000-75000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

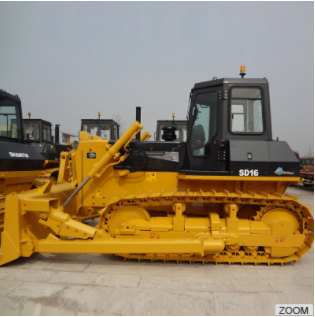

160HP standard type r c bulldozer

Chinese top brand shantui bulldozer price SD16



Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb Cummins engine for European markets and optional engines (Weichai and Shangchai) for other markets. The SD16 provides high performance with strong reliability, with Shantui’s trademark value.





Performance Paramete





160 HP
SD16
Technical

 specifications:

Blade Type Straight-tilt Angle U-Blade
Min. ground clearance: 400 mm 400 mm 400 mm
Ground pressure: 0.072 MPa 0.074 MPa 0.074 MPa
Min. turning radius: 4.466 m 4.513 m 4.545 m
Gradeability: 30° 30° 30°
Track gauge: 1880 mm 1880 mm 1880 mm

ENGINE Model & type

Shangchai SC11CB184G2B1/Weichai

WD10G178E25; water-cooled, in-line,

4-stroke injection direct

Rated power 120 kW
Number of cylinders 6—126 x 130 mm (bore x stroke)
Piston displacement 9.726 L
Min. fuel consumption 214 g/kW·h
Maximum torque 765 N·m@1300 rpm

POWER
TRANSMISSION
SYSTEM
Torque converter 3-element, 1 stage, 1 phase
Transmission Planetary gear type, power-shift, forced lubrication
Main drive

Spiral bevel gear, single stage speed reduction,

splash lubrication

Steering clutch

Lubricated, multidisc, spring loaded,

hand hydraulically separated,

 inter-linking with steering brake

Steering brake

Lubricated, floating band structure,

foot brake with hydraulic booster

Final drive

2-stage speed reduction of spur gear,

splash lubrication


TRAVEL
SPEED
Gear 1st 2nd 3rd
Forward 0~3.29 km/h 0~5.82 km/h 0~9.63 km/h
Reverse 0~4.28 km/h 0~7.59 km/h 0~12.53 km/h

UNDERCARRIAGE
SYSTEM
Type

Sprayed beam, suspended structure of equalizer

Carrier rollers 2 each side
Track rollers 6 each side
Track type Assembled, single-grouser
Width of track shoes 510 mm
Pitch 203.2 mm

HYDRAULIC
SYSTEM
Maximum pressure 14 MPa
Pump type Gear pump
Discharge 243 L/min
Bore of working cylinder × no. 110 mm × 2

BLADE Blade type Straight-tilt Angle U-blade
Dozing capacity 4.5 m3 4.3 m3 5.0 m3

Efficiency

(Theoretical value 40 m)

225 m3/h 225 m3/h 250 m3/h
Blade width 3388 mm 3970 mm 3556 mm
Blade height 1149 mm 1040 mm 1120 mm
Maximum drop below ground 540 mm 540 mm 530 mm
Maximum tilt adjustment 400 mm 400 mm

RIPPER

(OPTIONAL)

Maximum digging depth

of 3-shank ripper

572 mm
Weight of 3-shank ripper 1667 kg
Maximum lift above ground 592 mm

Product Description

Chinese top brand shantui bulldozer price SD16

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.



Chinese top brand shantui bulldozer price SD16



Application



 Pushing,  backfilling and other earthworks.



Chinese top brand shantui bulldozer price SD16

Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Chinese top brand shantui bulldozer price SD16

Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.



Chinese top brand shantui bulldozer price SD16

Company Information

Chinese top brand shantui bulldozer price SD16







Chinese top brand shantui bulldozer price SD16Chinese top brand shantui bulldozer price SD16



Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
