Product Detail:

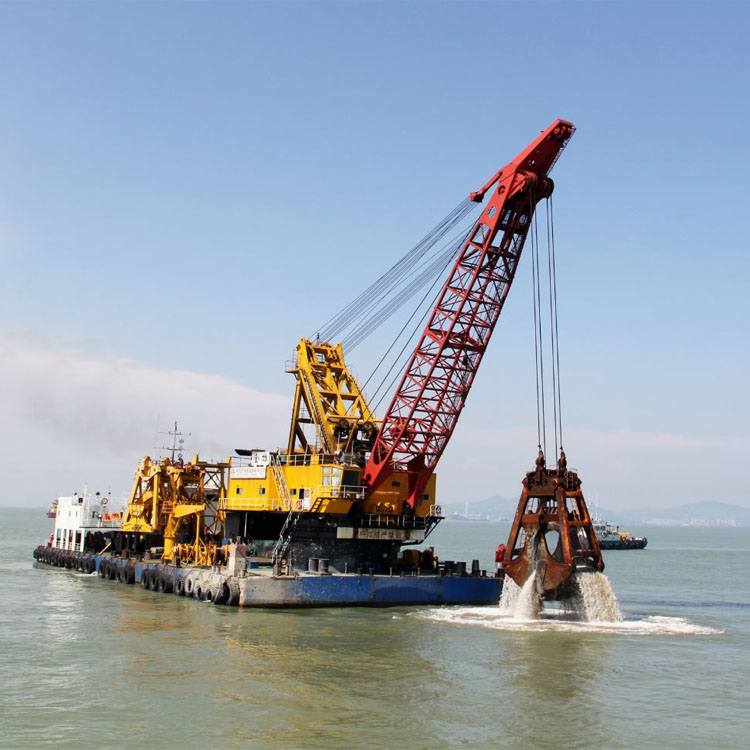

This floating crane is specially designed for cleaning sediment. Its working flow is that cut and stir the sediment first,then pump the solids to far place through discharge pipe.
Feature of Dreger
1).Cutter Suction Dredger of steel construction,dismountable type,is able to berth and dredge at water both in the coastal area and inland rivers.The dredger can be used to excavate and transport cohesive sediment below the class Ⅲ specified in code for dredging engineering construciton technique issued by Ministry of Water Resources(MWR) of P.R.China.
2).It's hull consiss of a main pontoon and two side pontoons which is easy to dismantle or mount for transportation by road,rail or water and easy to ressemble at project site.
3).The dredger is powered by diesel engines.The main diesel engine driven the dredge pump and auxiliary engine drives hydraulic system including cutter,swing winches,ladder winch and the spud rams etc.
4).The spacious control cabin is ergonomically designed with 360 degree view.All the operation buttons,swift,indicators and gauges are equipped on the control desk.Only two person can operate the dredger in operation room.
5).The dredger is painted by 4 layers of marine paint to protect from the corrosion.The Zinc anode can be used to give better anti-corrosion function.
Application of Hydraulic Cutter Suction Dredger
1).Used for river silt cleaning, sand production and mining project.
2).Suitable for heavy duty operation in tropical climate and sheltered waters.
Technical Parameters
Manufacturer |
WEIHUA |
Type |
HCCSD-300 |
Main Characteristics |
|
Side PontoonDimension (L*W*H) |
24m*2.2m*1.5m |
Dredging depth |
13.0m |
Discharging distance |
1500m |
Pump flow |
2000 m3/ h |
Sand output |
200-300 m3/ h |
Pump Suction Diameter |
350mm |
Pump Discharge Diameter |
300mm |
Discharge Pipe Inside Diamter |
Stell pipe or HDPE pipe |
Dredge pump |
|
Pump Manufacture |
Shijiazhuang pump |
Model |
14/12G-G |
Pump capacity |
2000 m3/ h |
Head (H) |
45m |
Generator |
|
Power |
30kw |
Main Product:
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Quality Control:
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Bucket Dredging Ship,Application of Hydraulic Cutter Suction Dredger Bucket Dredging Ship,Application of Hydraulic Cutter Suction Dredger Bucket Dredging Ship,Application of Hydraulic Cutter Suction Dredger
Company Information:
From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Packaging & Shipping:
Bucket Dredging Ship,Application of Hydraulic Cutter Suction Dredger Bucket Dredging Ship,Application of Hydraulic Cutter Suction Dredger Bucket Dredging Ship,Application of Hydraulic Cutter Suction Dredger
FAQ:
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
