Payment Terms: TT or LC
Ref Price : 10-100 USD/CUBIC METERS
Description

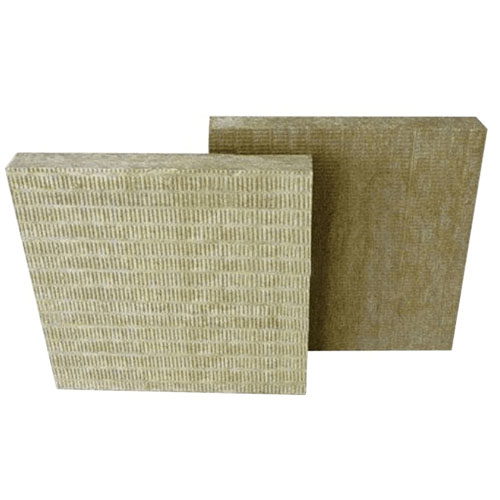

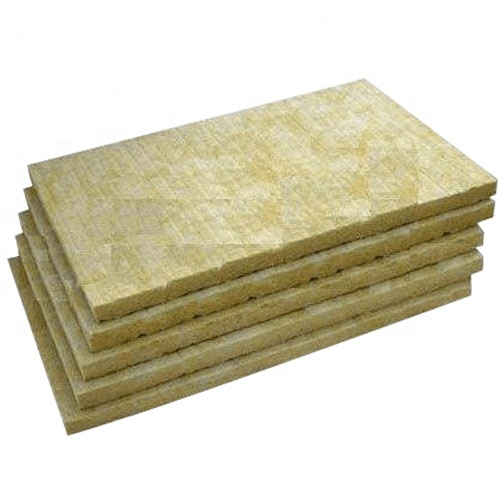

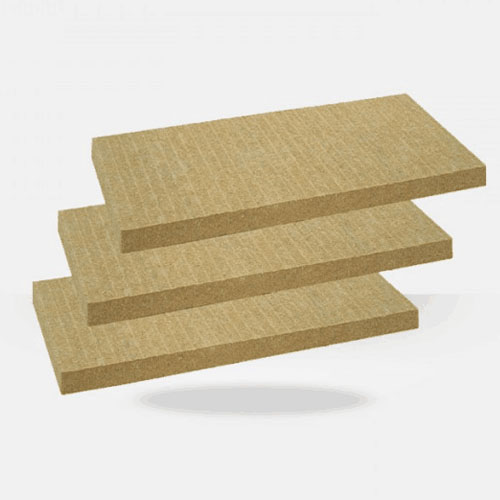

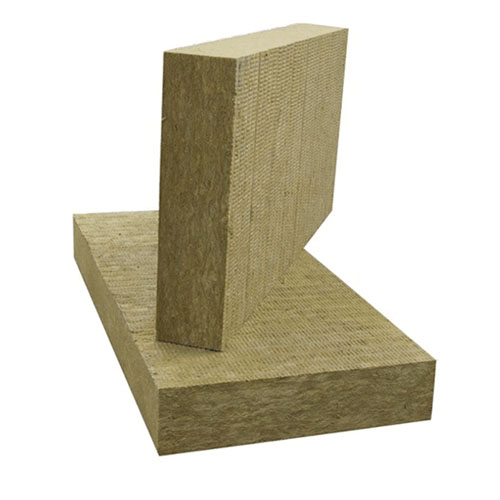

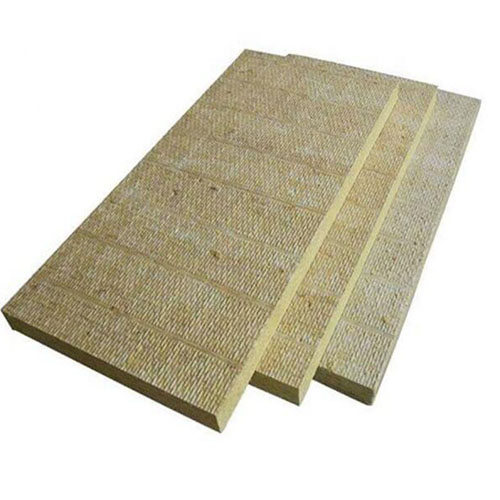

High quality rock wool with natural rocks as the main raw material, by weight, the ratio of cupola melting is higher than 1450 ℃, from the four rollers centrifuge high-speed optical fiber, the method is placed evenly spray adhesive cotton, and then curing, cutting into different specifications and usages of the product.
High quality rock wool has four characteristics: strong resistance to high temperature, good hydrophobic property, high corrosion resistance and low thermal conductivity, can be in the petroleum chemical industry, power plants and other industrial boiler, stove, distillation tower, valve, pipe and other equipment to provide the highest level of protection, resist heat and energy loss, avoid fire, noise and other harmful effects.
Technical Information
Rock Wool Board | ||
---|---|---|
Type | Standard Requirement | Deviation |
Length | 1200mm | +10/-3mm |
Width | 600mm | +5/-3mm |
Thickness | 25mm-150mm | ±2.5mm |
Density | 50kg/m3-120kg/m3 | ±10kg/m3 |
Property | Description |
---|---|
Density | 40-200kg/m3 (GB/T 5480.3) |
Thickness | 30-150mm (GB/T 5480.3) |
Dimension | 1200X600mm (GB/T 5480.3) |
Thermal Conductivity* | Tested under mean temperature, comply with GB/T 10294, GB/T 10296, ASTM C177 |
70 ℃ | 0.039W/(m.K) |
100 ℃ | 0.043W/(m.K) |
150 ℃ | 0.050W/(m.K) |
200 ℃ | 0.058W/(m.K) |
250 ℃ | 0.066W/(m.K) |
300 ℃ | 0.074W/(m.K) |
350 ℃ | 0.083W/(m.K) |
400 ℃ | 0.093W/(m.K) |
Maximum Service Temperature | 750 ℃ (GB/T 17430, GB50264) |
Recommended Service Temperature | 650 ℃ (ASTM C411-05, ASTM C447-03, GB50264) |
Surface Burning Characteristic(FSI) | 0 (ASTM E84-10) |
Surface Burning Characteristic(SD) | ≤25 (ASTM E84-10) |
Fire Performance | Class A1(GB 8624,EN13501-1,BS 476 Part4) |
Water Vapour Sorption by Weight | ≤1% (ASTM C1104/1104M ) |
Water Vapour Sorption by Volume | ≤1% (ASTM C1104/1104M ) |
Chloride Content | ≤10ppm (GB/T 17393, ASTM C871-08) |
Water Repellence | 99.5% (GB/T 10299) |
Fibre Diameter | ≤6μm (GB/T 5480) |
Standard | GB 11835 <<Stone wool, slag wool and it’s products for thermal insulation>> GB 50264 <<Code for design of industrial equipment and pipeline insulation engineering >> ASTM C612 <<Standard Speci cation for Mineral Fiber Block and Board Thermal Insulation>> type IA to IVB JIS A9504 <<Man made mineral bre thermal insulation materials>> SH3010 <<Design code of equipment and piping insulation for petrochemical enterprises>> DL/T 5072 <<Code for designing insulation and painting of fossil fuel power plant>> |
WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.
We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
