Shandong Mountain Raise Heavy Industry Machinery Co Ltd

5 ton wheel loader zl50 with high qualtiy

Payment Terms: TT or LC

Ref Price : 35000-39000 USD/PIECE

Supply Capability : 100 PIECE

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Outer Diameter:
    25 - 356 mm


 chinese 5 ton wheel loader  front end wheel loader zl50 wheel loader for sale


Performance


1. Fully hydraulic powered steering with flow-amplified system, Pilot operated control for loader hydraulic system, power shift optional transmission makes convenient and flexible operating.

2. High breakout force, short hydraulic cycle time, automatic leveling on any position, and higher productivity.

3. Special quadrant type transmission shaft of construction machinery.

Power transmission is more reliable.

4. Integral new luxury cab, excellent visibility, safety and reliability.

5. Optimized structure of diesel engine air intake system reduces dust into air filter, prolonging the durability of the engine and convenience the service of air filter element. Optimized cooling system drops overall heat balance temperature.

6. Integral operable hood made of compound material reduces noise and vibration, and makes operation and service more convenient and flexible.



Product Description

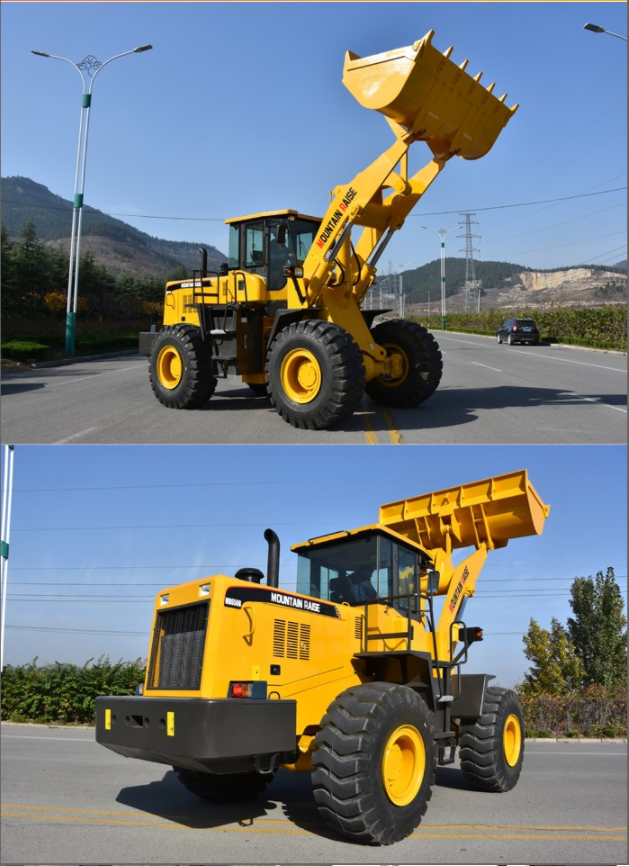

5 ton wheel loader zl50 with high qualtiy



Performance rated load 5000kg
overall weight 17100kg
rated bucket capacity 3m3
maximum tractive force 152KN
maximum breakout force ≥170KN
maximum grade ability 30℃
maximum dump height 3150mm
maximum dump reach 1250mm
overall dimension (L×W×H) 7920×3050×3400mm
minimum turning radius 6640mm
Engine model  Weichai Steyr WD615
type lnline  water cooling dry cylinder  injection
No. of cylinder-bore/stroke 6-126×130mm
rated power 162kw--2400r/min
maximum torque 860N.m
min fuel-consume ratio ≤215g/kw.h
Transmission system torque converter YJ375
 gearbox mode Power shift normally engaged straight gear
gear shift 4 forward shift  4reverse shift
 maximum speed 38km/h
Drive axles main reducing spiral bevel gear grade 1reduction
decelerating mode planetary reduction,grade 1
wheel base (mm) 3200mm
wheel tread 2250mm
minimum ground clearance 450mm
Hydraulic system system working pressure  18MPa
boom lifting time 5.95±0.2s
total time  10.95±0.5s
fuel tank capacity 300L
function of leveling automatically yes
Brake system service brake air over hydraulic disc brake on 4 wheels
parking brake manual parking brake
Tire type specification 23.5-25
front tyre pressure 0.4Mpa
rear tyre pressure 0.35Mpa

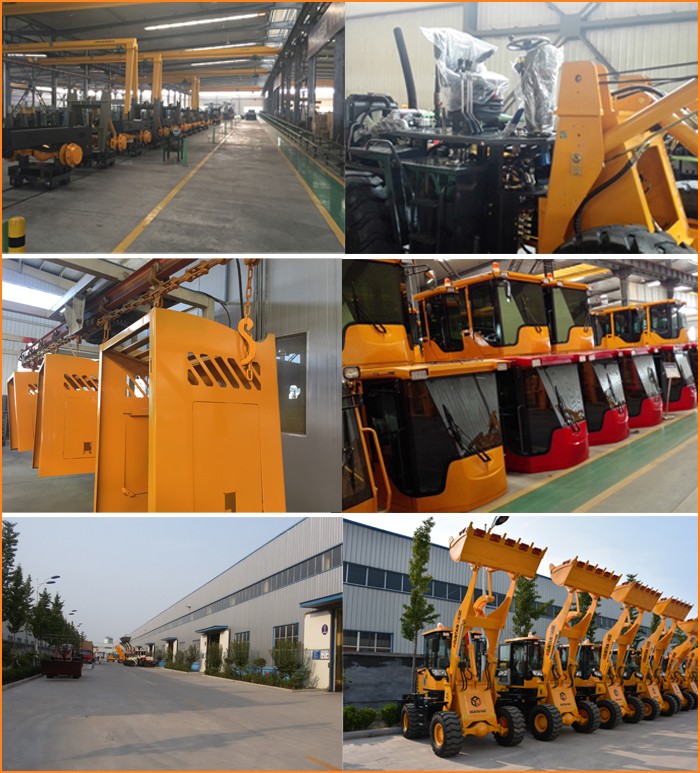

Factory Show



The factory located in Qingzhou City Shandong Province which is a famous

industrybase for machinery.

As a professional manufacturer, specialized in the export of wheel loader, backhoe

loader, roughterrain forklift and all kinds of attachments, around10 years of

experiences, constantly innovation, advanced production line,professional assembly

workers,we ensure every wheel loader with reliable quality and stability.

5 ton wheel loader zl50 with high qualtiy

5 ton wheel loader zl50 with high qualtiy5 ton wheel loader zl50 with high qualtiy5 ton wheel loader zl50 with high qualtiy



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
