50 Ton MG Double Girder Gantry Crane manufacturer From China WeiHua Group

Payment Terms: TT or LC

Ref Price : 3000-50000 USD/SET

Supply Capability : 10000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Max. Lifting Height:
    Design
  • Span:
    12-30m
  • Warranty:
    1 Year
  • Condition:
    New
  • Application:
    Outdoor
  • Rated Loading Capacity:
    5-500t
  • Rated Lifting Moment:
    20~1000kn
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WeiHua Group
  • Certification:
    ISO CE SGS GOST
  • Color:
    red, orange or design
  • Product name:
    50 ton China Gantry Crane
  • Power Source:
    3 Phase 380V 50hz or design
  • Lifting mechanism:
    Wire Rope Electric Hoist
  • Control Method:
    Remote Control or design
  • Main electrical parts:
    Schneider and Siemens
  • Crane feature:
    Double Girder Gantry Crane
  • Item:
    Electric Double Girder Gantry Crane
  • Working Temperature:
    -20℃~40℃
  • Type:
    Box girder

Product Detail:

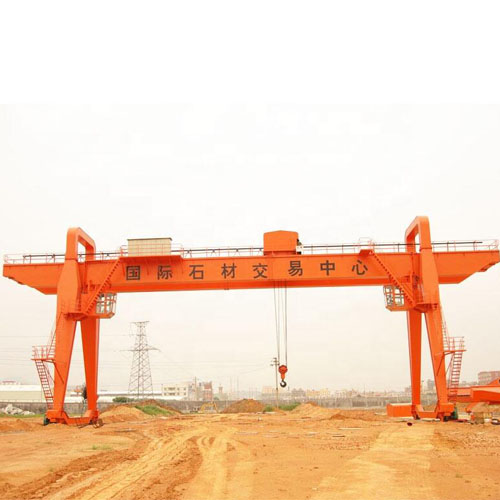

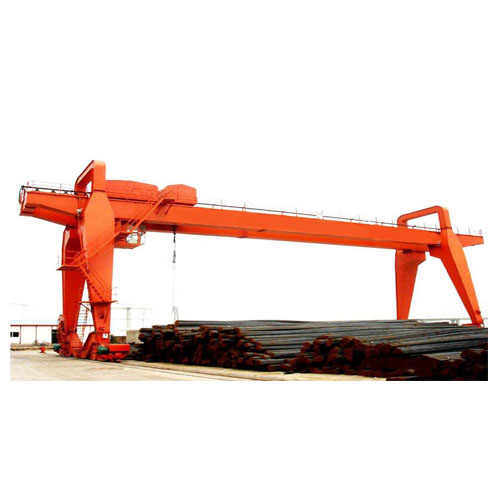

The 50 ton MG double girder gantry crane is designed and manufactured according to the standard JB / T5663-2008 of the Ministry of Machinery Industry of China. CD1, MD1 electric hoists and trolley can be fitted on this crane. The cantilever parts can be designed according to the factory operating space.


The 50 ton double girder gantry crane has latticed structure with a small windward area, light weight, good lifting ability and so on. This henan 10 ton mg port lifting mobile gantry cranes is an ideal lifting equipment employed in the warehouse, freight yard, terminals and other place

There are two ways of the crane traveling: separated drive and drive brake. This product can be controlled on ground and operating room. The operating room can be open or closed, which can be installed on the left side or right side and there are 3 ways to enter the room, side, end face and top to meet the needs of users in a variety circumstances.


Mechanism :

1. High quality carbon steel Q235B and Q345B;

2. connected by high strength screws;

3. Welding seams are tested by X-ray and ultrasound;

4. Compact structure, small volume;

5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;

6. Good operation performance, step less speed regulating and running smoothly;

7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;



Electric System:

1. Control panel protection degree is IP54;

2. Reasonable components installation, convenient for check and maintenance;

Safety Protection Devices:

Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

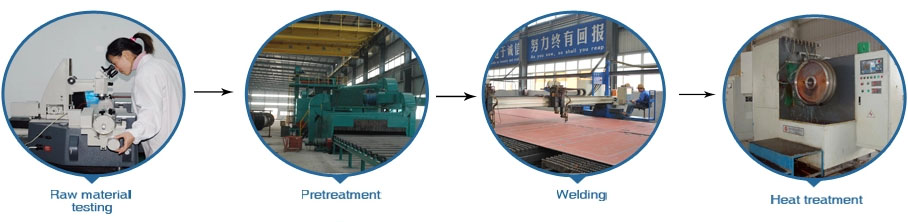

Product Processing:




Packing & Shipping

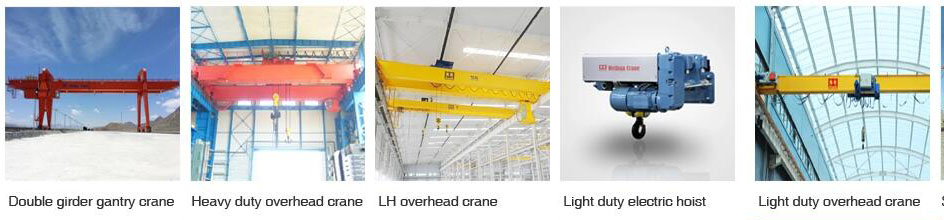

More Products:




Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
