50mm heat insulation glass wool blanket glass wool insulation price

Please enter your email.

cancel

50mm heat insulation glass wool blanket glass wool insulation price

Payment Terms: TT or LC

Ref Price : 10-20 USD/SQUARE METERS

Supply Capability : 1000 SQUARE METERS

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Name:
    UNITED INSULATION
  • Material:
    Fiberglass
  • Color:
    Yellow
  • Density:
    24kg/m3
  • Thickness:
    50mm
  • Width:
    1200mm
  • Length:
    Customer-made
  • Certificate:
    FM/UL/KS/BS476/SGS/ASTM/ISO
  • Application:
    Wall

Description

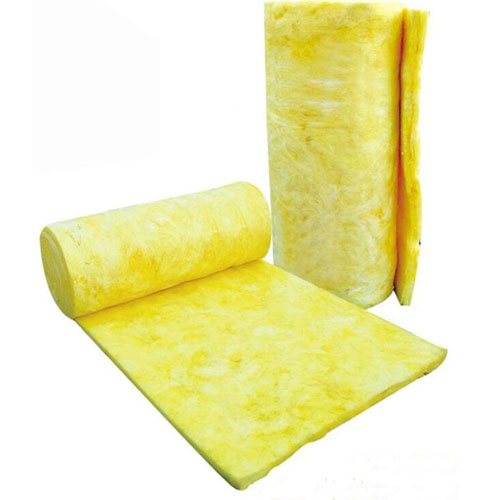

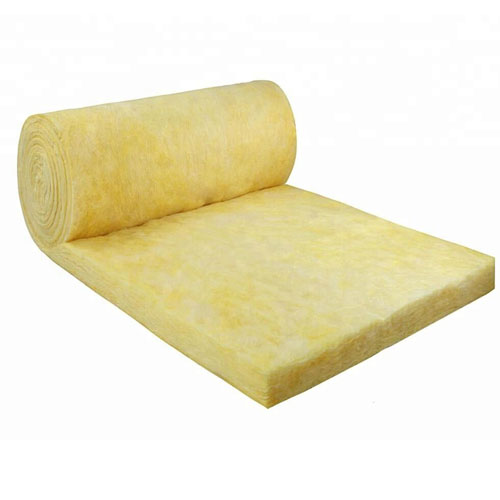

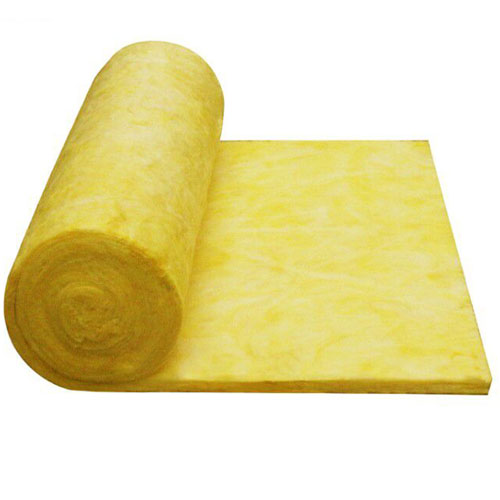

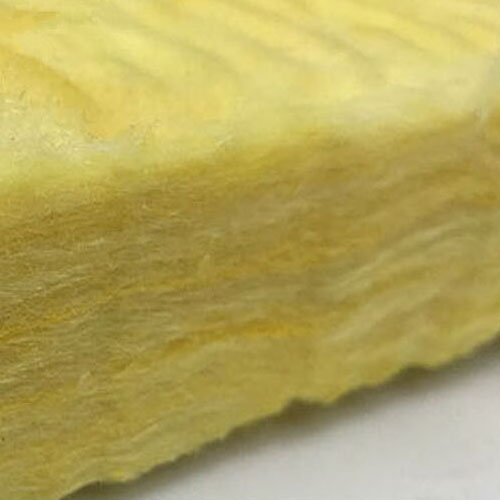

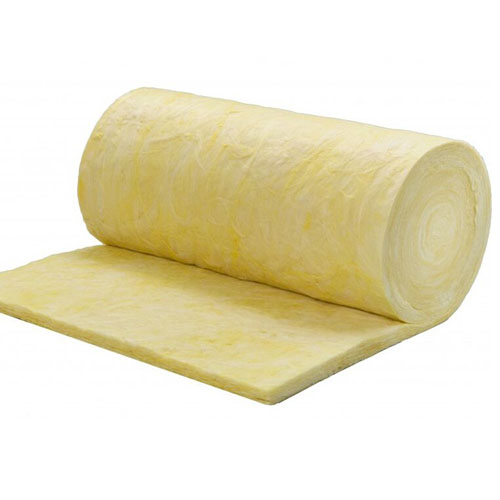

glass wool roll is consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool blanket. The blankets can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer’s requirement. United Insulation® Metal Building Insulation Un-Faced glass wool blanket is designed for use under any roof system supported on purlins with either metal or fibrous claddings, to provide thermal control within the building. The blanket also be used as additional insulation to fill voids in walls and roofs of metal buildings.

Product Data

Products Density Thickness Width Conductivity R-value
Code (kg/m³) (mm) (mm) (W/m⋅K) (m²⋅K/W)
1 10 50 1200 0.044 1.1

10 75 1200 0.044 1.7
2 10 100 1200 0.044 2.3

12 50 1200 0.041 1.2
3





12 100 1200 0.041 2.4
4 16 25 1200 0.039 0.6

16 50 1200 0.039 1.3
5 16 75 1200 0.039 1.9

16 100 1200 0.039 2.6
6 24 25 1200 0.037 0.7

24 50 1200 0.037 1.4
7 24 75 1200 0.037 2.0

24 100 1200 0.037 2.7
8 32 25 1200 0.035 0.7

32 50 1200 0.035 1.4
9 32 75 1200 0.035 2.1

32 100 1200 0.035 2.9

Physical Property

Tested Content Tested Method Tested Value
Working Temperature ASTM C411 The Highest Temperature is 121°C
Thermal Resistance ASTM C518 4.5 (Hr⋅Ft²⋅F/Btu)
Coefficient of Heat Conductivity ASTM C518 0.223 (Btu⋅In/Hr⋅Ft²⋅F)
Corrosion Resistance ASTM C665 No Chemical Reaction
Mold Resistance ASTM C665 Mildew proof
Moisture Absorption ASTM C1104 Temperature is 49°C,
Relative Humidity is 90% 2.3% of it is Weight
Humidity veneration Rate ASTM E96 Max 0.013g/24Hours⋅m²
Non-Combustibility ASTM E84 Flame Propagation: 25; Flame Diffustivity: 50




WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.

 We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
