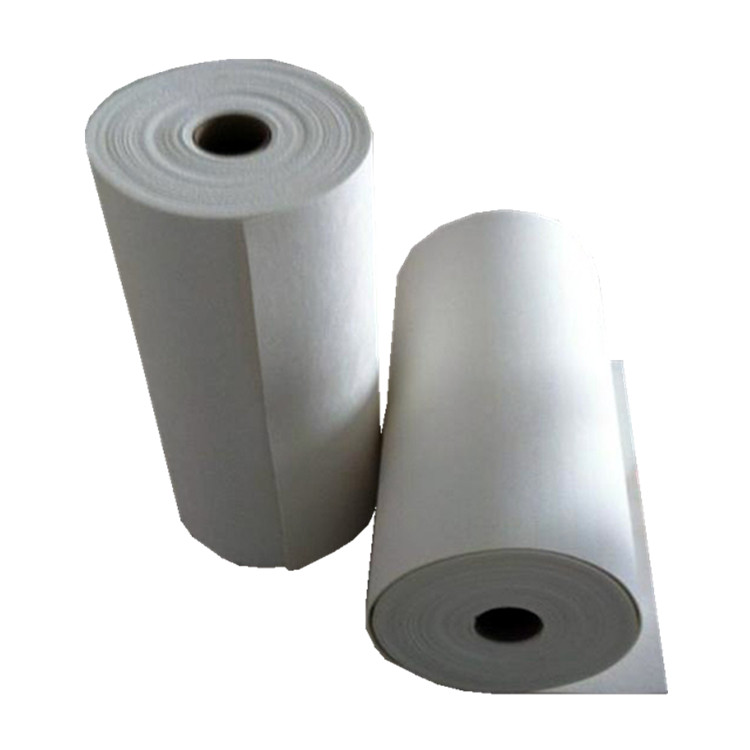

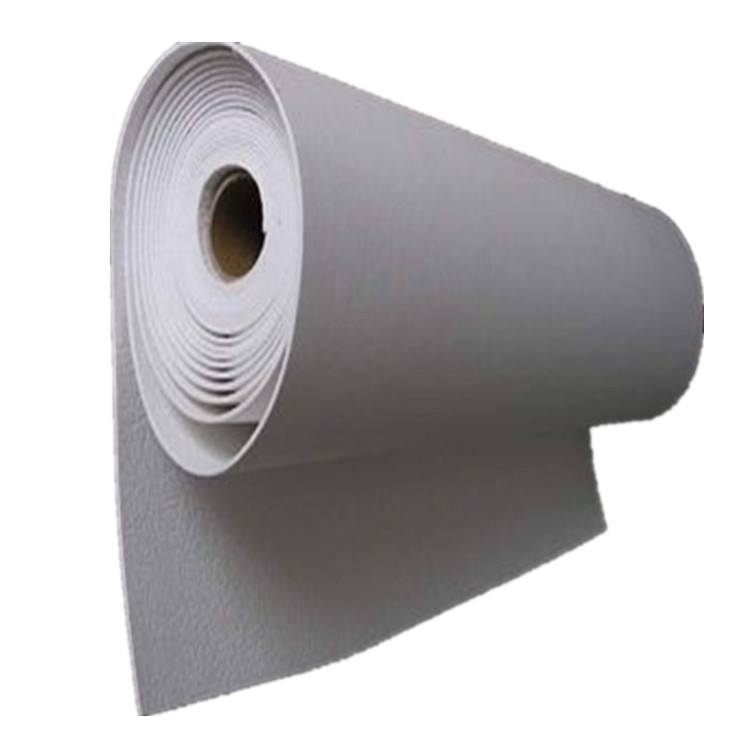

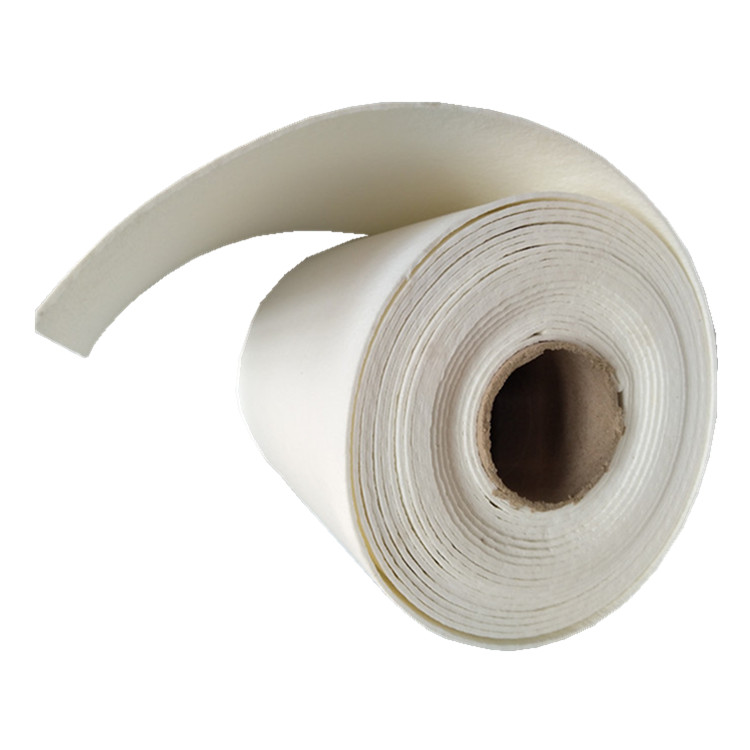

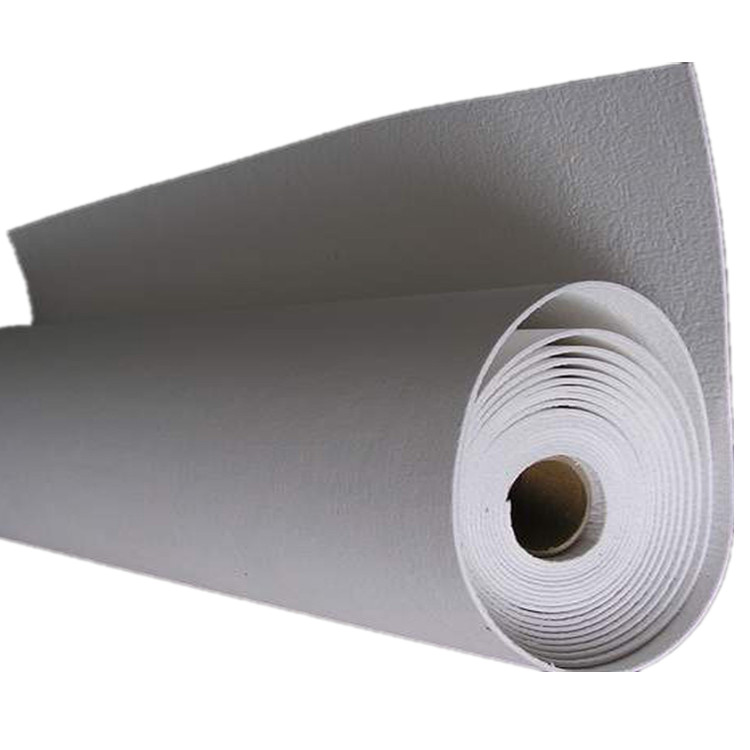

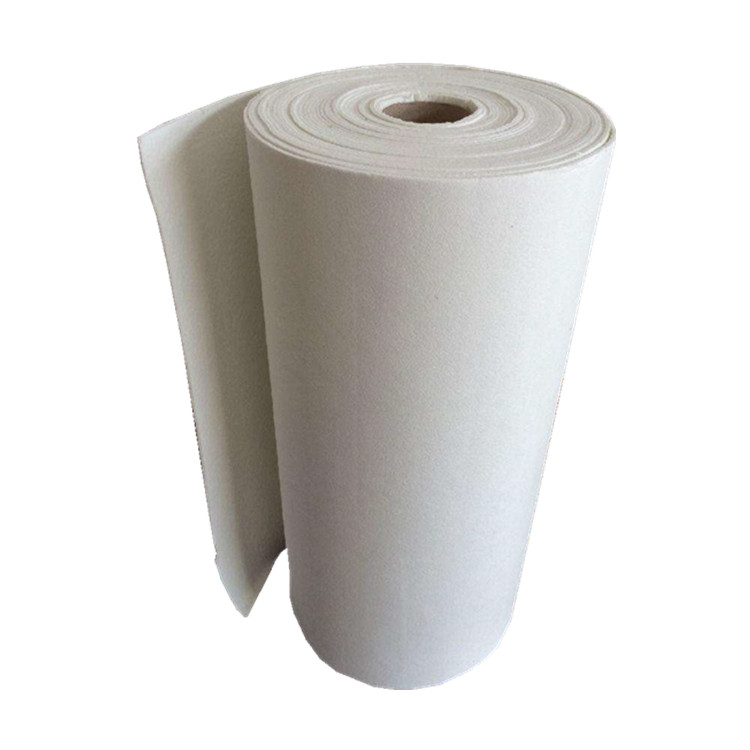

Aluminum silicate ceramic fiber paper fireproof Aluminum silicate

Payment Terms: TT or LC

Ref Price : 4-10 USD/KG

Supply Capability : 88888 KG

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin China (Mainland)
  • Brand Name:
    wmdtrade
  • Model Number:
    Aluminum silicate
  • Name:
    Aluminum silicate fiber blanket
  • Grade:
    Class A
  • Length:
    3000-15000(mm)
  • Width:
    610mm/1220mm
  • Thickness:
    10-50(mm)
  • Working temperature:
    1000-1350℃
  • Mild tension:
    Strong
  • Color:
    White
  • Port:
    Tianjin xingang

Aluminum Silicate Fireproof Ceramic Fiber Paper for Kilns featured by the aluminum silicate ceramic fiber cotton as the main raw materials are made using wet forming process. It has excellent chemical stability,  resisting attack by most corrosive agents, expect hydrofluoric acid, phosphoric acid and concentrated alkaline. Paper price per meter sound deadening ceramic fiber paper is a  high-class lightweight refractory materials, applying to thermal insulation, seal, electric insulation and sound absorption, which can replace asbestos products.

Technical data



model number

AK-26

Classification Temperature(℃)

1260

organic content(%)

≤10

tensile strength(Mpa)

≥0.4

Liner shrinkage (%)(C*24H)

≤3.5 (1000C)

density(kg/m3)

200

Thermal conductivity(w/m.k)

200℃

≤0.085

400℃

≤0.121

600℃

≤0.175

Chemical composition

Al2O3

43

Al2O3+SiO2

98







regular size

thickness

width

length

1











610

60000

2

30000

3

20000

4

15000

5

12000

6

10000





Product Characteristics

1. Low thermal capacity
2. Low thermal conductivity

3. Thermal shock resistance
4. Excellent electrical insulation properties
5. Excellent machining performance
6. High strength, tear resistance
7. High flexibility
8. Low shot content



Product Applications

1. Insulation material for instruments and heating element
2. Insulation material for automobile and aerospace industry
3. Expansion joints filling material
4. Isolation for construction material, metallurgy and glass industries,
5. Molten metal sealing gasket
6. Fireproof material
7. Substitute for glass fiber and asbestos fiber

8. Insulation for car field
