Cangzhou Qianjinyawa Machinery Manufacturing Co., Ltd.

Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine

Payment Terms: TT or LC

Ref Price : US $6,000-13,000 / Set

Supply Capability : 20 Set/Sets per Month Best Price Steel Channel Making Machine for CD UD Profiles Roll

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • Galvanized steel

  • Use:

  • Ceilling

  • Production Capacity:

  • 20-35m/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • FORWARD

  • Model Number:

  • C&U

  • Power(W):

  • 5.5KW

  • Voltage:

  • 380v 3phase 50hz or according to customer's requirement

  • Dimension(L*W*H):

  • 5500mm*1000mm*1300mm

  • Weight:

  • 3500kg

  • Certification:

  • CE/ISO9001

  • Warranty:

  • 18 Months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Name:

  • Steel Channel Making Machine for CD UD Profiles Roll Forming Machine

  • Roller material:

  • Cr12

  • Shaft:

  • 40mm

  • Transmission:

  • Gear

  • Servo motor:

  • 1.5kw*2

  • Main motor:

  • 5.5kw

  • Pump station:

  • 4kw

  • Cutting blade material:

  • Cr12Mov

  • PLC:

  • DELTA(TAIWAN)or Mitsubishi(JAPAN)

  • Usage:

  • Ceiling sockets

Packaging & Delivery

  • Packaging Details

  • Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine
    Main body is packed by plastic film, and fixed well by wire rope in container. Spare parts are packed by carton box.

  • Delivery Time

  • 40 days after receive deposit


Product Description

The finished product of Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



No.

Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machin

1

Suitable material

PPGI/Aluminium sheet/galvanized sheet/various sheet plates

2

Thickness of coil sheet

0.2-0.6mm

3

Coil width

as customer's profile drawing requirement

4

Effective width

as customer's profile drawing requirement

5

Material of main frame

welded by 600mm steel plate

6

Diameter of Soild shaft

40mm, high grade 45# steel

7

Roller

Cr12, quenched and tempered treatment,

hard chrome plated 0.05-0.07mm

8

Thickness of middle plate

Memorial archway

9

Forming station

10-12 rows

10

Drive type

Gear

11

Power of main motor

5.5 kw, Lichao, Shanghai, with reducer

12

Servo motor

1.5KW

13

Forming speed

About 20-30m/min

14

Hydraulic pump station

5.5 kw, 40# hydraulic oil

15

PLC

DELTA(TAIWAN)/Mitsubishi

16

Material of razor blades

Cr 12, quenching 58-62

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

18

Switch

CHNT

19

Frequency changer

SAJ

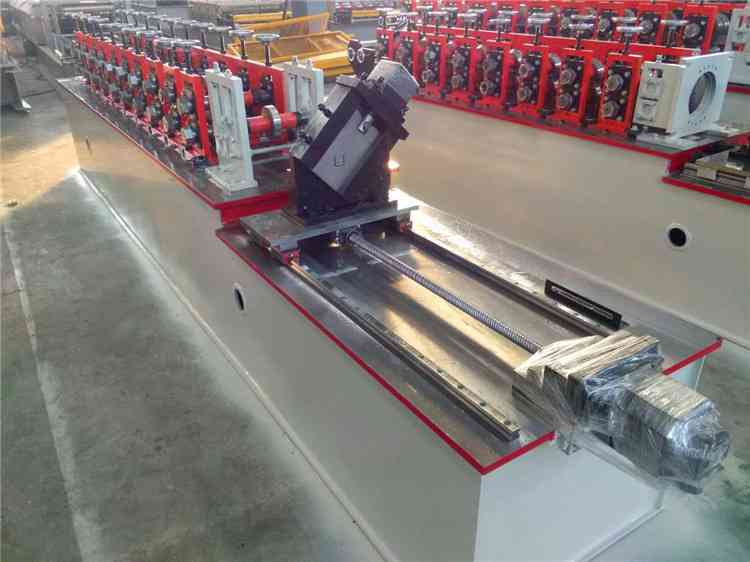

 Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine



Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine



Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine



Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine



Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine



Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine





Light Gauge Steel

Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine

Best Price Steel Channel Making Machine for CD UD Profiles Roll Forming MachineBest Price Steel Channel Making Machine for CD UD Profiles Roll Forming Machine


Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
