Best performance shantui SE130 excavator price

Payment Terms: TT or LC

Ref Price : USD50000-60000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

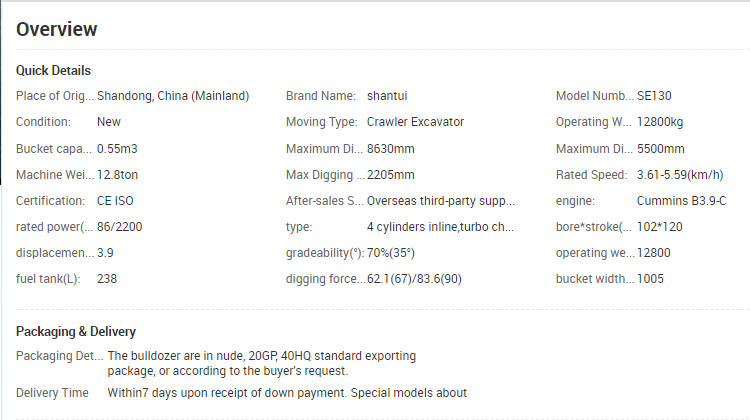

Qulck Details



Best performance shantui SE130 excavator price

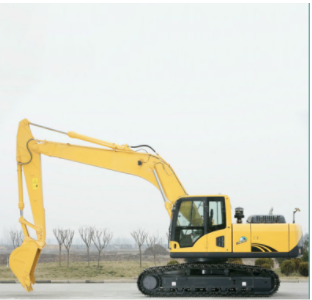

SE130 13ton crawler excavator



Original imported engine with Tier 2 emissions, conducive for energy saving and environmental protection. The engine features a radial seal air cleaner and air pre-cleaner, effectively extending the engine’s service life, it comes equipped with a standard fuel pump.

Original imported hydraulic components have stable and reliable quality, high working efficiency and big digging force; equipped with a standard pressure transmitter. This excavator model features a new cab and seat design, new interior system, new fully automatic air conditioner system which automatically adjusts air flow distribution, making it comfortable to operate.

Technical Features

 SE130 13ton crawler excavatorSE130 13ton crawler excavator

Performance Paramete



SE130
Technical specifications:

Minimum ground clearance: 425 mm

Overall length: 7718 mm

Operating weight: 12.8 t

Overall height: 2674 mm

Ground pressure: 39 kPa

Overall width: 2500 mm


ENGINE

Model

Cummins B3.9-C

Type

4-cylinder in line, turbocharged,


air-to-air intercooled.

Quantity of cylinders

4

Bore x stroke

102 x 120 mm



Displacement

3.9 L

Power output

86 kW/2200 rpm

Maximum torque

437 N·m/1500 rpm


HYDRAULIC
SYSTEM

Pump

Imported

Type

Variable double-piston pump

Maximum discharge flow

2 x 108 L/min

Boom, arm and bucket

31.9 MPa

Travel circuit

31.9 MPa

Swing circuit

25.5 MPa


TRAVEL SYSTEM

Travel motor

Variable axial piston

Travel brakes

Lubricated double-disc

Parking brake

Pressure release

Travel shoes

2 x 44

Drawbar pulling force

98 kN

Travel speed

3.61~5.59 km/h

Gradeability

70% (35°)

Ground clearance

424.5 mm


CONTROLS
 &
 CABIN

Cabin

New ergonomic cab design strengthens the structure

of the entire stamping with such features as:

strong impact resistance, vibration damping pads,

vibration absorption, comfortable seat with broad vision,

leather-like and ABS & PVC plastic technology applied

to interior, smooth contour lines of the outer surface & durability.

Controls

Two joysticks, two foot pedals, manual-/

electronic-controlled throttle.
Functions of two joysticks: digging & swinging.

Boom cylinder

105 x 70 x 980 mm

Arm cylinder

115 x 80 x 1175 mm

Bucket cylinder

95 x 65 x 885 mm


SWING SYSTEM

Swing motor type

Swash plate piston motor

Brake

Pressure release

Parking brake

Lubricated double-disc

Swing speed

12.6 rpm

Tail swing radius

2318 mm


BUCKET

Bucket capacity

Backhoe bucket 0.55 m3 (SAE)

Number of bucket teeth

5

Bucket width

980 mm

Arm length

2.5 m

Maximum digging reach/

Maximum digging reach
at ground level

8.297 m/8.168 m

Maximum digging depth/height

5.537 m/8.495 m

Maximum dumping height

6.065 m

Minimum swing radius

2.426 m

Application

SE130 13ton crawler excavator

Trading information

SE130 13ton crawler excavator

Our Services

SE130 13ton crawler excavator

 Warranty: We grants our clients a 12 month or 2000 hours warranty for any machines purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charges at our discretion.

   Spare parts: We is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and service, wherever you are. Please submit your spare parts requires to us and list products name, model equipment serial number, description of required parts. We guarantee that your requires will be handled quickly and appropriately.

   Installation & Maintenance: We is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of generators set and engine immediately. After installation, we will make inspection of the whole machine, operate equipment and provide you with testing date reports of installation and operation.

Company Information

SE130 13ton crawler excavatorSE130 13ton crawler excavator

SE130 13ton crawler excavator


Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
