Shandong Mountain Raise Heavy Industry Machinery Co Ltd

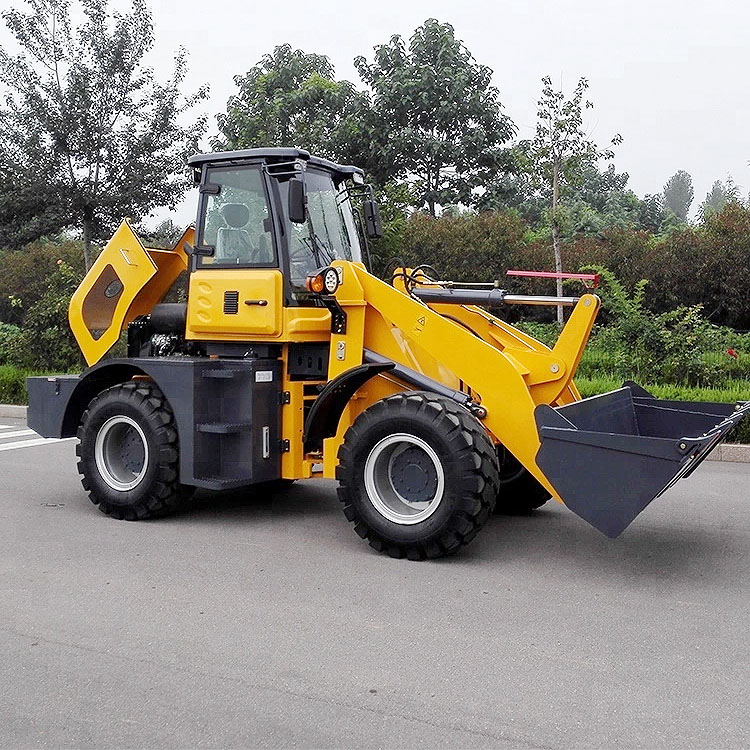

Brand Mountain Raise New 936 Weel Loader / 3ton wheel loader / zl30 front end loader

Payment Terms: TT or LC

Ref Price : 20000-22800 USD/TON

Supply Capability : 30 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Brand Name:
    MOUNTAIN RAISE
  • Model Number:
    MR936
  • Place of Origin:
    Shandong, China
  • Type:
    Front Loader
  • Moving Type:
    Wheel Loader
  • Dimension(Long * Breadth * High):
    7065x2235x3095mm
  • Rated Load:
    2500kg
  • Certification:
    ISO9001
  • Warranty:
    1000 Working Hours or a year,Whichever comes first, 1year
  • After-sales Service Provided:
    Overseas service center available
  • Operating weight:
    17100kg


Product Description

Main characters and  specification of ZL939E wheel loader

1.The equipped Weichai engine makes the complete machine have high power output and reserve power.


2.The power producer adopts a new-type high pressure pump to make the complete machine have ultra-strong capacity for lifting and scooping up materials. The application of coaxial flow amplifying technology makes the complete machine lighter and more flexible.the brake system adopts the advanced air over hydraulic technology and the four-wheel caliper-type brake , which is sensitive ,safe and reliable.


3.The wider and heavier front frame is equipped with a super swing arm combination. The rear steel plate frame made by one-step molding makes the machine structure more stable, stronger and more durable .


4.The new cab is enclosed with an extra luxury seat, an air heater and sound equipment. The human-oriented control device offers comfortable driving experiences. The wide field of vision reduces driver fatigue

SPECIFICATIONS of Rongwei ZL939E wheel loader


Performance

Rated load


3000Kg

Overall weight


9600Kg

Rated bucket capacity


1.8m3

Maximum tractive force


97KN

Maximum breakout force


≥127KN

Maximum grade ability


30℃

Maximum dump height


3200mm

Maximum dump reach


1260mm

Overall dimension (L*W*H)


6950×2400×3050mm

Minimum turning radius


5550mm

Engine

Model


Weichai DEUTZ

Type

In-line arrangement, water cooling, four-stroke

No. of cylinder-bore/stroke


6-126×130mm

Rated power


92kw--2400r/min

Maximum torque


500N.m

Min fuel-consume ratio


≤210g/kw.h

Transmission system

Torque converter


YJ315

Gearbox mode


Power shift normally engaged straight gear

Gear shift


4 forward shift  2reverse shift

Maximum speed


40km/h

Drive axles

Main reducing spiral


bevel gear grade 1reduction

Decelerating mode


planetary reduction,grade 1

Wheel base (mm)


2740mm

Wheel tread


1820mm

Minimum ground clearance


400mm

 Brake system

Service brake


air over hydraulic disc brake on 4 wheels

Parking brake


manual parking brake



  Tyre

Type specification


17.5-25

Front tyre pressure


0.4Mpa

Rear tyre pressure


0.35Mpa

ZL939E rated load 3ton; with Weichai Deutz 92kw engine, Cummins / Dongfanghong engine for option
1.configuration with levers control, pilot control / joystcik for option; Standard bucket capacity1.8m3
bigger bucket 2.5m3 for option; Standard dumping height 3200mm, higher 3500mm for option

2.Various working devices of attachment are available,such as log fork, grass fork, pallet fork, snow
blade, rock bucket, sweeper, trencher, auger, mixer, backhoe arm etc.to meet different need.

3.Heavy load model, fully hydraulic steering system, power shift transmission and easier operation

4.Bucket can be leveled automatically, optimized working device, higher productivity

5. Comfortable for operating environment, new design cabin,high-grade seat, air-conditioner for option

Detailed Images





Established in 2008, Qingzhou Rongwei Engineering Machinery Co., Ltd has be a professional manufacturer and export that is concerned with design, development and production of verity of wheel loaders from 1 ton to 5 ton capacity. Our factory located in Qingzhou, Weifang, Shandong province, with convenient transportation access. All of our products comply with international quality standards and has Approved Ce Certification and SGS certification. Rongwei verity of wheel loaders has got good reputation among our domestic and foreign customers.
Rongwei brand wheel loader is multi-functional, with more than 30 durable, safe and effective attachments design for different kinds of job. We are looking forward to provide you the most comprehensive field solution and the most perfect products and service in the most critical time.
Welcome your inquiry and visit.


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

One set loading in one 40HQ container

three sets loading in 17.5m truck.




Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
