Jining Infront Construction Machinery Co Ltd

Bucket capacity 3 cbm operator wheel loader

Payment Terms: TT or LC

Ref Price : USD44000-45000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

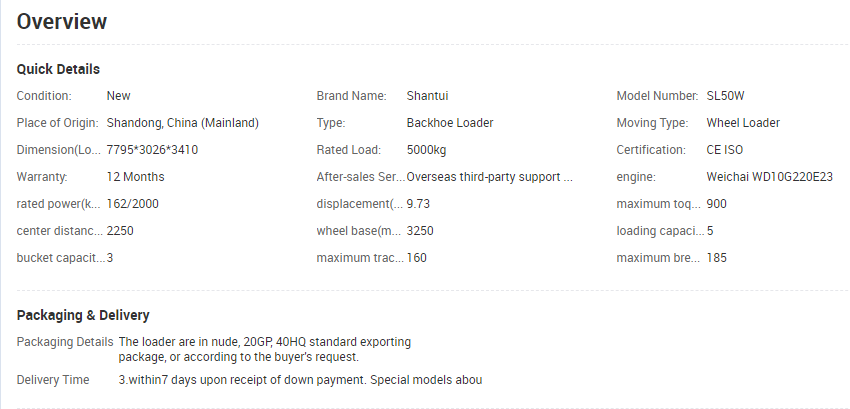

Qulck Details



Bucket capacity 3 cbm operator wheel loader

Contact person:Fiona LeeEmail : sales06@chinaift.comSkype : jkmachinery806Tel : +8618369815877 Web :https://iftchina.en.alibaba.comContact person:Fiona LeeEmail : sales06@chinaift.comSkype : jkmachinery806Tel : 18369815877 Web :https://iftchina.en.alibaba

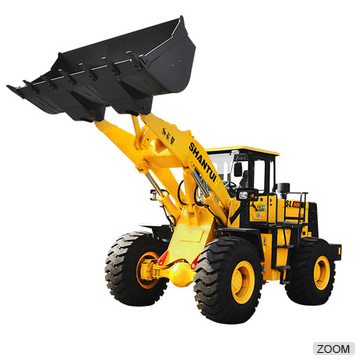

Bucket capacity 3 cbm operator wheel loader

Weichai (WD10G220E23) engine features green environmental protection power, and high efficiency with low energy use, low noise and low exhaust. The advanced Z-type reverse tipping bucket mechanism contributes to large breakout force and high work efficiency.



Equipped with advanced dual pump (combined) technology to improve fuel savings and work efficiency.

Performance Paramete

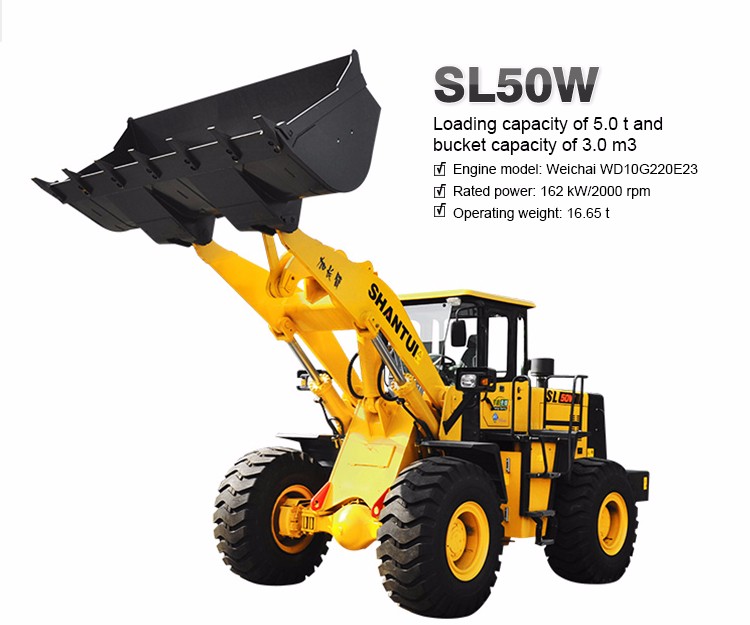

SL50W
Technical specifications:

Overall width: 3026 mm

Overall length: 8054 mm

Overall height: 3410 mm


GENERAL
SPECIFICATIONS

Operating weight

16650 kg

Related loading

5000 kg

Bucket capacity

3.0 m3

Maximum lifting force

185 kN

Static tipping load (full turn)

10000 kg

Dumping height

3178 mm

Dumping reach

1160 mm


ENGINE

Engine model

Weichai WD10G220GE23

Type

In-line, water-cooled, 4-cylinder, direct injection, turbocharged

Rated power

162 kW

Rated speed

2000 rpm

Displacement

9.73 L

Maximum torque

900 N·m

Minimum fuel consumption

215 g/kW·h


AXLES AND FINAL DRIVES

DRIVE SYSTEM

Four-wheel drive

Gradeability

30°

Maximum traction

162 kN

BRAKE SYSTEM:

Service brakes

Air over oil four-wheel dual-loop disc brake system

Parking brake

Automatically air-cut brake, disc brake

STEERING SYSTEM:

Type

Articulated type, full-hydraulic power steering

Maximum steering angle

35° each direction

The center of outside tire

6584 mm

The center of outside bucket

7256 mm

TIRES

Type

23.5-25 16PR

Pattern level

L3

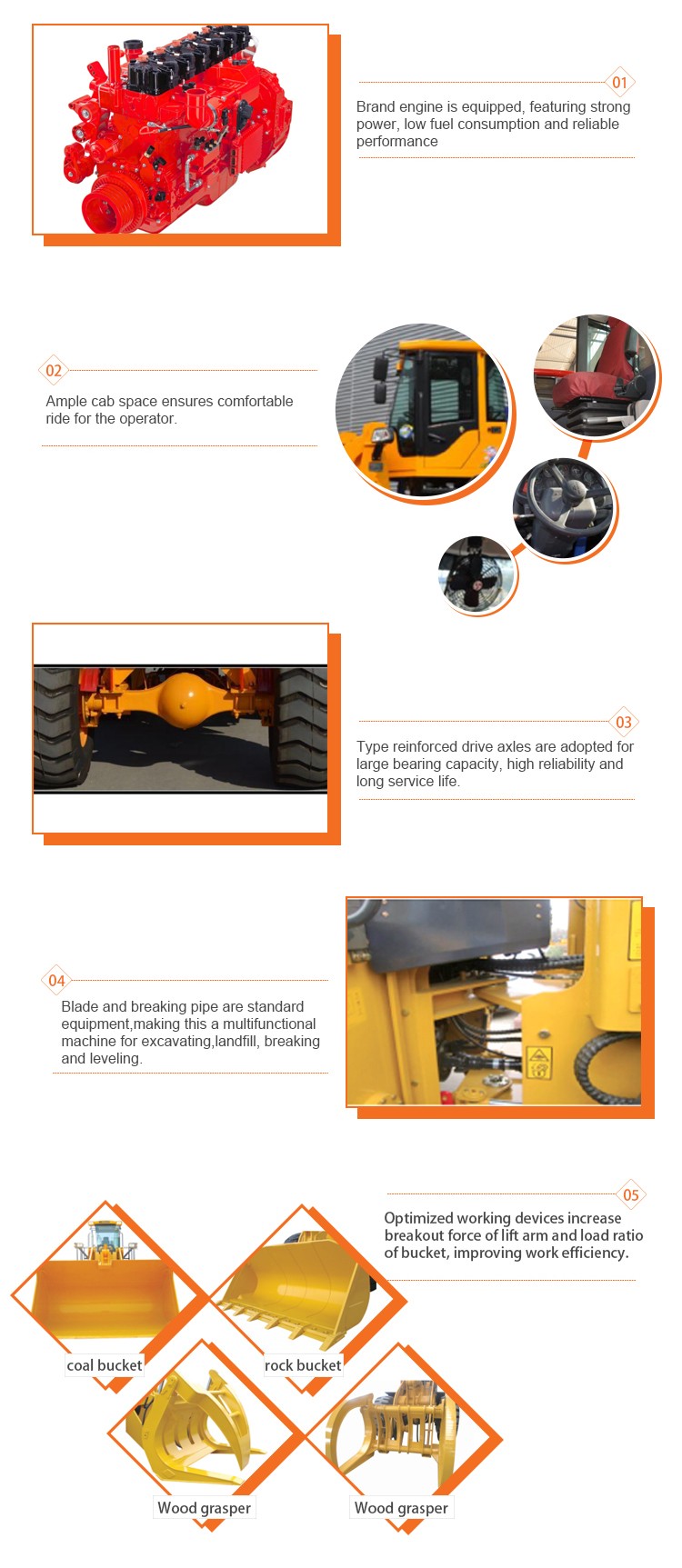

Technical Features

Bucket capacity 3 cbm operator wheel loader

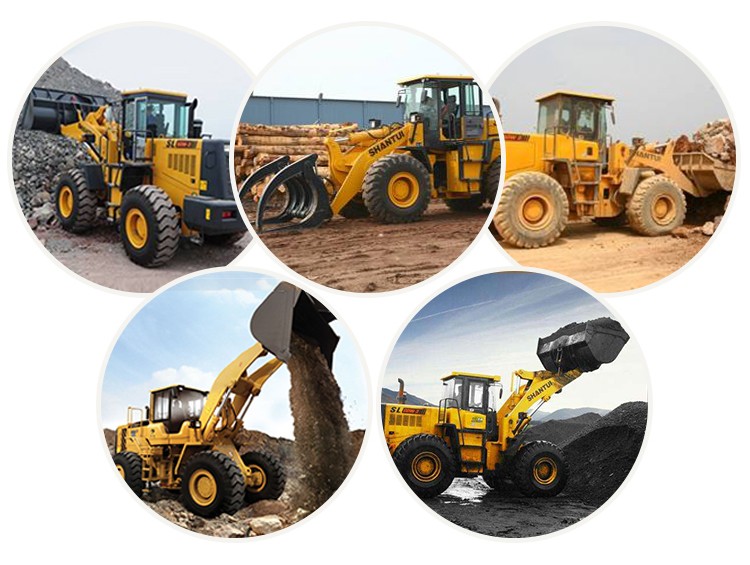

Working Condition

Bucket capacity 3 cbm operator wheel loader

Trading information

Bucket capacity 3 cbm operator wheel loader

Our Services

 1.Warranty

Company Information

 Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!



Bucket capacity 3 cbm operator wheel loader

FAQ

 1,How long will take to delivery the goods after placing an order?

It will take about 7days after getting the deposit if we have machine in stock. Some customized goods will need about 30days to delivery.



2,If our machines have any problems, When will your side can reply to us?

We will solve your problems immediately once get your message. Usually it will take 1~2hours to give you the solution or explanation.



3,What kind of good policy your can supply if we want to be your distributor?

Special discount and protection of sales area can be provided to your distributor.



4,Which incoterms 2010 terms can we work?

We are a professional and sophisticated international player, can handle all Incoterms 2010 terms, and we normally work on FOB,CFR,CIF,CIP,DAP Etc.



Please kindly provide us the following information before you send us email

1.what rated load you need?

2.do you need air conditioner?

3.you need fob or cif price? which port?


Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
