CANGZHOU FORWARD LIGHT KEEL ROLL FORMING MACHINE LIGHT GAUGE ROLL FORMING MACHINE

Payment Terms: TT or LC

Ref Price : US $7,000-12,000 / Set

Supply Capability : 20 Set/Sets per Month light keel roll forming machine

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • galvanized

  • Use:

  • Roof

  • Production Capacity:

  • 0--30m/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QJ

  • Model Number:

  • CD60--27

  • Power(W):

  • 4+4KW

  • Voltage:

  • 380V 50Hz 3phases

  • Dimension(L*W*H):

  • 5.5m*0.7m*1.15m

  • Weight:

  • About 3 Tons

  • Certification:

  • CE/ISO9001

  • Warranty:

  • 18 Months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Shaft diameter:

  • 40mm with keyway

  • Roller material:

  • Cr12

  • Heat treatment:

  • Vacuum quenching upto hardness 58℃

  • Fine machining:

  • CNC lathe after vacuum quenching

  • Machine structure:

  • 5mm under-frame and 20mm worktable

  • Motor power:

  • 4KW with PM250 reducer

  • Gateway process:

  • Square side with fly edge machine

  • Production speed:

  • 0--30m/min

  • Cutter material:

  • Cr12mov

  • Cutter processing:

  • Spark -polishing machine

Packaging & Delivery

  • Packaging Details

  • Nude packing in the 40 feet container , fixed well with oil rope , control cabinet and all the accessories with waterproof .

  • Delivery Time

  • 45 days after we received the deposit

Title



 CANGZHOU FORWARD LIGHT GAUGE ROLL FORMING MACHINE LIGHT KEEL ROLL FORMING MACHINE

Product Description



cutting method  full-auto hydraulic servo-tracking cutting
speed adjustment frequency changer control
un-coil type  manual operation
inner coil diameter 460-510mm
frame structure  angle steel with metal  plate
function let the finished product freely
weight  about  3  tons

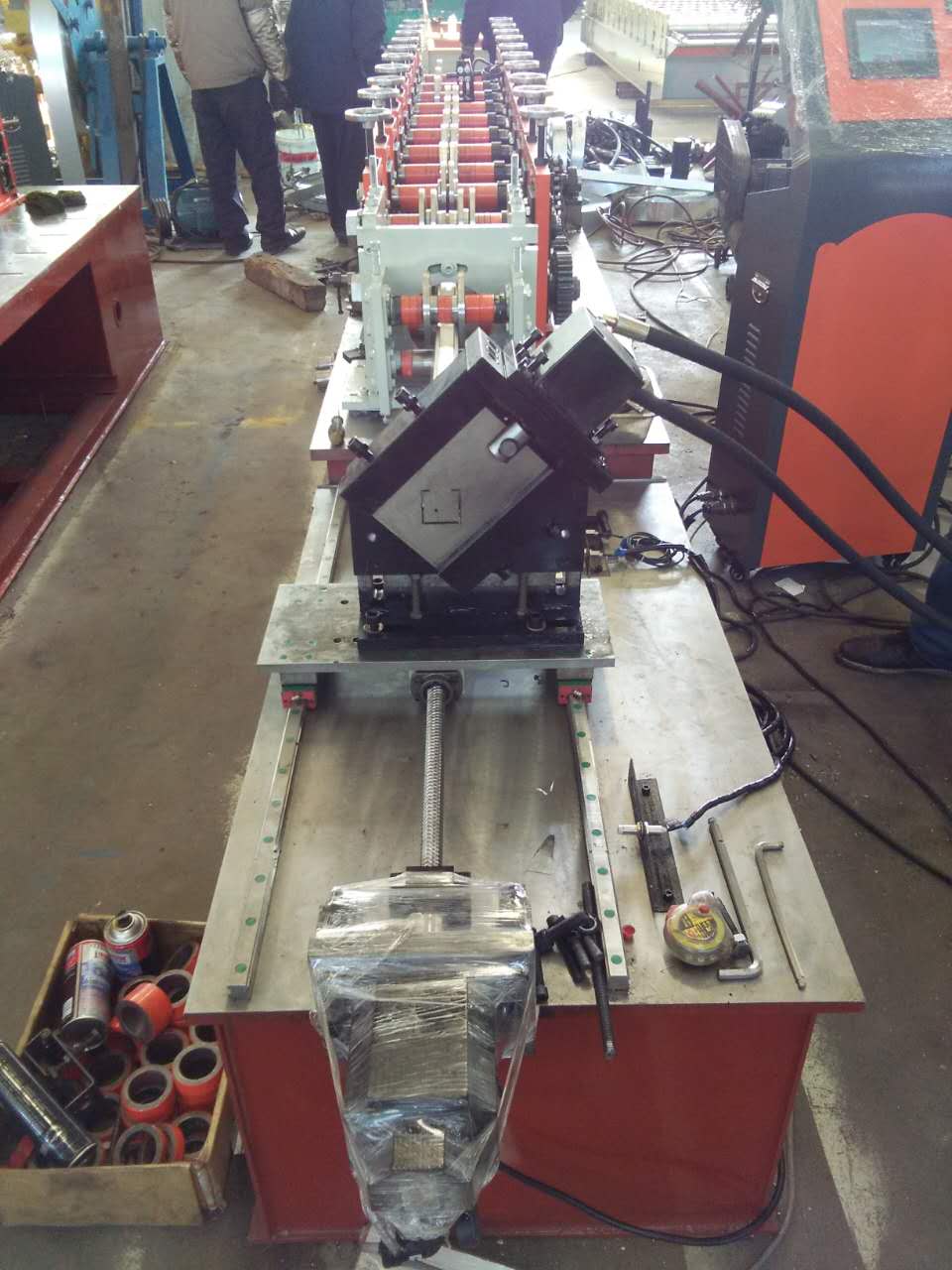

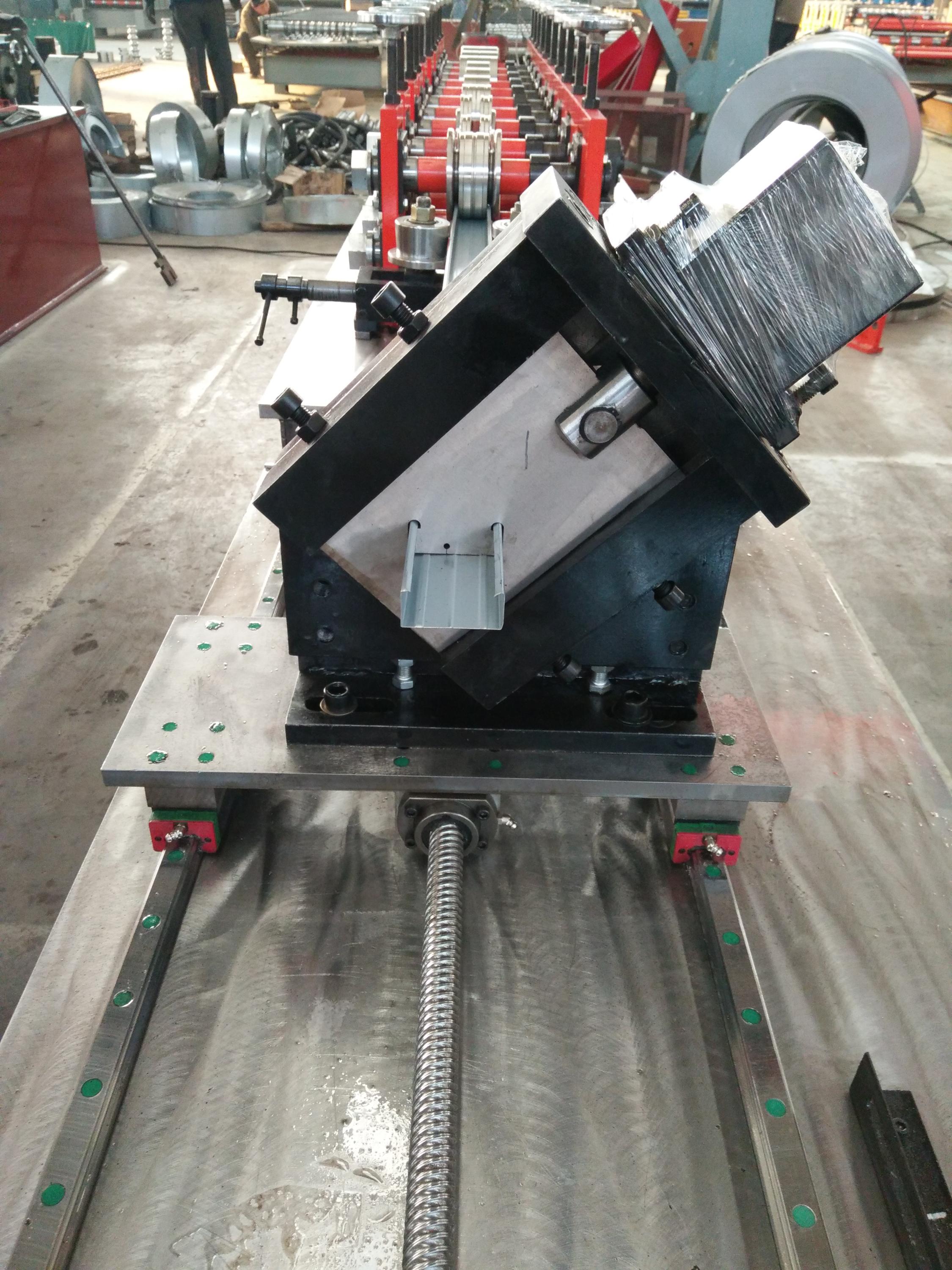

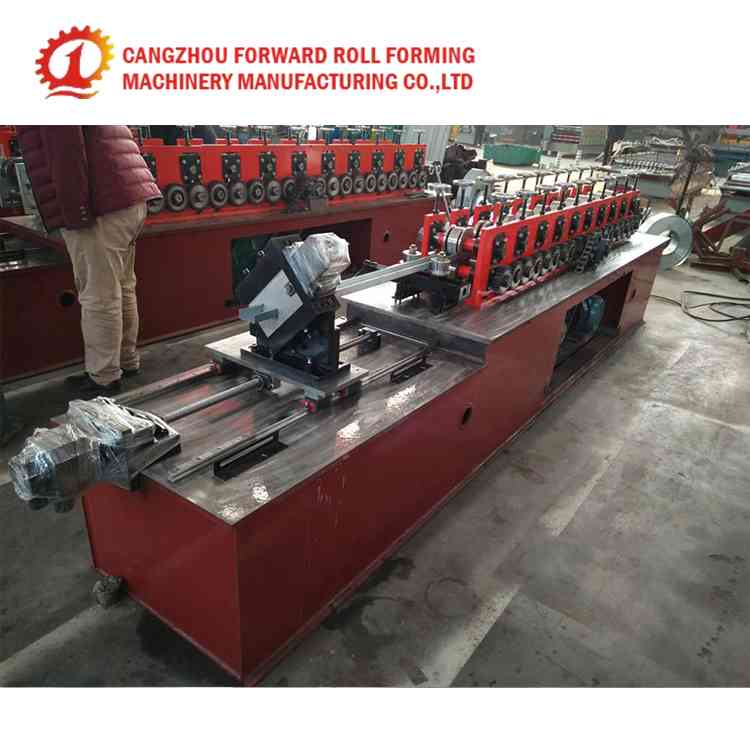

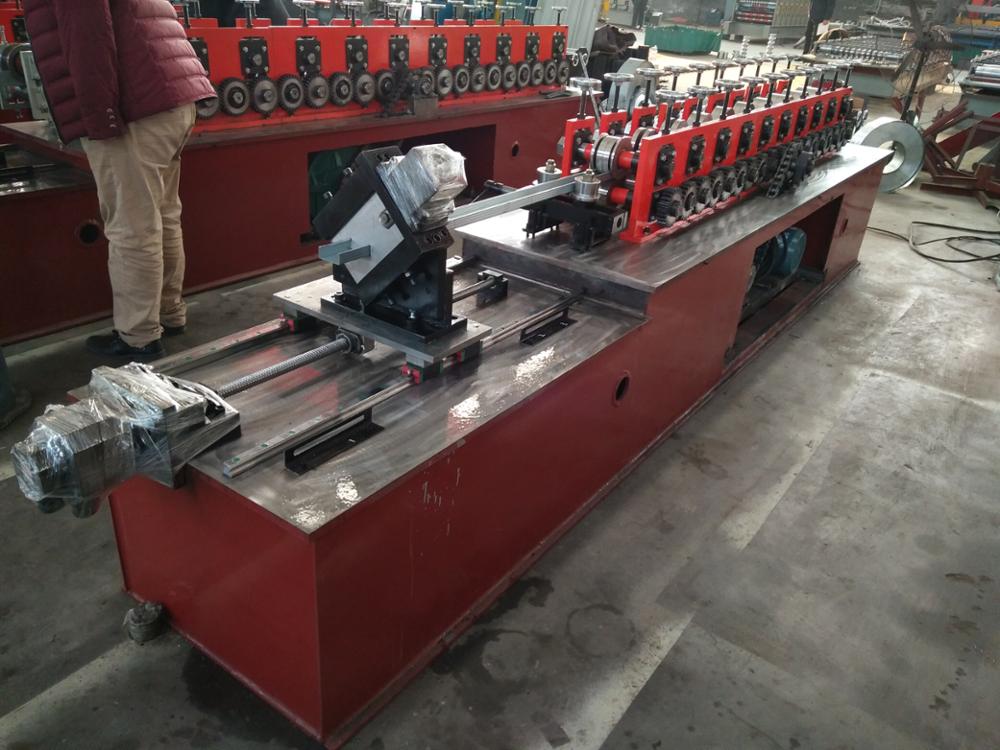

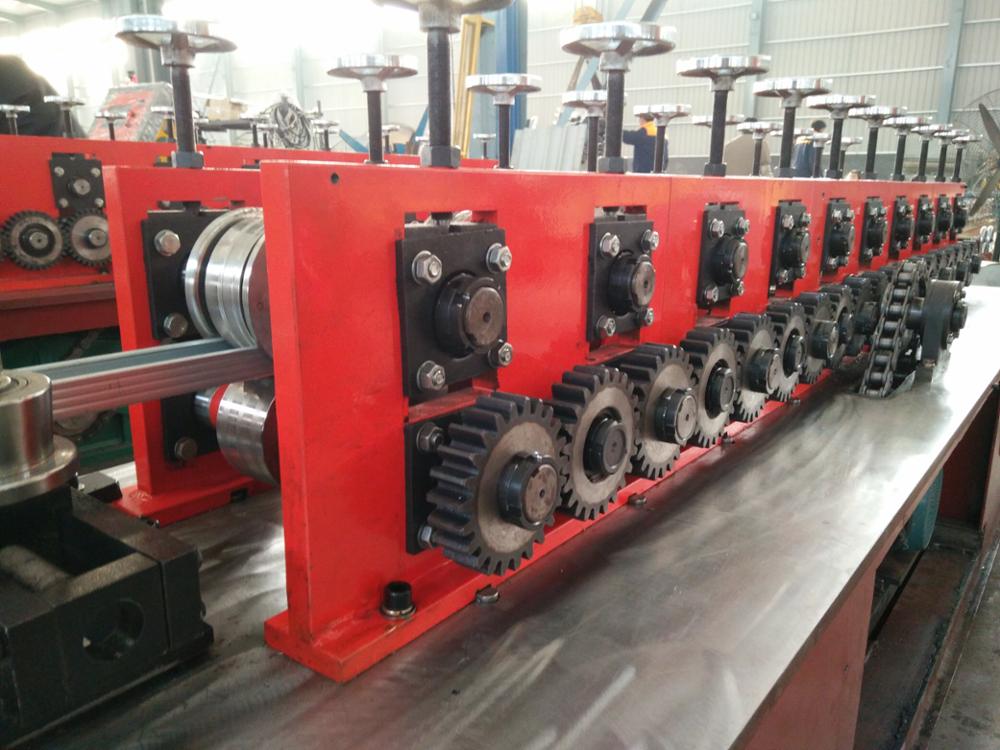

Production Show

 CANGZHOU FORWARD LIGHT KEEL ROLL FORMING MACHINE LIGHT GAUGE ROLL FORMING MACHINECANGZHOU FORWARD LIGHT KEEL ROLL FORMING MACHINE LIGHT GAUGE ROLL FORMING MACHINECANGZHOU FORWARD LIGHT KEEL ROLL FORMING MACHINE LIGHT GAUGE ROLL FORMING MACHINECANGZHOU FORWARD LIGHT KEEL ROLL FORMING MACHINE LIGHT GAUGE ROLL FORMING MACHINE

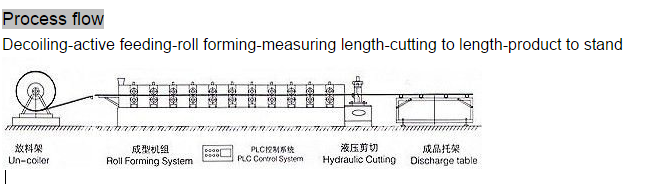

Flow Chart

 CANGZHOU FORWARD LIGHT KEEL ROLL FORMING MACHINE LIGHT GAUGE ROLL FORMING MACHINE


Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
