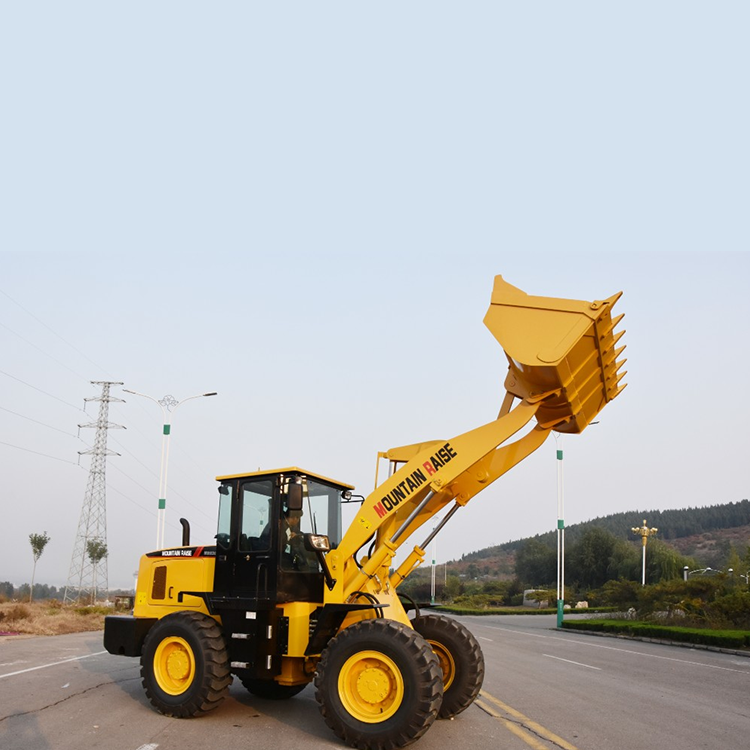

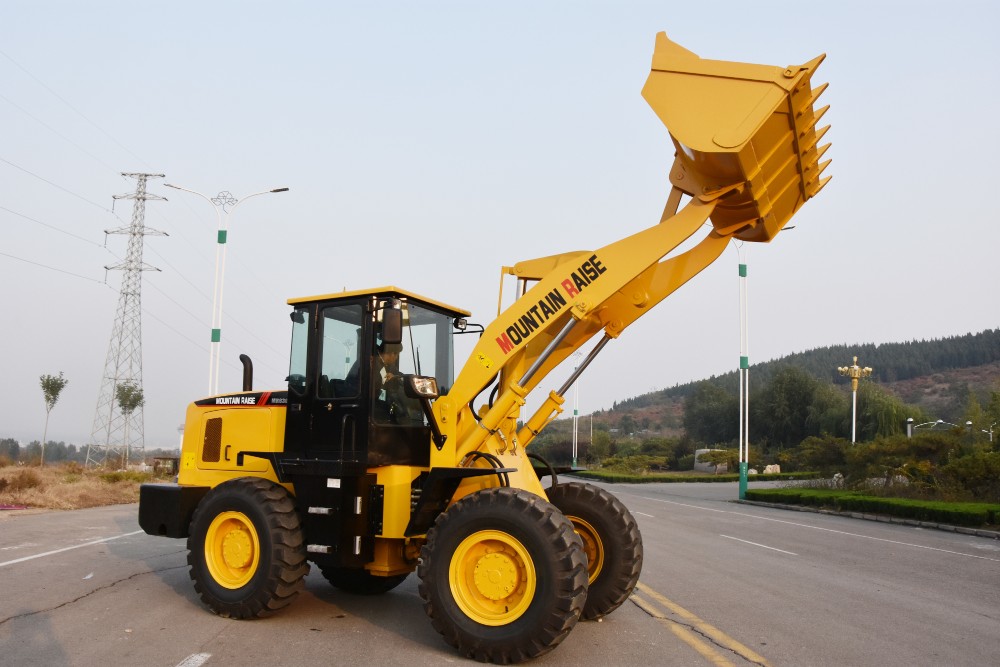

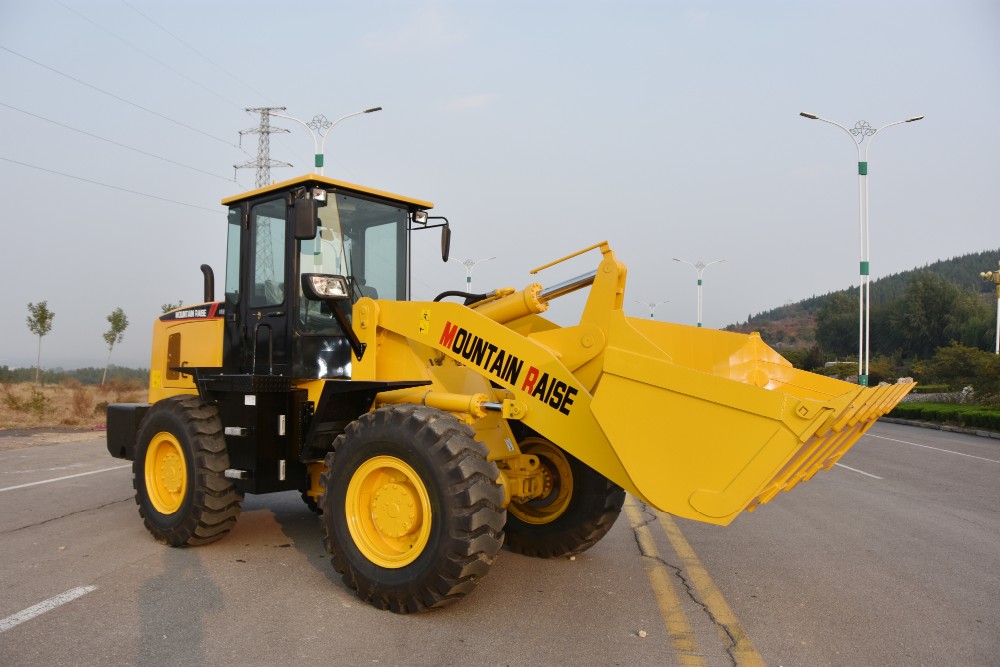

China road construction equipment 3ton wheel loader zl30 for sale

Payment Terms: TT or LC

Ref Price : 13300-22000 USD/TON

Supply Capability : 3000 TON

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Brand Name:
    MOUNTAIN RAISE
  • Model Number:
    MR936
  • Place of Origin:
    Shandong, China (Mainland)
  • Type:
    Front Loader
  • Moving Type:
    Wheel Loader
  • Certification:
    ISO9001
  • Warranty:
    1000 Working
  • Operating weight:
    17100kg
  • Engine:
    WEICHAI DEUTZ
  • WHEEL BASE:
    2830mm
  • Rated Power:
    92KW
  • Bucket capacity:
    1.3 cbm
  • Tire:
    17.5-25


China road construction equipment 3ton wheel loader zl30 for sale


Product Description


SPECIFICATIONS OF OUR 3TON WHEEL LOADER
Parameters Rated load 3000kg
Overall weight 9600kg
Bucket capacity 1.7-2.5cbm
Max. tractive force 97kN
Max. breakout force 127kN
Max. grade ability 30.
Max. dump height 3100mm
Max. dump reach 1006mm
Overall dimension(L*W*H) 6890x2440*3200mm
Min. turning radius 5097mm
Transmission System Torque converter YJ315-X
Gearbox Mode Power shift normally engaged straight gear
Gears F4/R2
Max. speed 40km/h
Drive Axles Main reducing spiral Bevel gear I  reduction
Decelerating mode Planetary Grade I
Wheel base 2660mm
Tread  1800mm
Min. ground clearance 400mm
Engine Model WEICHAI DEUTZ
Type Inline water-four stroke
No. of cylinder-bore/stroke 6-108x125mm
Rated power 92kw
Max. torque 500N.m
Min. fuel-consume ratio  <=210kw.h
Hydraulic System System working pressure 16.5mpa
Boom lifting time 4.83s
Total time 9.15s+0.5s
Fuel tank capacity 156L
Function of leveling automatically yes
Brake system Service brake Air over hydraulic disc brake on 4 wheels
Parking brake Manual disk brake
Tires Tire specification 17.5-25
Front tire pressure 0.4mPa
Rear tire pressure 0.35mPa

China road construction equipment 3ton wheel loader zl30 for sale

China road construction equipment 3ton wheel loader zl30 for saleChina road construction equipment 3ton wheel loader zl30 for sale

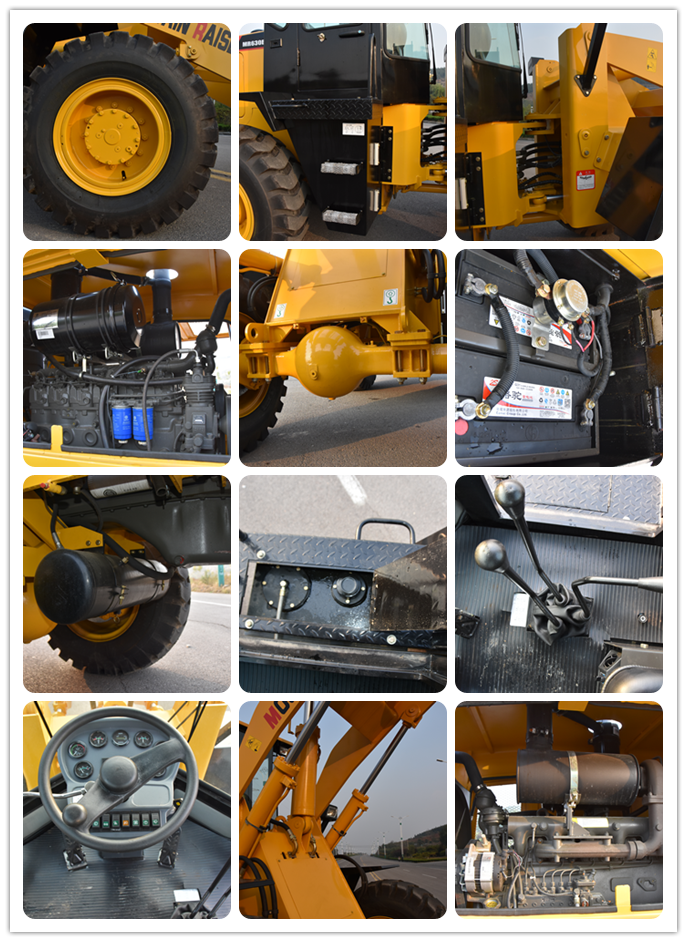

Detailed Images

China road construction equipment 3ton wheel loader zl30 for sale

China road construction equipment 3ton wheel loader zl30 for sale

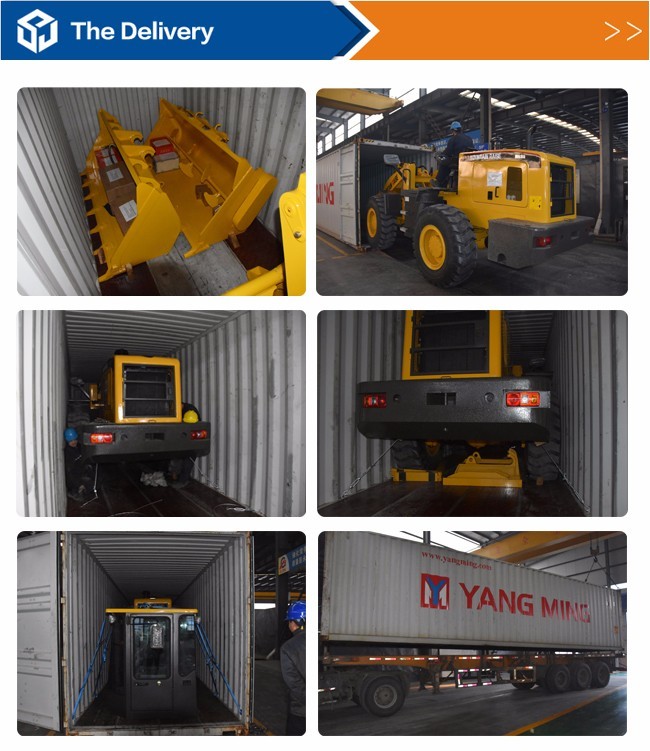

Packaging & Shipping

China road construction equipment 3ton wheel loader zl30 for sale

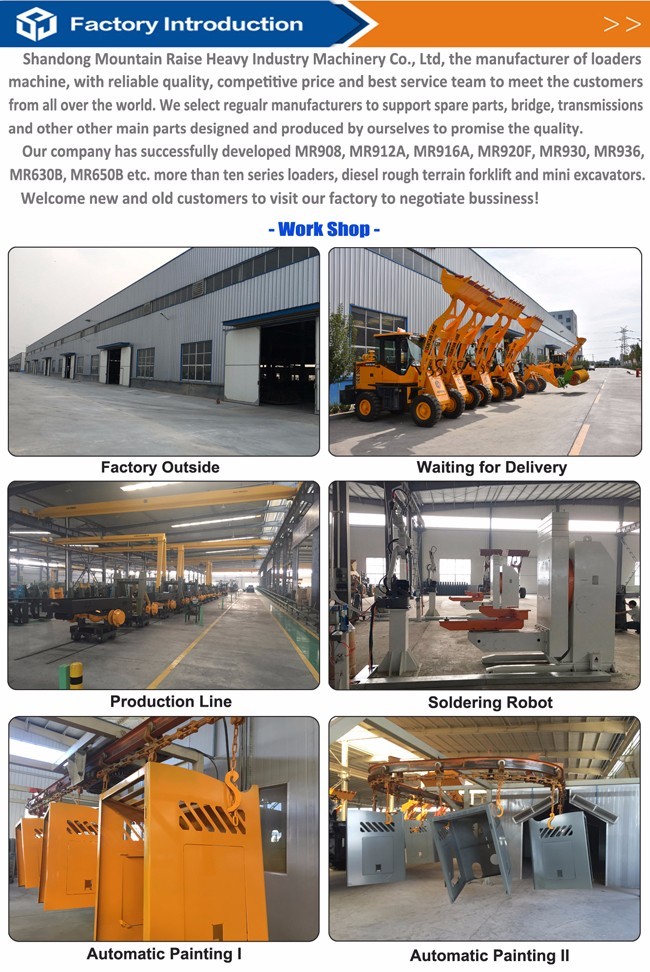

Company Information

Shandong Mountain Raise Heavy Industry Machinery co.,Ltd

China road construction equipment 3ton wheel loader zl30 for sale

Certifications

China road construction equipment 3ton wheel loader zl30 for sale

FAQ



China road construction equipment 3ton wheel loader zl30 for sale

1. Which countries do we export to?

Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.

South America: Brazil, Chile, Paraguay, Argentina, etc.

Africa: South Africa, Ethiopia, Libya, etc.



2.What are our advantages compared with other manufacturers/factories?

1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines,  bridge, transmissions, and many parts designed and produced by ourselves, always adapting

 the  best materials.

2)Competitive Price: Concentration of mechanized production in large quantities reduce

production  costs to ensure that our price is competitive.

3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your  questions at any time. Second, professional maintenance team with senior technicians, ready

 to  provide support services to users and dealers. Most problems can be solved within 24 hours.

4)Fast Delivery: Under normal circumstances, we can delivery with 10 working days in factory

after  receiving pre-payment.



3.Which payment terms can we accept?

Normally we can work on T/T or L/C.

1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid

before delivery or against the copy of original B/L for old long cooperation clients.

2)On L/C term, 100% irrevocable L/C at sight without “soft clauses” can be accepted.



4.Which INCOTERMS 2010 we can work?

As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we

normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
