Shandong Mountain Raise Heavy Industry Machinery Co Ltd

China road/ construction machine 5 ton front end wheel loader price

Payment Terms: TT or LC

Ref Price : USD30000-38000

Supply Capability : 100unit/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

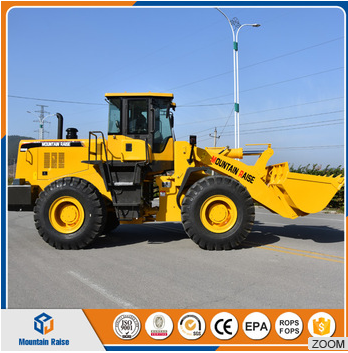

China road/construction machine 5 ton front end wheel loader price


Quick Details

Condition:New                                                                                               Brand Name: MOUNTAIN RAISE

Model Number:MR650B                                                                                Place of Origin:Shandong, China  (Mainland)

Type:Front Loader                                                                                          Moving Type:Wheel Loader

Dimension(Long * Breadth * High):7920mm*3050mm*3400mm                  Rated Load:5000kg

Certification: ISO9001 CE                                                                               Warranty:2000 Working Hours or a year,Whichever comes first, 1year

After-sales Service Provided: Overseas service center available                   Operating weight:17100kg

Product name:5 ton wheel loader zl50 with high qualtiy                              Engine:WEICHAI STEYR

Rated Power:162KW                                                                                       Bucket capacity:3.0 cbm

Tire:23.5-25                                                                                                    Transmission:Automatic

Attachments:Snow blower, wood grapple,fork                                             Model:Heavy duty 5ton


Packaging & Delivery

Packaging Details:1 units per1* 40HQ container

Delivery Time:Shipped in 7 days after payment




Product Description

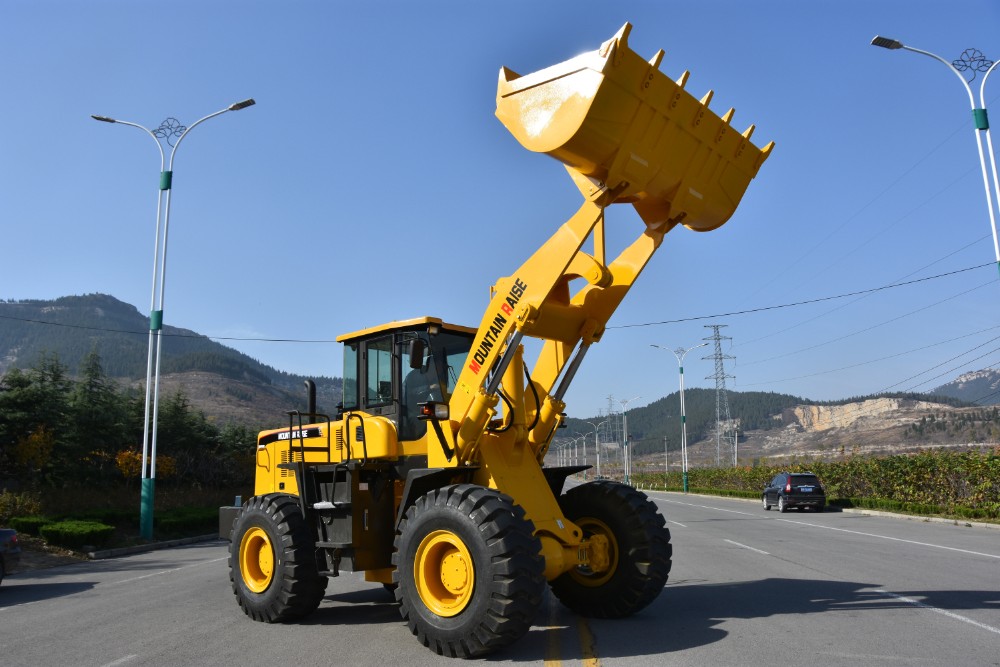

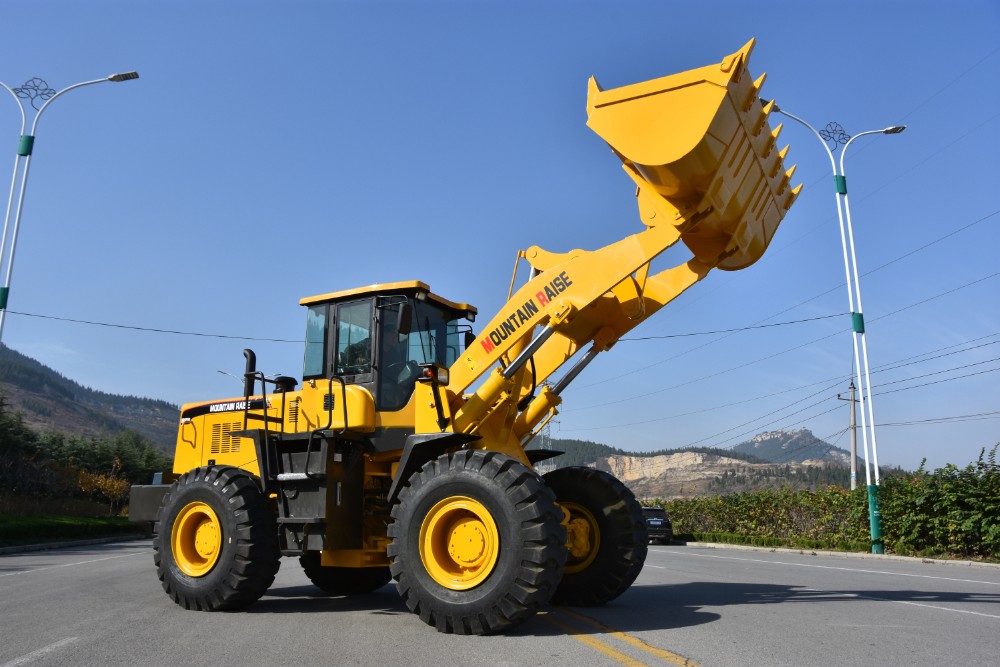

China road/ construction machine 5 ton front end wheel loader price

Performance rated load 5000kg
overall weight 17100kg
rated bucket capacity 3m3
maximum tractive force 152KN
maximum breakout force ≥170KN
maximum grade ability 30℃
maximum dump height 3150mm
maximum dump reach 1250mm
overall dimension (L×W×H) 7920×3050×3400mm
minimum turning radius 6640mm
Engine model  Weichai Steyr WD615
type lnline  water cooling dry cylinder  injection
No. of cylinder-bore/stroke 6-126×130mm
rated power 162kw--2400r/min
maximum torque 860N.m
min fuel-consume ratio ≤215g/kw.h
Transmission system torque converter YJ375
 gearbox mode Power shift normally engaged straight gear
gear shift 4 forward shift  4reverse shift
 maximum speed 38km/h
Drive axles main reducing spiral bevel gear grade 1reduction
decelerating mode planetary reduction,grade 1
wheel base (mm) 3200mm
wheel tread 2250mm
minimum ground clearance 450mm
Hydraulic system system working pressure  18MPa
boom lifting time 5.95±0.2s
total time  10.95±0.5s
fuel tank capacity 300L
function of leveling automatically yes
Brake system service brake air over hydraulic disc brake on 4 wheels
parking brake manual parking brake
Tire type specification 23.5-25
front tyre pressure 0.4Mpa
rear tyre pressure 0.35Mpa



China road/ construction machine 5 ton front end wheel loader price

China road/ construction machine 5 ton front end wheel loader priceChina road/ construction machine 5 ton front end wheel loader priceChina road/ construction machine 5 ton front end wheel loader price

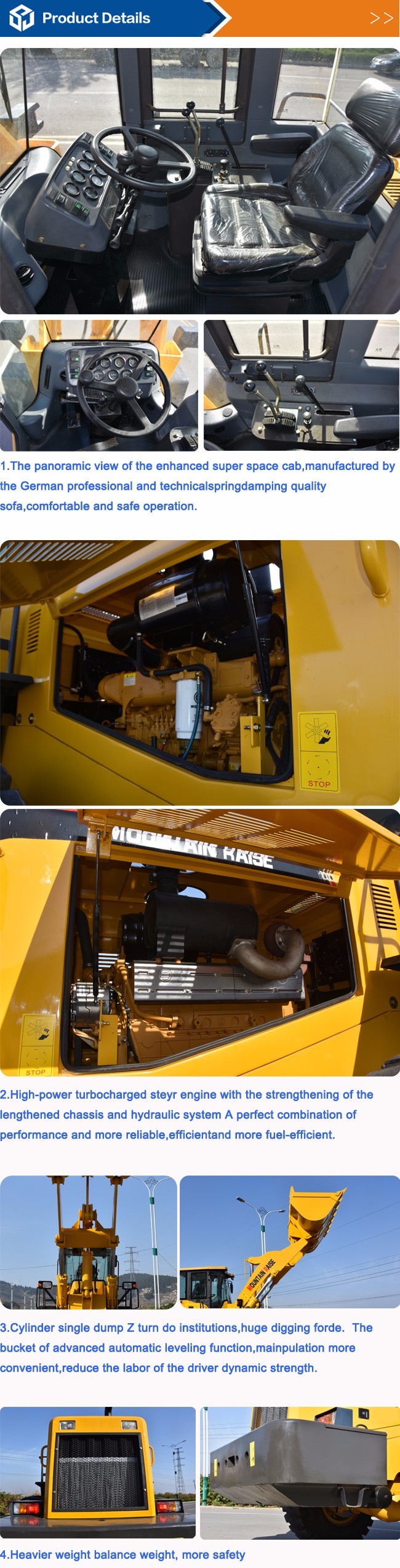

Detailed Images

China road/ construction machine 5 ton front end wheel loader price

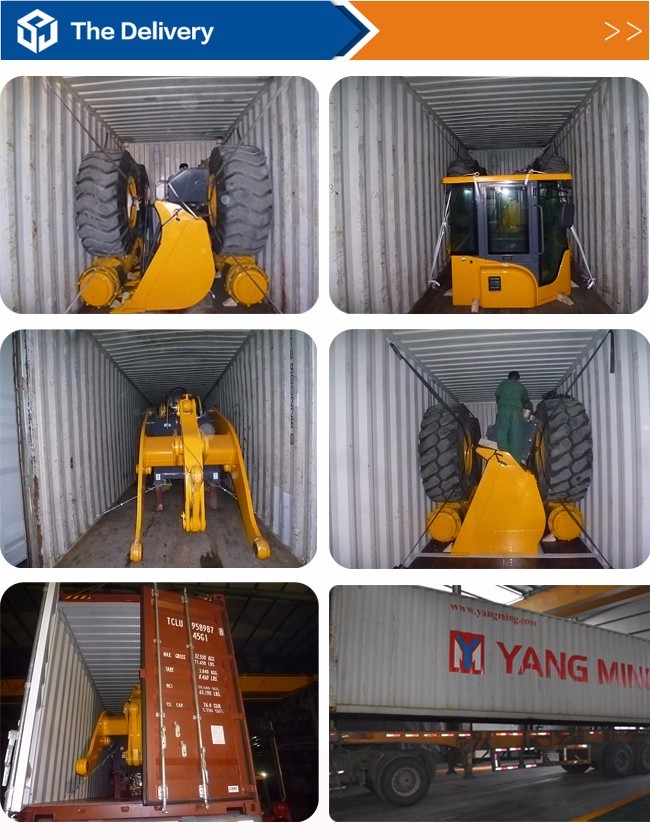

Packaging & Shipping

China road/ construction machine 5 ton front end wheel loader price

Related Products

China road/ construction machine 5 ton front end wheel loader price

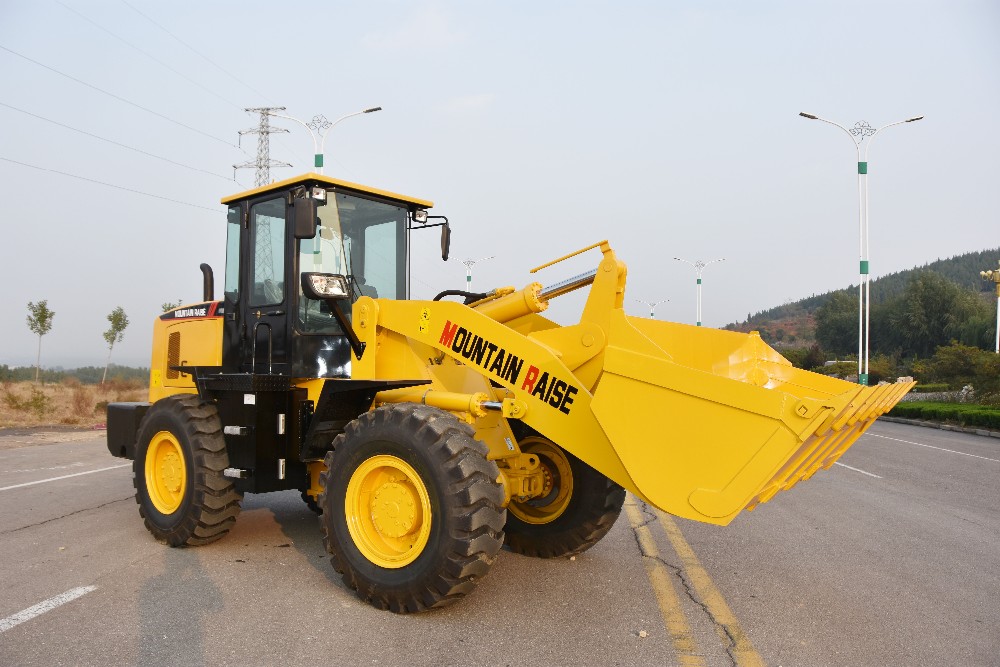

                              MOUNTAIN RAISE 630B Ton Wheel Loader

China road/ construction machine 5 ton front end wheel loader price





Certifications

China road/ construction machine 5 ton front end wheel loader price

FAQ



China road/ construction machine 5 ton front end wheel loader price

1. Which countries do we export to?

Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.

South America: Brazil, Chile, Paraguay, Argentina, etc.

Africa: South Africa, Ethiopia, Libya, etc.



2.What are our advantages compared with other manufacturers/factories?

1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines,  bridge, transmissions, and many parts designed and produced by ourselves, always adapting

 the  best materials.

2)Competitive Price: Concentration of mechanized production in large quantities reduce

production  costs to ensure that our price is competitive.

3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your  questions at any time. Second, professional maintenance team with senior technicians, ready

 to  provide support services to users and dealers. Most problems can be solved within 24 hours.

4)Fast Delivery: Under normal circumstances, we can delivery with 10 working days in factory

after  receiving pre-payment.



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
