Shandong Mountain Raise Heavy Industry Machinery Co Ltd

Chinese front-end shovel loader for sale

Payment Terms: TT or LC

Ref Price : US $0.10-$10.00

Supply Capability : 10000TON

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

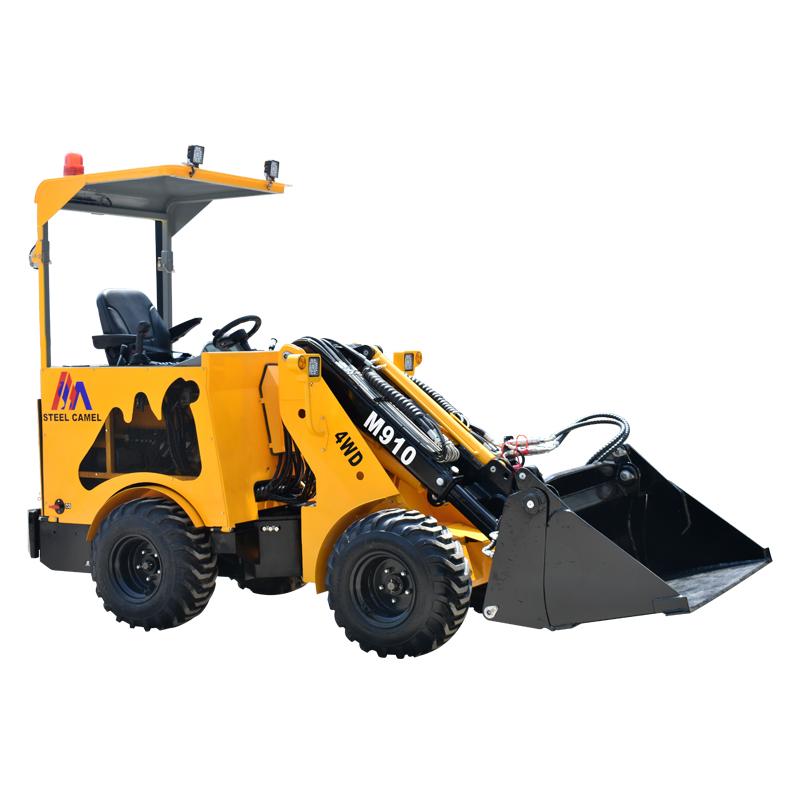

Chinese front-end shovel loader for sale

product description



New design,combination of loader and tractor. Both front and rear end has hydraulic output for various attachments.



Tiltable cabin gives full access for the complete inside parts which is very convenient.



Fully hydrostatic transmission system,  pistion pump plus 4 wheel motors combined the driving system, smooth and stepless speed change.



Telescopic boom,Cabin/Folding ROPS, 3 point hitch ect. optional, offer more choices for customers.

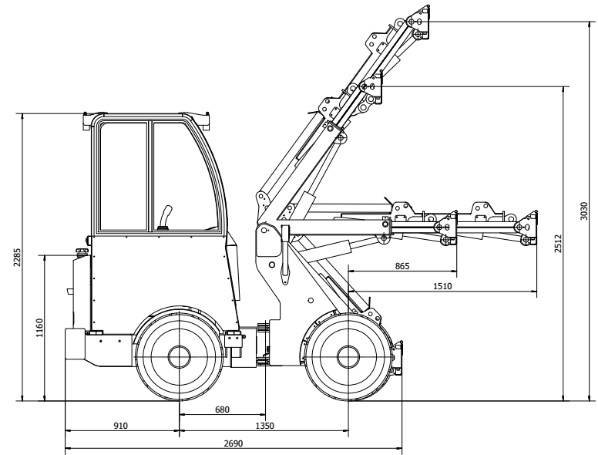

M910 technical data


Model:                                                                                     M910 front-end shovel loader

Dimensino((LxWxH)                                                                                 2690 X1240 X 2285mm

Max. lifting height (boom retracted)                                                              3030mm

Max. lifting height (boom retracted)                                                              2512mm

Bucket capacity                                                                                            0.5cbm

Rated loading capacity                                                                                 950~1200kg

Min. turning radius                                                                                        268mm

Turning angle                                                                                                45 degree

Min. ground clearance                                                                                  268mm

 Speed                                                                                                          0-12 km/h

Weight                                                                                                          1700 kg

Standard tile                                                                                                 26*12-12

Tile pressure                                                                                                 2.8 bar

oil tank capacity                                                                                            45L

Pressure                                                                                                       190bar

Working oil flow                                                                                             33.5L/minx2

Tracking oil flow                                                                                            78L/min

Oil model(mineral oil)                                                                                   L-HL46

Fuel tank capacity                                                                                        30L

Battery                                                                                                         60Ah, 12 V

Engine                                                                                                         Perkins 404D-15

Rated power                                                                                                33hp

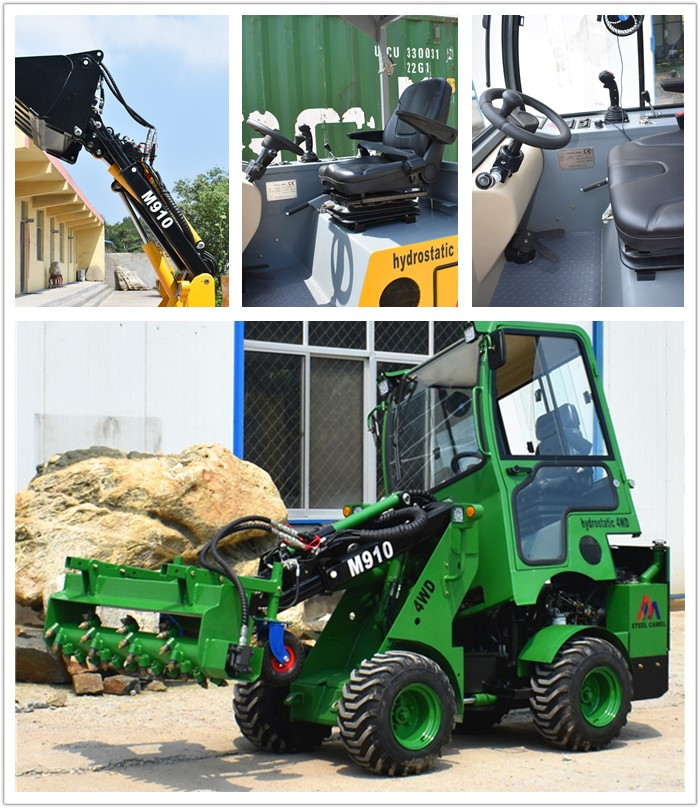

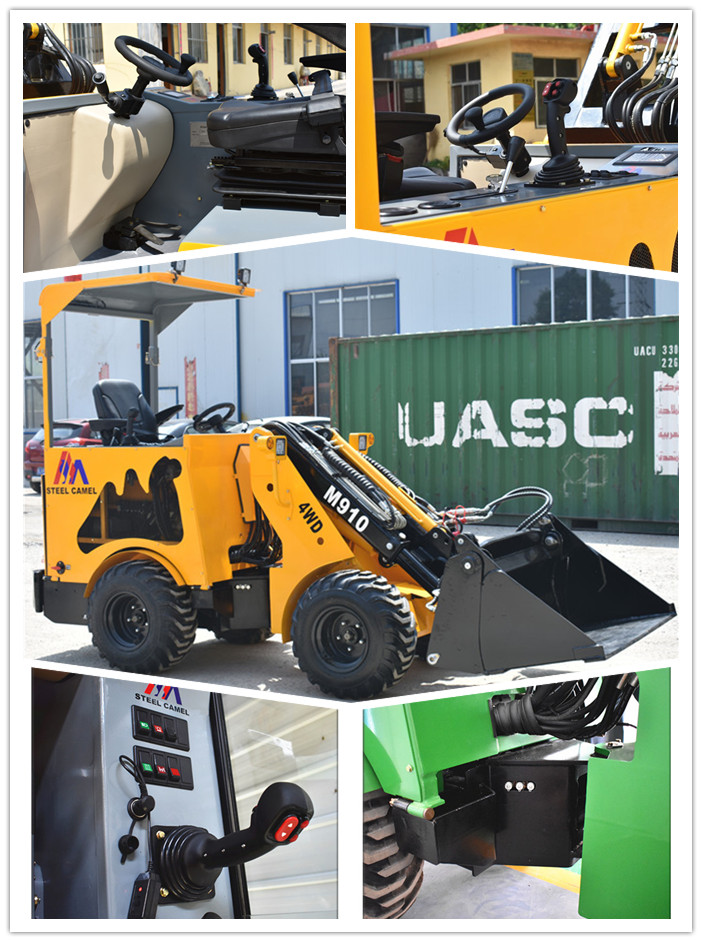

Detailed images

 A (8).jpgA (4).jpg

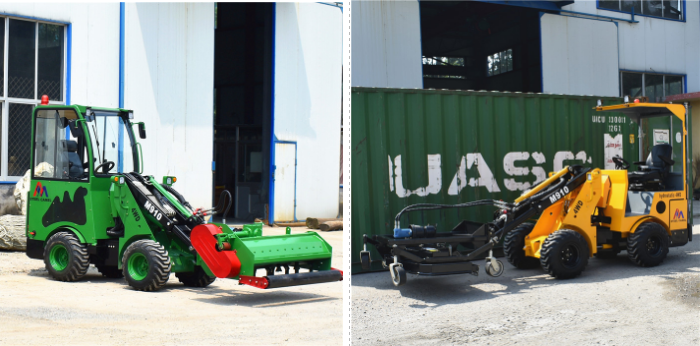

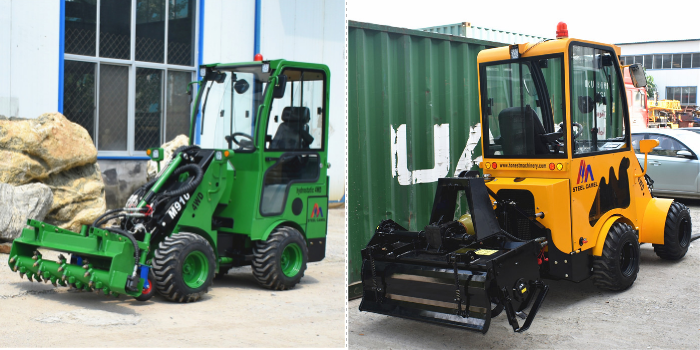

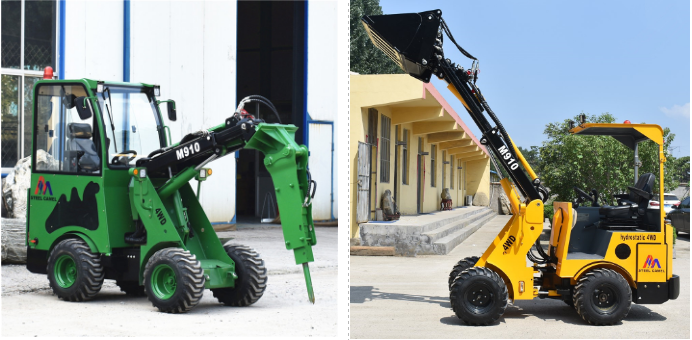

Applications

The compact design, front & rear output, telescopic boom, plus the quick coupling system for many different attachments, ect. All these good features makes the "STEEL CAMEL" series mini loaders become the"TRANSFORMER" in machinery. It was widely used in farming, construction, gardenning, landscaping, municiple work, become good partners for the customers worldwide

applications  (3).pngapplications  (1).pngapplications  (2).png

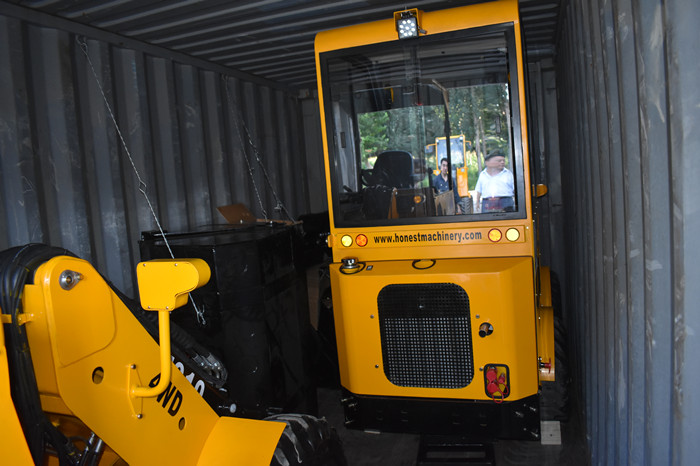

Packaging & Shipping

For one sample order:

Packed by well protected steel box, shipping as less container load.



For bulk order:

3 sets/20' container; 7 sets/40' container



Nearest port of loading:

Qingdao, Shandong province. Other chinese ports are acceptable.

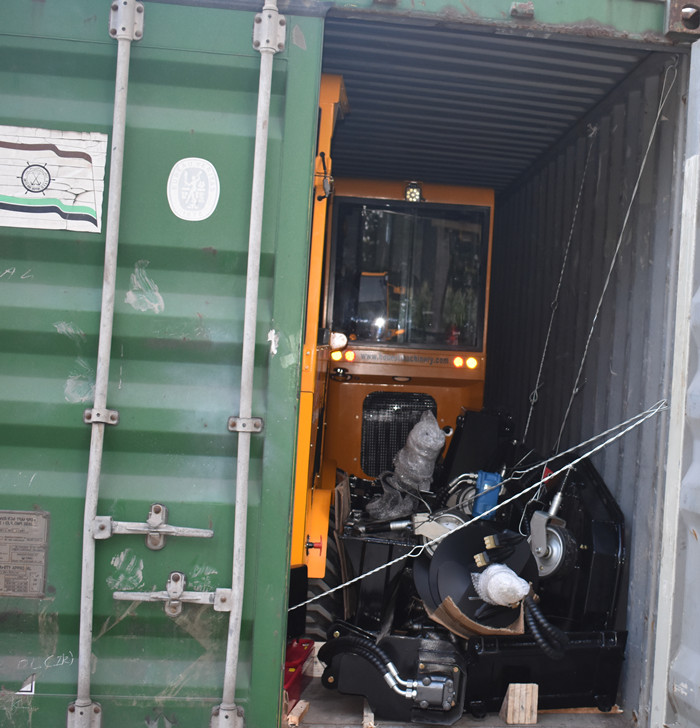

loading photos (3).JPGloading photos (9).JPG

FAQ

Q 1: Are you the manufacturer or trading company?

We are manufacturer with an experienced engineering and producing team whose background can be dated back to the 1980s. We warmly welcome you to visit our factory to check everything.



Q 2: I have no experience buying from China, what can you do for me?

We are aiming at offer a complete solution for customer not only a machine, thus we'll assist you about the complete import procedure, and we have our experienced logistic partners can handle the machine from door to door. So it'll be as easy as local online shooping.



Q3: Do you offer training of the machine?

We offer detailed manual and instructions about how to operate and maintenance the machine, relative videos are available for you to better know it. Face to face trainning is available upon requirements.



Q4: What support can I get if I came accross some problem with the machine during usage?

First of all, all your mails will be responsed immediately, our services will communicate with you and figure out what problem you have, then we'll offer relative instructions with photos or videos. If necessary, we can ask for our nearest dealer or send our engineer to help you.

Contact us


Shandong Mountain Rainse heavy Industry Machinery Co.,Ltd


Email:

shanjumachinery@sino-sources.com



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
