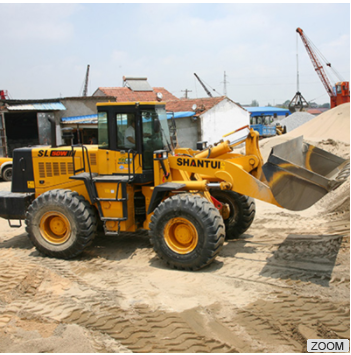

Chinese supply front loader construction equipment

Weichai (WD10G220E23) engine features green environmental protection power, and high efficiency with low energy use, low noise and low exhaust. The advanced Z-type reverse tipping bucket mechanism contributes to large breakout force and high work efficiency.



Equipped with advanced dual pump (combined) technology to improve fuel savings and work efficiency.

Performance Paramete



SL50W  Technical specifications:	Overall width: 3026 mm
	Overall length: 8054 mm
	Overall height: 3410 mm
GENERAL SPECIFICATIONS	Operating weight	16650 kg
	Related loading	5000 kg
	Bucket capacity	3.0 m3
	Maximum lifting force	185 kN
	Static tipping load (full turn)	10000 kg
	Dumping height	3178 mm
	Dumping reach	1160 mm
ENGINE	Engine model	Weichai WD10G220GE23
	Type	In-line, water-cooled, 4-cylinder, direct injection, turbocharged
	Rated power	162 kW
	Rated speed	2000 rpm
	Displacement	9.73 L
	Maximum torque	900 N·m
	Minimum fuel consumption	215 g/kW·h
AXLES AND FINAL DRIVES	DRIVE SYSTEM	Four-wheel drive
	Gradeability	30°
	Maximum traction	162 kN
	BRAKE SYSTEM:	Service brakes	Air over oil four-wheel dual-loop disc brake system
		Parking brake	Automatically air-cut brake, disc brake
	STEERING SYSTEM:	Type	Articulated type, full-hydraulic power steering
		Maximum steering angle	35° each direction
		The center of outside tire	6584 mm
		The center of outside bucket	7256 mm
	TIRES	Type	23.5-25 16PR
		Pattern level	L3

Technical Features

Working Condition

Trading information

Our Services

 1.Warranty

Company Information

 Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!



FAQ

 1,How long will take to delivery the goods after placing an order?

It will take about 7days after getting the deposit if we have machine in stock. Some customized goods will need about 30days to delivery.



2,If our machines have any problems, When will your side can reply to us?

We will solve your problems immediately once get your message. Usually it will take 1~2hours to give you the solution or explanation.



3,What kind of good policy your can supply if we want to be your distributor?

Special discount and protection of sales area can be provided to your distributor.



4,Which incoterms 2010 terms can we work?

We are a professional and sophisticated international player, can handle all Incoterms 2010 terms, and we normally work on FOB,CFR,CIF,CIP,DAP Etc.



Please kindly provide us the following information before you send us email

1.what rated load you need?

2.do you need air conditioner?

3.you need fob or cif price? which port?
