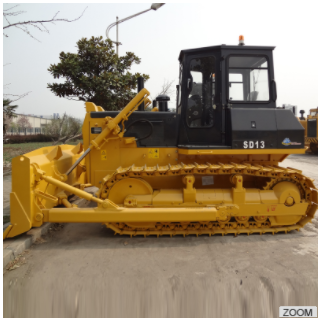

Crawler bulldozer Shantui  SD13 with three-shank ripper



  The SD13 gets mid-range volume jobs done in record time. A smaller version of our best-selling SD16 line, the SD13 delivers all the durability and reliability of its larger cousin series. With a high-power, high-efficiency, turbocharged engine featuring a large-torque reserve coefficient, the 130 hp SD13 is ready for work.Its extended track ensures low ground pressure, high reliability and strong traction while the comfortable wide visibility hexahedron cab and integrated dashboard design help keep operator productivity at peak levels.





Performance Paramete



130 HP  SD13 Technical  specifications:	Blade Type	Straight-tilt		Angle
	Min. ground clearance:	320 mm		320 mm
	Ground pressure:	0.064 MPa		0.064 MPa
	Minimum turning radius:	4.466 m		4.545 m
	Gradeability:	30°		30°
	Track gauge:	1880 mm		1880 mm
ENGINE	Model & type	Shangchai SC8D143G2B1; Water-cooled, in-line,  4-cycle, direct injection and turbocharged
	Rated power	95.5 kW
	Number of cylinders	6—114 x 135 mm (bore x stroke)
	Piston displacement	8.27 L
	Min. fuel consumption	228 g/kW·h
	Maximum torque	674 N·m@1300 rpm
POWERTRANS MISSIONSYSTEM	Torque converter	3-element, 1 stage, 1 phase
	Transmission	Forced connected, planetary gear
	Main drive	Spiral bevel gear, splash lubrication
	Steering clutch	Wet, multidisc, spring loaded, hydraulic helping operation,  mechanical separating, linking steering brake
	Steering brake	Wet, floating, band type foot stepping brake  with hydraulic helping
	Final drive	2-stage speed reduction of spur gear,  splash lubrication
TRAVELSPEED	Gear	1st	2nd	3rd
	Forward	0~3.2 km/h	0~5.9 km/h	0~9.8 km/h
	Reverse	0~3.9 km/h	0~7.1 km/h	0~11.9 km/h
UNDERCARRIAGE SYSTEM	Type	Swing type of sprayed beam,  suspended structure of equalizer
	Carrier rollers	2 each side
	Track rollers	6 each side
	Track type	Single grouser, dry type
	Width of track shoes	460 mm
	Pitch	190 mm
HYDRAULIC SYSTEM	Maximum pressure	14 MPa
	Pump type	Gear pump
	Discharge	180 L/min
	Bore of working  cylinder × no.	90 mm × 2
BLADE	Blade type	Straight-tilt		Angle
	Dozing capacity	3.7 m3		3.4 m3
	Blade width	3185 mm		3745 mm
	Blade height	1090 mm		915 mm
	Maximum drop  below ground	590 mm		590 mm
RIPPER(OPTIONAL)	Maximum tilt adjustment	400 mm
	Maximum digging depth  of 3-shank ripper	467 mm
	Weight of 3-shank ripper	1421 kg

Product Description

Application



 Pushing,  backfilling and other earthworks.





Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.
