Overview

Quick Details

• Condition:

• New

• Type:

• Tile Forming Machine

• Tile Type:

• Colored Steel

• Use:

• Roof, ceiling

• Production Capacity:

• 0-35 m/min

• Place of Origin:

• Hebei, China (Mainland)

• Brand Name:

• QJ

• Model Number:

• 74.5*32 75.5*25

• Power(W):

• 5.5KW

• Voltage:

• 380V

• Dimension(L*W*H):

• 5.5M*1M*1.3M

• Weight:

• 3.5T

• Certification:

• CE ISO9001:2008

• Warranty:

• 18months

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Item:

• light gauge steel framing machine

• Machine Color:

• grey

• Control System:

• THINGET integrated circuit

• Quality System:

• CE;ISO9001:2008

• Motor Power:

• 5.5KW+4KW

• Processing Speed:

• 0-35m/min

• Thickness:

• 0.7-1.2mm

• bearing type:

• standard

• Cutting type:

• tracking length to cut

Packaging & Delivery

• Packaging Details

• Double line gypsum board profile metal stud and track roll forming machine prices
  Main machine is nude,the computer control box is packed by wooden carton box.

• Delivery Time

• 30 working days after we get advance payment

Double line gypsum board profile metal stud and track roll forming machine prices



Product Description

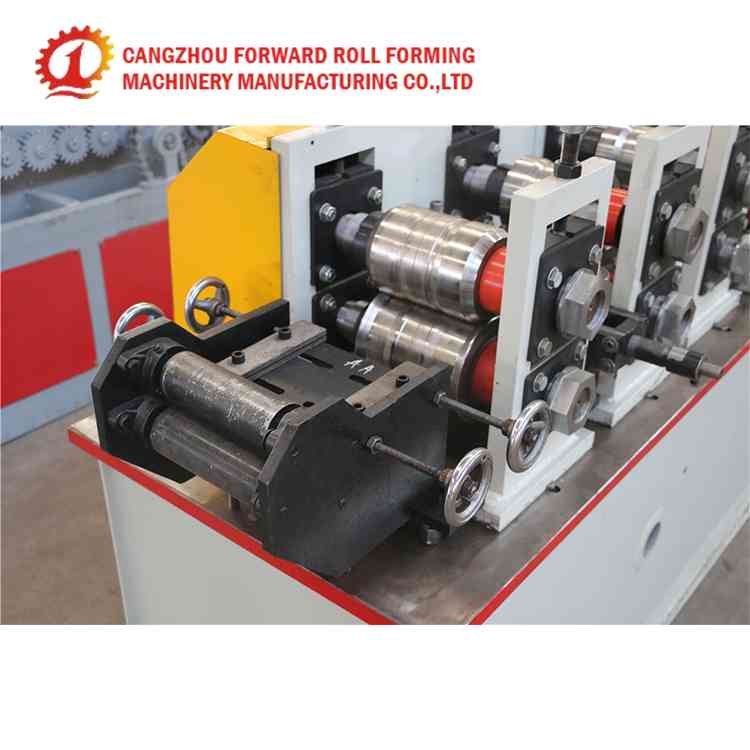

                                     CD74.5*32 light keel roll forming machine







Technology parameter of Double line gypsum board profile metal stud and track roll forming machine prices



No.	Main Parameter of  keel roll forming machine
1	Suitable to process	Color steel plate
2	Rollers	10 rows
3	Dimensions	5500*1000*1300mm
4	Power	5.5+4kw
5	Thickness of the plate	7-1.2mm
6	Productivity	0-35m/min
7	Diameter of the shaft	∅50mm
8	Material of the roller	Cr12 Mov
9	Control system	integrated circuit
10	Material of the shaft	high grade 45# steel ,heated and quenched ,cylindrical grinding
