European Standard LD Electric Wire Rope Hoist Single Girder Bridge Crane

Payment Terms: TT or LC

Ref Price : 10000-50000 USD/TON

Supply Capability : 288 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Feature:
    Bridge Crane

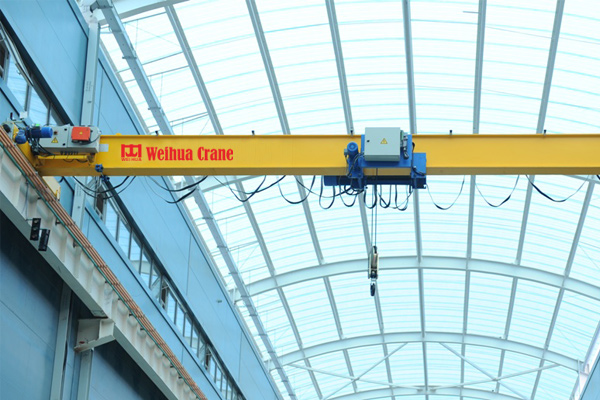

European Standard LD Electric Wire Rope Hoist Single Girder Bridge Crane



European Standard Bridge Crane is designed in accordance with European standard with compact structure, small wheel pressure, which carries out effective use of limited plant space, and reduce the cost of plant structure.

European standard bridge crane is widely used in machinery manufacturing, metallurgy, ports, railway stations, warehouses and other occasions, providing more efficient logistics solutions, especially for accurate positioning operation.


Product detail:




Lifting Capacity

T

1t

2t

3t

5t

10t

16t

20t

Span

m

7.5~22.5m

7.5~31.5

Speed

Lifting

MD1 hoist

m/min

8/0.8 (7/0.7)

3.5/0.35

CD1 hoist

8 (7)

3.5

Traveling of electric hoist

20

20

Traveling of crane

20/30

20/30

Wheel diameter

Φ270

Φ370

Width of trail

37~70mm

37~70mm

Operational Model

Remote control; Ground handle

Remote control; Ground handle

Working Duty

A3

Power Supply

Three-phase A.C. 380V, 50Hz

Three-phase A.C. 380V, 50Hz




















  • Features of European standard bridge crane

1. Computer-designed box beam, the whole length of the web plate is cut by NC with accurate deflection;

2. Low clearance trolley structure with reasonable sized hook, thus it has wide application scope;

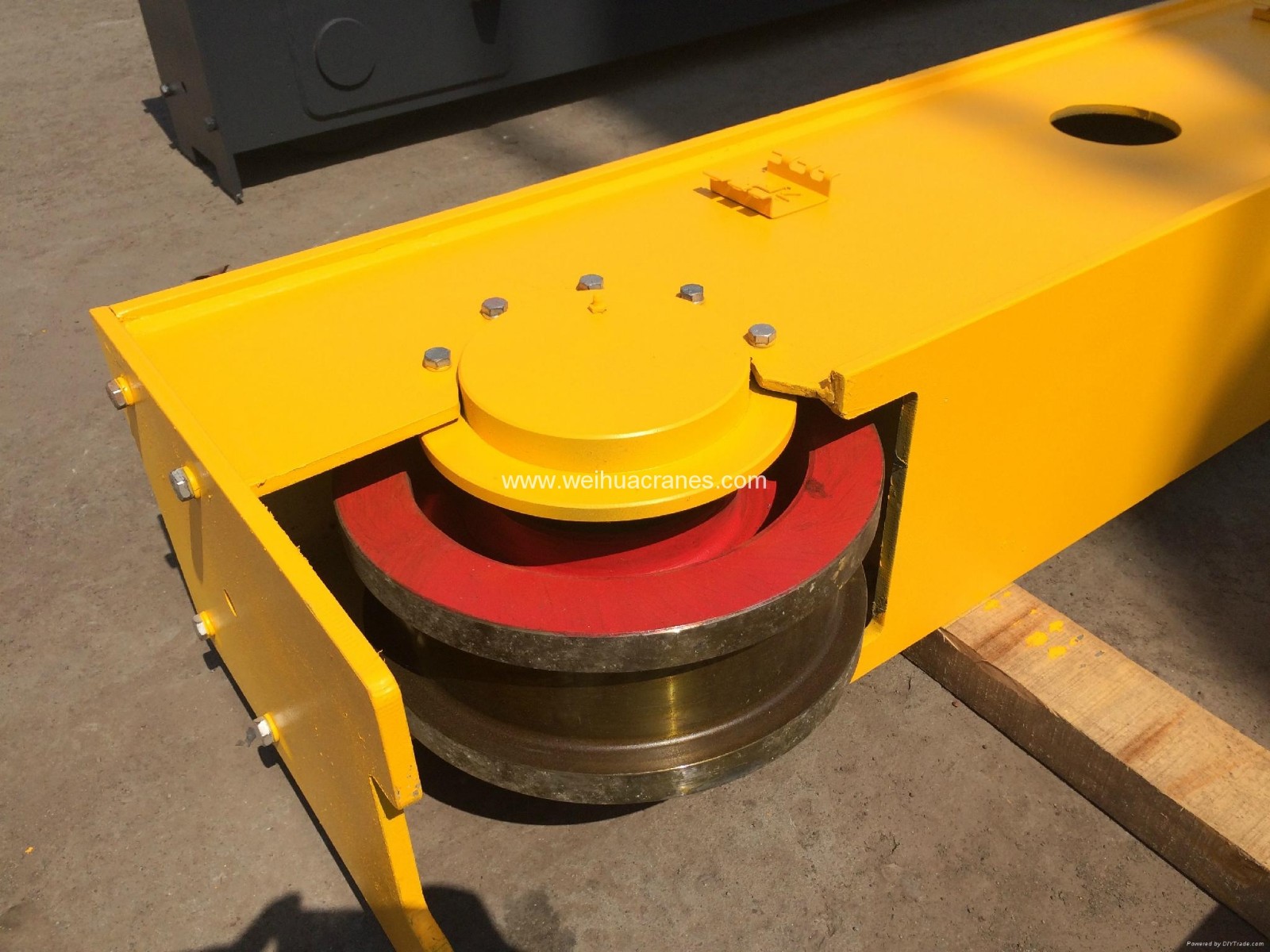

3. Arc or flat wheels, anti - friction bearings, honeycomb bumper, anti - derailment device;

4. Three- in-one motor drive, stepless speed control, hardened gear reducer, safety disk brake;

5. Good driving performance, stepless speed regulation, smooth running;

6. Whole shot blasting Sa2.5 level after welding, release of internal stress, so that the main beam structure has best performance;

7. Epoxy zinc-rich paint with oil film thickness 140μm;


Crane-Spare Parts 1.jpg

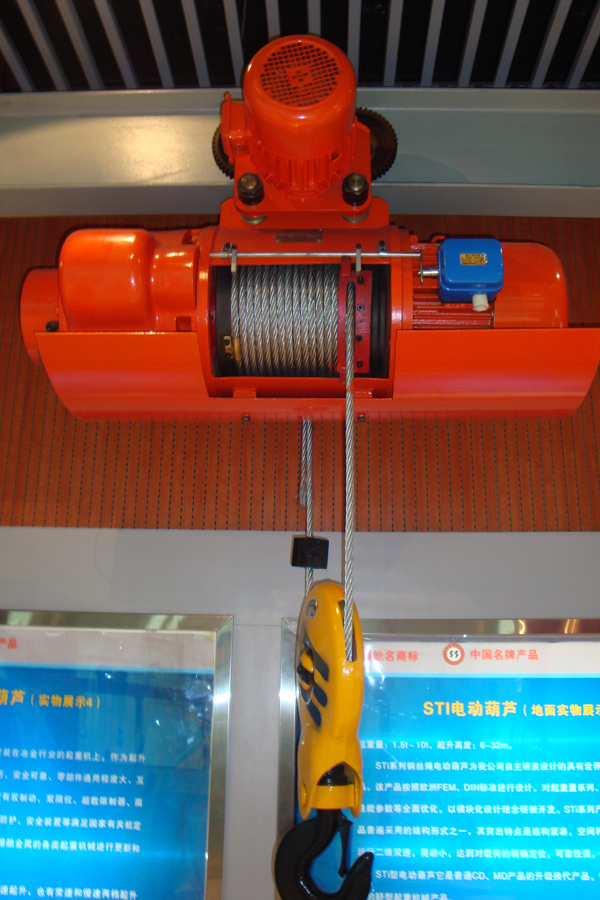

  • Electric Hoist

1. Lifting motor: Tapered rotor three-phase asynchronous braking motors
2. Reducer: Three-level dead axle helical gear rotating body, Gear and the axle made by alloy steel after heat treatment, high intensity

3. Rope drum: Made of cast iron or seamless steel tube, light weight, transmit the dynamic force by splines.

4. Steel wire rope: It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use

5. Forge with special steel: thrust ball bearing connect with casing through hook and beam to make the hook operate freely.


Crane-Spare Parts 4.jpg

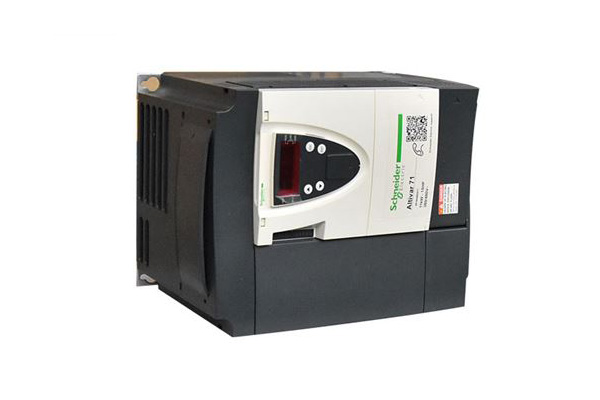

  • Electrical part of  European standard bridge crane

1. Slip-line power supply;

2. Phase protection, disconnected main power in case of incorrect phase;

3. Independent crane and hoist travelling, also both running at the same time;

4. Trolley/hoist line meets the power requirements and adapts to vibration;

5. Anti-corrosion control handle with protection class IP54

6. Heavy duty aviation plug;

7. Electrical components are installed in the convenient location for maintenance with good protection to avoid accidental contact;

8. Cable is hanging in the cable car, running C-shaped steel, sliding flexibility;






WeiHua Overhead Crane Manufacturers Related Products

18 ton Crane.jpg

18 Ton Electric Hoist Single Girder Eot Crane


  • Lifting capacity: 1T - 18T

  • With Hoist and Remote Control

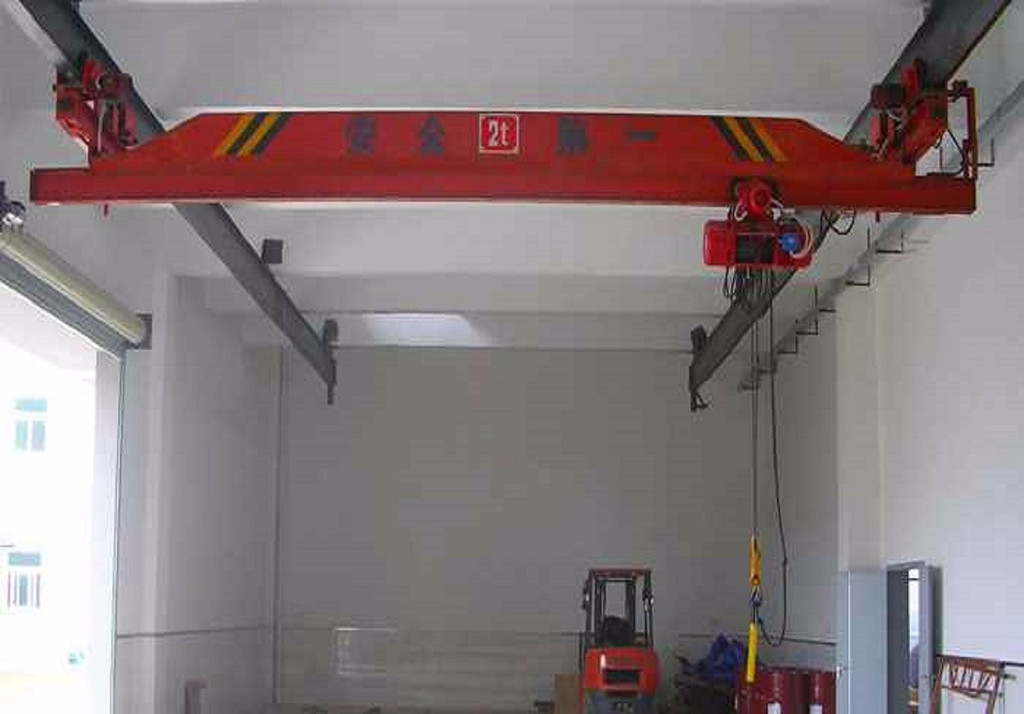

5 Ton HD Type Single Girder Overhead Crane


  • Lifting capacity: 1T - 5T

  • HD Type Single Girder

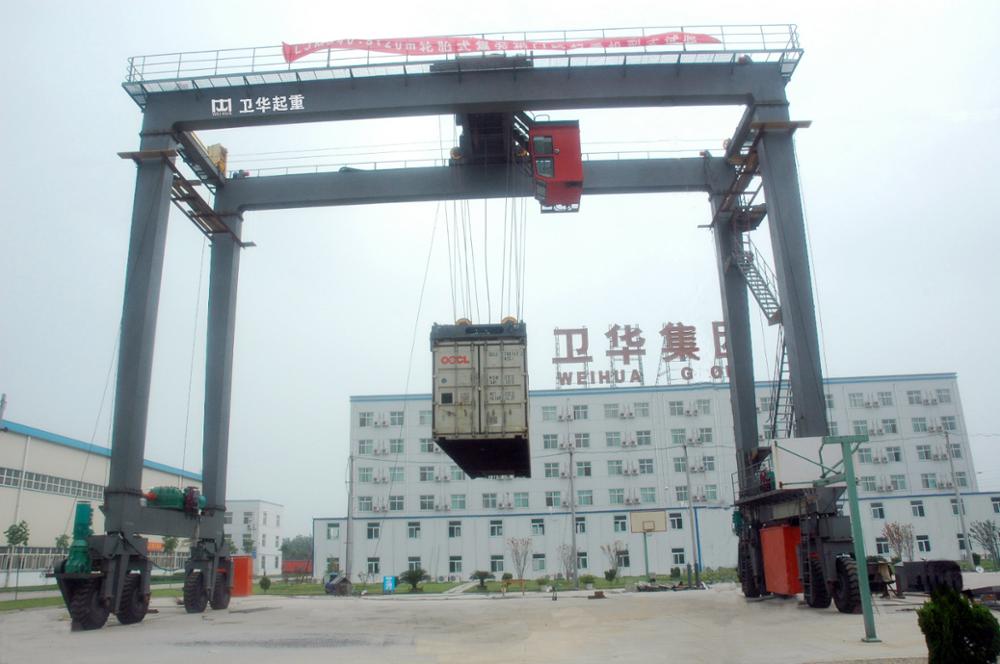

30-40 T Mobile Rubber Tyre Gantry Crane


  1. Lifting capacity: 30t-40t

  2. Power Source:380V/50Hz/3P

  3. Duty Class: A6-A7




MH Single Electric Gantry Crane


  1. Lifting capacity: 20 Ton

  2. Power Source:380V/50Hz/3P

  3. Duty Class: A6-A7

  4. Span: 7.5-31.5





 Weihua Gantry Crane and Other Popular Cranes

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, EOT crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

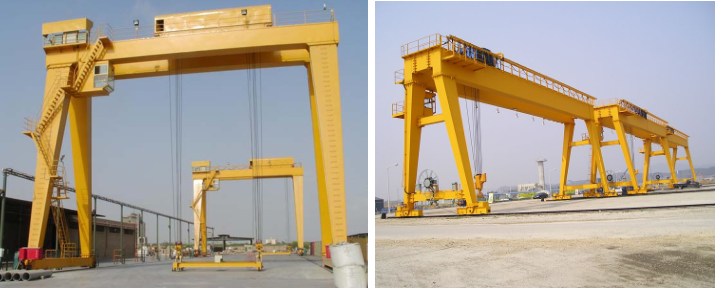

CE Certificate Heavy Duty Double Girder Gantry Crane 30t for Sale
