Tianjin WMD import and export trading co. LTD

Factory direct environmental protection polyurethane insulation board PIR insulation board

Payment Terms: TT or LC

Ref Price : 4-20 USD/SQUARE METERS

Supply Capability : 88888 SQUARE METERS

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin China (Mainland)
  • Brand Name:
    wmdtrade
  • Model Number:
    PIR insulation board
  • Panel Material:
    Nonmetal
  • Product Name:
    PIR insulation board
  • Type:
    PIR Sandwich Panels
  • Material:
    PIR
  • Density:
    40-100kg/m
  • Thickness:
    20-300mm
  • Usage:
    Heat Insulation
  • Length:
    1200mm
  • Width:
    600mm
  • Port:
    Tianjin xingang

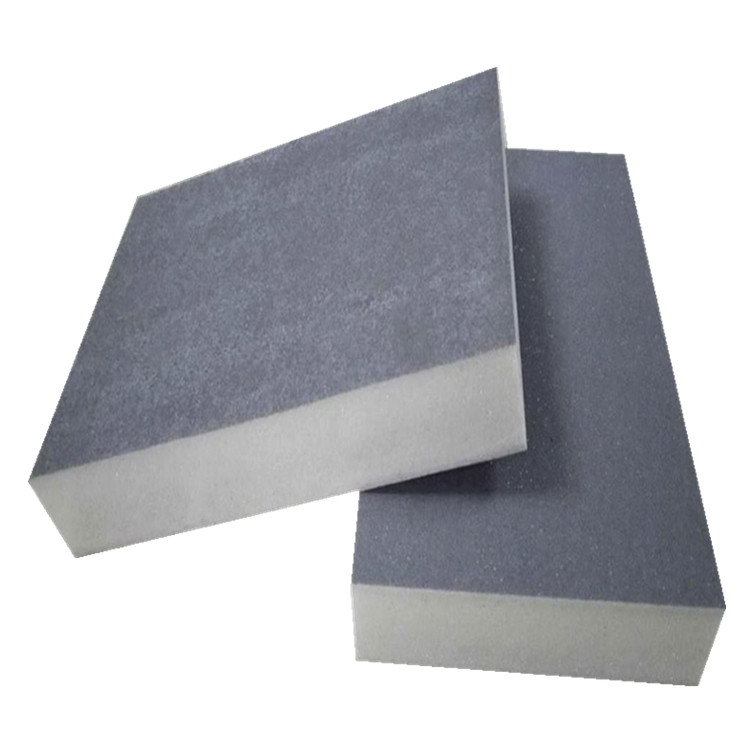

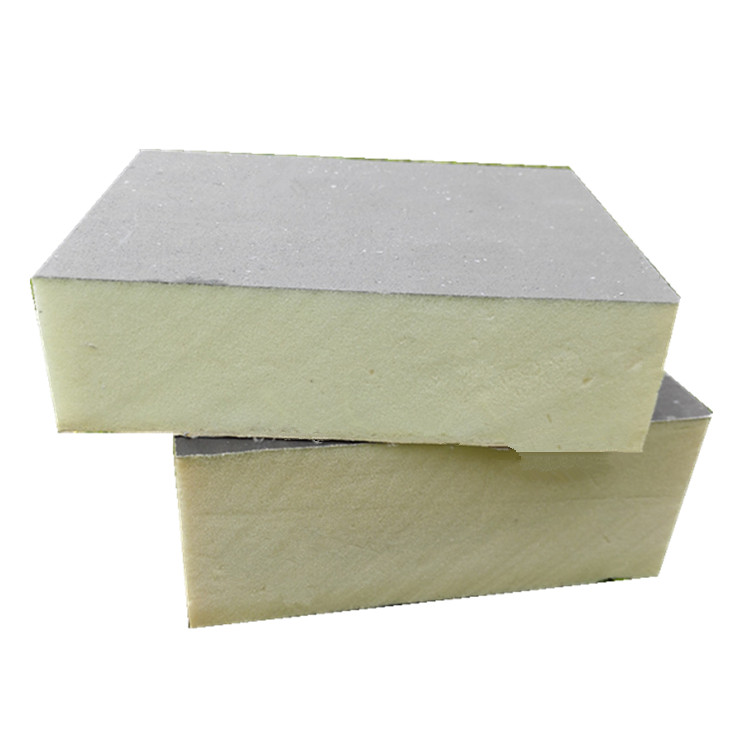

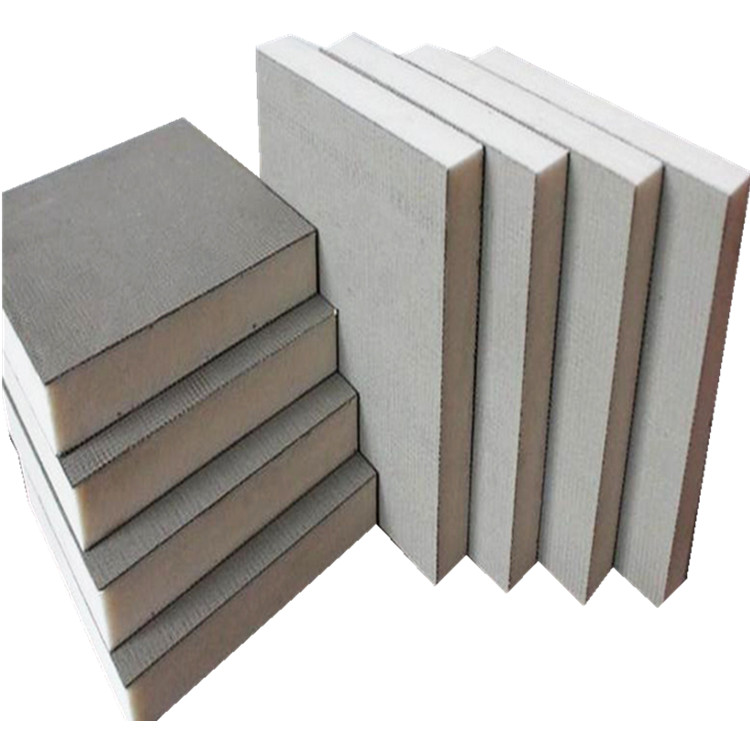

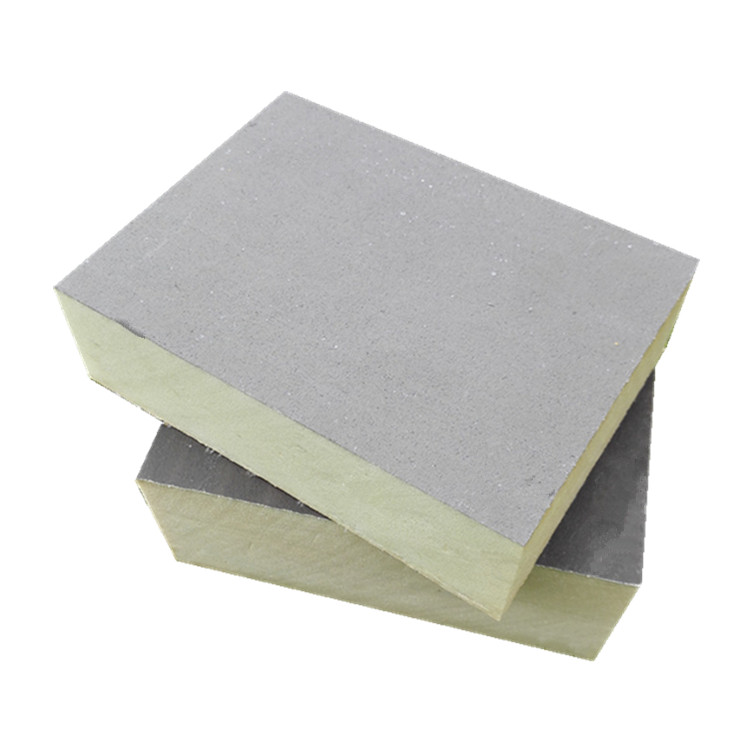

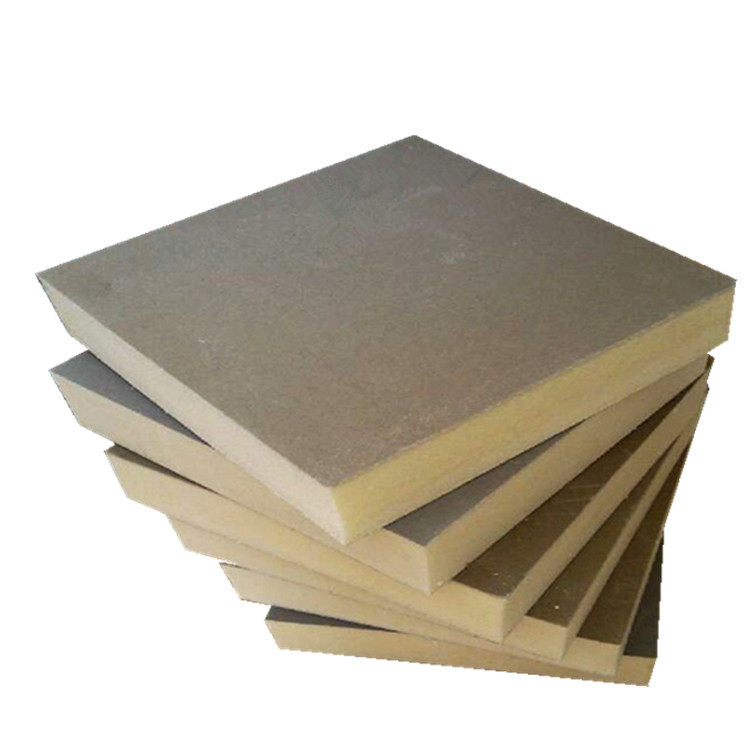

High quality polyurethane insulation board PIR insulation board.jpg

PIR insulation board performance index

density kg/m 32-120
compressive strength kg/cm2 2.0-2.7
Obturator rate % >93
Water absorption % ≤3
Thermal conductivity w/m.k ≤0.025
dimensional stability % ≤1.5
Use of temperature ℃ -196℃+120℃
oxygen index % ≥26

Polyurethane insulation panels, walls and equipment insulation permanent corrosion resistant, the lightest and most convenient building ideal insulation materials. This product is highly functional polyether polyol, multiple methyl polyphenylene polyisocyanate as the main raw material, catalyst, foaming agent, surface active agent, chemical reaction foaming. The ability of polyurethane products is light, high strength, insulation, sound insulation, fire protection, cold, corrosion, non absorbability, rapid and simple construction and other excellent features. It has become an insulating, waterproof, sealing and other necessary material in the fields of construction, transportation, petroleum, chemical, electric, refrigeration and other industrial fields.


1. PIR insulation board has low thermal conductivity and good thermal performance. When the density of hard polyurethane is 35 ~ 40kg/m3, the thermal conductivity is only 0.018~0.024w/ (m.k), which is about half of EPS, which is the lowest thermal conductivity of all thermal insulation materials at present.
2, PIR insulation board has moisture-proof and waterproof performance. Polyurethane insulation board has a closed porosity of more than 90%, which belongs to hydrophobic materials.
3, PIR insulation board fire, flame retardant, high temperature resistance. After adding the flame retardant, it is a kind of refractory self extinguishing material. The softening point can reach more than 250 degrees centigrade. The polyurethane will form carbon on the surface of its foam when it burns. This layer helps to isolate the foam below. It can effectively prevent flame spreading and do not produce harmful gas at high temperature.
4. The polyurethane plate has excellent heat insulation performance. Under the same heat preservation requirement, it can reduce the thickness of the enclosure structure outside the building, thus increasing the indoor area.
5. It has strong anti deformation ability and is not easy to crack. The veneer is stable and safe.
6. The pore structure of polyurethane material is stable, basically closed-cell structure. It not only has good heat preservation performance, but also has good freeze-thaw resistance and sound absorption.


Polyurethane insulation sheet can be widely used in color steel sandwich panel, central air conditioning, building wall materials, cold storage, refrigeration room, thermal insulation box, chemical tank and other fields.


Our company is a large-scale enterprise with a total investment of 560 million yuan. The total construction area of construction workshops, warehouses, office and auxiliary buildings is 110,500 square meters, of which the construction workshop supporting workshop covers an area of 90,000 square meters. Purchase 5 rock wool production lines, with an annual output of 150,000 tons of rock wool production line and outer wall integrated board production line.
Our company has international advanced and domestic first-class automatic high-quality rock wool production line. The company's main products: Gao Qiang
External wall rock wool insulation board, high strength roof rock wool insulation board, high strength rock wool board, hydrophobic rock wool board, low density building rock wool insulation sound absorbing board, industrial thermal insulation rock wool, marine rock wool board, agricultural rock Cotton board, all kinds of rock wool strips, rock wool belts, rock wool felts, etc., is a large national standard, European standard, American standard rock wool manufacturer in North China, the company has 128 employees, including 12 senior engineers, Dazhong 53 people with college degree or above.



(Any standard can be customized, or sample processing and customization).
