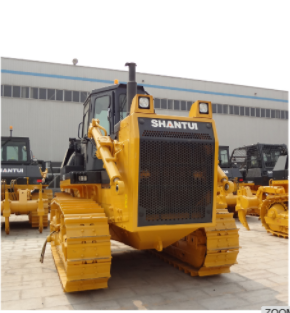

Factory directly SD22 shantui bulldozer with 220HP for sale

Payment Terms: TT or LC

Ref Price : USD110000-120000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Overview

Quick Details

Place of Origin:Shandong, China (Mainland)

Brand Name:SHANTUI

Model Number:SD22

Condition:New

Moving Type:Crawler Bulldozer

Machine Weight:23.4

Dimension(Long * Breadth * High):5495*3725*3745

After-sales Service Provided:Overseas third-party support available

engine:Cummins NT855-C280S10/weichaiWD12G240E26

gross power(kw/rpm):175/235/1800

net power(kw/rpm):162/220/1800

blade type:straight tilt blade/Ublade/semi-U blade/angle blade

blade size W*H(mm):3725*1315/3800*1343/3725*1374/4365*1055

dozing capacity:6.4/7.5/7.0/4.7

max drop below ground of blade:540/540/540/535

lift height of blade:1210/1210/1210/1290

number of carriers(each side):2

number of track rollers(each side):7


Packaging & Delivery

Packaging Details: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the buyer's request.

Delivery Time: Within7 days upon receipt of down payment. Special models about


Factory directly SD22 shantui bulldozer with 220HP for sale

SD22 220HP crawler type r c bulldozer



The SD22 is a large horsepower, advanced technology bulldozer with a Cummins 855C engine delivering high torque yet low fuel consumption. An exhaust turbocharger ensures uninterrupted performance at altitudes up to 3200m. Hydraulic drive and control technology deliver reliable performance and easy control.







Performance Paramete



220 HP SD22
Technical

specifications:

Blade Type Straight-tilt Angle Semi-U Blade
Min. ground clearance: 405 mm 405 mm 405 mm
Ground pressure: 0.077 MPa 0.077 MPa 0.078 MPa
Min. turning radius: 3.3 m 3.3 m 3.3 m
Gradeability: 30° 30° 30°
Track gauge: 2000 mm 2000 mm 2000 mm

ENGINE Model & type

Cummins NT855-C280S10; In-line,

 water cooled 4-cycle,
overhead valve direct injection, turbocharged diesel

Rated power 162 kW
Number of cylinders 6—139.7 x 152.4 mm (bore x stroke)
Piston displacement 14.01 L
Min. fuel consumption 205 g/kW·h
Maximum torque 1030 N·m@1250rpm

POWER
TRANSMISSION
 SYSTEM
Torque converter 3-element, 1 stage, 1 phase
Transmission

Planetary gear, multi-disc clutch,

hydraulically connected, forced lubrication

Main drive

Spiral bevel gear, splash lubrication,

single-stage speed reduction

Steering clutch

Wet, multi-disc, spring loaded,

hydraulically separated,hydraulic control

Steering brake

Wet, floating, direct on-off hydraulic

inter-linking operation

Final drive

2-stage speed reduction of spur gear,

splash lubrication


TRAVELSPEED Gear 1st 2nd 3rd
Forward 0~3.6 km/h 0~6.5 km/h 0~11.2 km/h
Reverse 0~4.3 km/h 0~7.7 km/h 0~13.2 km/h

UNDERCARRIAGE
SYSTEM
Type

Swing type of sprayed beam,

 suspended structure of equalizer bar

Carrier rollers 2 each side
Track rollers 6 each side
Track type Assembled, single-grouser
Width of track shoes 560 mm
Pitch 216 mm

HYDRAULIC
SYSTEM
Maximum pressure
14 MPa
Pump type
Gear pump
Discharge
262 L/min

Bore of working

cylinder × no.


120 mm × 2

BLADE Blade type Straight-tilt Angle Semi-U-blade
Dozing capacity 6.4 m3 4.7 m3 7.5 m3

Efficiency

(Theoretical value 40 m)

330 m3/h 245 m3/h 365 m3/h
Blade width 3725 mm 4365 mm 3725 mm
Blade height 1315 mm 1055 mm 1374 mm

Maximum drop

below ground

538 mm 535 mm 540 mm
Maximum tilt adjustment >735 mm >500 mm >755 mm
Weight of blade 2830 kg 3254 kg 3419 kg

RIPPER(OPTIONAL)

Maximum digging depth

of 3-shank ripper


666 mm

Maximum lift

above ground


555 mm
Weight of 3-shank ripper
2495 kg

Maximum digging depth

of single ripper


695 mm

Maximum lift

above ground


515 mm
Weight of single ripper
2453 kg



Product Description

SD22 220HP crawler type r c bulldozer

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.



SD22 220HP crawler type r c bulldozer



Application



 Pushing,  backfilling and other earthworks.



SD22 220HP crawler type r c bulldozer

Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





SD22 220HP crawler type r c bulldozer

Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.



SD22 220HP crawler type r c bulldozer

Company Information

SD22 220HP crawler type r c bulldozer



Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!



SD22 220HP crawler type r c bulldozerSD22 220HP crawler type r c bulldozer



Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
