Jining Infront Construction Machinery Co Ltd

Factory price wetland SD23 r c bulldozer

Payment Terms: TT or LC

Ref Price : USD5000-10000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

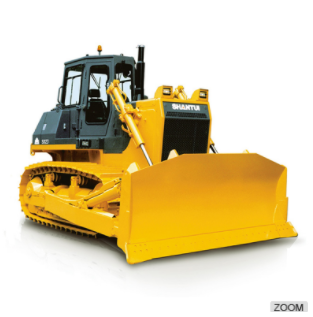

Factory price wetland SD23 r c bulldozer

Bulldozer manufacturers Shantui SD23 sell in India



This medium-sized dozer leads the pack with huge push factors for greater efficiency on

tougher earthmoving jobs. Indeed, when compared with competitors in its class, it provides much better value when it comes to push factors. Comes standard with a Cummins engine.





Performance Paramete



230 HP
SD23
 Technical
specifications:
Blade Type Straight-tilt Angle U-Blade
Min. ground clearance: 405 mm 405 mm 405 mm
Operating weight: 23.45 t 23.67 t 24.6 t
Min. turning radius: 3.3 m 3.3 m 3.3 m
Ground pressure: 0.078 MPa 0.078 MPa 0.078 MPa
Gradeability: 30° 30° 30°
Track gauge: 2000 mm 2000 mm 2000 mm

ENGINE Model & type

Cummins NT855-C280S10; in-line, water-cooled;

4-cycle, overhead valve direct injection,

turbocharged diesel

Rated revolution 2000 rpm
Rated power 169 kW
Number of cylinders 6—139.7 x 152.4 mm (bore x stroke)
Piston displacement 14.010 L
Min. fuel consumption 217 g/kW·h
Maximum torque 1036 N·m@1400rpm

POWER

TRANSMISSION

SYSTEM

Torque converter 3-element, 1 stage, 1 phase
Transmission

Planetary gear, multi-disc clutch,

hydraulically connected, forced lubrication

Main drive

Spiral bevel gear, splash lubrication,

single-stage speed reduction

Steering clutch

Lubricated, multidisc, spring loaded,

hydraulically separated, hydraulic control

Steering brake

Lubricated, floating, direct on-off hydraulic

inter-linking operation

Final drive

2-stage speed reduction of spur gear,

 splash lubrication


TRAVELSPEED Gear 1st 2nd 3rd
Forward 0~3.8 km/h 0~6.8 km/h 0~11.8 km/h
Reverse 0~4.9 km/h 0~8.5 km/h 0~14.3 km/h

UNDERCARRIAGE

SYSTEM

Type

Swing type of sprayed beam,

suspended structure of equalizer bar

Carrier rollers 2 each side
Track rollers 7 each side (single flange 5, double flange 2)
Track type 39 each side (assembled single-tooth shoes)
Width of track shoes 560 mm
Pitch 216 mm

HYDRAULIC

SYSTEM

Maximum pressure
19.1 MPa
Pump type
Gear pump

Discharge (Tondem 2000 rpm)


194 (2000 rpm) L/min

Bore of working cylinder × no.


110 mm × 2

BLADE Blade type Straight-tilt Angle U-blade
Dozing capacity 7.8 m3 5.4 m3 8.4 m3

Efficiency

(Theoretical value 40 m)

330 m3/h 245 m3/h 365 m3/h
Blade width 3725 mm 4365 mm 3860 mm
Blade height 1395 mm 1107 mm 1379 mm
Maximum drop below ground 540 mm 560 mm 540 mm
Maximum tilt adjustment >1210 mm >1240 mm >1210 mm
Weight of blade 2900 kg 3372 kg 3350 kg

RIPPER

(OPTIONAL)

Maximum digging depth

of 3-shank ripper

666 mm
Maximum lift above ground 555 mm
Weight of 3-shank ripper 2495 kg

Maximum digging

depth of single ripper

695 mm
Maximum lift above ground 515 mm
Weight of single ripper 2453 kg



Product Description

Bulldozer manufacturers Shantui SD23 sell in India

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.



Bulldozer manufacturers Shantui SD23 sell in India



Application



 Pushing,  backfilling and other earthworks.



Bulldozer manufacturers Shantui SD23 sell in India

Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Bulldozer manufacturers Shantui SD23 sell in India

Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.



Bulldozer manufacturers Shantui SD23 sell in India

Company Information

Bulldozer manufacturers Shantui SD23 sell in India



Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!



Bulldozer manufacturers Shantui SD23 sell in IndiaBulldozer manufacturers Shantui SD23 sell in India

C


Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
