Shandong Mountain Raise Heavy Industry Machinery Co Ltd
Payment Terms: TT or LC
Ref Price : USD4500-5000
Farm Construction Popular MR08 Mini Excavator

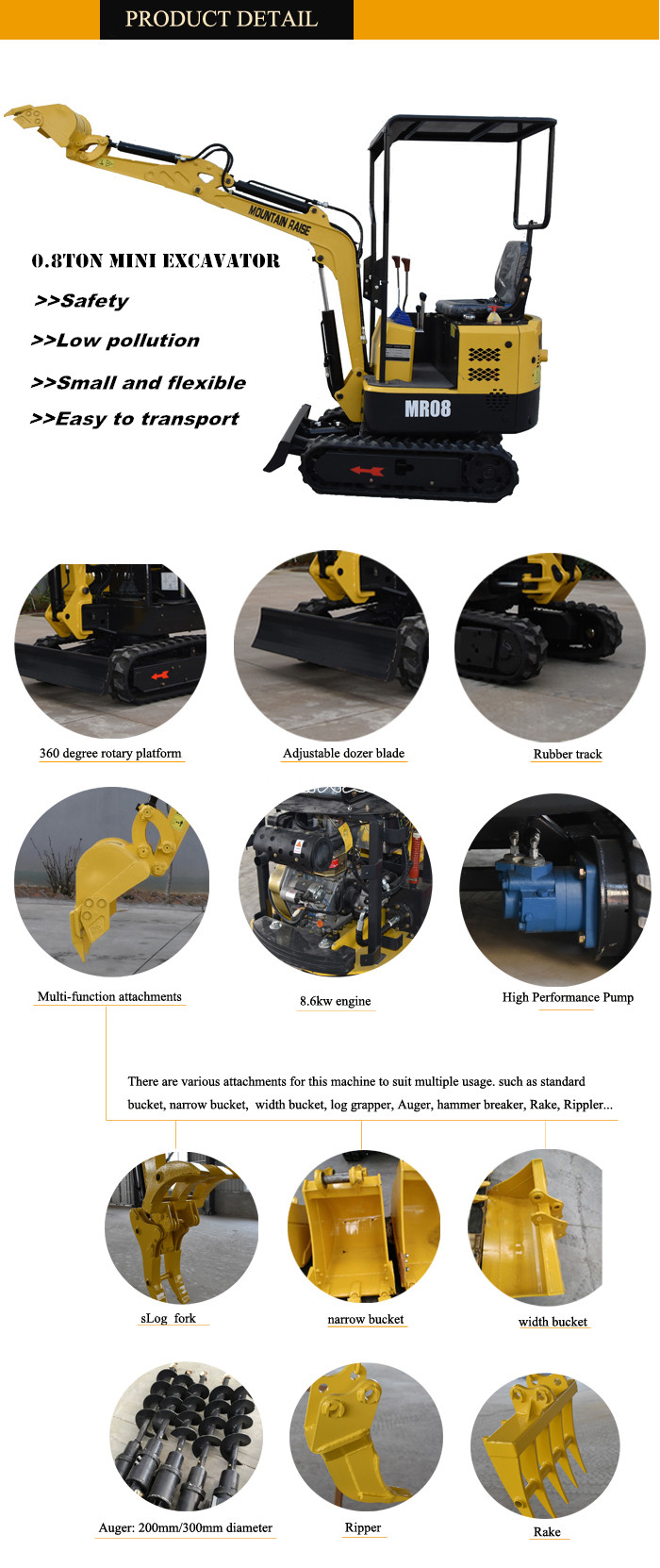

1.Main Features1) Simple structure and compact design ,easy in installation and maintation. 2) Advanced world famous brand components 3) Low oil consumption, to obtain maximum efficiency 4) Wide range use: Auger, grab, hydraulic hammer, narrow bucket

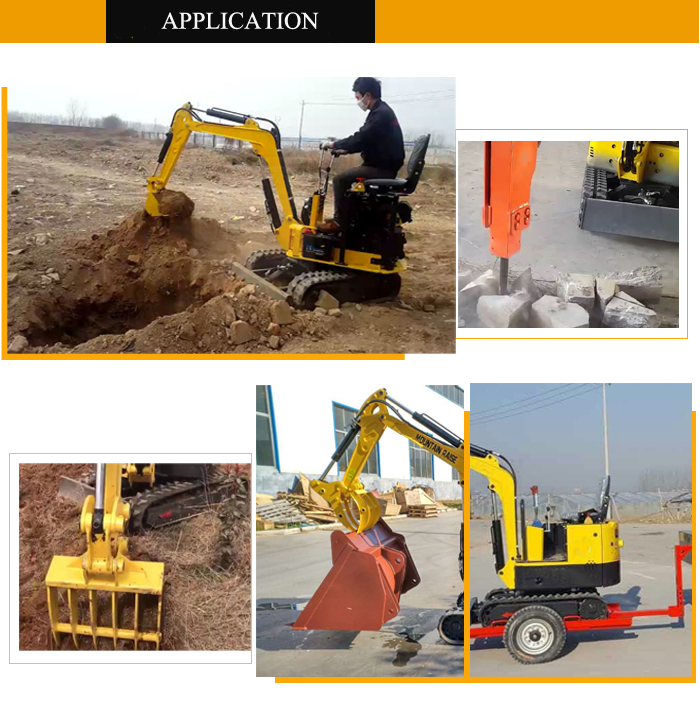

2.Application |
About Product

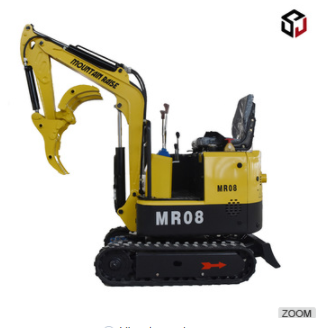

1.Product Show

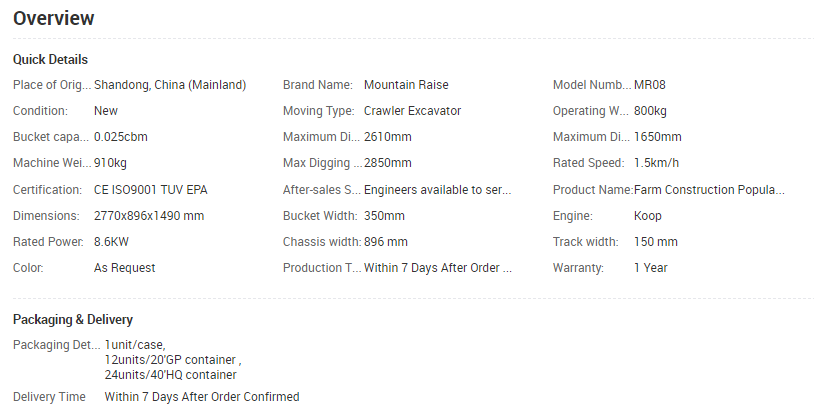

2.Main Specification
Operating Weight | 910kg |
Digging bucket capacity | 0.025cbm/100kg |
Bucket width | 350mm |
Engine | KOOP |
Rated power | 8.6 kw/3600r/min |
Displacement | 0.211 L |
Bore stroke | 70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450) |
Travel speed | 1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 150 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |

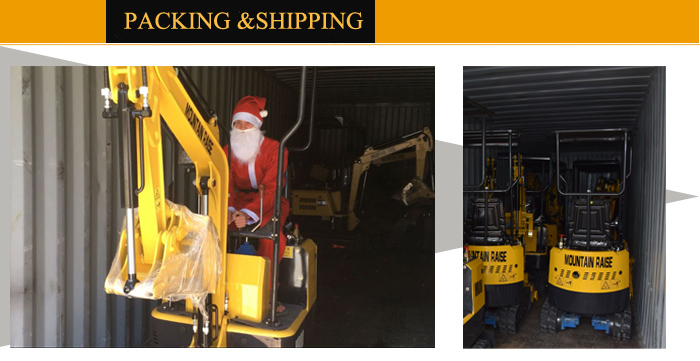

Packaging & Shipping
>Production Time: Within 7 days after order confirmed
>If 1 unit , in wooden case;
One 20'GP Container , load 12 units ;
One 40'HQ Container , Load 24 units.
Company Brief
Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years
Production and exporting experience. Now our products can be found working in more than 40 countries.
Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which
passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc
Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as
our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.
We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
