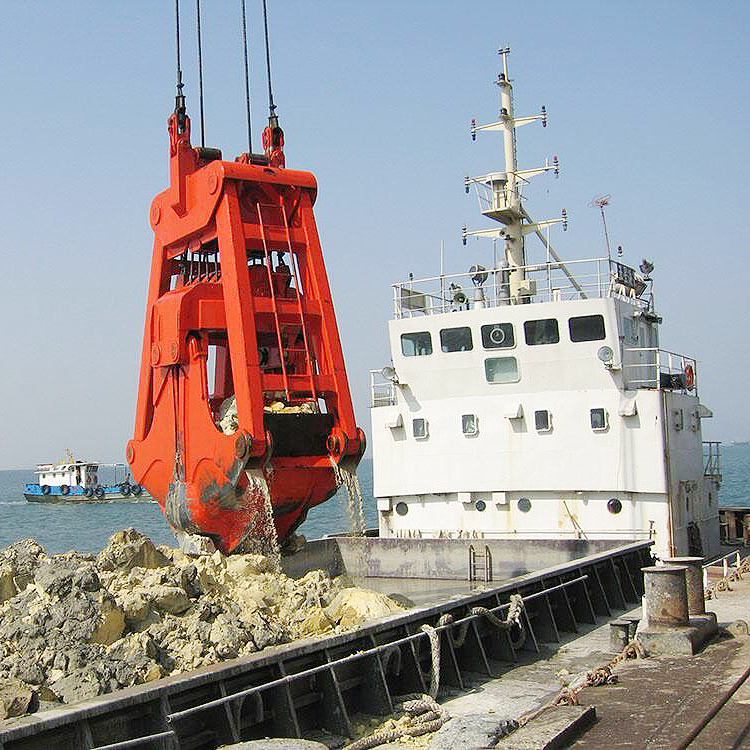

General Purpose And Customized Clamshell Orange Peel Type Hydraulic clamsell grab
Electro hydraulic grab is a kind of hoisting equipment equipped with hydraulic system including motor, hydraulic pump and driven by mains power to handle bulk cargoes. Electro hydraulic grab can be operated to open or close through motor forward rotation and backward rotation or hydraulic directional control valve.
The electro hydraulic grab is able to handle bulk cargoes such as sand, coal, mineral dust, mineral, concrete, household garbage, waste iron etc. under kinds of harsh work environment. Due ti its good adaptability, hydraulic grab is able to match kinds of hoisting equipment, such overhead crane, gantry crane, deck crane, excavator and so on.
Based on construction, the electro hydraulic grab is mainly devided into the following types:
(1) Hydraulic clamshell grab
(2) Hydraulic orange peel grab
(3) Hydraulic timber grab
(4) Hydraulic rectangular grab
The electro hydraulic grab is mainly consisted of frame, jaw, hydraulic system.
(1) Frame: It is the basic part. Generally Q345 steel is adopted to ensure strength.
(2) Jaw: The jaw is made of Q345 and the edge is made of high wear-resistance steel for stable performance and long service life. The jaw is connected to the frame by pin shafts. The jaw, especially for orange peel grabs, is able to open and close asynchronously. In case that something large blocks two adjacent jaws, the other jaws are still able to grab for more material instead of stopping.
(3) Hydraulic system: The motor, hydraulic pump, valve block, pipes and hydraulic oil tank are fixed inside the frame. One end of the hydraulic cylinder is fixed on the frame and the other end on the jaw. The hydraulic pump drive the hydraulic cylinder to extend or retract to close or open the grab.
(4) Protection grade: Different according to working requirements and environment.
(5) Components brand: Chinese and international famous brand for option.
(6) Coating thickness: ~180μm.
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than 6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
|Packing and shipping|
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
