Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices

Payment Terms: TT or LC

Ref Price : US $7,000-14,000 / Set

Supply Capability : 30 Set/Sets per Month Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • Colored Steel

  • Use:

  • Roof

  • Production Capacity:

  • 10-15M/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QJ

  • Model Number:

  • YX 30-200-1000

  • Power(W):

  • 5.5kw

  • Voltage:

  • As your request

  • Dimension(L*W*H):

  • 10m*1.85m*1.5m

  • Weight:

  • 6.5tons

  • Certification:

  • CE/ISO9001

  • Warranty:

  • 18 months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Under frame:

  • 400 H steel

  • Sidewall:

  • 18mm, 45# steel plate

  • Shaft material:

  • 45# steel with finish turning

  • Roller material:

  • 45# steel with chromium plated

  • Forming station:

  • 20

  • Shaft diameter:

  • 45mm

  • Chain wheel:

  • 1 inch

  • Name:

  • Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine

  • Control cabinet:

  • Delta PLC

  • Cutting head material:

  • Cr12Mov

Packaging & Delivery

  • Packaging Details

  • Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine
    1 Most of the machine is nude. 2 Rolers and shafts will be packed with waterproof package. 3 Machine will be painted oil against rust during shipping 4 The whole machine will be loaded in a 20-foot container, and it will be fixed together with container by wire rope. More machines together,much more cheap sea freight price.

  • Delivery Time

  • 30 days after we get deposit

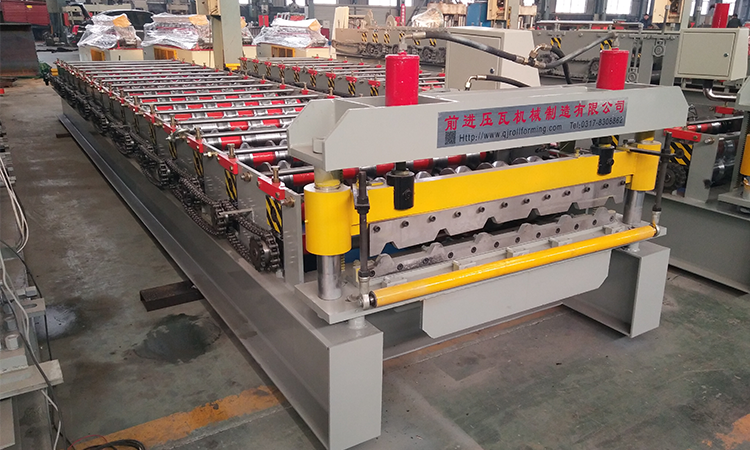

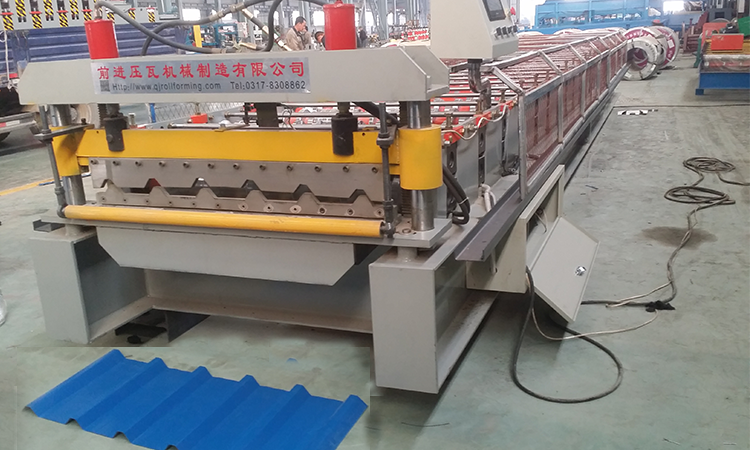

Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine

Product Description

The finished product of Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



No. Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine

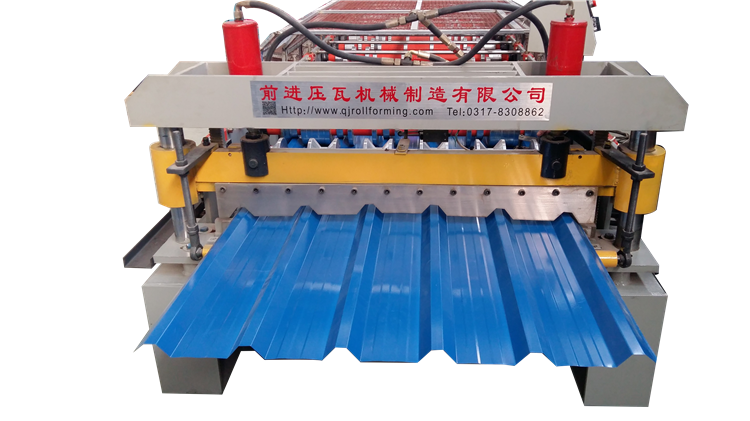

Sample  Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices
1 Profile Size YX 30-200-1000
2 Suitable Raw Material  0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3 Under Frame 400 H-beam
4 Sidewall  18mm
5 Connect Bar 25mm, zinc plated

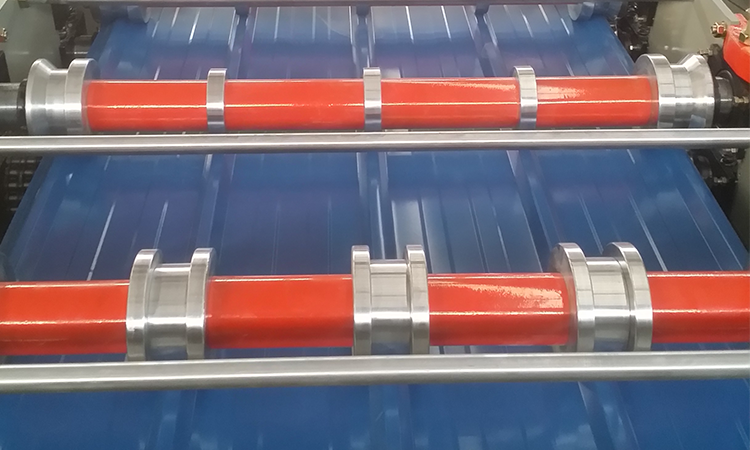

6 Roller High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7 Shaft 70mm, solid, finish turning, cylindrical grinding, with keyway
8 Forming Stations  20
9 PLC  DELTA, TAIWAN
10 Main Motor  5.5 kw, Lichao, Shanghai, with reducer
11 Hydraulic Pump station  4 kw
12 Cutting blade Cr12Mov, quenching 58-62°, double oil cylinder
13 Oil paint National standard grey
14 Computer screen DELTA, TAIWAN
15 Chain  1inch

 Germany Assured Quality Trapezoidlal IBR Roll Forming Machine PricesGermany Assured Quality Trapezoidlal IBR Roll Forming Machine PricesGermany Assured Quality Trapezoidlal IBR Roll Forming Machine PricesGermany Assured Quality Trapezoidlal IBR Roll Forming Machine PricesGermany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices

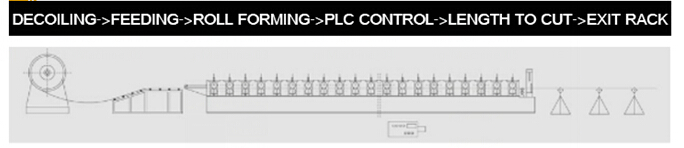

Production Flow

Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices

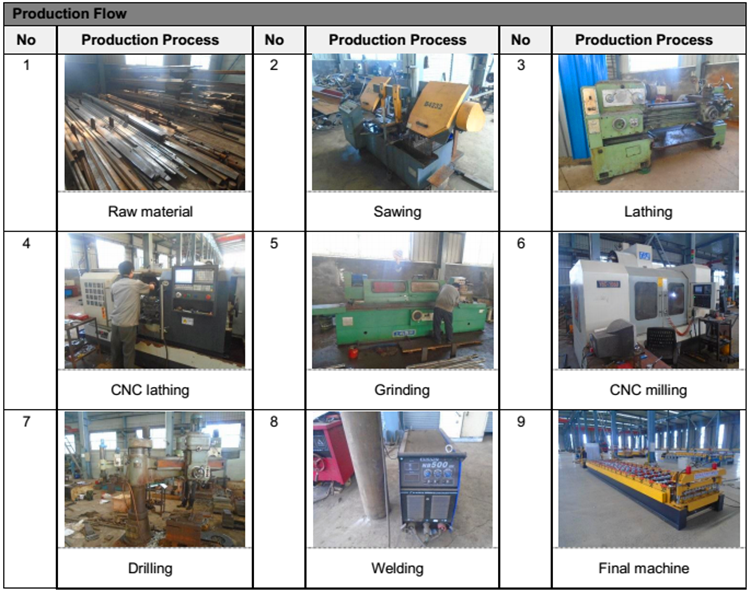

Production Process

Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices

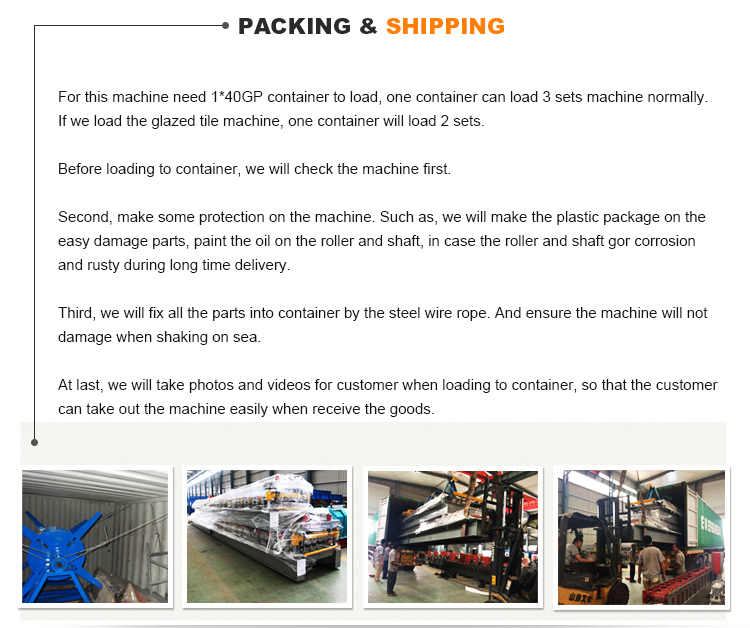

Packaging & Shipping

Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices



Customers



Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices

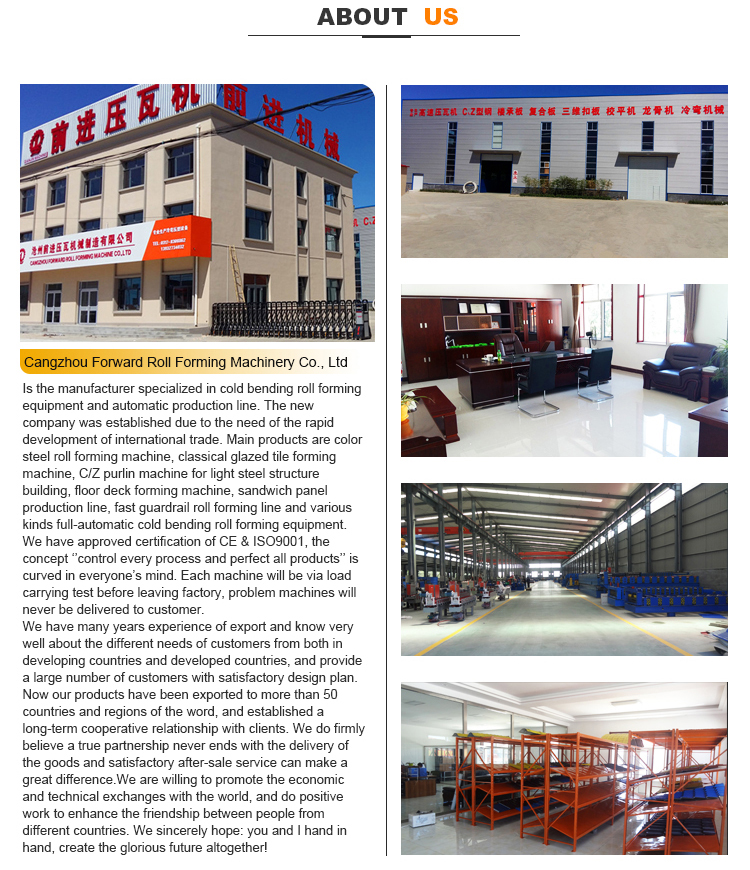

Company Information

We are 10 years leading roll forming machine manufacturer, the following picture is our general plant.

Here is our new factory, we adopt top technology and high grade raw material to make the best roll forming machines for all of our customers. Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine

As the professional manufacturer, we can guarantee the quality of roll forming machine and technical service for you all the life ! Botou Roof Sheet Press Machine Roof Panel Roll Forming Machine

Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices

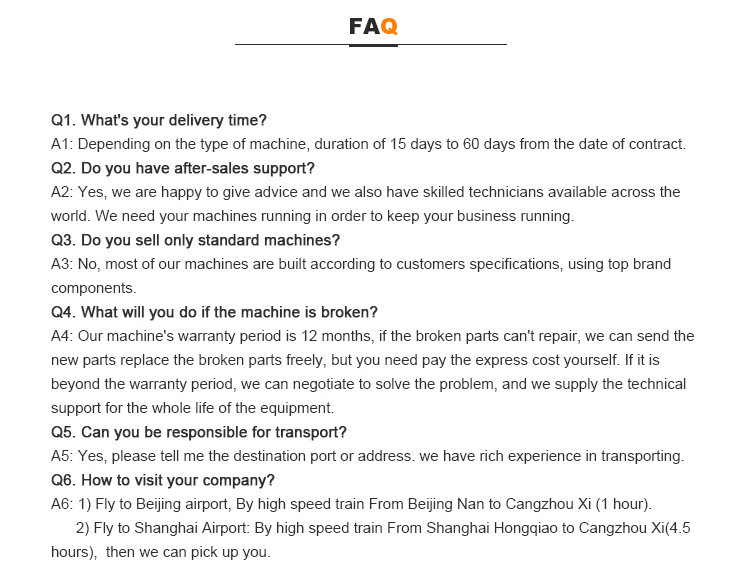

FAQ

Germany Assured Quality Trapezoidlal IBR Roll Forming Machine Prices


Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
