Good Light Weight Stability Aluminum Silicate Fiber Plain Felt Uesd for Industrial Furnace

Payment Terms: TT or LC

Ref Price : 400-900 USD/TON

Supply Capability : 88888 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin China (Mainland)
  • Brand Name:
    wmdtrade
  • Model Number:
    Aluminum silicate
  • Name:
    Aluminum silicate fiber blanket
  • Grade:
    Class A
  • Length:
    3000-15000(mm)
  • Width:
    610mm/1220mm
  • Thickness:
    10-50(mm)
  • working temperature:
    1000-1350℃
  • Mild tension:
    Strong
  • Color:
    White
  • Port:
    Tianjin xingang

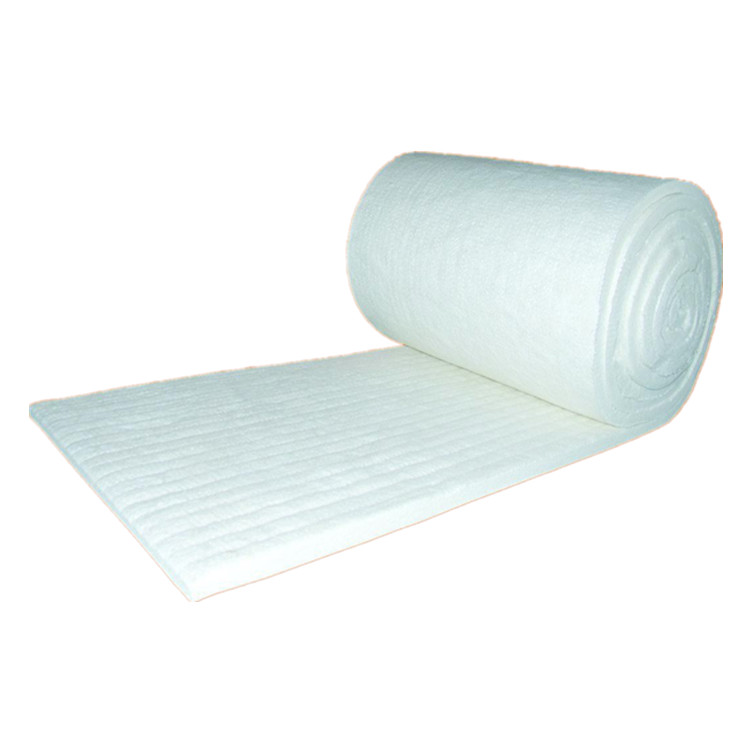

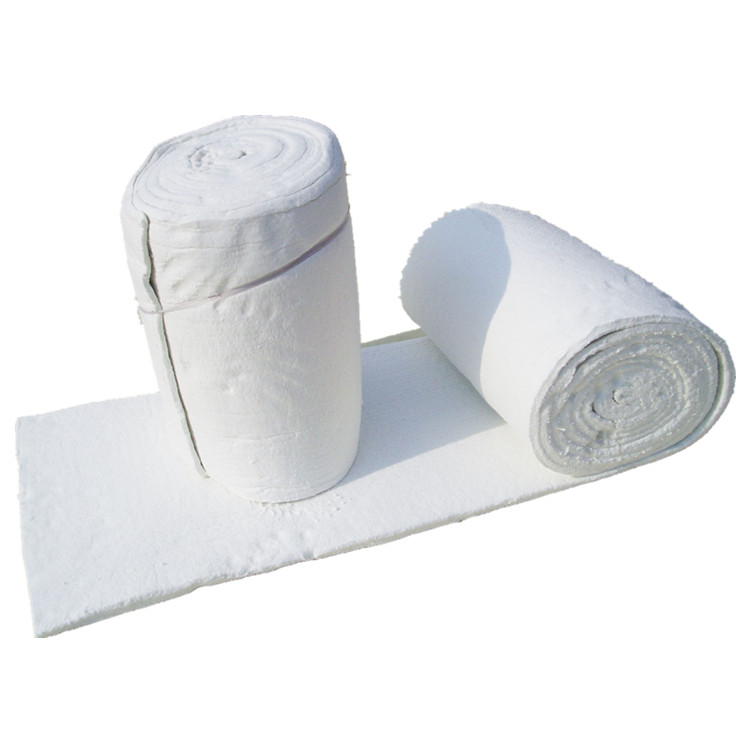

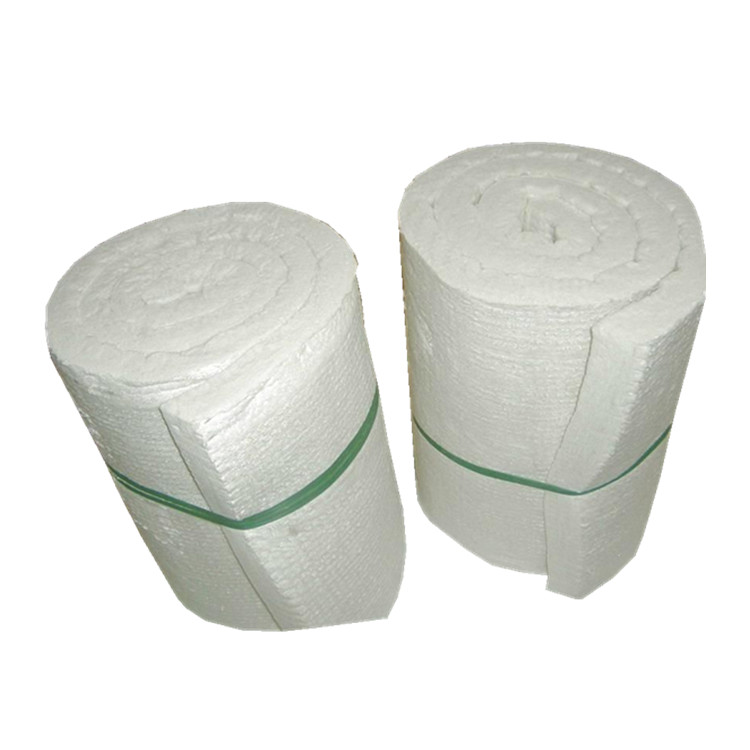

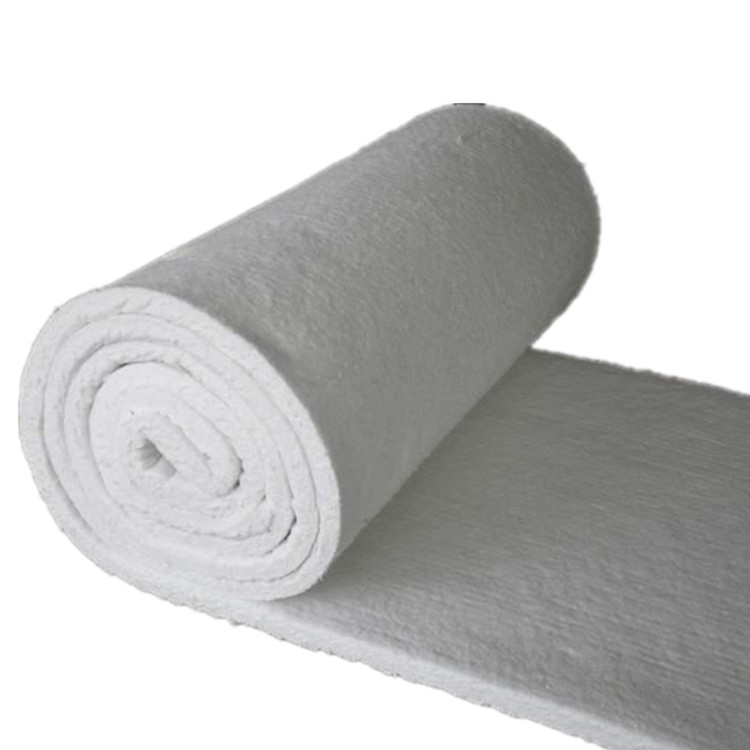

Aluminum Silicate fiber blanket is manufactured by refractory ceramic fibres, providing effective solutions to a wide range of thermal management problems. Utilizing our proprietary high output blowing and spinning techniques, these products supply superior insulating performance, flexibility and resilience.

 Aluminum Silicate fiber blanket is made through intensive needle-punching processing. The product does not contain any bond or other compositions, and also no slag inclusion content. The intensive needle-punching techniques’ improved the fiber intertexture and the resistance performances against delaminating as well as the tensile strength. It has good high temperature shrinkage after the heat treatment of 750-950 during the producing. Beside the characteristics in common, it have better sound insulation performance and mechanism strength, is easy to machining and install.

Application

  •            ·Annealing furnaces

  •        ·Furnace door linings and seals

  •        ·Soaking pit covers and seals

  •        ·Furnace hot face repairs

  •        ·Reheating furnace and ladle covers

  •         Industrial furnace wall lining
             Back lining material;
             Furnace masonry expansion joints, door, roof heat insulation seal;
             High temperature pipe insulation material;
             Module / folded module processing material;
             Fireproof coating;


    The characteristics of WEIYE Non Conductive Heat Resistant Fireproof Ceramic Fiber Blanket 1260



    1.Low heat storage and low thermal conductivity

    2.Excellent chemical stability
    3.Excellent thermal stabilityc
    4.Excellent tensile strength
    5.No bonding agent and corrosive material

 technical data.jpg



type

WY-1260

Classification temperature(℃)

1260

Work temperature()

1100

density(kg/m3)

96-128

Combustion loss(%)

2(1100 X 24 hr)

Chemical composition %

AL2O3

47.1

AL2O3+SIO2

99

FE2O3

0.2

Zro2

/

Standard size(mm)

(7200,6,30)x 610 x (6,10,12.5,20,25,50)

other size and shapes can be made according to your requirement



Type

Common

Standard

High Purity

High Aluminium

Zirconia

Classification temperature (°C)

1100

1260

1260

1360

1400

Working Temperature (°C)

< 1000

1050

1100

1260

1350

Color

White

Pure white

Pure white

Pure white

Pure white

Density (kg/m3)

96/128/160

96/128/160

96/128/160

128/160

128/160

Shrinkage on heating (%)

(24 hours, density as 128/m3)

-4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3)

0.09(400°C)
0.16(800°C)

0.09(400°C)
0.16(800°C)

0.09(400°C)

0.16(800°C)
0.20(1000°C)

0.12(600°C)
0.20(1000°C)

0.16(800°C)
0.20(1000°C)

Tensile strength (MPa)
(density as 128kg/m3)

0.04

0.04

0.04

0.04

0.04

Chemical composition

 (%)

AL2O3

44

46

47-49

52-55

39-40

AL2O3+SiO2

96

97

99

99

-

AL2O3+SiO2+ZrO2

-

-

-

-

99

ZrO2

-

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O+K2O

≤0.5

≤0.5

0.2

0.2

0.2

Size  (mm)

 14640/7200/3600×1220/610×6-50; Other sizes can be available.




 MAIN PRODUCTS









                            CERAMIC FIBER PAPER                    CERAMIC FIBER SHAPED







                                      CERAMIC FIBER MODULE                    CERAMIC FIBER COTTON







                                     CERAMIC FIBER FURNACE                 CERAMIC FIBER BOARD









.jpg





COMPANY INTRODUCE.jpg



ZHE JIANG WEI YE CRYSTAL FIBER CO.,LTD

Founded in 2011,Zhe jiang wei ye crystal fiber co., ltd located at zhong guan town ,Zhe jiang province.The main products ars polycrystalline mullite fiber,alumina fiber,aluminium silicate,high purity,high alumina,zirconium-contacting products.fiber cotton,veneer block,felt,blanket,board,paper,standard foreign products,fiber folding block,binder,paint,etc.



product line.jpg
