Gypsum board profile machine production line for cd ud cw uw

Payment Terms: TT or LC

Ref Price : US $7,000-11,000 / Set

Supply Capability : 25Set/Sets per Month light keel roll forming machine

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • Colored Steel

  • Use:

  • Roof, ceiling

  • Production Capacity:

  • 0-35 m/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QJ

  • Model Number:

  • 74.5*32 75.5*25

  • Power(W):

  • 5.5KW

  • Voltage:

  • 380V

  • Dimension(L*W*H):

  • 5.5M*1M*1.3M

  • Weight:

  • 3.5T

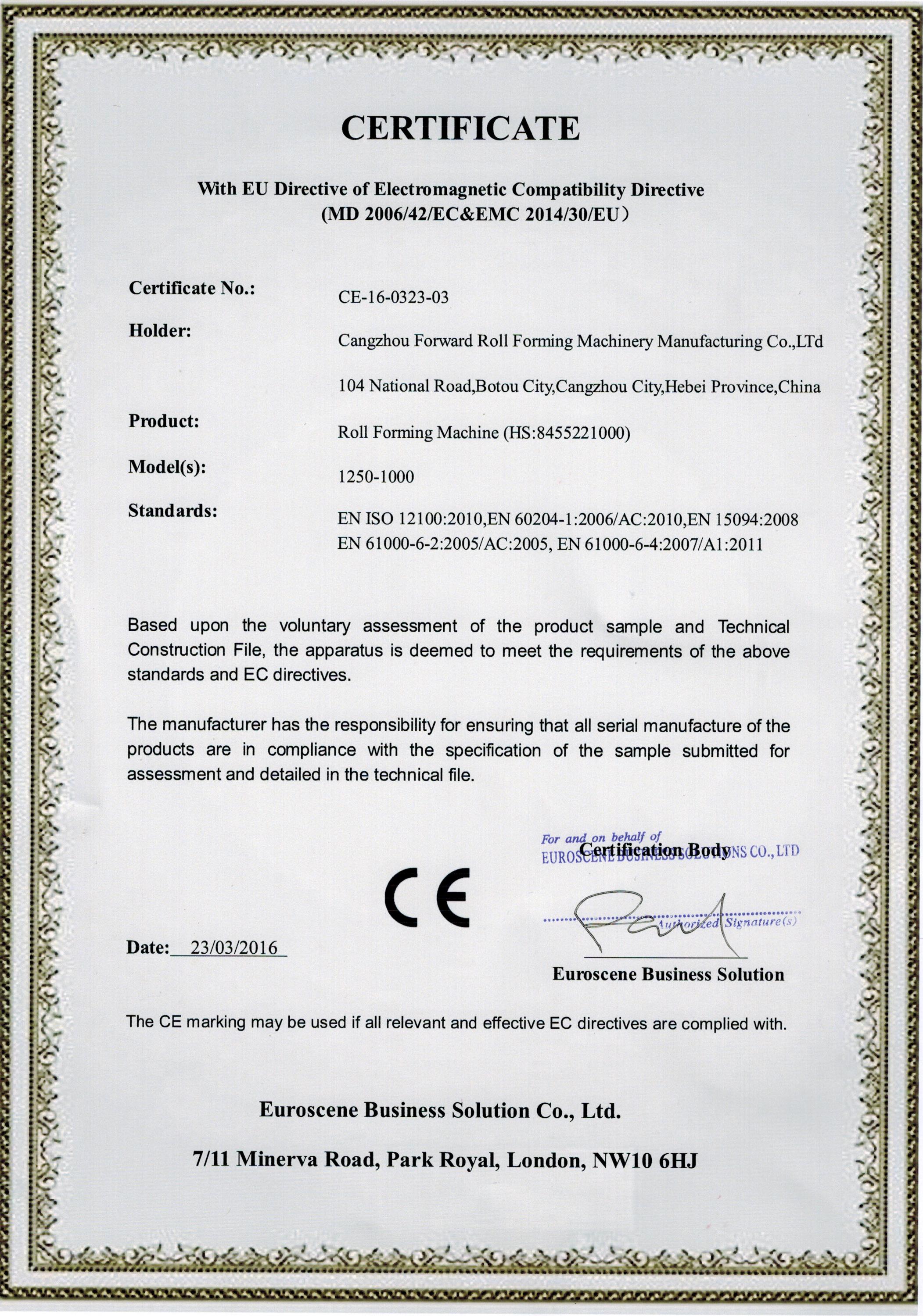

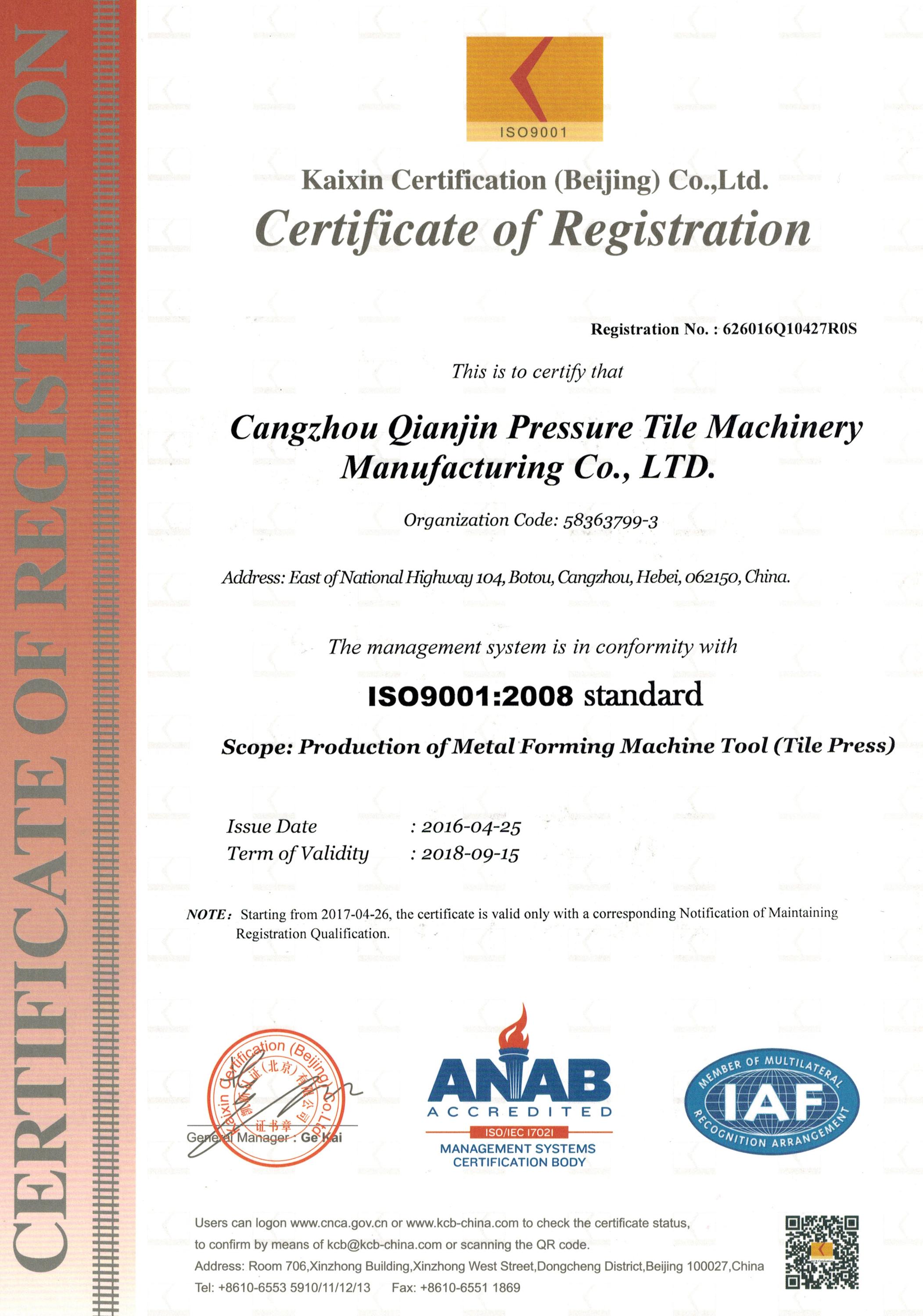

  • Certification:

  • CE ISO9001:2008

  • Warranty:

  • 18months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Item:

  • light gauge steel framing machine

  • Machine Color:

  • grey

  • Control System:

  • THINGET integrated circuit

  • Quality System:

  • CE;ISO9001:2008

  • Motor Power:

  • 5.5KW+4KW

  • Processing Speed:

  • 0-35m/min

  • Thickness:

  • 0.7-1.2mm

  • bearing type:

  • standard

  • Cutting type:

  • tracking length to cut

Packaging & Delivery

  • Packaging Details

  • Gypsum board profile machine production line for cd ud cw uw
    Main machine is nude,the computer control box is packed by wooden carton box.

  • Delivery Time

  • 30 working days after we get advance payment

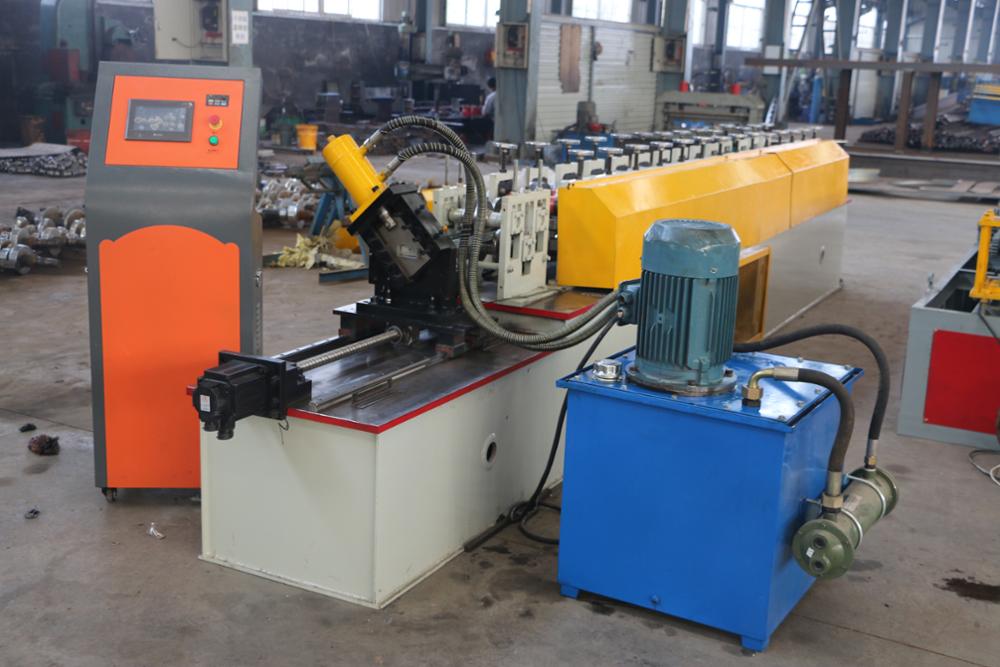

Gypsum board profile machine production line for cd ud cw uw



Product Description

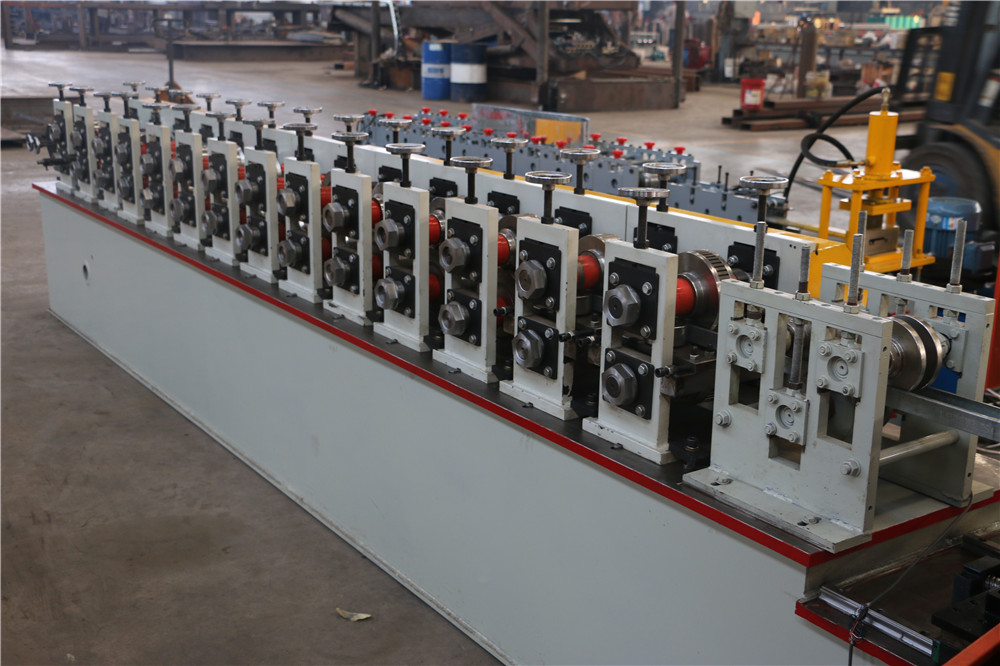

                                     CD74.5*32 light keel roll forming machine



 Gypsum board profile machine production line for cd ud cw uwGypsum board profile machine production line for cd ud cw uwGypsum board profile machine production line for cd ud cw uwGypsum board profile machine production line for cd ud cw uw



Technology parameter of Double line gypsum board profile metal stud and track roll forming machine prices



No.

                 Main Parameter of  keel roll forming machine

1

Suitable to process

Color steel plate

2

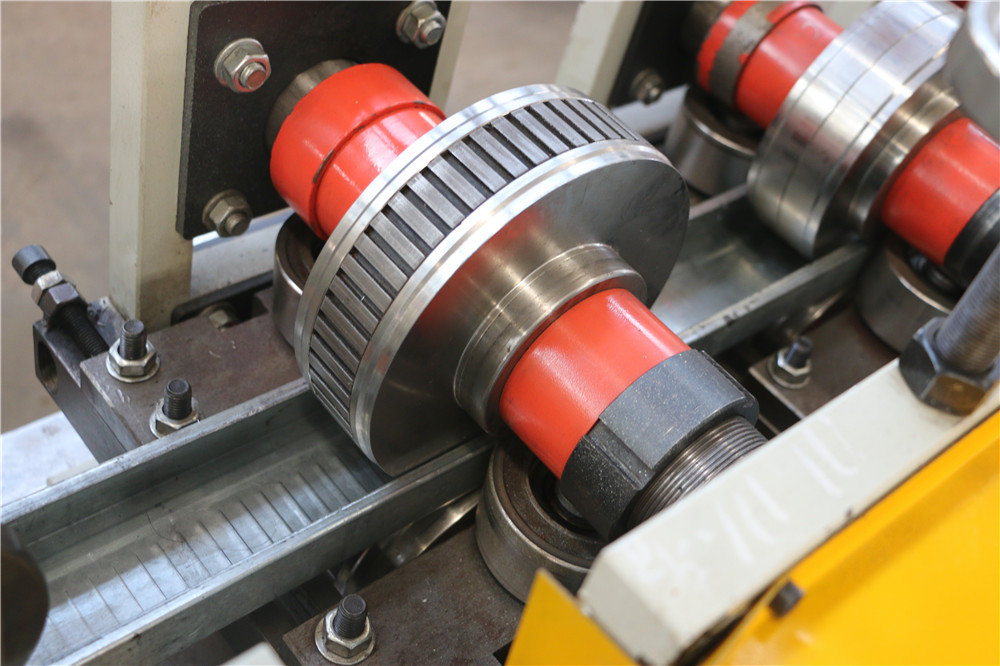

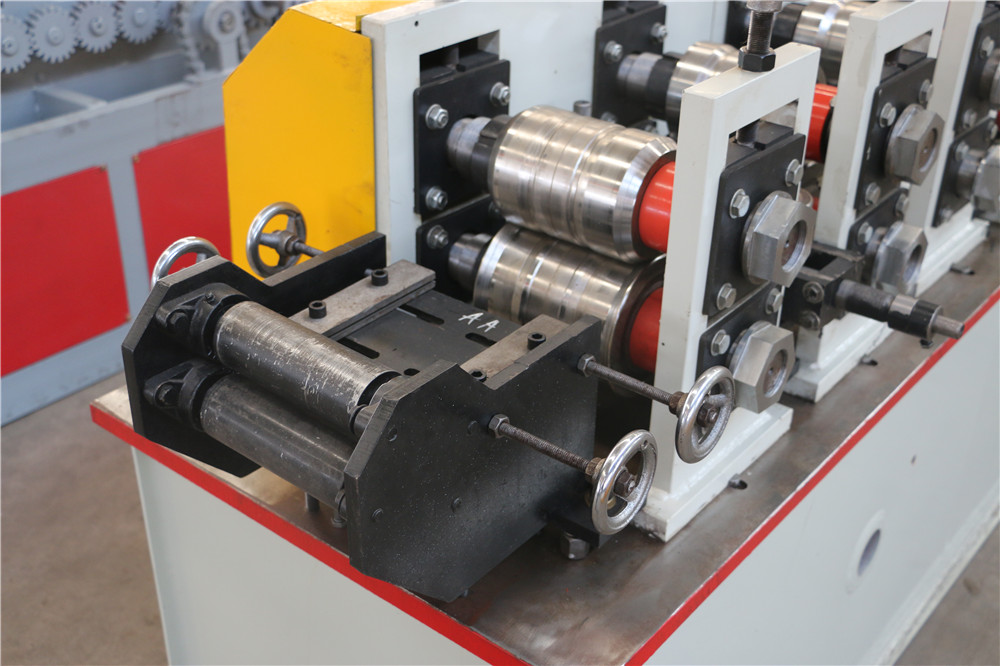

Rollers

10 rows

3

Dimensions

5500*1000*1300mm

4

Power

5.5+4kw

5

Thickness of the plate

7-1.2mm

6

Productivity

0-35m/min

7

Diameter of the shaft

∅50mm

8

Material of the roller

Cr12 Mov

9

Control system

integrated circuit

10

Material of the shaft

high grade 45# steel ,heated and quenched ,cylindrical grinding



COMPANY PROFILE

 Gypsum board profile machine production line for cd ud cw uwGypsum board profile machine production line for cd ud cw uw

Gypsum board profile machine production line for cd ud cw uw




Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
