Heavy Duty Workshop Used gantry crane bridge factory price

Payment Terms: TT or LC

Ref Price : US $10,000-200,000 / Set

Supply Capability : 1-5 sets

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Overview

Quick Details

  • Feature:

  • Gantry Crane

  • Condition:

  • New

  • Application:

  • harbor, storage yard

  • Rated Loading Capacity:

  • 500 ton

  • Rated Lifting Moment:

  • 50KN~3000KN

  • Max. Lifting Load:

  • 500 ton

  • Max. Lifting Height:

  • 3-20 meters

  • Span:

  • 35 meter, 9-20 meters

  • Place of Origin:

  • Henan, China (Mainland)

  • Brand Name:

  • WEIHUA

  • Model Number:

  • WH Heavy Duty Workshop Used gantry crane bridge factory price

  • Certification:

  • CQM,CE,3C,CNAS,SGS

  • Warranty:

  • 12 MONTH

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Capacity:

  • 20-250 ton

  • Runway length:

  • 10-70 meters

  • Environment:

  • Outdoor/Indoor

  • Bridge motion:

  • Radio controlled

  • Duty cycle:

  • 12 hours per day

  • Installation:

  • Supervise

  • Brake Control:

  • Hydraulic/Electric/Mechanical

  • Main Power Disconnect:

  • Manual/Magnetic

  • Product name:

  • Heavy Duty Workshop Used gantry crane bridge factory price

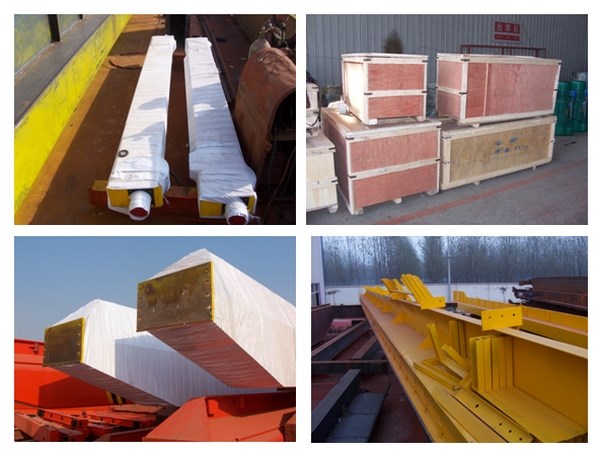

Packaging & Delivery

  • Packaging Details

  • Heavy Duty Workshop Used gantry crane bridge factory price:
    1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked.
    2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.

  • Delivery Time

  • 45 days against advanced payment

Product Description

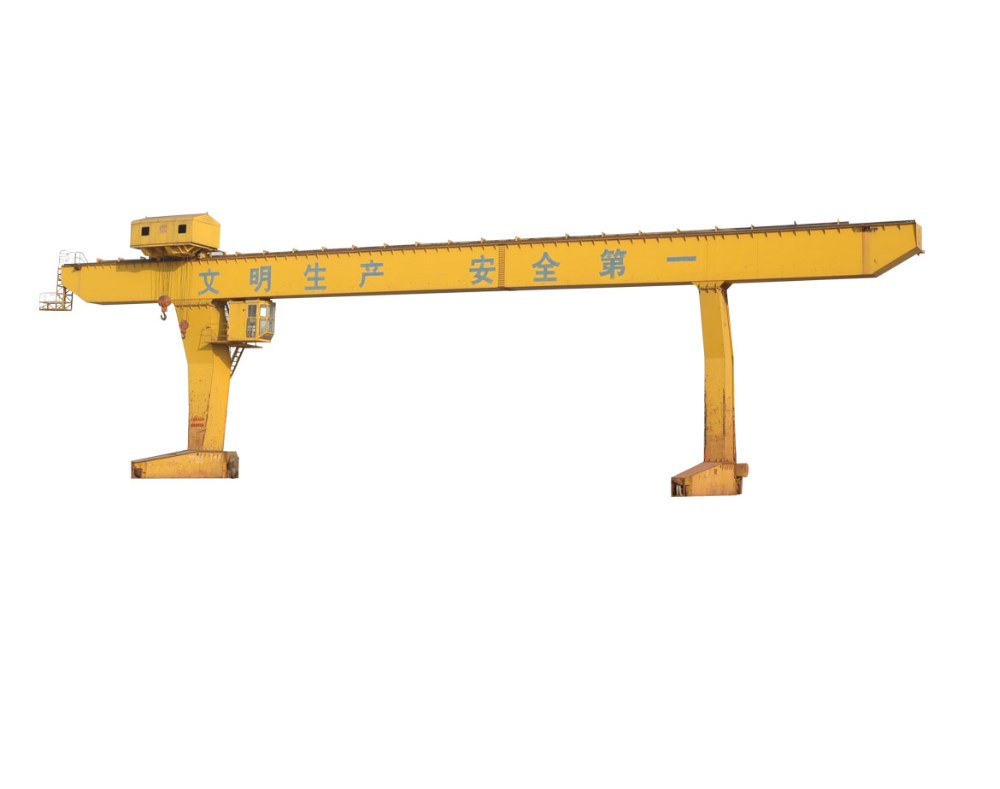

Hot Sale International Quality 35ton Gantry Crane

H single beam electric hoist gantry crane is equipped with electric hoists and widely used in indoor wishouse, outdoor store yard.

Main gantry crane features:
1. GB standard designing and manufacturing for gantry crane;
2. M3~M5 working duty for gantry crane;

3.Multi-choice for control method:  cabin control, remote control or pendant line with pressing buttons;
4. Box shape main beam for gantry crane;
5. Customization is welcomed, we could do OEM or design special to meet your working conditions.

Main specifications of gantry crane

1. Crane lifting capacity: 3ton, 5ton, 10ton, 16ton.
2. Crane span: 12m, 16m, 20m, 24m, 30m.
3. Crane lifting height: 6m/9m
4. Crane traveling speed: 20m/min;
5. Crane working class: A4
6. Electric hoist traveling speed: 20m/min
7. Lifting system: wire rope electric hoist

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine

Safety protection devices:

1) Overload protection.
2) Main lifting motor with thermal protection.
3) Hooks with latch.
4) Rubber buffers.
5) Protective earthing.
6) Crane switch and travel end switch.
7) Emergency switch can stop all movement when any dangerous happened.
8) Sub-assemblies characteristic are tested before assembly.
All cranes must be pre-assembled and tested before leaving factory and offer the certification of test
.

Detailed Images

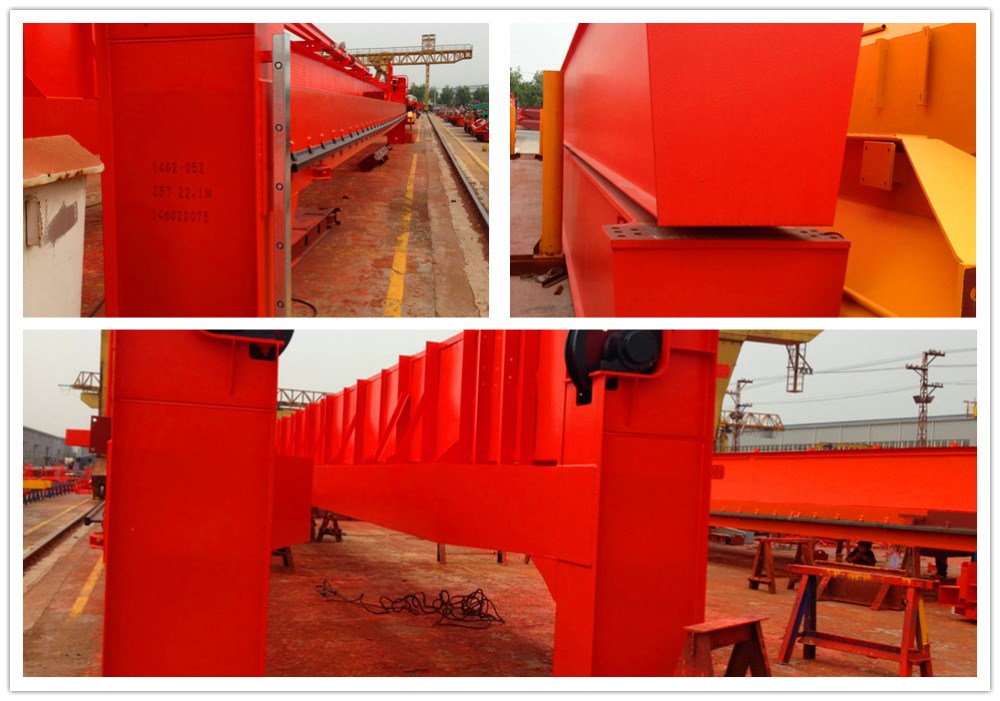

Main Beam



Box shape main beam for ganry crane,
high technique, torsion-free box girders,
no welding one whole type,
strong and beautiful



Main electric parts

Schneider brand electric parts for NUCELON gantry crane

Motors

Frequent starting , reversing & braking, dust proof construction foot / flange mounted TESC / TEFC , Sq. cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions.

Painting

Expoy painting
Primer and finishing paint
Color: According to your demand.
Average thickness: About 100 microns.


Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

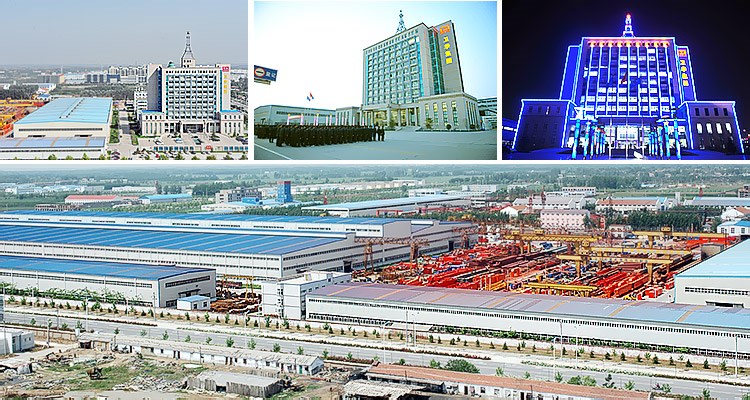

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
