10 Ton Electric Wall Traveling Jib Crane With Hoist

Payment Terms: TT or LC

Ref Price : US $30,000-200,000 / Set

Supply Capability : 50-100 sets

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Overview

Quick Details

  • Feature:

  • Other

  • Condition:

  • New

  • Application:

  • indoor, outdoor, workshop, warehouse, etc

  • Rated Loading Capacity:

  • 10t

  • Rated Lifting Moment:

  • 500KNm

  • Max. Lifting Load:

  • 10ton

  • Max. Lifting Height:

  • 12m

  • Span:

  • 5m

  • Place of Origin:

  • Henan, China (Mainland)

  • Brand Name:

  • WEIHUA

  • Model Number:

  • jib crane

  • Certification:

  • CE,SGS,

  • Warranty:

  • 12 months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Working Duty:

  • A3~A6

  • Customization:

  • provided

  • Ex, Factpru Inspection:

  • included

  • Lifting Speed:

  • 8 m/min

  • Max. Wheel Load:

  • 34.9KN

  • Rail Width:

  • 300-450KN

  • Dead Weight:

  • 730kg

  • Fall:

  • 4/1

  • Travelling Speed:

  • 20.~20m/min

  • Product name:

  • Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

Packaging & Delivery

  • Packaging Details

  • 10 Ton Electric Wall Mounted Jib Crane With Hoist:
    1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked.
    2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.

  • Delivery Time

  • Within 35-60 days receiving deposit




10 Ton Electric Wall Traveling Jib Crane with Hoist



Product Description


Jib Crane - Brief Description

Wall-Traveling Jib Cranes offer long lateral motion of substances without taking up floor area or interfering with heavyduty overhead cranes. Wall-traveling jibs boost overall plant growth by quickly tackling smaller lifts. You may download wall traveling Jib Cranes Manual for detail after contact us.

  • Jib boom is produced from standard "S" beam with vertical angle truss to reduce deflection; jib boom and truss bolt onto the back frame—no welding needed.

  • Top-running end trucks include double-flanged crane wheels made from forged steel for long service life.

  • End trucks are constructed from channel beam frames and resist twisting; the end trucks are jig-fixed for optimal fit and travel. End trucks bolt onto the jib's back frame.

  • Two-speed controls include mainline contactor, control transformer, inverter acceleration control, and fuses in NEMA 3R, 4, or 12 enclosures.

  • Crane drive owns an electric motor with worm gear reducer.

  • Variable frequency drives (VFDs) for multi-speed operation.


Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

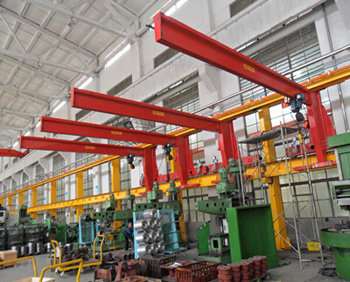

   Wall Traveling Jib Crane

There are useful where overhead cranes are not practical or feasible. They offer 360 degree floor coverage, allowing unrestricted placement of machinery and equipment.

   • Duty group: Class C ( intermediate)

   • Lifting height: 6-30m

   • Max validity cantilever:5-30m

   • Min validity cantilever: 1.0-3.5m

   • Lifting capacity: 0.5-16t

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

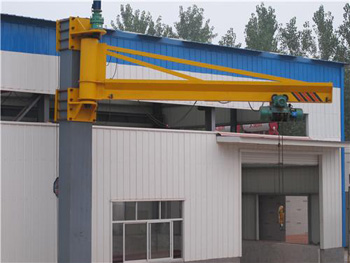

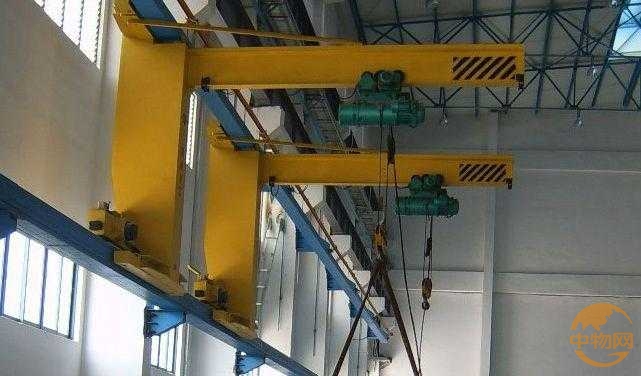

   Wall Mounted Jib Crane

These mount easily to any substantial structural steel buliding column, at any desired height. The crane has a structural steel finish, in highly visible yellow enamel.

   • Duty group: Class C ( intermediate)

   • Lifting capacity: 0.25-16t

   • Valid radius: 4-5m

   • Lifting height: 5-6m

   • Lifting speed: 8/0.8m/min

   • Circulate speed: 20m/min

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

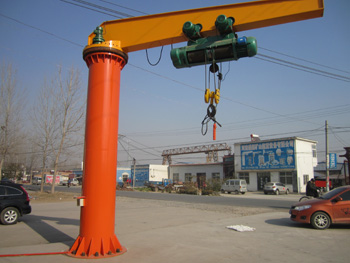

   Free Standing Column Jib Crane

Free standing jib crane install almost anywhere, including outside. There foundation-mounted, freestanding jibs offer higher capacities, longer spans, and greater rotation than wall-mounted jib cranes.

   • Duty group: Class C

   • Crane rotation:360

   •Span: up to 15m

   • Height: up to 12m;



Configuration of Jib Crane

To ensure the high quality of our cranes, we choose the high quality components as shown below:

Name & Model

Manufacturer

Remarks

Electric control mechanism: Electric hoist

Trolley control system

Crane traveling control system

Schneider or Siemens brand

International Famous brands

Electric lifting hoist/trolley:

Lifting motor

Traveling motor

Wuxi xindali brand

China famous material handling equipment production company

Reducer

Jiangsu taixing reducer co.,ltd

China famous brand

Wire rope

Jiangsu Nantong Taili Wire rope

Top-500 private enterprise in China

Overload limiter

Henan Hengda or Changzhou Changxin

Famous trademark of China

Stopper device

Hook group

China famous brand

China famous brand

Crane traveling mechanism:

Traveling Motor

Wuxi xindali brand

China famous material handling equipment production company

Reducer

Jiangsu taixing reducer co.,ltd

Professional reducer supplier

Wheel

Xinxiang Degong Machinery Co., Ltd.

China famous brand

Buffer

Liaoning Qingyuan or Shanxi Linfen

Top-500 private enterprise in China

Steel structure:

Main Girder

End truck

Service platform

Crane Travel Rail

Anyang Steel or Jinan Steel

One of the most influential enterprise in China

Crane Travel Rail


Hi-tech enterprise in China

Top 100 of Chinese Machinery industry

China famous brand

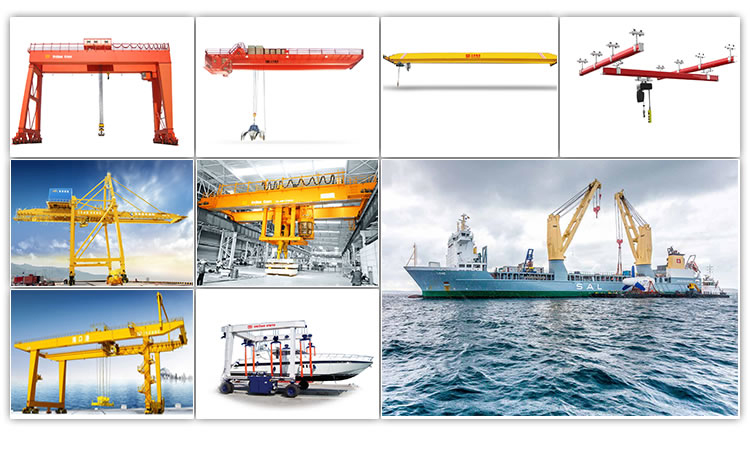

Main Products

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

Quality Control

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale





Company Information

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than 6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics. Furthermore, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale

Packaging&Delivery

Electric Driven 5T Lifting Column Type Jib Crane Supplier For Sale



FAQ

1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
