High Quality Movable Small Platform Scissor small boom lifts

Payment Terms: TT or LC

Ref Price : US $1,000-10,000 / Set

Supply Capability : 50-100 sets

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Overview

Quick Details

  • Place of Origin:

  • Henan, China (Mainland)

  • Brand Name:

  • Weihua

  • Model Number:

  • scissor lift, Scissor lift

  • Lift Mechanism:

  • Scissor Lift

  • Lift Drive / Actuation:

  • Hydraulic, hydraulic

  • Power:

  • 2.2kw/3kw/4kw

  • Rated Loading Capacity:

  • 200kg

  • Min. Lifting Height:

  • 80mm

  • Max. Lifting Height:

  • 18m

  • Table Size:

  • 1200*1000mm, customized

  • Overall Dimensions:

  • 1200*800*1700mm---2500*1350*2300mm

  • Weight:

  • 1200kg

  • Certification:

  • ISO9001:2008, ISO9001:2008

  • Warranty:

  • 12 months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Overall Dimensions::

  • customized

  • Ex Factory Instpection:

  • included

  • Lifting Mechanism:

  • scissor lift

  • Product name:

  • High Quality Movable Small Platform Scissor small boom lifts

  • Application:

  • Aerial Work

  • Color:

  • Customers' Requirements

Packaging & Delivery

  • Packaging Details

  • High Quality Movable Small Platform Scissor Lift:
    1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked.
    2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.

  • Delivery Time

  • 30-90days

Product Description

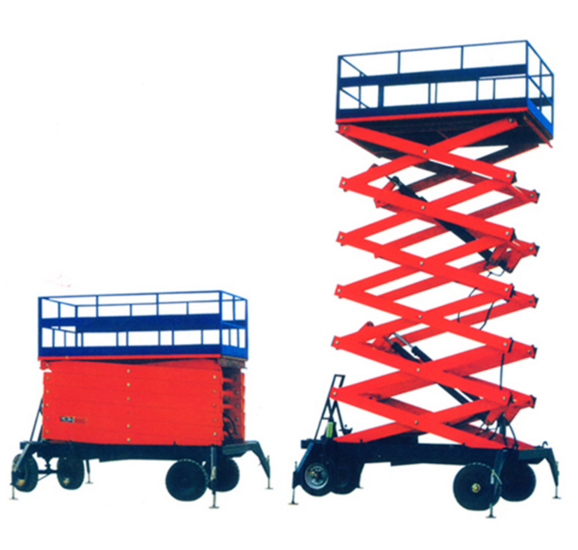

             High Quality Movable Small Platform Scissor small boom lifts



Product Description

Our scissor lifts are designed for aerial access applications, from the minimum 1.5 meters reach height up to 16 meters reach height available , with different sizes and heights, these scissor lifts enable you to reach the most hard-to-access overhead spaces.
The manually propelled hydraulic scissor lifts can do many jobs such as, steel structural warehouse construction, building maintenance, lamp repairing, Street Lighting Repair, Painting, Construction etc.
During the operation, the four extendable outriggers at each corner will provide?additional stability .
We offer many different power sources for our?scissor lifts, including but not limited to 220v single phase, 380v three phase, 110v single phase, or even a 24V DC battery powered model.





High Quality Movable Small Platform Scissor small boom lifts



Configuration
1. Electrical system: National
2. Hydraulic system : National or importing form Italy.
3. Scissor part is made of? high-strength manganese steel.
4. Color :Chassis and Scissors are blue, Work platform and Guardrail are orange.

Features
1. Owning point control system. Controlling platform up and down in two-way.
2. Manual moving, two universal wheel . Make moving convenience.
3. After short blasting, Painting both bottom and surface
4. Guard rails of working platform is removable.

Security
1. Control voltage is DC24V. Keep working person safe.
2. Electrical control box is water-proof design.
3. Installing Emergency button,to keep working person safe.
4. Self-locking function will work when electricity is suddenly cut off.
5. System have Emergency drop valve, which can let platform down safely when electricity is suddenly cut off.
6. Four telescopic supporting legs in button, which can keep machine stable.

High Quality Movable Small Platform Scissor small boom lifts



Types of Hydraulic Scissor Lift



A. Electric Powered / AC powered

· When the electricity is available, usually for Indoor use

· No noise and air pollution

· Voltage: 110V, 220V, 380V, 415V



B. Diesel Powered

· When the electricity is not available, usually for Outdoor use

· Longer use time



C. Battery Powered / DC powered

· When the electricity is not available, usually for Outdoor use

· No noise and air pollution

 High Quality Movable Small Platform Scissor small boom lifts

technical parameter



Model Platform height
(m)
Capacity
(kg)
Platform size
(mm)
Closing size
(mm)
Dead weight
(kg)
Standard motor power Power source
SJY0.3-4 4 300 1700*1080 1820*1400*1180 660 2.2kw 380V 50hz 3phase
SJY0.3-6 6 300 1700*1080 1820*1400*1280 750
SJY0.3-8 8 300 1800*1060 1900*1380*1460 850
SJY1.0-8 8 1000 1940*1300 1920*1630*1980 1050
SJY0.3-10 10 300 1920*1200 2040*1580*1660 1300
SJY1.0-10 10 1000 1920*1300 2060*1630*1980 1500
SJY0.3-12 12 300 1370*1300 2510*1630*1980 1420
SJY1.0-12 12 1000 2400*1340 2530*1630*2000 1700 3.0kw
SJY0.3-14 14 300 2650*1300 2800*1660*1980 1800 2.2kw
SJY0.3-16 16 300 2650*1340 2800*1600*2130 2800 3.0kw





Main Products

High Quality Movable Small Platform Scissor small boom lifts

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

High Quality Movable Small Platform Scissor small boom lifts

Quality Control



High Quality Movable Small Platform Scissor small boom lifts

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.

High Quality Movable Small Platform Scissor small boom lifts





Company Information



High Quality Movable Small Platform Scissor small boom lifts

From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than 6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

High Quality Movable Small Platform Scissor small boom lifts

Packaging&Delivery





High Quality Movable Small Platform Scissor small boom lifts



FAQ





1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.






   Henan Weihua Special Vehicle Co.,Ltd.(referred to as HenanWei Te) By the Weihua Group and Singapore Terra Lite joint venture to creat a registed capital of 100 million yuan, located in Henan Province Changyuan Country Automobile Industrial Park.

Since its inception, the company has been committed to industrial vehicles, enviromental equipment, special vehicles, high-altitude operations and lifting equipment R & D and manufaturing. Leading products and service in urban construction, urban management, urban maintenance and moden logistic and other important areas.
