Cangzhou Qianjinyawa Machinery Manufacturing Co., Ltd.

High Speed Wall Angle Steel Roll Forming Machine China supplier

Payment Terms: TT or LC

Ref Price : US $6,000-15,000 / Set

Supply Capability : 30 Set/Sets per Month wall angle steel roll forming machine

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details


Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • Glazed Steel

  • Use:

  • Roof

  • Production Capacity:

  • 0-35m/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QJ

  • Model Number:

  • 20*20

  • Power(W):

  • 4KW

  • Voltage:

  • 380V 50Hz 3phases or as your request

  • Dimension(L*W*H):

  • About 4.5m*0.9m*1.2m

  • Weight:

  • About1.8T

  • Certification:

  • CE ISO SGS TUV

  • Warranty:

  • 18 Months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Name:

  • High Speed Wall Angle Steel Roll Forming Machine

  • Thickness of the plate:

  • 0.3-0.6mm

  • Motor power:

  • 4KW+4KW

  • Control system:

  • PLC and touch screen

  • Way of drive:

  • Gear drive

  • Roller material:

  • Cr12 Steel heated and quenched,cylindrical grinding

  • Shaft dimension:

  • 40mm with key-way

  • Cutting Type:

  • Tracking length to cut with no stop

  • Cutting blade material:

  • Cr 12 Mov, quenched processed

  • Processing pricision:

  • 10m ±1mm

Packaging & Delivery

  • Packaging Details

  • Nude packing in the 20' container. Dimension(L*W*H): About 5.8m*0.9m*1.3m
    A 20' container can hold two such kind of machine.

  • Delivery Time

  • 40 working days after we received the advance payment.

High Speed Wall Angle Steel Roll Forming Machine China supplier

wall angle steel roll forming machine



High Speed Wall Angle Steel Roll Forming Machine China supplier

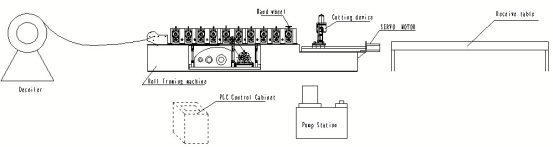

Processing Sketch

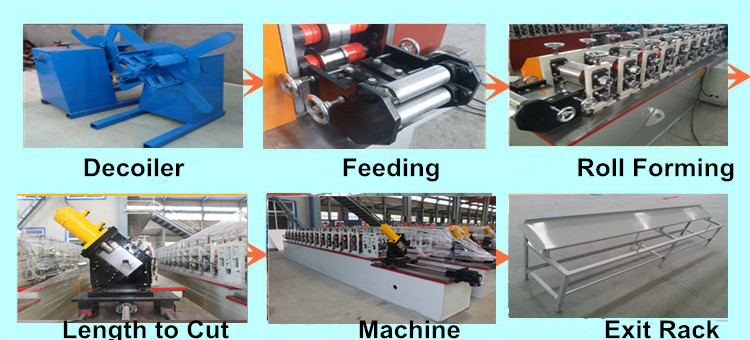

Decoiling->Roll Forming->PLC Control->Punching Device ->Tracking Cut->Table


High Speed Wall Angle Steel Roll Forming Machine China supplierHigh Speed Wall Angle Steel Roll Forming Machine China supplier

 High Speed Wall Angle Steel Roll Forming Machine China supplier


Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
