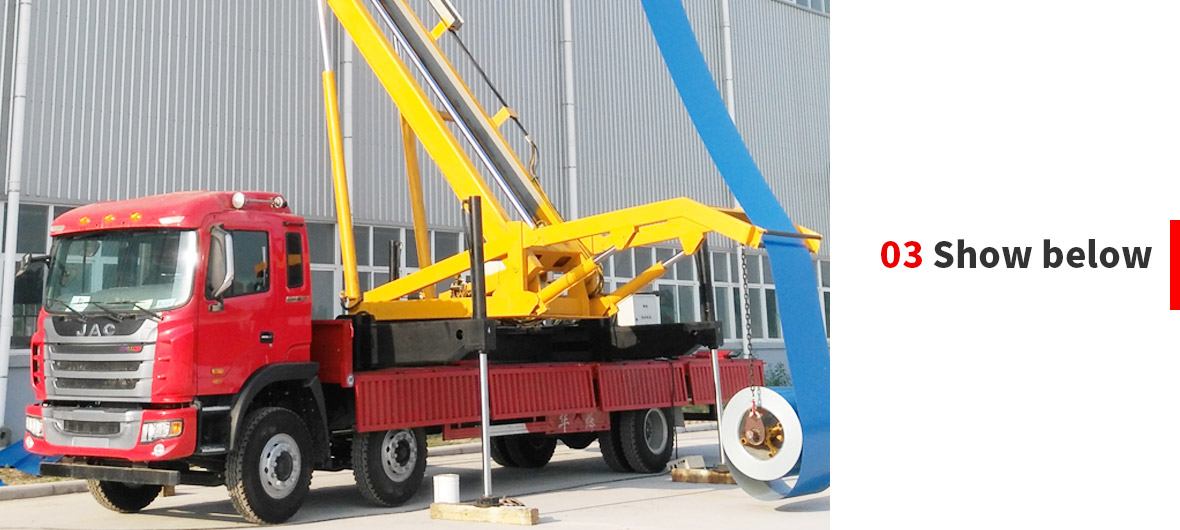

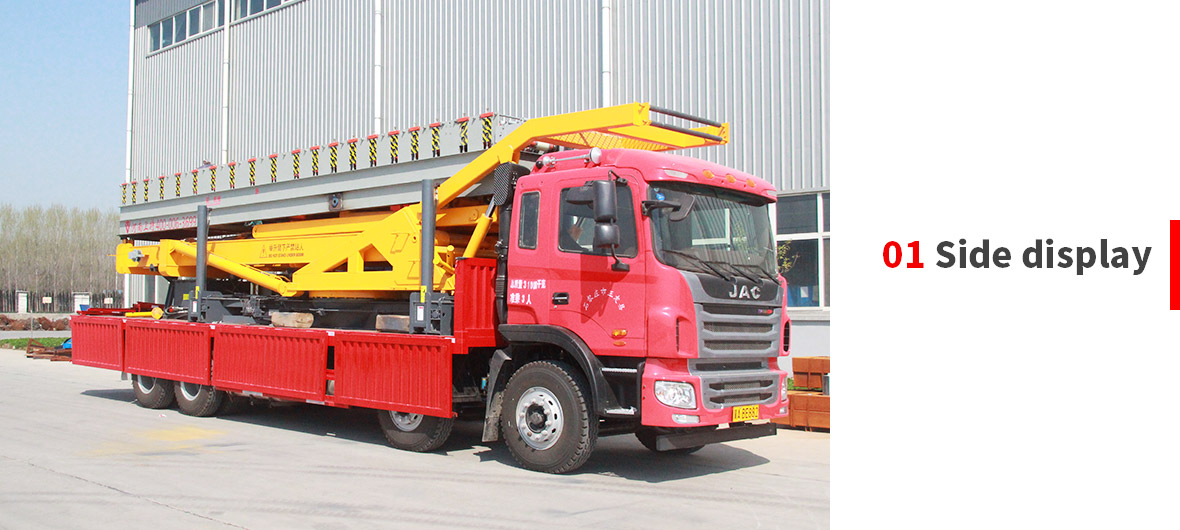

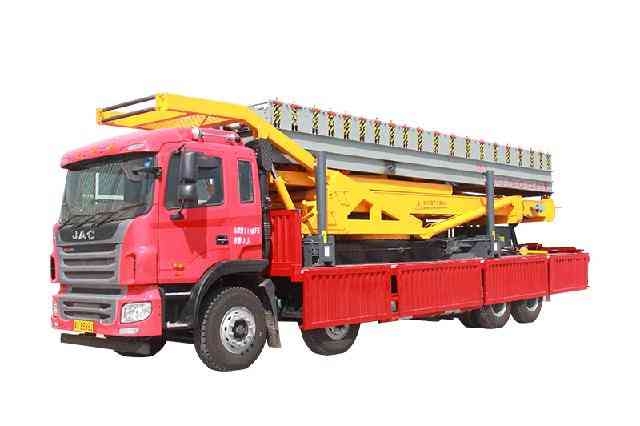

Stable Performance

To achieve long-distance transport and site transshipment, convenient and flexible. To achieve the ground for the material, high-altitude tile integrated, energy efficient.

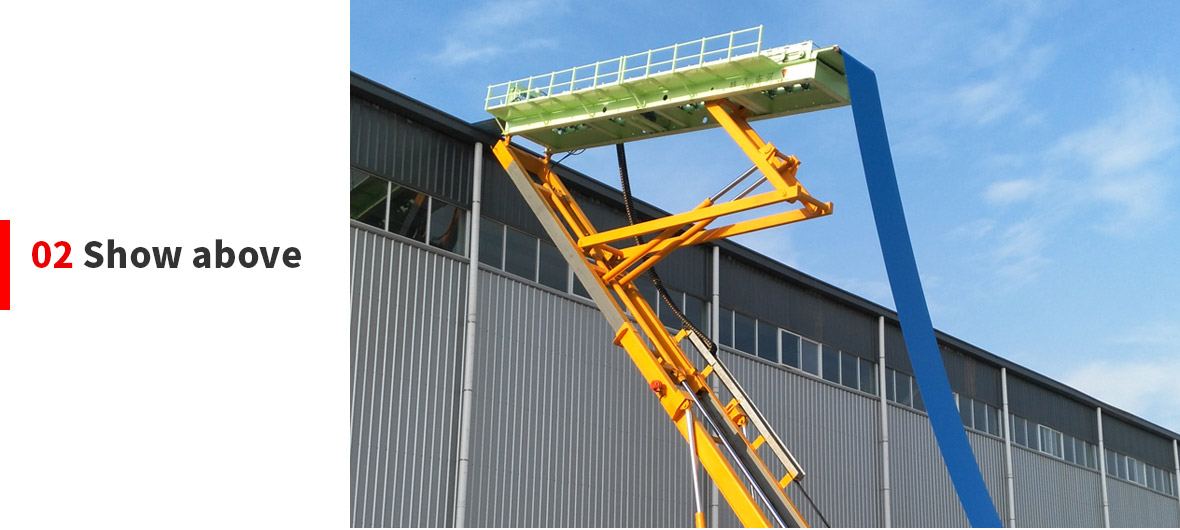

Precise Design

It is a set of hoisting, unwinding and pressing tiles, which are made of hydraulic, and electric system. One of the new color steel tile molding equipment.

High Quality

Change the traditional construction of steel roof panels, since the mobile function, reduce construction costs, product design, the optimal appearance and structure of lightweight.

Performance Characteristics

                                                                                                                              1, to achieve long-distance transport and site transshipment, convenient and flexible.

                                                                                                                              2, to achieve the ground for the material, high-altitude tile integrated, energy efficient.

                                                                                                                              3, direct use of construction power, reduce operating costs.

                                                                                                                              4, full hydraulic drive, simple structure, safe and reliable, easy maintenance.

                                                                                                                              5, the vehicle using PLC control, can achieve both panel and remote control mode of operation.

                                                                                                                              6, to achieve a variety of models tile machine swap, a wide range of applications.

                                                                                                                              7, the maximum height of 16.5m for the plant to adapt to any slope of the plant.

                                                                                                                              8, for the maximum color plate thickness 0.8mm, the length of any set, automatic cutting.

                                                                                                                              9, the original product design, the optimal appearance and lightweight structure.

                                                                                                                             10, the product obtained a patent for invention and two utility model patents.

Category	Project		Unit	Specification
Working performance parameters	Color steel tile model		Angle gallop	820/760/470/788
	Maximum height of the tile		m	16.5
	Maximum lifting weight		kg	8000
	Color plate specifications	Width	mm	1000/600
		Thickness	mm	0.3~1
	Out of tile speed		m/min	10-18
	Outrigger span (vertical * horizontal)		m	4.8*5.3
Lifting cylinder specifications	Luffing mechanism		ø140
	Telescopic mechanism		ø125
	Balance mechanism		ø125
Recommended chassis parameters	Model	Number of axes	Container size	Factory
	- -	4 axis	9600*2500*800	Dongfeng
	- -	4 axis	9600*2500*550	JAC
	- -	4 axis	9600*2500*600	Shaanxi Auto
	Maximum speed		km/h	95
Size parameters	Length * Width * Height		m	12*2.5*4
Quality	Total quality of the machine		kg	33000
Emissions of pollutants and smoke limits			Country IV
