Tianjin Baolishengni Plastic Pipe Made Co Ltd

High density PE doble-wall corrugated pipe

Payment Terms: TT or LC

Ref Price : 10-20 USD/METERS

Supply Capability : 10000 METERS

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin, China
  • Model Number:
    HDPE Pipe
  • Material:
    PE
  • Specification:
    DN50mm-DN1000mm
  • Length:
    5.8m,11.8m or at request
  • Thickness:
    4.5mm-23mm
  • Standard:
    CJ/T189-2007
  • Color:
    Black
  • Raw material:
    HDPE
  • Diameter:
    DN300mm-DN1200mm
  • Ring stiffness:
    SN8 SN12.5 SN16
  • MOQ:
    1000Meters
  • Life span:
    50 years under normal conditions
  • Payment:
    T/T

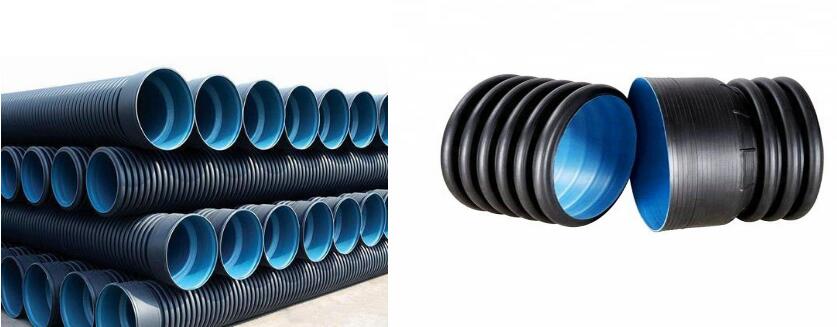

 Product Show




Specification:


Nominal diameter


The minimum average diameter


The minmum inner wall thickness


The minmum wall thickness of laminate


Length ofengagement

200mm

195mm

1.1mm

1.5mm

54mm

300mm

294mm

1.7mm

2.0mm

64mm

400mm

392mm

2.3mm

2.5mm

74mm

500mm

490mm

3.0mm

3.0mm

85mm

600mm

588mm

3.5mm

3.5mm

96mm

700mm

687mm

4.1mm

4.1mm

102mm

800mm

785mm

4.5mm

4.5mm

118mm



Physical properties:

 Ltem

 Index

 Ring stiffness

SN4≥4KN/M2

SN8≥8KN/M2

(TIR)/% Lmpact property

TIR≤10%

 Ring flexibility


The sample is smooth without reverse bending,no breaking,double-wall has no disconnection

 Oven test


No bubbles,no layering and no cracking

Creep ratio

≤4





Tianjin Baoli Shengni Plastic Pipe Manufacturing Co., Ltd. was established in 2003 with a registered capital of 61.88 million. The company is located in Tianjin Jinghai Economic Development Zone, covering an area of 50,000 square meters, close to Beijing-Shanghai, Beijing-Guangzhou Expressway and Tianjin. Hong Kong, Huanghua Port, Binhai New Area, and the national market. In the second half of 2008, Tianjin Jinhe Bimetal Wire Co., Ltd. completely acquired the company, which not only injected a lot of money into the company, but also made the company's business philosophy and quality consciousness completely new. In a short period of time, the company has developed into a high-tech enterprise integrating scientific research, development, production and sales. It specializes in producing HDPE high-density polyethylene double-wall corrugated pipe and large-diameter steel belt reinforced polyethylene spiral corrugated pipe. The company has passed ISO9001 system certification, has more than 200 employees, 13 and two large-scale workshops, with an annual output of 30,000 tons. The excellent products and perfect services have been recognized by local merchants.

    The company adopts internationally advanced technology and equipment to produce new green environmental protection pipe. This product is a national-level torch promotion project and is a new type of pipe that the country vigorously promotes.

    Our company pays attention to quality, focus on management, guarantees with strong technical force, adopts strict quality management system, and provides users with all-round technical support according to the standards of “new technology, high quality” and our sincerity and confidence. service.
