Jining Infront Construction Machinery Co Ltd

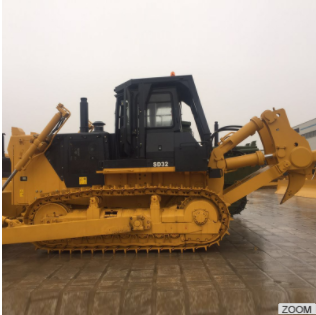

Hydraulic shandong bulldozer with high efficency

Payment Terms: TT or LC

Ref Price : USD170000-180000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

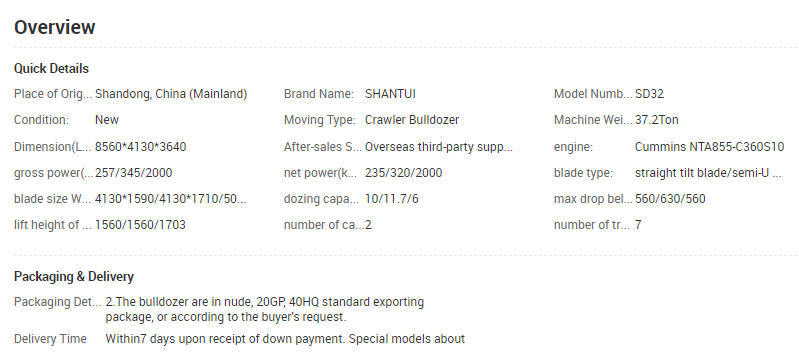

Qulck Details



Hydraulic shandong bulldozer with high efficency

Hydraulic shandong bulldozer with high efficency

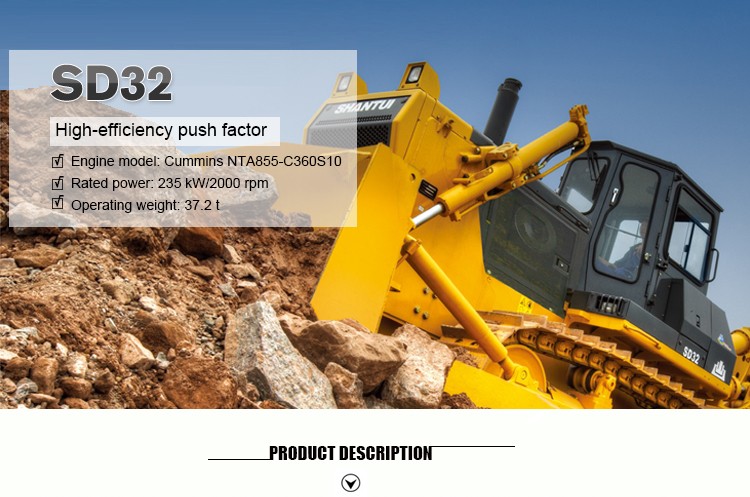

The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.



Performance Paramete



SD32

Technical

specifications:

Minimum ground clearance: 500 mm Minimum turning radius: 3.8 m
Operating weight: 37.2 t Gradeability: 30°
Ground pressure: 0.105 MPa Track gauge: 2140 mm

ENGINE Model & type

Cummins NTA855-C360S10; In-line,

water-cooled;

4-cycle, overhead valve direct injection,

turbocharged diesel

Rated revolution 2000 rpm
Rated power 235 kW
Cylinder number-bore 6—139.7 x 152.4 (mm x stroke)
Piston displacement 14010 ml
Min. fuel consumption 217 g/kW·h
Maximum torque 1440 N·m@1400rpm

POWER

TRANSMISSION

SYSTEM

Torque converter 3-element, 1 stage, 1 phase
Transmission

Planetary gear, multi-disc clutch, hydraulically connected,

forced lubrication

Main drive

Spiral bevel gear, splash lubrication,

single-stage speed reduction

Steering clutch

Wet, multi-disc, spring loaded,

hydraulically separated, hydraulic control

Steering brake

Wet, floating, direct on-off hydraulic

inter-linking operation

Final drive

2-stage speed reduction of spur gear,

splash lubrication


TRAVELSPEED Gear 1st 2nd 3rd
Forward 0~3.6 km/h 0~6.6 km/h 0~11.5 km/h
Reverse 0~4.4 km/h 0~7.8 km/h 0~13.5 km/h

UNDERCARRIAGE

SYSTEM

Type

Swing type of sprayed beam,

suspended structure of equalizer bar

Carrier rollers 2 each side
Track rollers 7 each side (single flange 5, double flange 2)
Track type 41 each side
Width of track shoes 560 mm
Pitch 228.6 mm

HYDRAULIC

SYSTEM

Maximum pressure 14 MPa
Pump type Gear pump

Discharge

(at revolution of 2000 rpm)

355 (1795 rpm) L/min

Bore of working cylinder

× no. (double-acting type)

140 mm × 2

BLADE Blade type Straight-tilt Angle Semi-U blade
Dozing capacity 10 m3 6 m3 11.9 m3

Efficiency

(Theoretical value 40 m)

580 m3/h 350 m3/h 690 m3/h
Blade width 4130 mm 5000 mm 4130 mm
Blade height 1590 mm 1140 mm 1710 mm

Maximum drop

below ground

560 mm 630 mm 560 mm
Maximum tilt adjustment >100 mm >500 mm >1000 mm
Weight of blade 4520 kg 4932 kg 4924 kg

RIPPER

(OPTIONAL)

Maximum digging depth

of 3-shank ripper

842 mm
Maximum lift above ground 883 mm
Weight of 3-shank ripper 3802 kg

Maximum digging depth

of single ripper

1250 mm
Maximum lift above ground 965 mm
Weight of single ripper 3252 kg

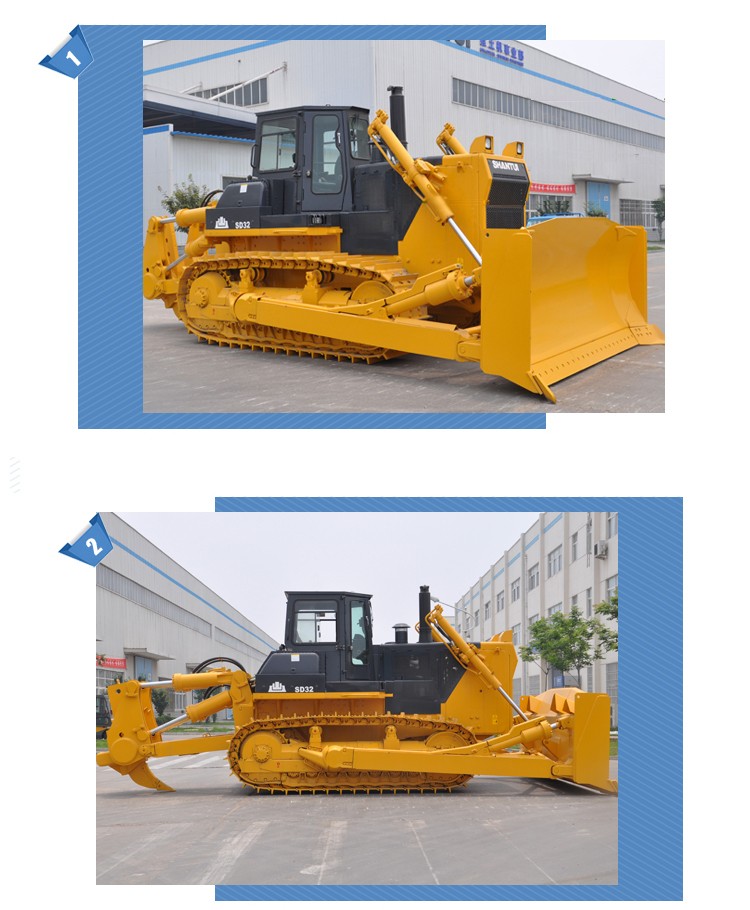

Product Description

Hydraulic shandong bulldozer with high efficency

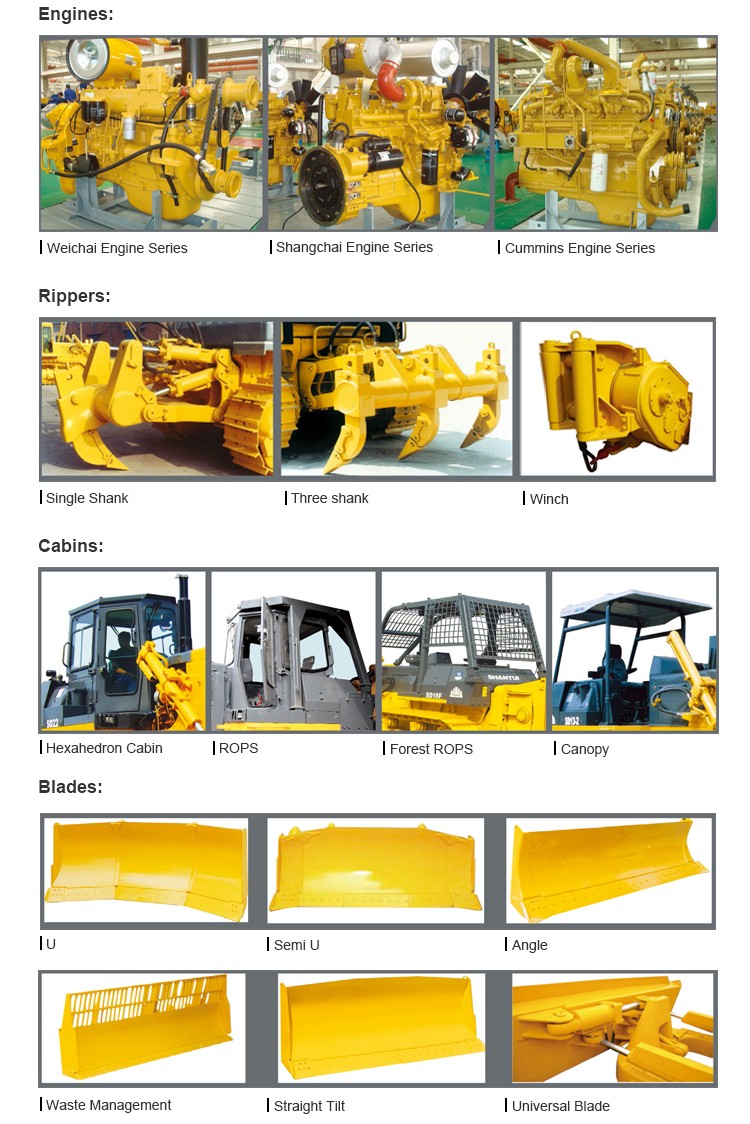

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.



Hydraulic shandong bulldozer with high efficency



Application



 Pushing,  backfilling and other earthworks.



Hydraulic shandong bulldozer with high efficency



Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Hydraulic shandong bulldozer with high efficency

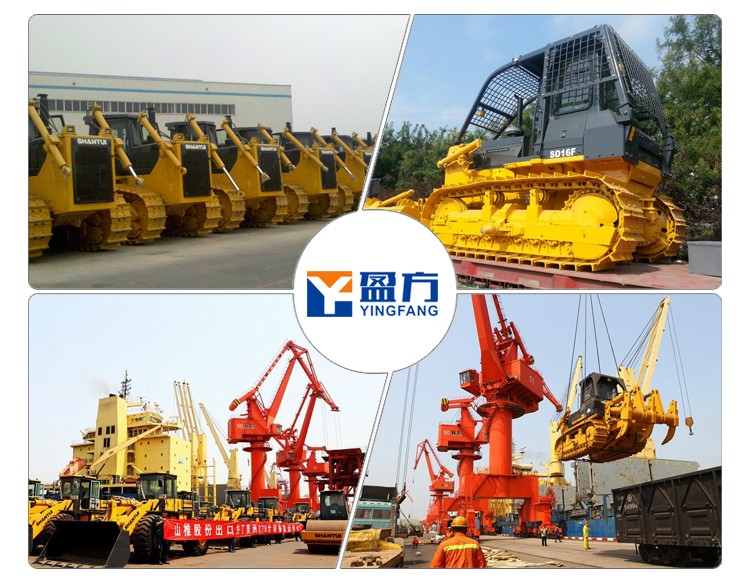

Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.



Hydraulic shandong bulldozer with high efficency

Company Information

Hydraulic shandong bulldozer with high efficency



Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!



Hydraulic shandong bulldozer with high efficencyHydraulic shandong bulldozer with high efficency


Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
