Light Steel Keel Roll Forming Making Machine

Payment Terms: TT or LC

Ref Price : US $8,000-12,000 / Set

Supply Capability : 30 Set/Sets per Month Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

Quick Details

  • Type:

  • Steel Frame & Purlin Machine

  • Condition:

  • New

  • Work Pressure:

  • Normal Pressures

  • Production Capacity:

  • 30-40M/MIN

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QIANJIN

  • Model Number:

  • C75

  • Voltage:

  • 380V/50HZ 3Phase(as Customer's Request)

  • Power(W):

  • 5.5kw

  • Dimension(L*W*H):

  • 4500*900*1100mm

  • Weight:

  • 3 Tons

  • Certification:

  • CE/ISO9001

  • Warranty:

  • 18 Months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Control system:

  • Delta

  • Decoiler:

  • 1.5t Manual Decoiler

  • Product name:

  • Stud Track Roll Forming Machine

  • Usage:

  • Steel Structure

  • Cutting blade material:

  • Cr12 Mov

  • Roller Material:

  • Cr12

  • Color:

  • Grey

  • Shaft material:

  • High Grade No.45 Steel

  • Transmission:

  • Gear

  • Driving:

  • Electrical motor

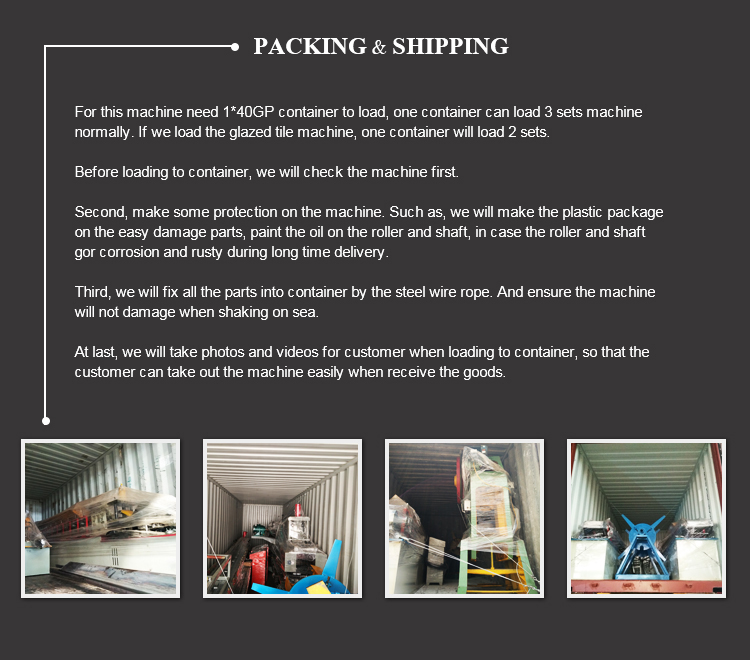

Packaging & Delivery

  • Packaging Details

  • Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine :
    Main body is packed by plastic film and fixed well by wire rope in container, rollers are painted by rust oil. Spare parts are packed by carton box

  • Delivery Time

  • 45 days after receive advance payment

Light Steel Keel Roll Forming Making Machine



Product Description

The finished product of roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

Light Steel Keel Roll Forming Making Machine





No.



Light Steel Keel Roll Forming Making Machine

1

Suitable material

PPGI/Aluminium sheet/galvanized sheet/various sheet plates

2

Thickness of coil sheet

0.2-0.6mm

3

Usage

Light steel keel

4

Effective width

75mm

5

Material of main frame

600H steel

6

Diameter of Soild shaft

70mm, high grade 45# steel

7

Roller

High grade 45# steel, quenched and tempered treatment,

hard chrome plated 0.05-0.07mm

8

Thickness of middle plate

16mm, 45# steel plate

9

Forming station

14rows

10

Drive type

By chain(1.0 inch), link bearing model 6210

11

Power of main motor

5.5 kw, Lichao, Shanghai, with reducer

12

Sidewall connection bar

25mm, zinc plated

13

Forming speed

About 12-18m/min

14

Hydraulic pump station

4.0 kw, 40# hydraulic oil

15

PLC

DELTA(TAIWAN)/Mitsubishi

16

Material of razor blades

Cr 12, quenching 58-62

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

18

Switch

CHNT

19

Frequency changer

SAJ

Our Services

Item Name Qty
1 Manual Decoiler 1
2 Feeding platform with hand cutting system 1
3 Main forming system 1
4 Hydraulic cutting system 1
5 Hydraulic pump station 1
6 Electrical motor 1
7 PLC control system 1
8 Touch screen operation 1
9 Finished products receive table 1
10 Safety shield(optional) 1



Product Overviews


Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine(Feeding platform)Light Steel Keel Roll Forming Making Machine

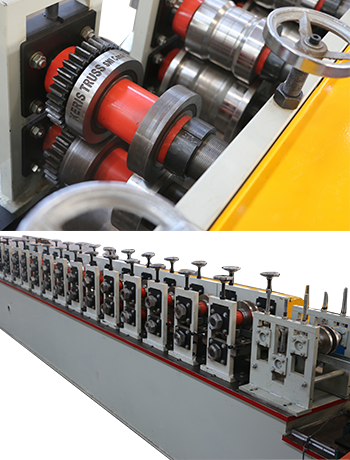

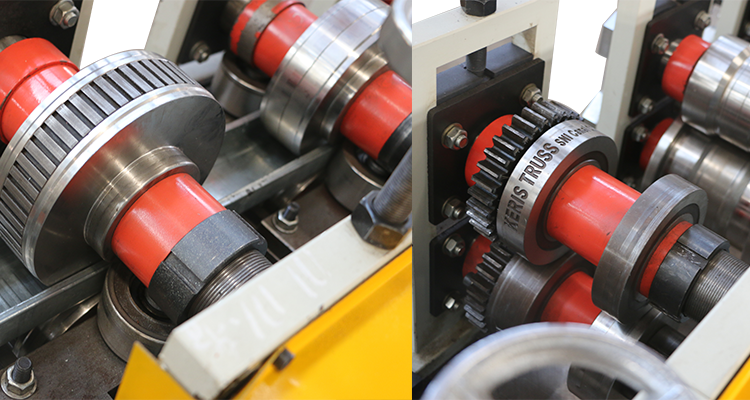

Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine(roll forming system)

Roller station

12 Steps+3Straighting rollers

Light Steel Keel Roll Forming Making Machine

Shaft Diameter

50mm-0.01mm with Key-way

Roller Material

Cr12 with key-way

Heat Treatment

Vacuum quenching upto hardness 58

Fine Machining

CNC Lathe after vacuum quenching

Machine Structure

5mm under-frame and 20mm worktable

Motor Power

5.5KW with PM250(or K-type )Reducer

Transmission Method

All gear with high frequency quenching

Memorial Gateway

25mm thickness A3 Plate

Gateway Process

Square side with fly edge machine

Production Speed

30-40m/min


























Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine(hydraulic cutting system)

Cutting Method

Full-auto hydraulic servo-tracking cutting

Light Steel Keel Roll Forming Making Machine

Hydraulic System

5.5KW(if hot-weather with water-cooling)

 Speed Adjustment

Frequency Changer Control

Cutter Material

Cr12Mov

Cutter Processing

electric spark,polishing machine and wire-electrode cuttingafter heat-treatment

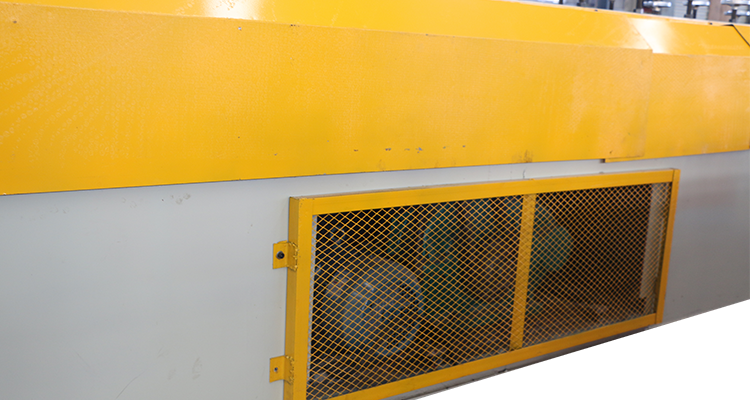

Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine(hidden driving motor)

Light Steel Keel Roll Forming Making Machine

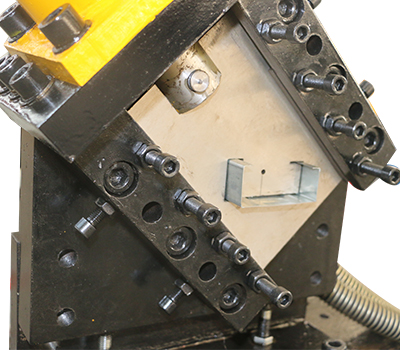

Gypsum Drywall Profile Metal Stud And Track Roll Forming Machine(embossing and stamping)

Light Steel Keel Roll Forming Making Machine

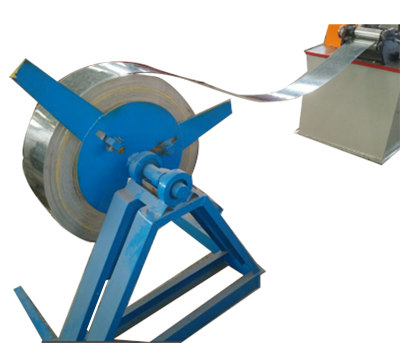

 Manual Decoiler(1.5T)



 Light Steel Keel Roll Forming Making Machine

Un-coiler Type

Manual Operation

Loading Capacity

Max 1500KG

Inner Coil Diameter

460-510mm

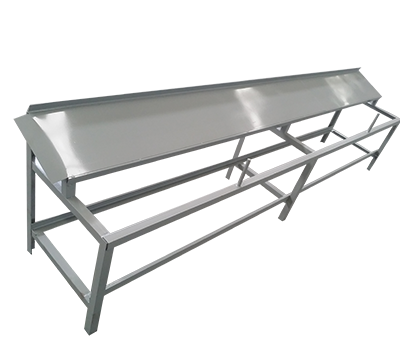

 Receiving Table(3M)

Light Steel Keel Roll Forming Making Machine

Total Length

3000mm

Frame Structure

Angle Steel with Metal Plate

Function

Let the finished production freely



 Light Steel Keel Roll Forming Making Machine

Spare Part

Light Steel Keel Roll Forming Making Machine

PARAMETER & SPECIFIC

Light Steel Keel Roll Forming Making Machine

Certifications

International Certification: CE, ISO 9001, BV. Please kindly check our business license for your confirmation.

Light Steel Keel Roll Forming Making Machine



Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
