Shandong Mountain Raise Heavy Industry Machinery Co Ltd

Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices

Payment Terms: TT or LC

Ref Price : USD35500-37500

Supply Capability : 150unit/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

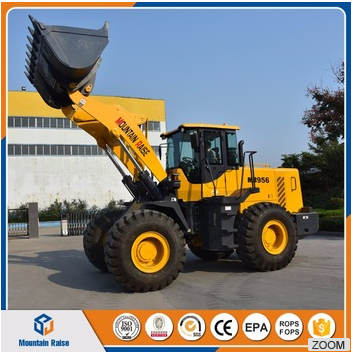

Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices



Quick Details

Condition:New                                                                                               Brand Name: MOUNTAIN RAISE

Model Number:MR956                                                                                Place of Origin:Shandong, China  (Mainland)

Type:Front Loader                                                                                          Moving Type:Wheel Loader

Dimension(Long * Breadth * High):7720x3030x3378mm                             Rated Load:5000kg

Certification: ISO9001 CE                                                                               Warranty:1000 Working Hours or a year,Whichever comes first, 1year

After-sales Service Provided: Overseas service center available                   Operating weight:16700kg

Product name:Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices                            Engine:WEICHAI STEYR

Rated Power:162KW                                                                                       Bucket capacity:3.0 cbm

Tire:23.5-25                                                                                                    Transmission:Automatic

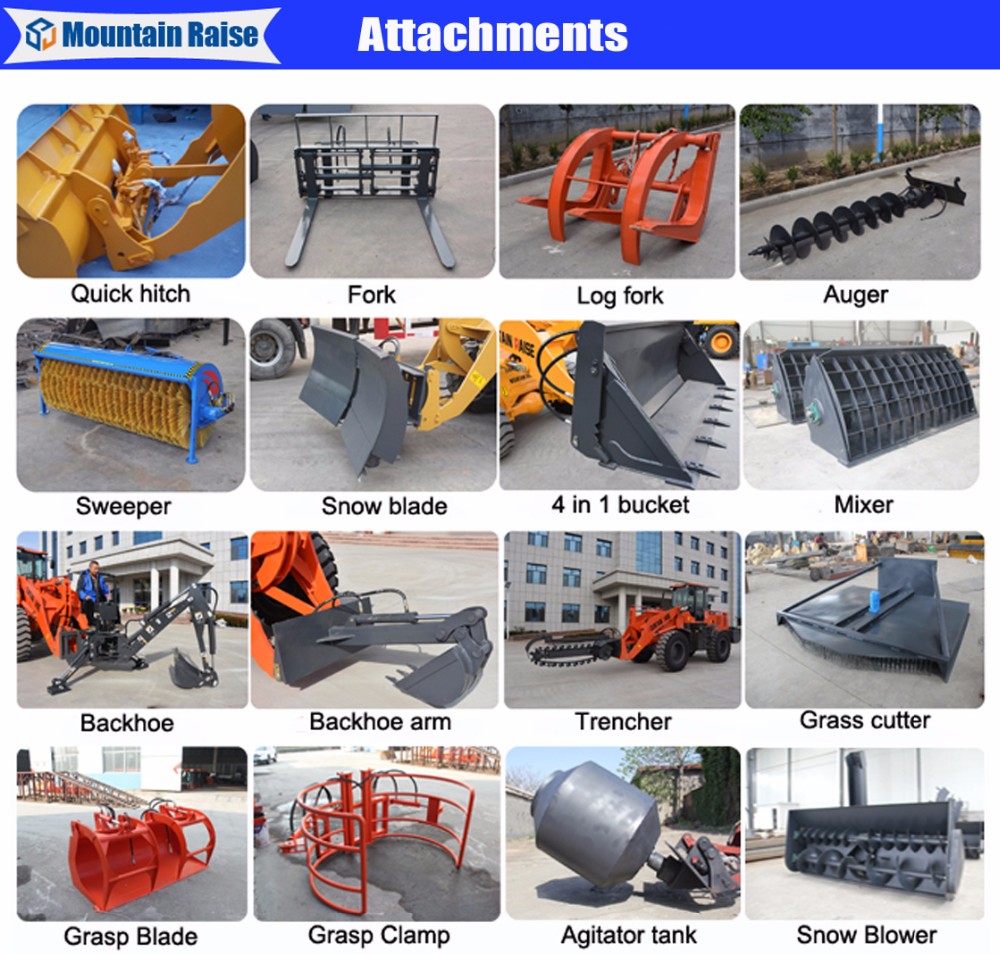

Attachments:Snow blower, wood grapple,fork                                             Model:Heavy duty 5ton              Drive Mode:4-wheel Drive


Packaging & Delivery

Packaging Details:1 set in r1* 40HQ container

Delivery Time:Shipped in 10 days after payment




About products

Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices



Product Description

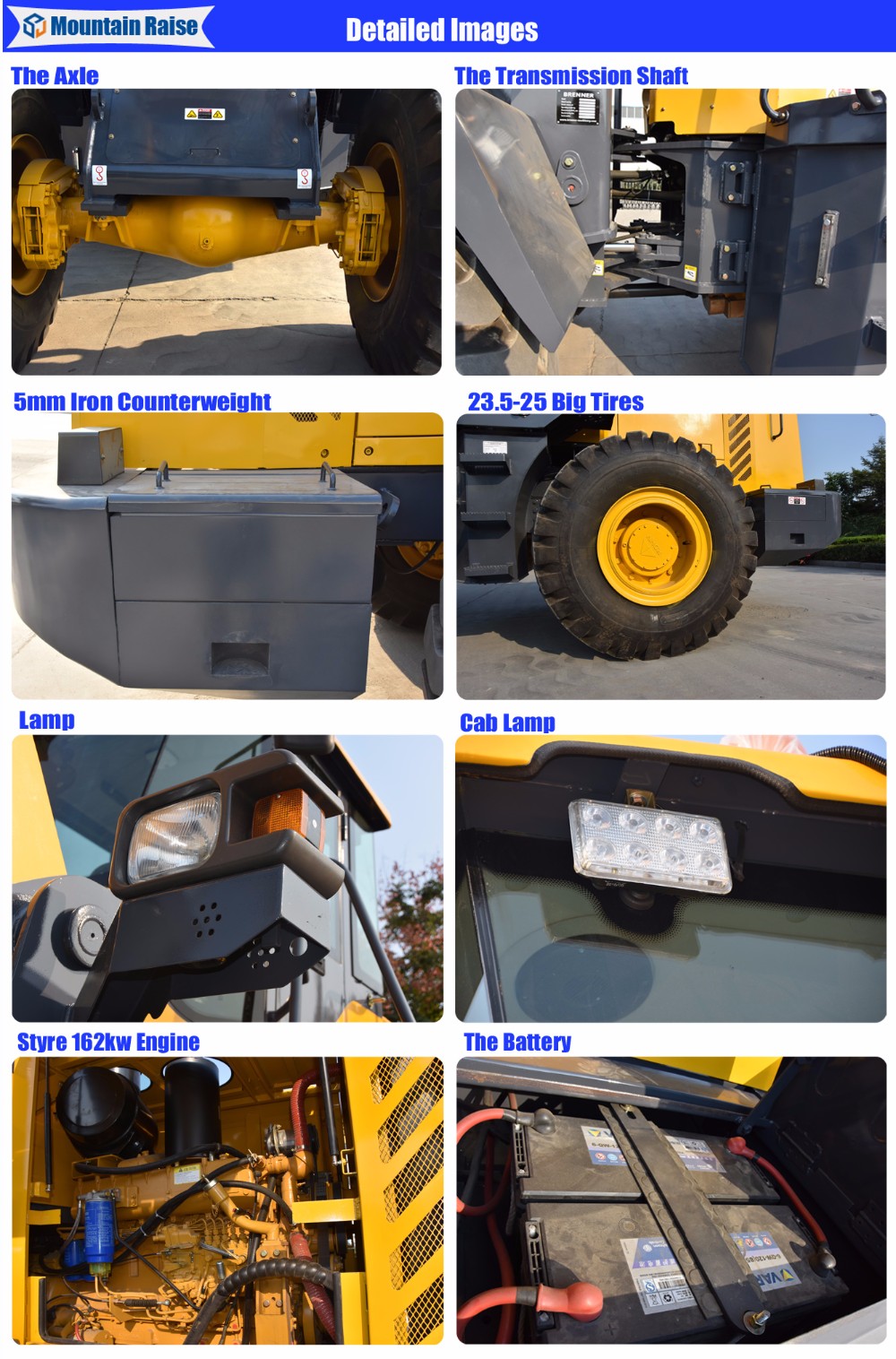

1. Standard Equipment



With WEICHAI STRYE 162kw high torque ,low consumption engine engine, 4wheel drive for loader, make

operating easily. High-pressure standard 23.5-25 tires,3.0cbm big capacity bucket. Full hydraulic system

for our loaders, and hydraulic steering wheels can improve the efficiency of the whole machine.



2. Main features of our 5 ton wheel loader

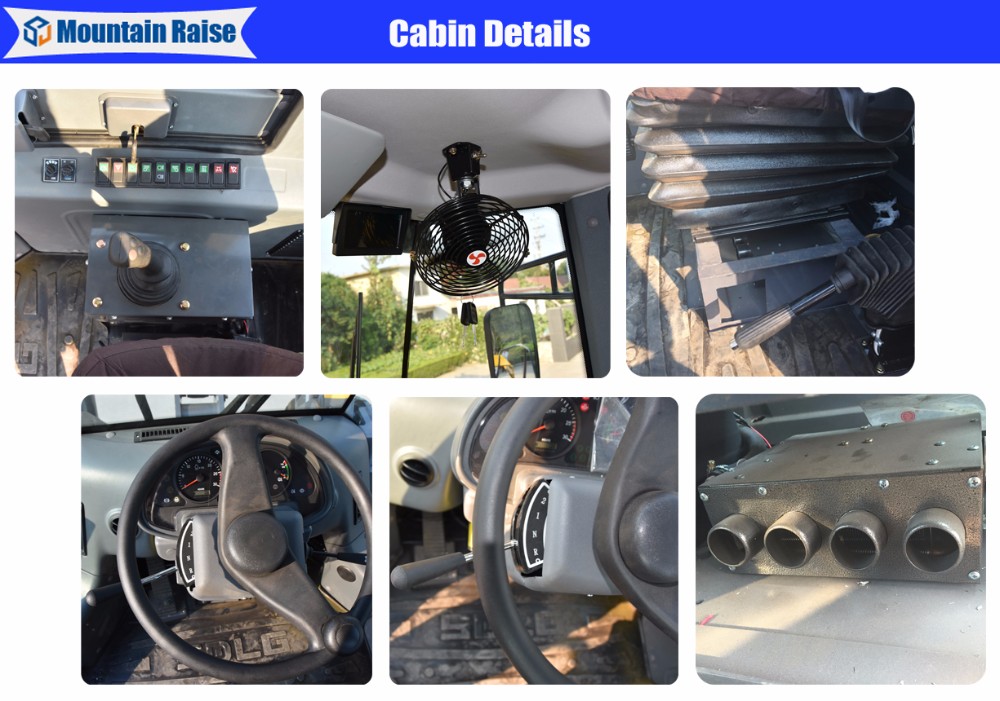

The full hydraulic pilot control ,light and flexible ,micro-excellentresults. Super space cab manufactured by

the German professional and technical springdamping qulity sofa,comfortable and safe operating!

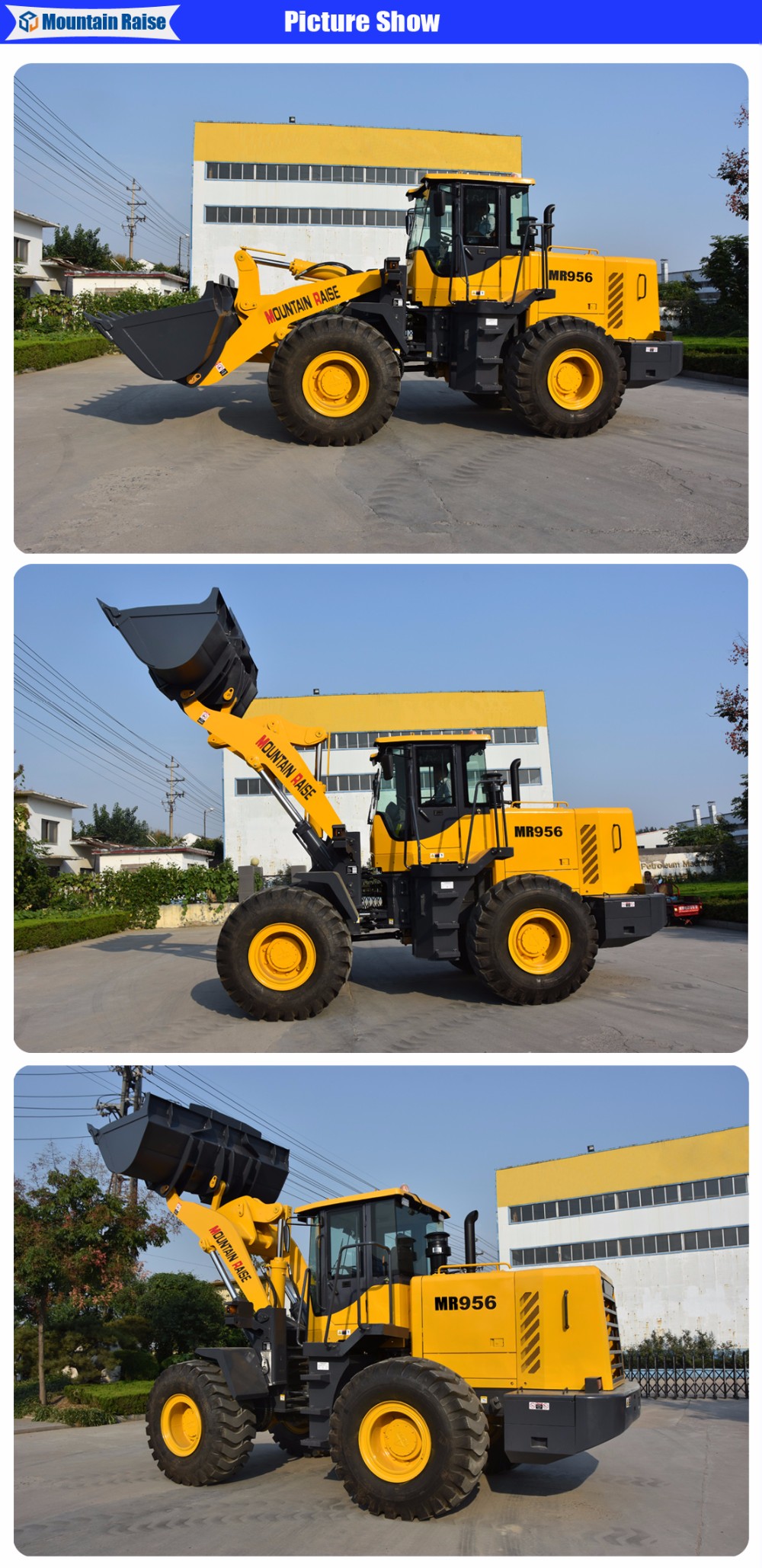

Mountain Raise 5t Wheel Loader MR965
Mian parameters

Bucket Capacity

3.0cbm
Rated load 5000kg
Operating weight 16700kg
Dimension L*W*H 7720x3030x3378mm

Wheelbase

2920mm
Tread 2200mm

Max. Breakout Force

≥160KN

Max. Dumping Height

3050mm

Dump Distance

1148mm

Total Time

11s
Engine Model

WEICHAI STEYR WD10G220E21

Pattern

Turbocharger, inline, water-cooled,4-stroke , direct injection

Rated Power/Speed

162kw/2200rpm

Max Torque

920N.m

Torque Converter and Transmission System

Model of Torque Converter

4WY335

Pattern

4-element, single stage two phase

Transmission Type

Planetary-structure power control type

Number of Gear

2 Forward, 1 Reverse

Max. Travel Speed

38km/h

Axle



Brand

Meritor

Main Reducer Pattern

Spiral bevel gear first reduction

Pattern of wheelside moderation

Single stage planetary

Tire

 Tire size   23.5-25
 Steering System

Pattern



Full hydraulic loading-sensing steering system



Max. Turning radius(outside of bucket)



6888mm

Max. Turning Angle  35°
 Hydraulic System

Model

CBGJ3166
Displacement   360L/min
System working Pressure 18Mpa

Distribution Device Model

DF32.2
Brake System Service Brake

Air assisted oil disc on four wheel

Parking Brake

Soft control, disc type





Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices

Loading Equipment 956 Chinese Front End Wheel Loader with Competitive PricesLoading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices





Loading Equipment 956 Chinese Front End Wheel Loader with Competitive PricesLoading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices

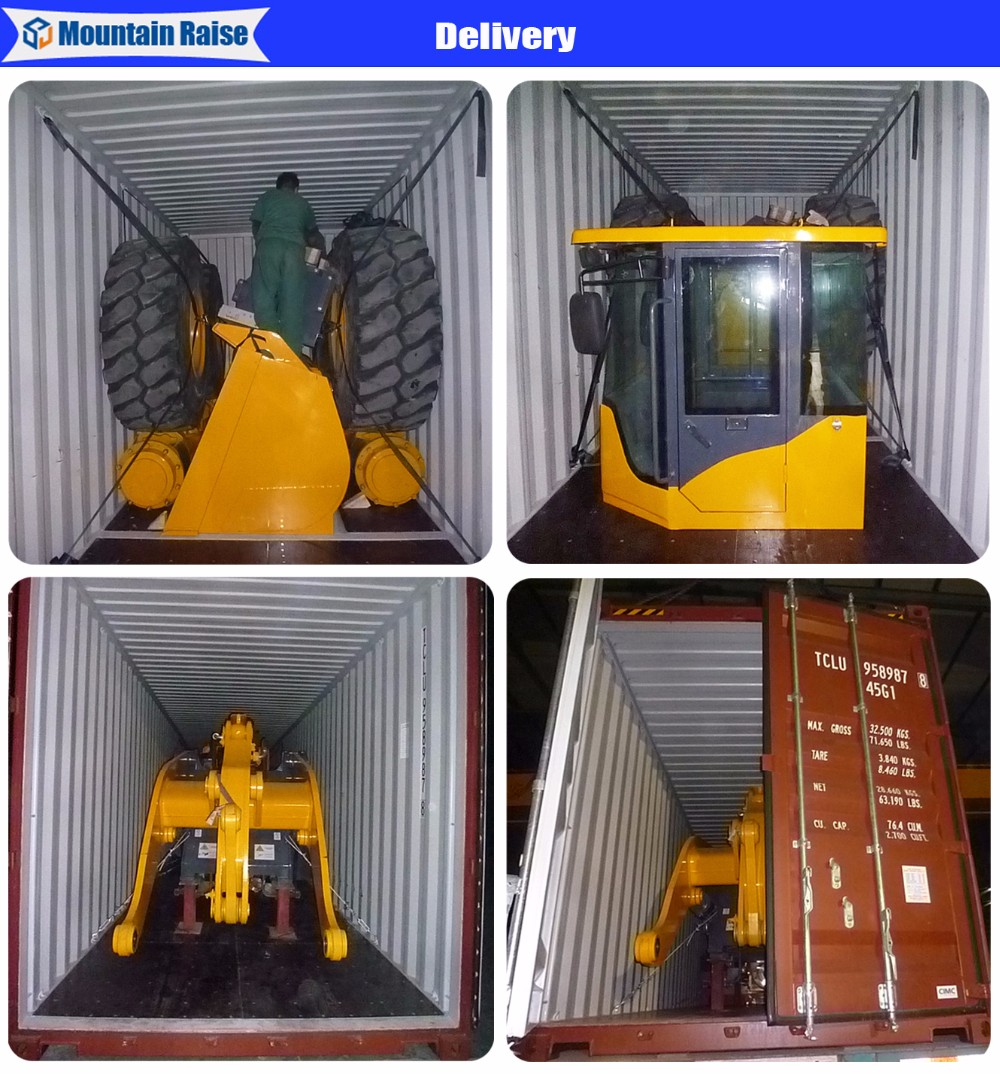

Packaging & Shipping



Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices

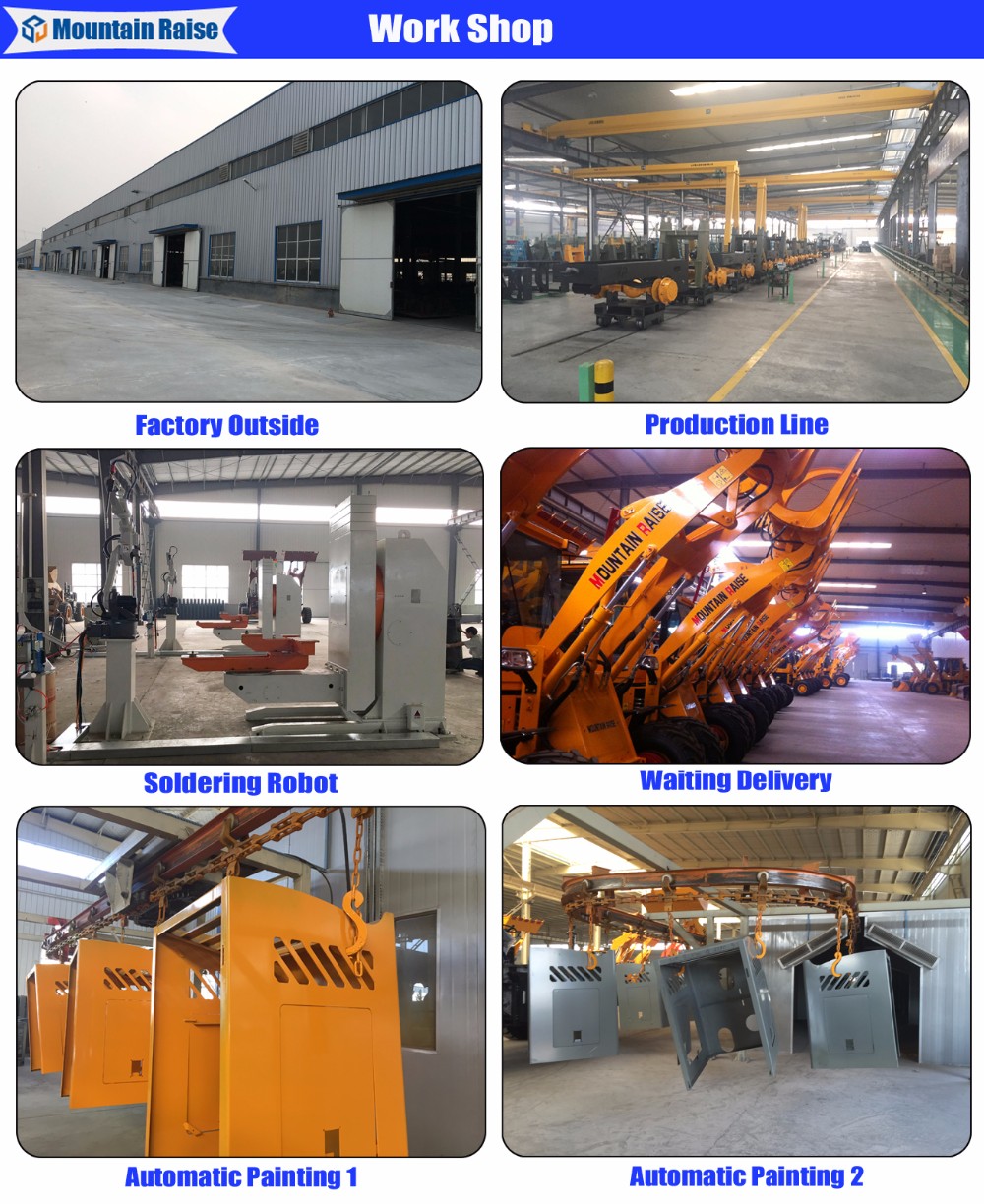

About our factory



Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices

Our Services

Loading Equipment 956 Chinese Front End Wheel Loader with Competitive Prices



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

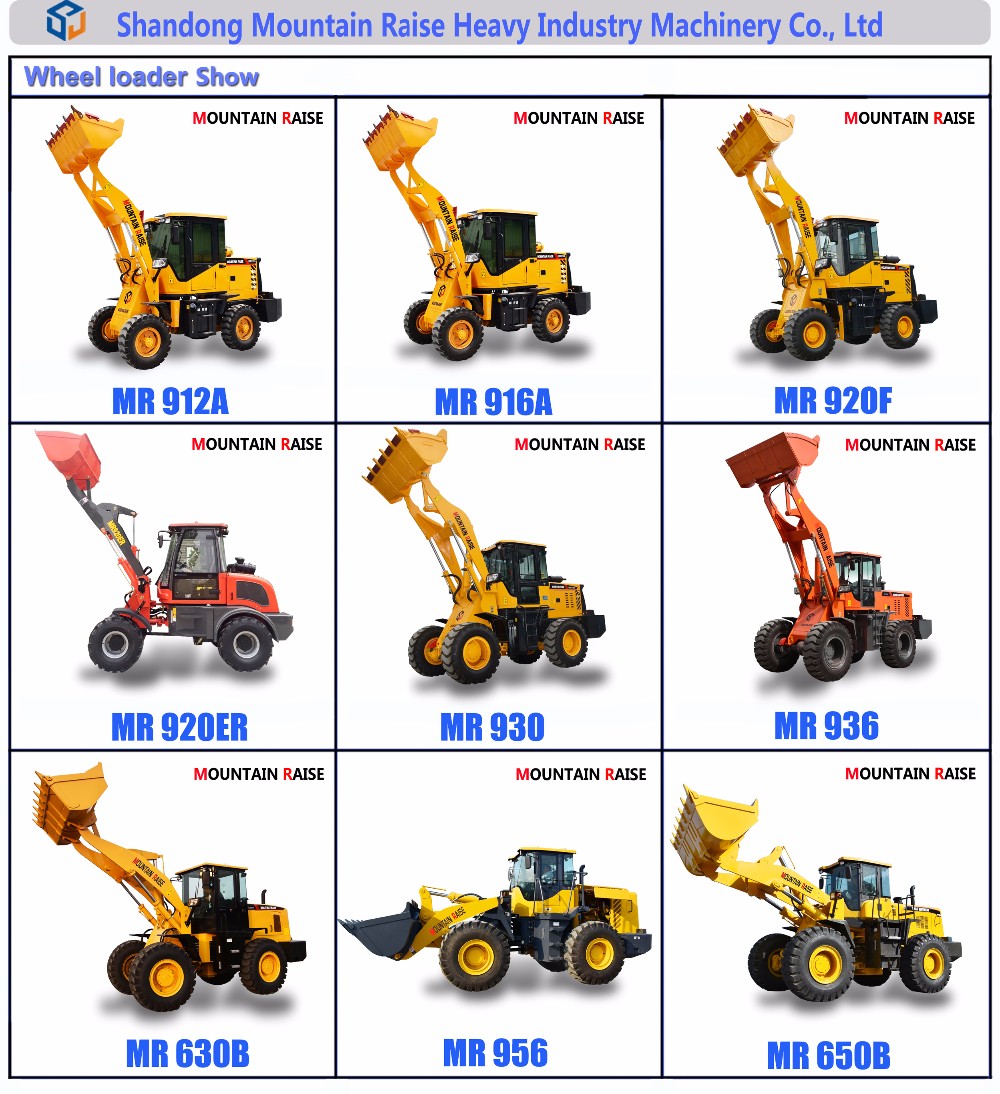

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
