Shandong Mountain Raise Heavy Industry Machinery Co Ltd

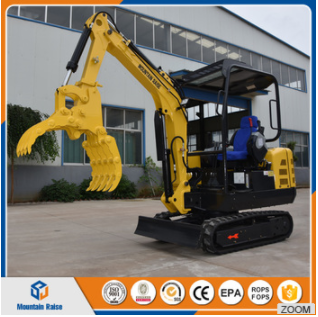

MR8022 China crawler excavator 2.2ton small mini excavator with low price

Payment Terms: TT or LC

Ref Price : USD12000-15000

Supply Capability : 50SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

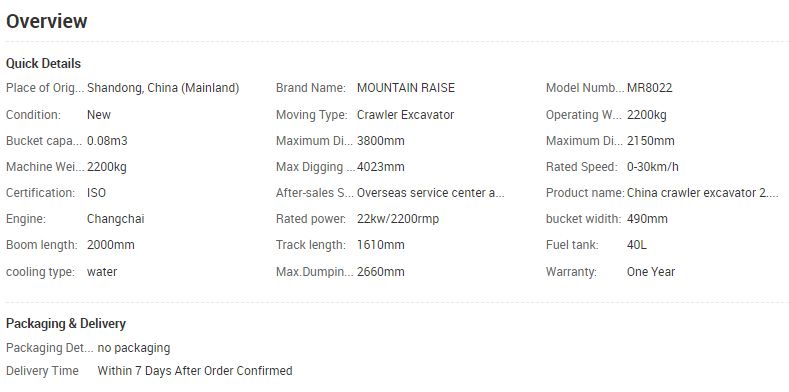

Qulck Details





Product Description

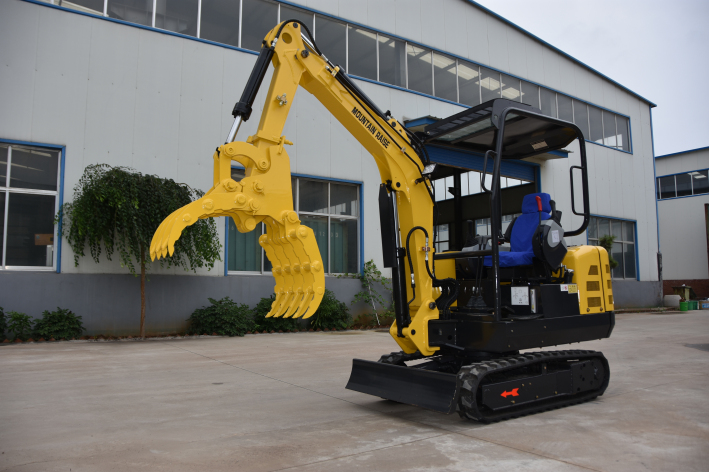

China crawler excavator 2.2ton small mini excavator with low price

            China crawler excavator 2.2ton small mini excavator with low price

SPECIFICATIONS OF MINI EXCAVATOR



Model

MR8022

Operating Weight

2200kg

Digging bucket capacity

0.08m3

Digging bucket width

490mm

Engine


Engine

CHANGCHAI - ZN390Q

Rated power

20kw/2200rpm

Displacement

1.813L

Cylinders

3

Bore X Stroke

90*95mm

Cooling type

Water

Hydraulic System


Main pump

single cylinder

Rated Pressure

25/31.5 MPa

Fuel Tank Capacity

40L

Hydraulic oil tank

60L

Overrall dimensions

Overall dimension( LxWxH)

4090*1200*2310mm

Track Gauge

950 mm

Counterweight ground clearance

460mm

Track grounding length

1250 mm

Total track length

1610 mm

Track show width

230 mm

Total Track width

1200mm

Min ground clearance

190 mm

Overall range

Max. Digging depth

2150 mm

Max. digging radius

4095 mm

Max. Digging height

3800 mm

Max. Dumping height

2660 mm



China crawler excavator 2.2ton small mini excavator with low price

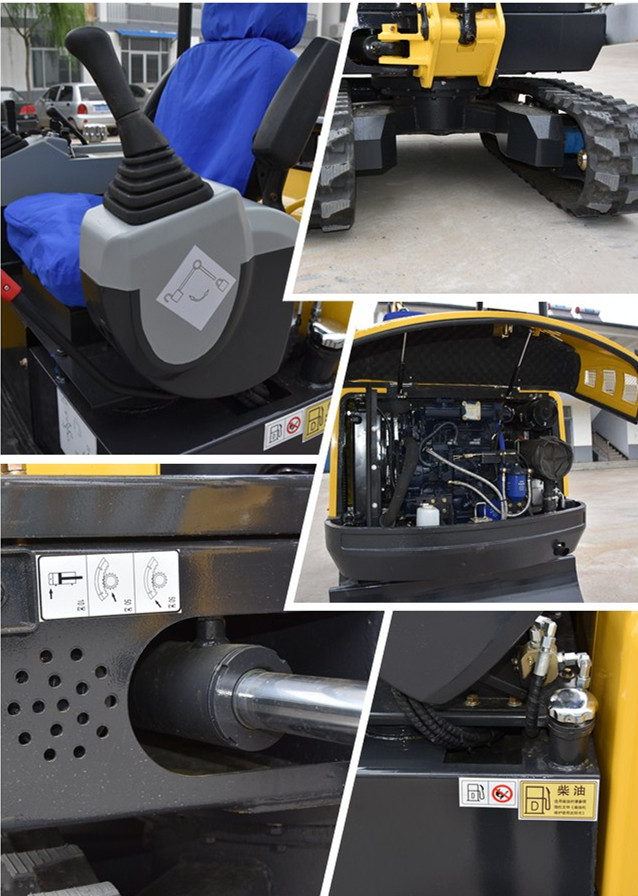

Detailed Images

China crawler excavator 2.2ton small mini excavator with low priceChina crawler excavator 2.2ton small mini excavator with low price

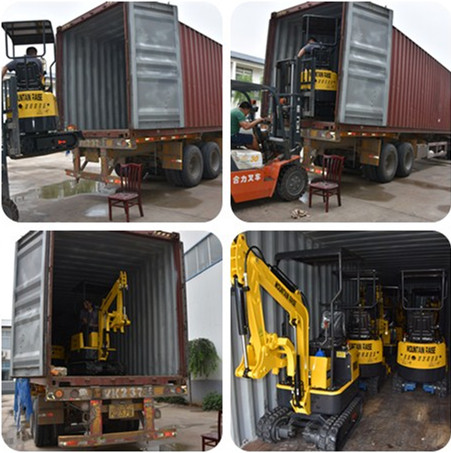

Packaging & Shipping

China crawler excavator 2.2ton small mini excavator with low priceChina crawler excavator 2.2ton small mini excavator with low price

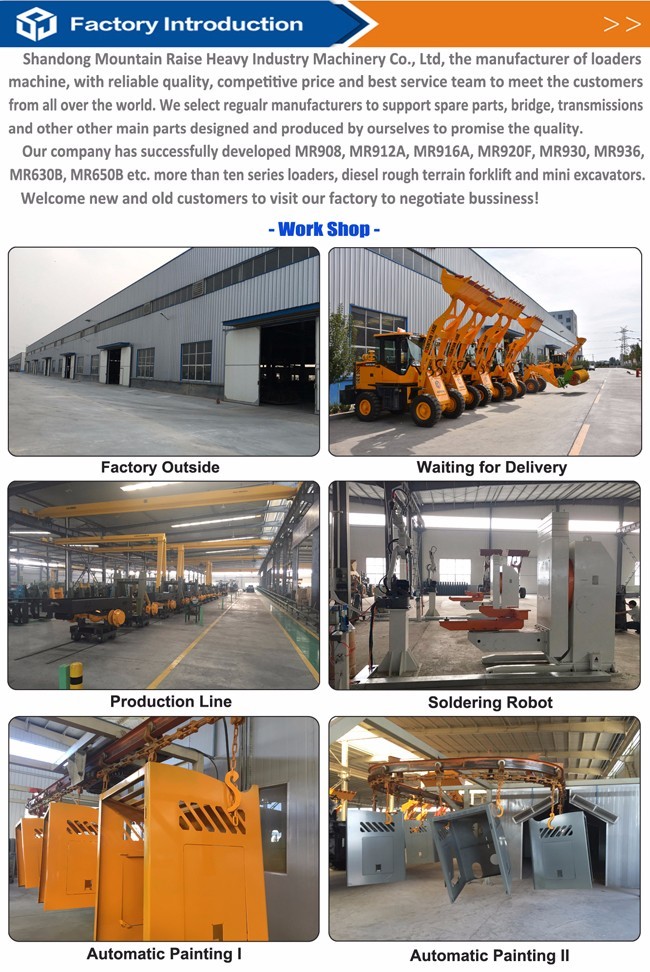

Company Information



dChina crawler excavator 2.2ton small mini excavator with low price



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
