Shandong Mountain Raise Heavy Industry Machinery Co Ltd

Manual Forklift CPCY35 Offroad All Terrain Forklift Truck

Payment Terms: TT or LC

Ref Price : 11500-15500 USD/PIECE

Supply Capability : 50 PIECE

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Place of Origin:
    Shandong, China
  • Brand Name:
    Mountain Raise
  • Model Number:
    Mr35R
  • Type Number:
    powerd pallet Truck
  • Rated loading:
    3500kg
  • Maxing lifting:
    5051mm
  • Min Lifting:
    200mm
  • Fork Length:
    1400mm
  • Fork width:
    100mm
  • certification:
    CE/ISO9001
  • Deadweight:
    4057kg
  • Maxing Lifting:
    425.5mm/s





 Manual Forklift CPCY35 Offroad All Terrain Forklift Truck




Product Description

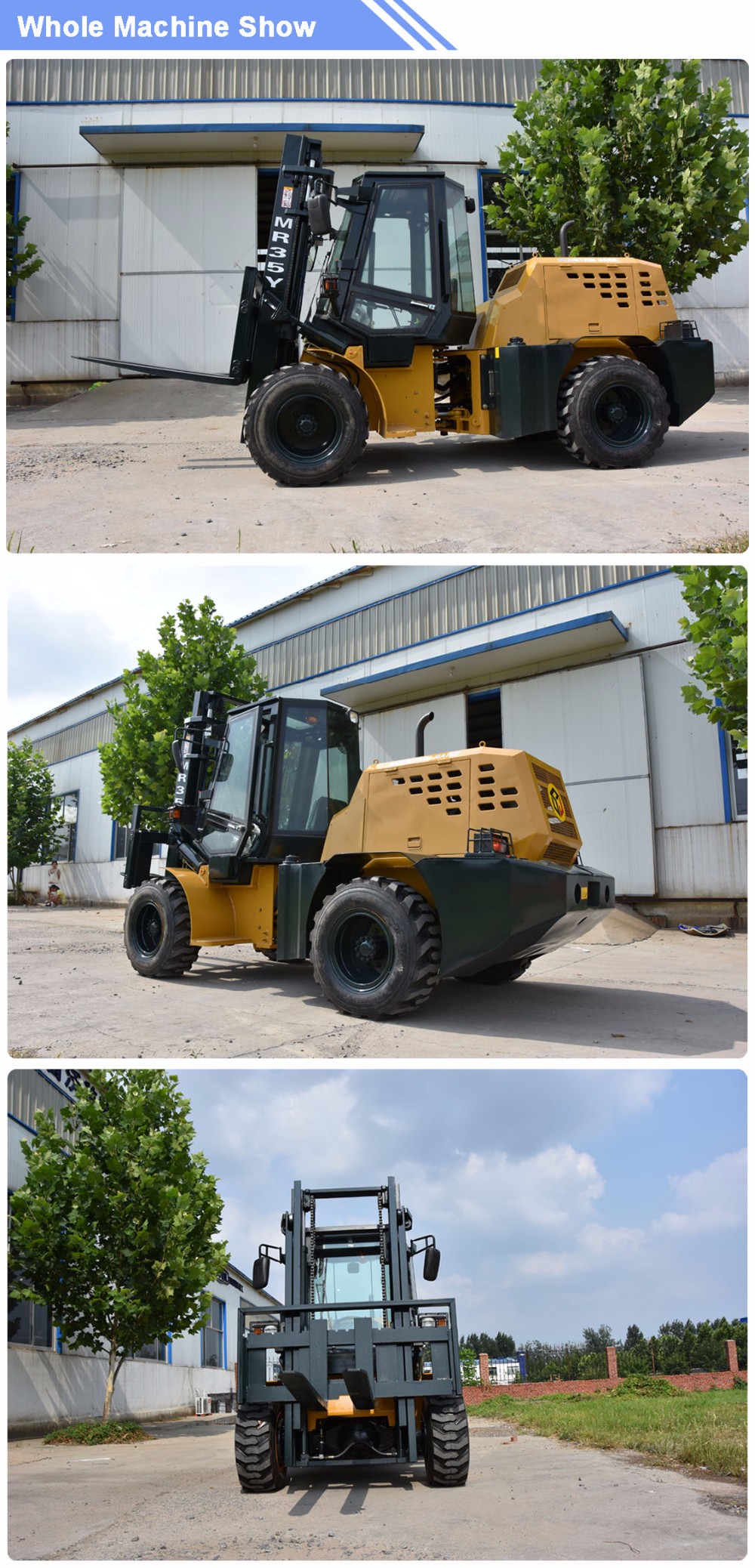

Mountain Raise All Terrain Forklift Truck MR35Y.

Rough terrain forklift MR35Y,rated load 3500kg,with 1400mm length fork, with Xinchai 490 40kw engine,

and Xinchai 498 Euro III 36.8kw engine for option, that can reduce noise and emission. Lifting height 3m,

4m and 4.5m to meet different requirements!



SPECIFICATIONS OF ROUGH TERRAIN FORKLIFT
Rated Capacity 3500kg
Load center distance 500mm
Max. Lifting Height 4000mm
Freedom Lifting Height 150mm
Portal frame inclination front/rear 6o/12o
Max. Running speed 37km/h
Max.lifting speed  425.5mm/s
Max. traction force (full load) 28kN
Max.gradeability (full load) 20%
Max.truning radius 4760mm
Length                              Without fork 3655mm
                                         With fork 5055mm
Width                                                        1725mm
Portal frame height 2120mm
Cabin height 2170mm
Max. lifting height 5150mm
Min. Ground  Clearance 200mm
Deadweight 4750kg
Wheel base 2080mm
Front Tread 1170mm
Rear Tread 1170mm
Front Overhang 530mm



Manual Forklift CPCY35 Offroad All Terrain Forklift Truck

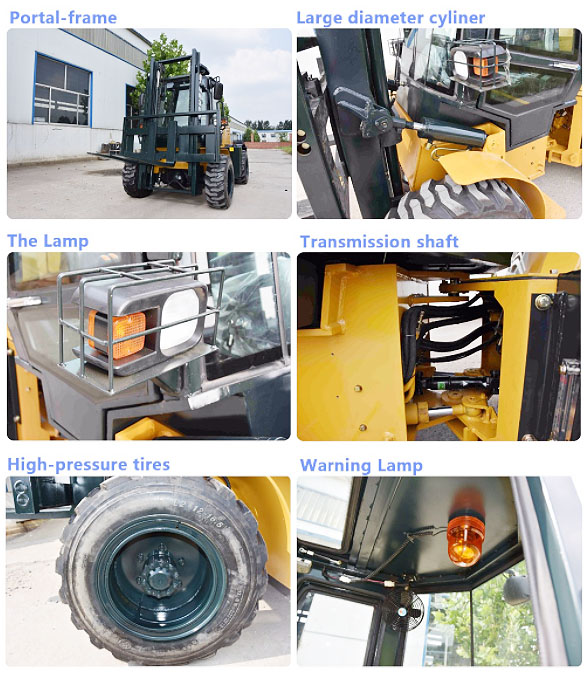

Features of the 3 ton rough terrain forklift

- WIth full hydraulic mechanic automatic transmission , steering system make the forklift more flexible.

- Double-axle 4 wheel drive,improved safety and stability of the machine. And articulated body design,

reduce the turning radius.The driver can get a more comfortable drive environments and more relax .

- Factory directly sales to buyers, high quality and reasonable price  to meet customers' requirements!

- It's suitable to operate on soft soils ,grass, terrain ,mud and many other rugged surfaces.



Certifications



Manual Forklift CPCY35 Offroad All Terrain Forklift Truck





Packaging and Shipping

Packing in Container

1 set in 1 20'GP_Container; 3 sets in 1 40'HC_Container; Remove the tires or cabin both can accept !











Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
