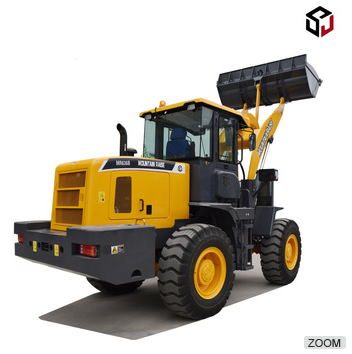

Mountain Raise Manufacturer 636 zl30 Wheel Loader

Payment Terms: TT or LC

Ref Price : USD23000-26500

Supply Capability : 50SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Mountain Raise Manufacturer 636 zl30 Wheel Loader


Quick Details

Condition:New                                                                                               Brand Name: MOUNTAIN RAISE

Model Number:MR636B                                                                                Place of Origin:Shandong, China  (Mainland)

Type:Front Loader                                                                                          Moving Type:Wheel Loader

Dimension(Long * Breadth * High):7290x2430x3200mm                             Rated Load:3000kg

Certification: ISO9001 CE                                                                               Warranty:2000 Working Hours or a year,Whichever comes first, 1year

After-sales Service Provided: Overseas service center available                   Operating weight:17100kg

Product name:Mountain Raise 636 wheel loader 3tons log loader               Engine:WEICHAI DEUTZ

Rated Power:92KW                                                                                       Bucket capacity:1.7 cbm

Tire:17.5-25                                                                                                    Transmission:Automatic

Attachments:Snow blower, wood grapple,fork                                             Model:Heavy duty 5ton

Tread: 1820mm                                                                                              WHEEL BASE:2740mm

Packaging & Delivery

Packaging Details:1 set in 1* 40HQ container for Mountain Raise Manufacturer 636 zl30 Wheel Loader

Delivery Time:Shipped in 10 days after payment


Mountain Raise Manufacturer 636 zl30 Wheel Loader

Product Description



Performance

Engine

Rated Load

3000kg

Model

Weichai Deutz

Overall Weight

9700kg

Type

Inline water cooling four stroke

Bucket Capacity

1.7cbm

No.of cylinder-bore/stroke

6-108*125mm

Max.Tractive Force

97kN

Rated Power

92kw

Max.Breakout Force

127kN

Max. Torque

500N.m

Max.Dumping height

3320mm

Min.fuel-consume ratio

≤210kw.h

Max. Dumping reach

1260mm

Hydraulic System

Max. Lifting height

4680mm

System working pressure

16.5MPa

Max. Grade ability

30°

Boom Lifting Time

4.83s

Dimensions(L*W*H)

7290*2430*3340mm

Total

9.15s±0.5s

Min. Turning Radius

5097mm

Fuel Tank Capacity

156L

Transmission System

Function of Leveling automatically

yes

Torque Converter

YJ315-X

Gearbox Mode

Power shift enaged straight gear

Brake System

Gears

F4/R2

Service brake

Air over hydraulic disc brake on 4wheels

Max. Speed

40km/h

Drive Axle

Parking brake

Manual disk brake

Main Reducing Spiral

Bevel gear grade I reduction

Tyre

Decelerating Mode

Planetary reduction grade I

Type Specification

17.5-25

Wheel Base

2740mm

Front tyre pressure

0.4mpa

Wheel Tread

1820mm

Rear tyre pressure

0.35mpa

Min.Ground Clearance

400mm

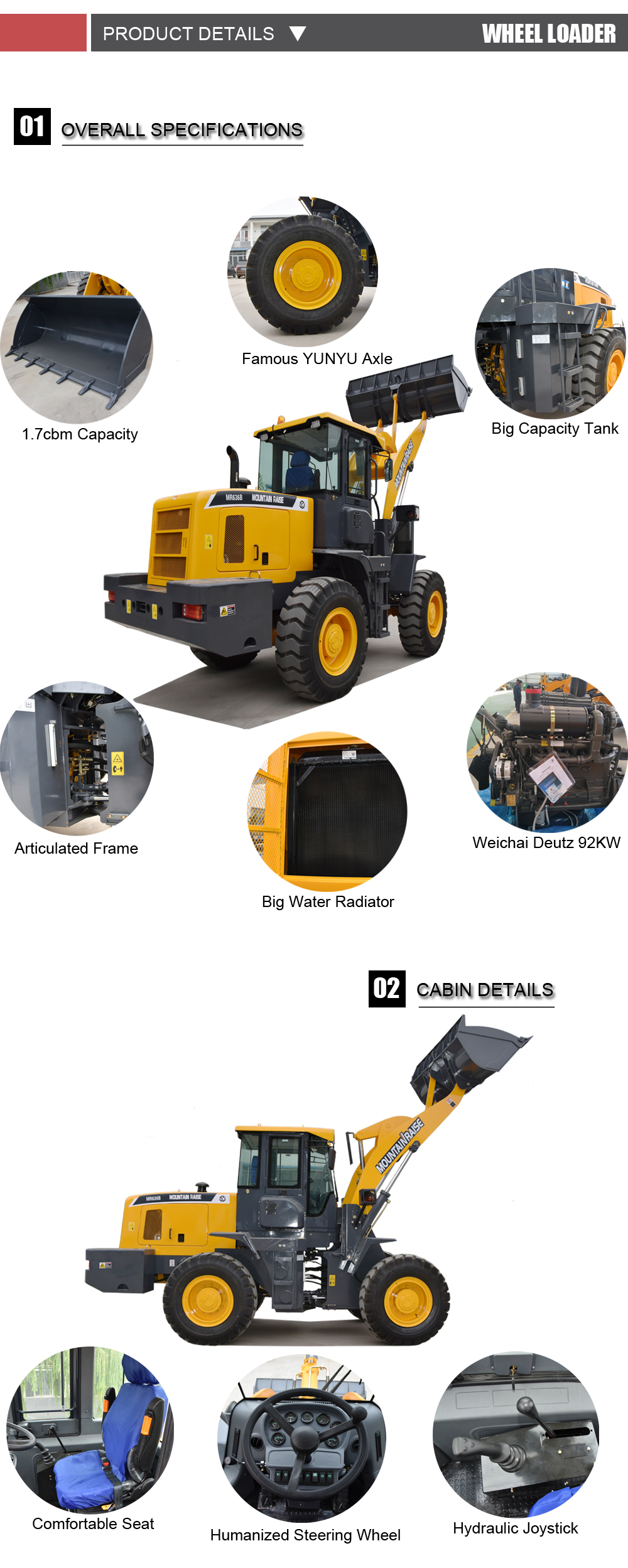

Pictures Show

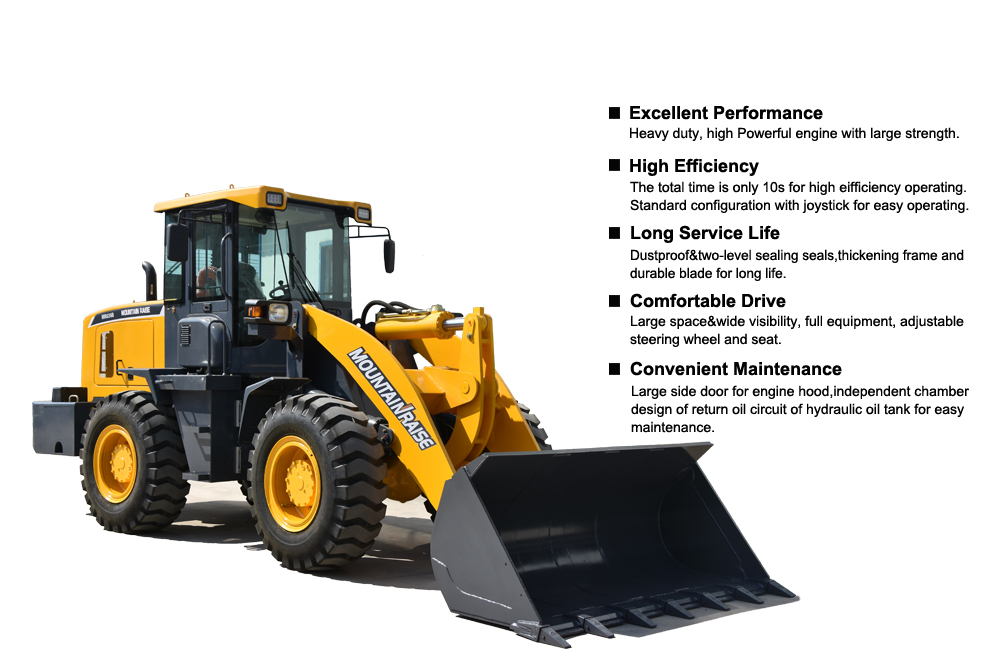

Mountain Raise Manufacturer 636 zl30 Wheel Loader



Mountain Raise Manufacturer 636 zl30 Wheel Loader

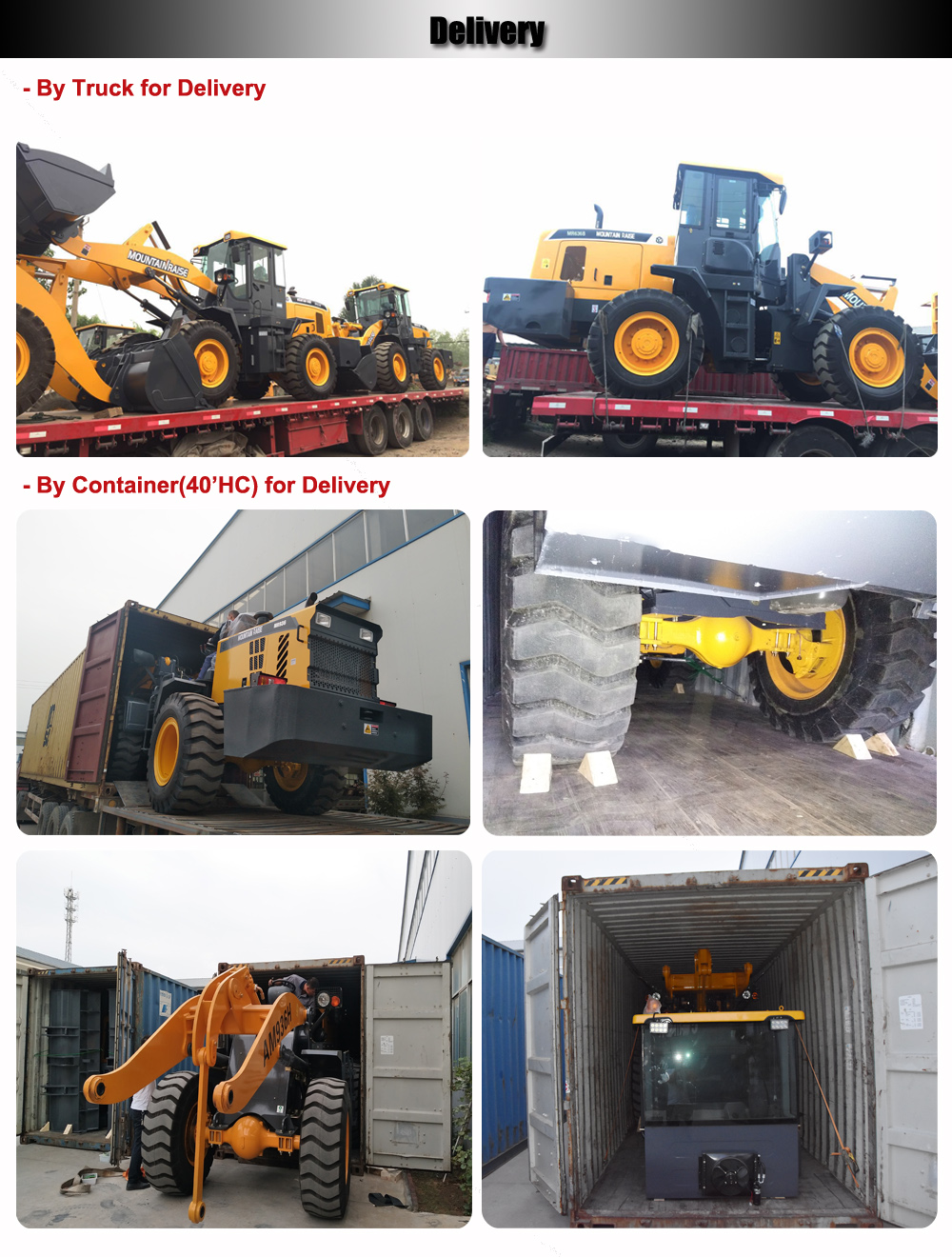

Packaging & Shipping

Mountain Raise Manufacturer 636 zl30 Wheel Loader

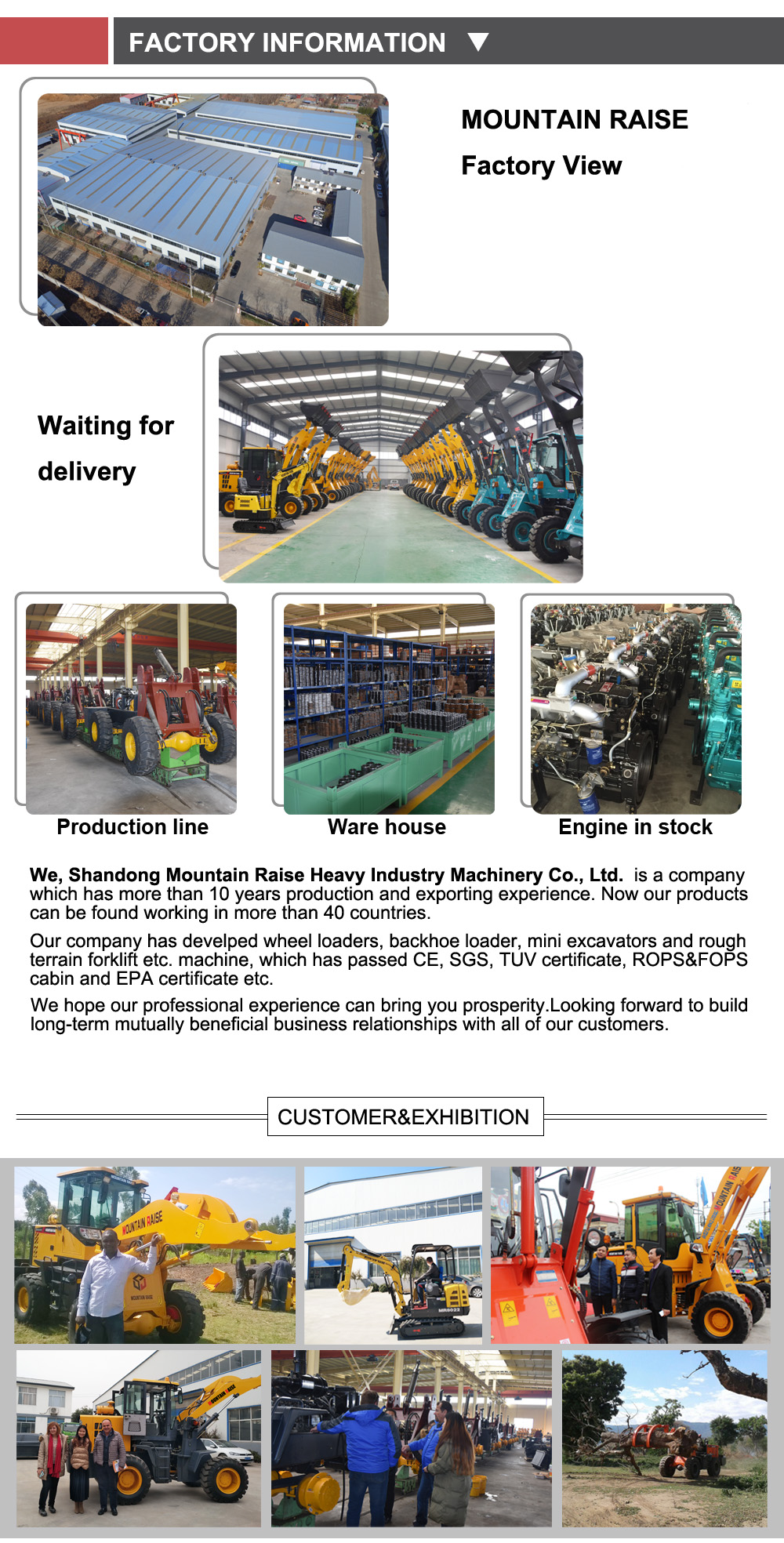

Factory Introduction

Mountain Raise Manufacturer 636 zl30 Wheel Loader

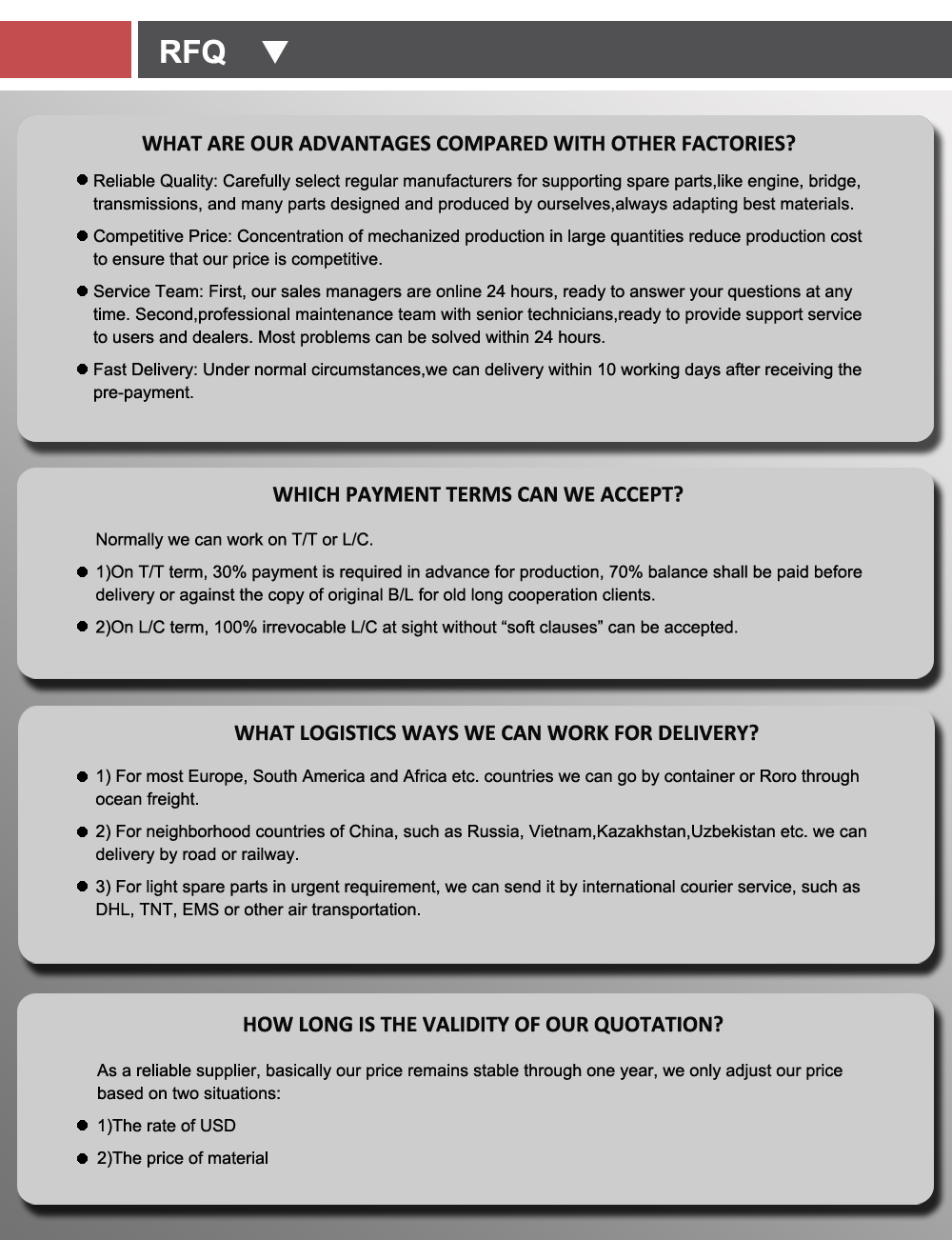

FAQ

 Mountain Raise Manufacturer 636 zl30 Wheel Loader



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
