Overview

Quick Details

Condition:New

Brand Name:MOUNTAIN RAISE

Model Number:MR912A

Place of Origin:Shandong, China (Mainland)

Type:Mini Loader

Moving Type:Wheel Loader

Dimension(Long * Breadth * High):5390*1660*2720mm

Rated Load:1000kg

Certification:ISO9001

Warranty:1000 Working Hours or 6 Months Whichever comes first

After-sales Service Provided:Overseas service center available

Operating weight:3000kg

Bucket capacity:0.45m3

Bucket Width:1575mm

WHEEL BASE:2180mm

Tread:1370mm

Engine model:Hui chai

Engine power:38kw

Tire Size:14/90-16

Gear Speed:F2/R2

Product name:Mountain Raise compact mini wheel loader for construction equipments

Packaging & Delivery

Packaging Details

1 set in 1 20' GP CTN;3 units in 1 40'HQ container

Delivery Time

Shipped in 7 days after payment

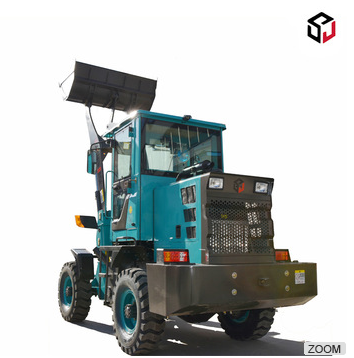

Mountain Raise compact mini wheel loader for construction equipments .

About products



1. Standard Configurations

Mountain raise mini wheel loader MR912A, is one of our mini type loader.It has articulated frame for easy

operating!New design and comdortable roomy space nice view for driver,hydro static transmission for the

transmission system! Total iron engine hood and high quality counterweight improve the stability of whole

machine.

2. Why Choose MOUNTAIN RAISE ?

    >>> Professional wheel loader machine manufacturer.



    -  Ugrading our wheel loader machine always,new design,high performance,reliable quality for loaders.

    -  Full Equipment for the cabin details, fan,heater,air conditioner,radio,comfortable seat,and wide view.

    -  High torque,low consumption,high power and well-know engine, also EPA,EURO-III engine for option.

    -  Hydraulic disk brake on 4 wheels, and manual flexible shaft control disc brake for the brake system.

    -  Full hydraulic system, torque converter for easy and flexible operating, it can provide a super power.



3.  Mini Loader Technical Parameters

Main parameters
Rated load capacity	1000kg
Operating weight	3000kg
Bucket Capacity	0.45m3
Dimensions (L*W*H)	5390*1660*2720mm
Lifting height	4115mm
Dumping height	2970mm
Bucket width	1575mm
Dumping distance	840mm
Engine
Model	Huichai
Rated Power	38kw
Max.Torque	173Nm
Operating Specifications
Max.Drawbar Pull	26kN
Max.Breakout force	24kN
Hydraulic System Pressure	16MPa
Hydraulic Cycle Times	7.6s
Type	Hydro Static Transmission
Steering System
Steering Angle Left/Right	36º±1º
Tires
Size	14/90-16
Type	As your request

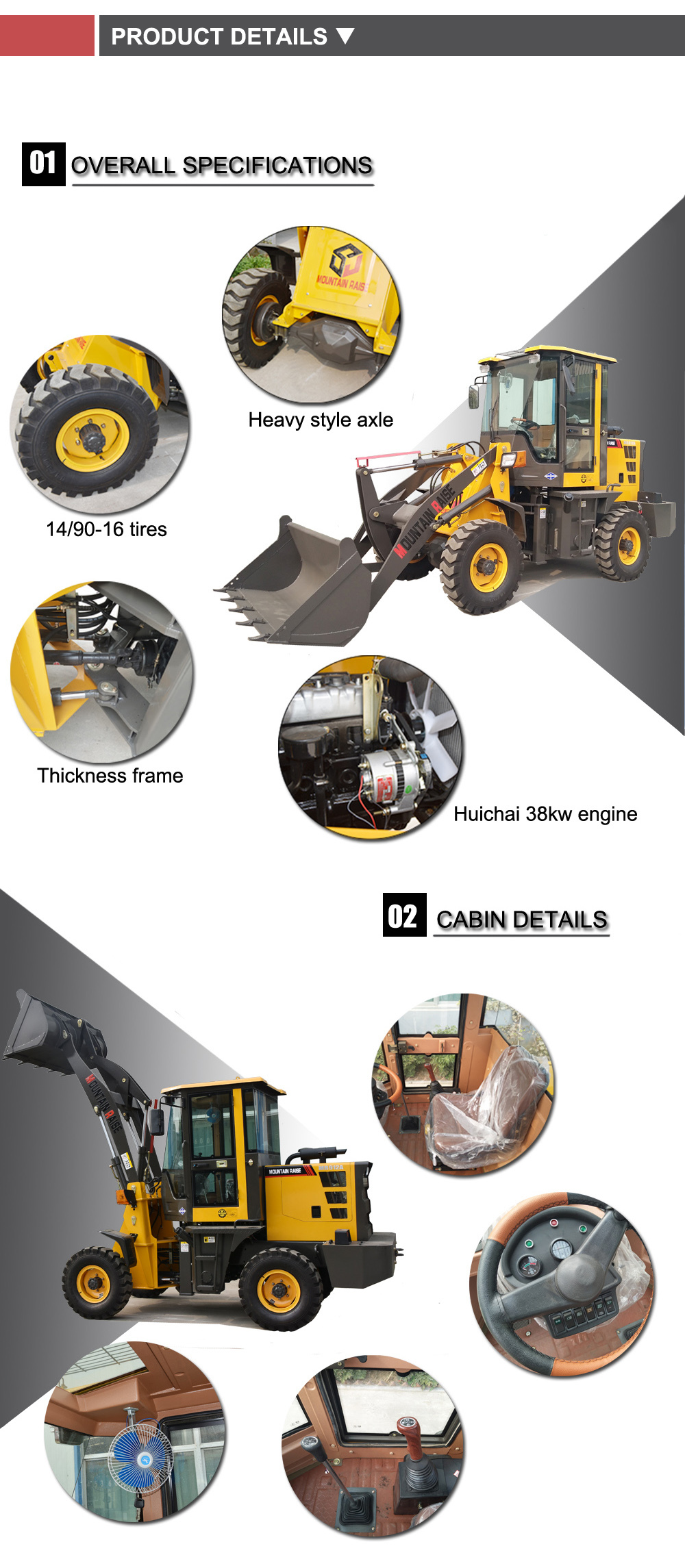

Product Description
